“AR” series variable displacement pump has been developed which the aim of even further the quientness in operation, smaller in size and lighter in mass and based on Yuken technology and engineering which put on market the “A” series pump which has a reputation for its quiet operation and high efficiency.A variable displacement pump is a device that converts mechanical energy to hydraulic (fluid) energy. The displacement, or amount of fluid pumped per revolution of the pumpโs input shaft can be varied while the pump is running.

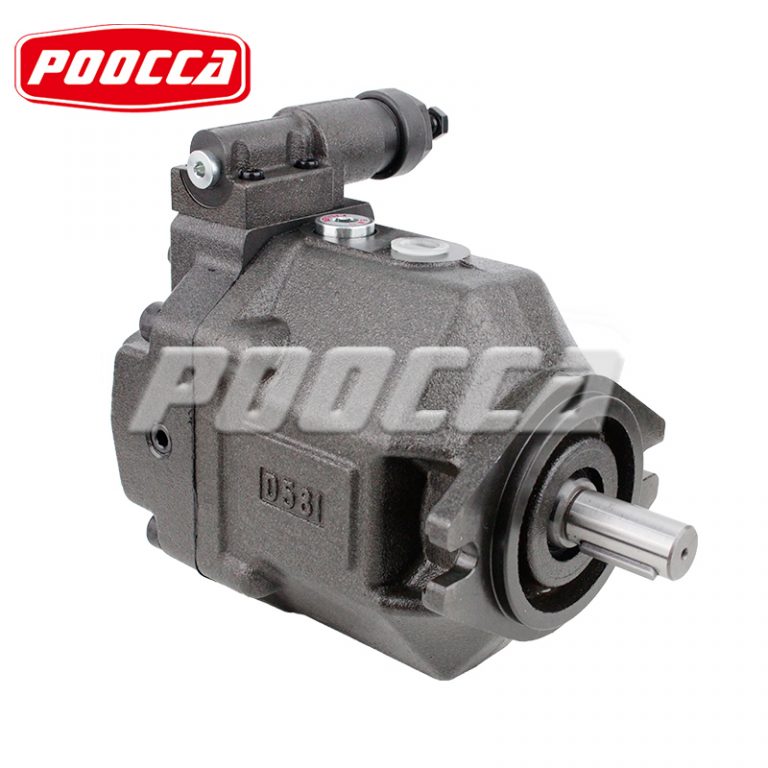

AR16,AR22 Hydraulic Piston Pump
When installing the pump the filling port should be positioned upwards.
Alignment of Shaft
Employ a flexible coupling whenever possible, and avoid any stress from bending or thrust.
Maximum permissible misalignment is less than 0.1 mm (.004 inches) TIR and maximum permissible misangular is less than 0.2ยฐ.
Suction Pressure
Permissible suction pressure at inlet port of the pump is between -16.7 and +50 kPa (5 in.Hg Vacuum and 7 PSIG). For piping to the suction port, use the pipes of the same diametre as that of the specified pipe flange to be used.
Make sure that the height of the pump suction port is within one metre (3.3 ft) from the oil level in the reservoir.
Hints on Piping
When using steel pipes for the suction or discharge ports, excessive load from the piping to the pump generates excessive noise.
Whenever there is fear of excessive load, please use rubber hoses.
Suction Piping
In case the pump is installed above the oil level, the suction piping and suction line filter should be located lower than the pump position to prevent air in the suction line.
Drain Piping
Install drain piping according to the chart and ensure that pressure within the pump housing should be maintained at a normal pressure of less than 0.1 MPa (14.5 PSI) and surge pressure of less than 0.5 MPa (72.5 PSI).
Length of piping should be less than 1 m (3.3 ft.), and the pipe end should be submerged in oil.
In case AR16 and AR22 pump, a screw-in torque of fitting is 40 to 50 Nm (354 to 443 IN.1bs.). Do not apply bending and thrust torque to the fitting.
poocca has a variety of certification certificates such as CE, ISO, ROSH, gear pumps, plunger pumps and other types of patent certificates. poocca is worthy of your trust and welcome to send your requirements.
