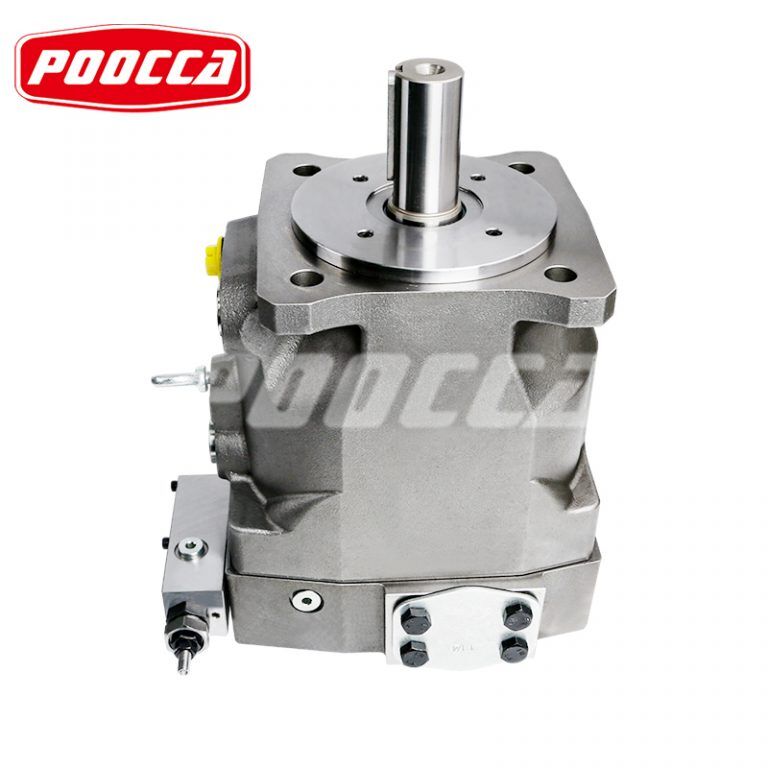

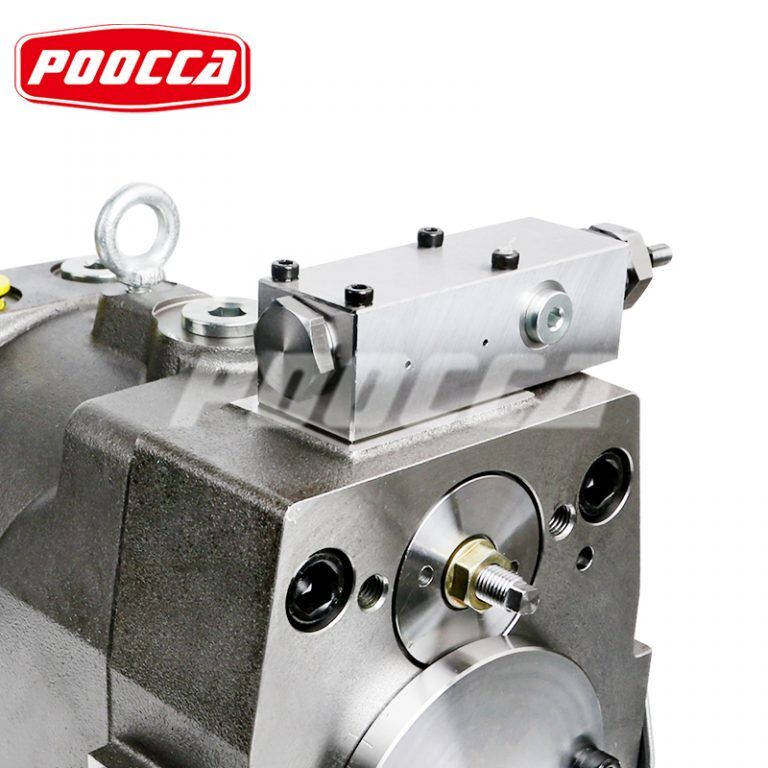

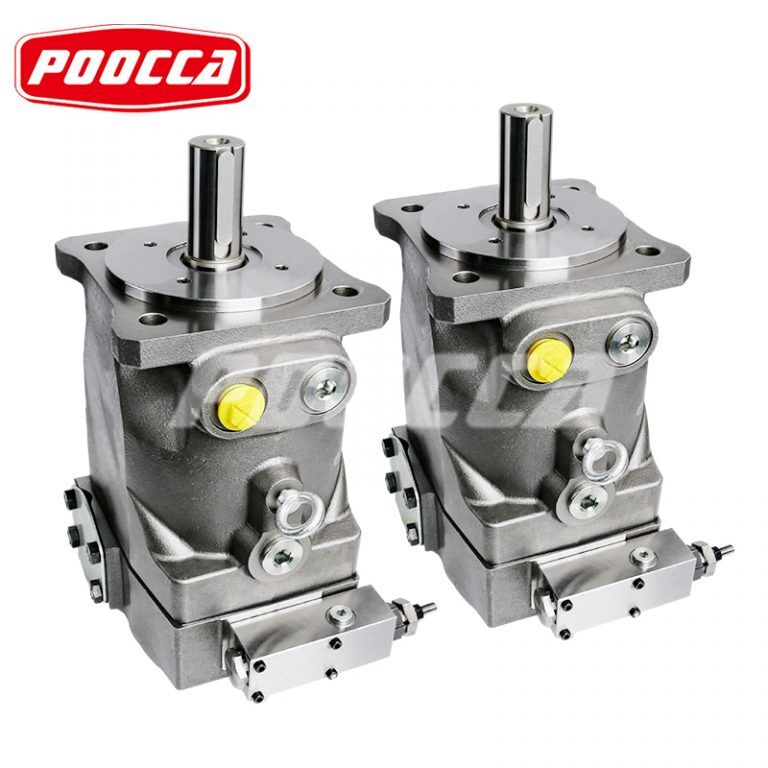

PV Hydraulic Axial Piston Pumps
We believe they will exceed your expectations and redefine the performance standards of the hydraulic industry.
Improve the efficiency and reliability of your hydraulic system with our PV series. For more detailed information or technical support, please feel free to contact us.
โ Model: PV16-PV270
โ Displacement: 16cc~270cc
โ Maximum pressure: 350. bar
โ Low noise, vibration, oil heat, low friction at high speed, reduced power consumption
Excellent design features
โ Low friction at high speed: The new design includes a swash plate with a large servo piston and bias spring, ensuring fast response and reduced noise through system decompression.
โ Reduced power consumption: Yeoshe PV hydraulic piston pump has nine pistons and advanced pre-compression technology, which reduces outlet flow pulsation. This improves energy efficiency and reduces power consumption.
โ Robust and FEM-optimized pump body design: Our pumps are designed with a sturdy design and optimized using the finite element method (FEM) to achieve the lowest possible noise level.
โ Flexible pump combination: PV hydraulic pumps are designed to be easily combined with other pumps of the same size and model. The installation interface is flexible and can accommodate both metric and SAE standards.
Yeoshe PV Hydraulic Piston Pump model:PV016,PV020,PV023,PV028,PV032,PV040,PV046,
PV056,PV065,PV063,PV071,PV080,PV092,PV110,PV123,PV125,PV140,PV180,PV210,PV270
| size | Model No. | Pressure | Pump Capacity | Pump Deliveryl (7 bar 100 PSI) |
Noise level | Revolution Speed min โ1 |
Weight kg(lb) | ||||||||
| dBA Full flow and 1500 RPM | |||||||||||||||
| Rated pressure | Momentary pressure | cm3/rev | In3/rev | 1500RPM | 1800RPM | 70bar ๏ผ1 KSI๏ผ |
207bar ๏ผ3 KSI๏ผ |
343bar ๏ผ5 KSI๏ผ |
Max. | Min. | |||||
| LMP | U.S GPM | LMP | U.S GPM | ||||||||||||
| 1 | PV016 | 350 | 420 | 016 | 0.98 | 24.0 | 6.30 | 28.80 | 7.6 | 56 | 60 | 68 | 2750 | 300 | 19๏ผ42๏ผ |
| PV020 | 020 | 1.22 | 30.00 | 7.90 | 36.00 | 9.5 | |||||||||
| PV023 | 023 | 1.40 | 34.50 | 9.10 | 41.40 | 10.9 | |||||||||
| PV028 | 028 | 1.71 | 42.00 | 11.00 | 50.40 | 13.2 | |||||||||
| 2 | PV032 | 032 | 1.95 | 48.00 | 12.70 | 57.60 | 15.2 | 59 | 62 | 69 | 2400 | 30(66) | |||
| PV040 | 040 | 2.44 | 60.00 | 15.90 | 72.00 | 19 | |||||||||
| PV046 | 046 | 2.80 | 69.00 | 18.20 | 82.80 | 21.9 | |||||||||
| PV056 | 280 | 350 | 056 | 3.41 | 84.00 | 22.10 | 100.80 | 26.6 | |||||||
| PV065 | 065 | 3.96 | 97.50 | 25.70 | 117.00 | 30.9 | |||||||||
| 3 | PV063 | 350 | 420 | 063 | 3.84 | 94.50 | 25.00 | 113.40 | 30 | 66 | 70 | 74 | 2100 | 60๏ผ132๏ผ | |
| PV071 | 071 | 4.33 | 106.50 | 28.30 | 127.80 | 34.00 | |||||||||
| PV080 | 080 | 4.88 | 120.00 | 31.70 | 144.00 | 38.00 | 2000 | ||||||||
| PV092 | 092 | 5.61 | 138.00 | 36.50 | 165.60 | 43.8 | 1900 | ||||||||
| PV110 | 250 | 280 | 110 | 6.71 | 165.00 | 43.60 | 198.00 | 52.3 | |||||||
| PV123 | 123 | 7.50 | 184.50 | 48.70 | 221.40 | 58.4 | |||||||||
| 4 | PV125 | 350 | 420 | 125 | 7.62 | 187.50 | 49.50 | 225.00 | 59.4 | 70 | 74 | 76 | 2200 | 90(198) | |
| PV140 | 140 | 8.54 | 210.00 | 55.50 | 252.00 | 66.6 | |||||||||
| PV180 | 180 | 10.98 | 270.00 | 71.30 | 324.00 | 85.6 | 71 | 75 | 77 | ||||||
| PV210 | 250 | 280 | 210 | 12.80 | 315.00 | 83.10 | 378.00 | 99.8 | 73 | 77 | 79 | 2100 | 172(379) | ||
| 5 | PV270 | 350 | 420 | 270 | 16.46 | 405.00 | 107.00 | 486.00 | 128.4 | 77 | 79 | 89 | 1800 | ||
Through the application of energy-saving pump control system, power consumption, oil temperature rise, system accuracy and lifespan can be greatly improved.
Widely used in the vehicle industry, ships, forging, wheel belt machines, injection molding machines, machine tools, and special machines.
Poocca Hydraulics (Shenzhen) Co., Ltd. focuses on the R&D, manufacturing, maintenance and sales of hydraulic products. It is a leading provider of hydraulic pumps, motors, hydraulic valves, and hydraulic accessories.
Main Features of Poocca Hydraulics:
Global Presence: Our products are exported to more than 100 countries around the world with an annual export value of more than 16 million US dollars.
Strong Partnerships: We have established lasting partnerships with local distributors in 75 countries, based on trust and reliability.
Drivers of Our Success:
Hydraulic Team: Our success is driven by a professional team of more than 300 professionals, including 70 experienced sales representatives.
We emphasize innovation and consistently provide advanced solutions to meet the changing needs of the industry.
Poocca Hydraulics (Shenzhen) Co., Ltd. is at the forefront of hydraulic innovation and is committed to providing high-quality products at competitive prices to customers around the world.
