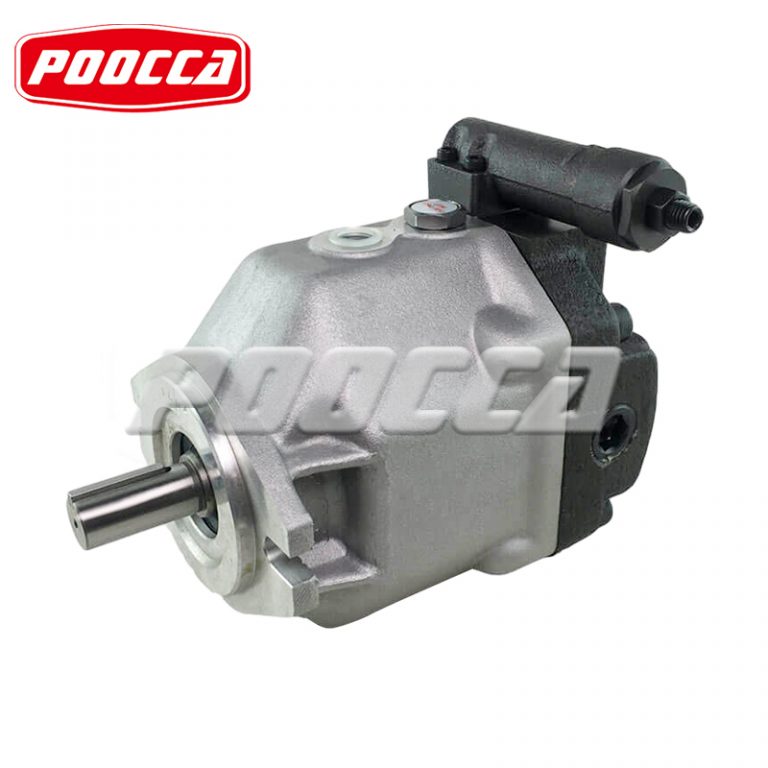

Yeoshe AR Axial Piston Pump

YEOSHE AR axial piston pump dimensions: 8,10,12,16,22

Conventional pressure: 165bar

Instantaneous pressure: 210bar

Characteristic

Compact and minimal weight design
Low carbon steel structure
Normal pressure is 160 kgf/cmยฒ, maximum pressure is 210 kgf/cmยณ
Can be directly connected to the motor

The specially designed semi-cylindrical swash plate bearing structure of the Yeoshe AR axial piston pump effectively reduces vibration and noise while maintaining a compact appearance. The pump housing is compact and lightweight, weighing only 9.4 kg, suitable for a variety of applications. It is made of special alloy material, with the characteristics of low noise, long service life and energy saving.

Parameter

Ysoshe AR Piston Pumpย Series๏ผšAR8,AR10,AR12,AR16,AR22

Model No. Pump Capacity Pump Deliveryl Pressure Adj.Range Revolution
Speed
Weight kg(lb)
(7 bar 100 PSI) B
Bar(Map)
C
Bar(Map)
min โˆ’1
cm3/rev In3/rev 1500RPM 1800RPM Min. Max.
LMP U.S GPM LMP U.S GPM
AR8 8 0.48 12 3.17 14.4 3.8 12-70
(1.2-7)
12-210
(1.2-21)
500 1800 9
(19.8)
AR10 10 0.61 15 3.9 18 4.76
AR12 12 0.73 18 4.76 21.6 5.73
AR16 15.8 0.96 23.5 6.26 28.64 7.51
AR22 22.2 1.35 33.5 8.8 39.96 10.56

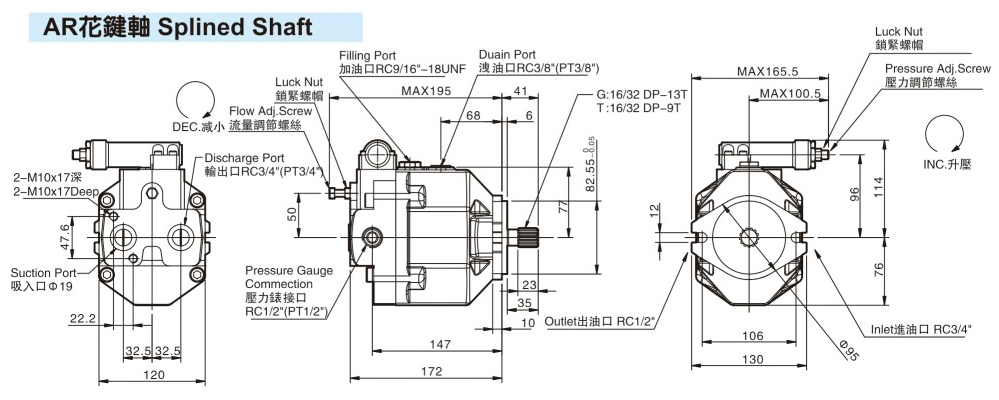

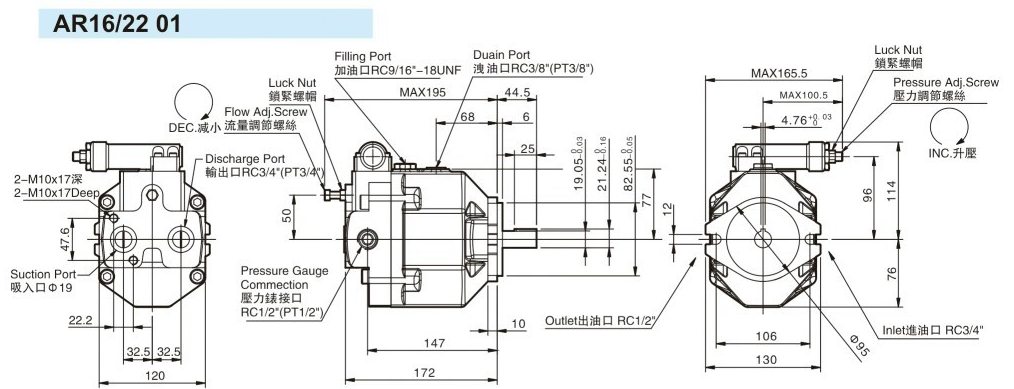

YEOSHE AR Axial Piston Pump Dimension

Application

Through the application of energy-saving pump control system, power consumption, oil temperature rise, system accuracy and lifespan can be greatly improved.

Widely used in the vehicle industry, ships, forging, wheel belt machines, injection molding machines, machine tools, and special machines.

About POOCCA

Poocca is a comprehensive hydraulic service provider, focusing on the research and development, manufacturing, maintenance and sales of hydraulic pumps, motors and valves. Our areas of expertise cover various industries such as mining machinery, ships, engineering, power plants, injection molding machines, die casting machines and steel mills.

Our product range includes:
Piston pumps: A10VSO, A11VSO, A4VSO, A4VG, A7VO, PVH, PV series, etc.
Gear pumps: AZPF, ALP, 1P, 0.25-0.5, PGP, SGP, HG series, etc.
Vane pumps: VQ, T6T7, PV2R series, with single pump, double pump and triple pump configurations.
Motors: A2FM, A2FE, A6VM, 2000 series, 6000 series, etc.
We prioritize meeting your needs in a timely and efficient manner. Contact us today to ensure you get everything you need for your hydraulic system.
