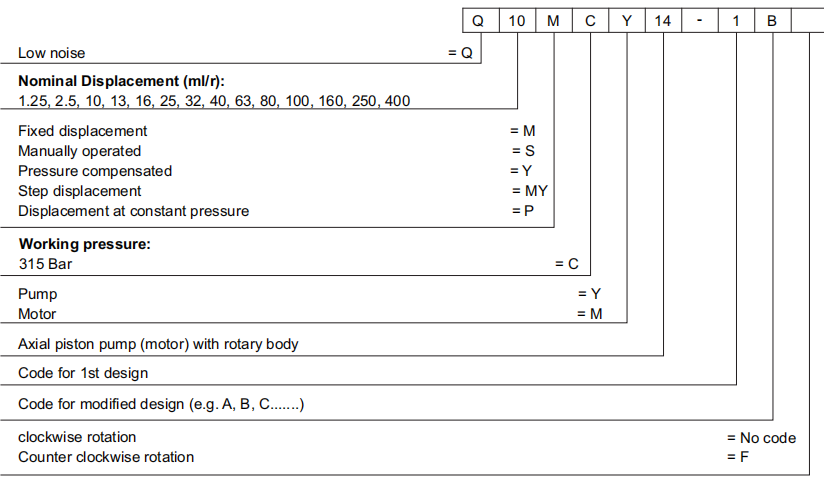

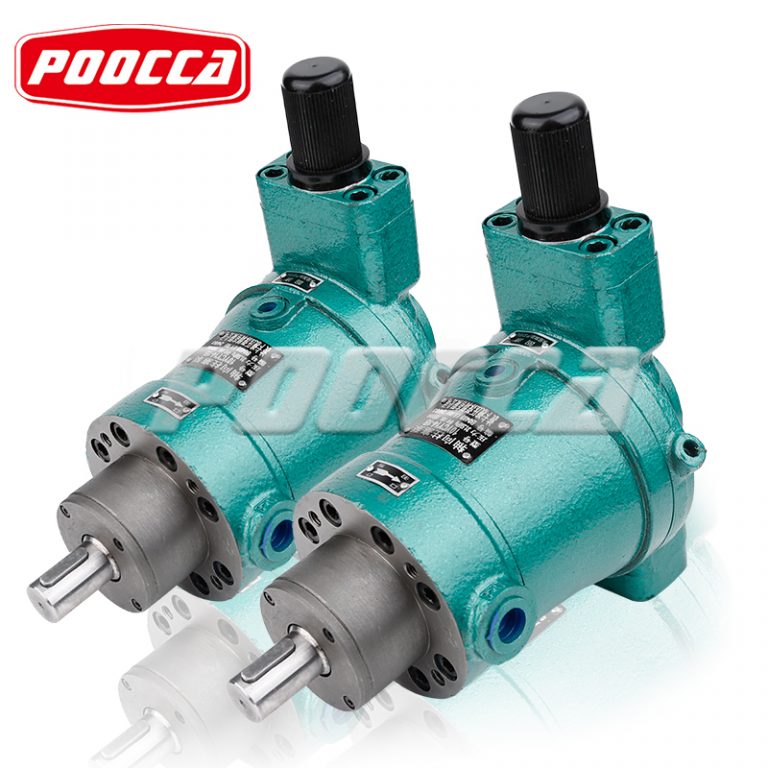

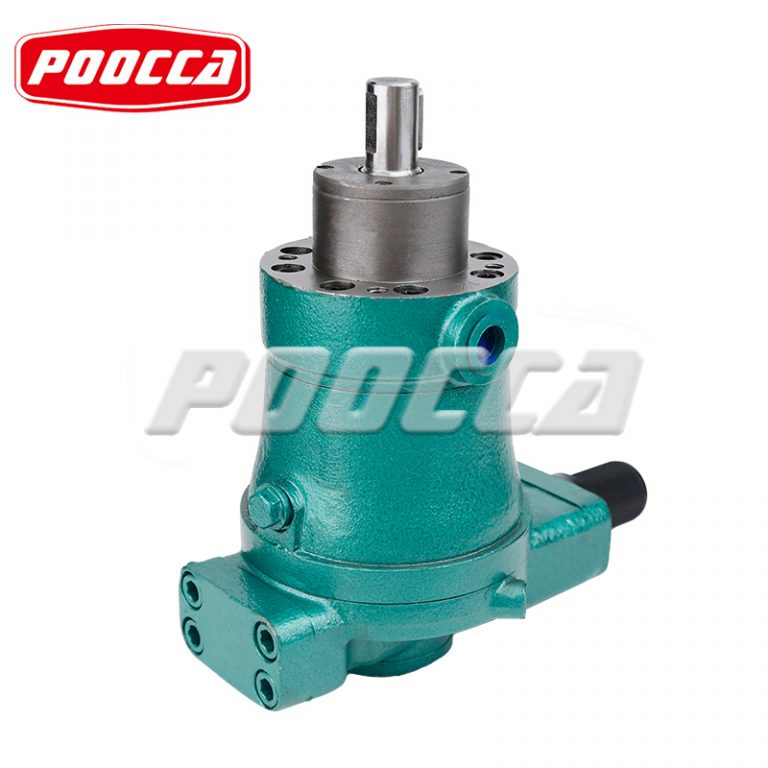

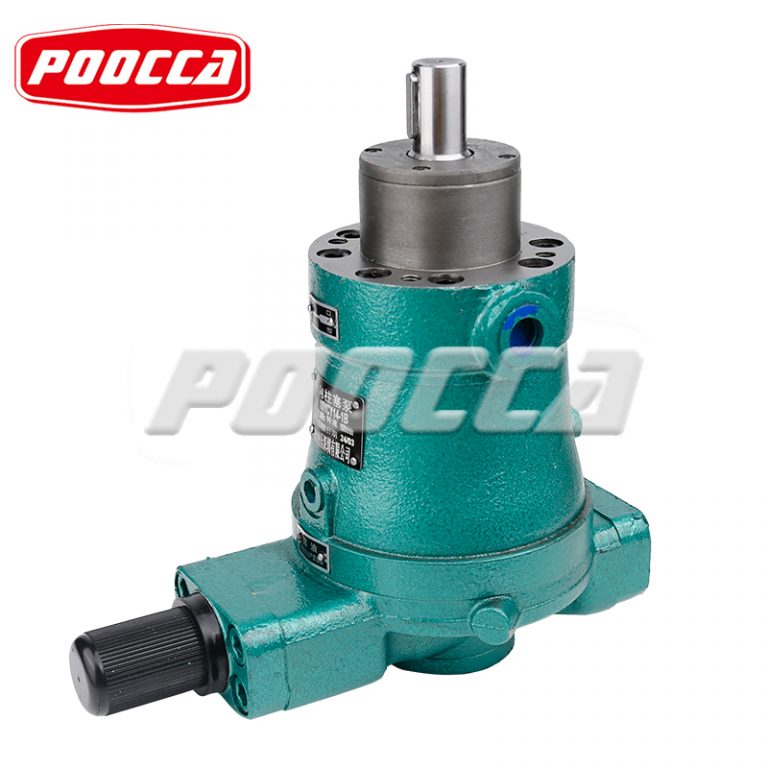

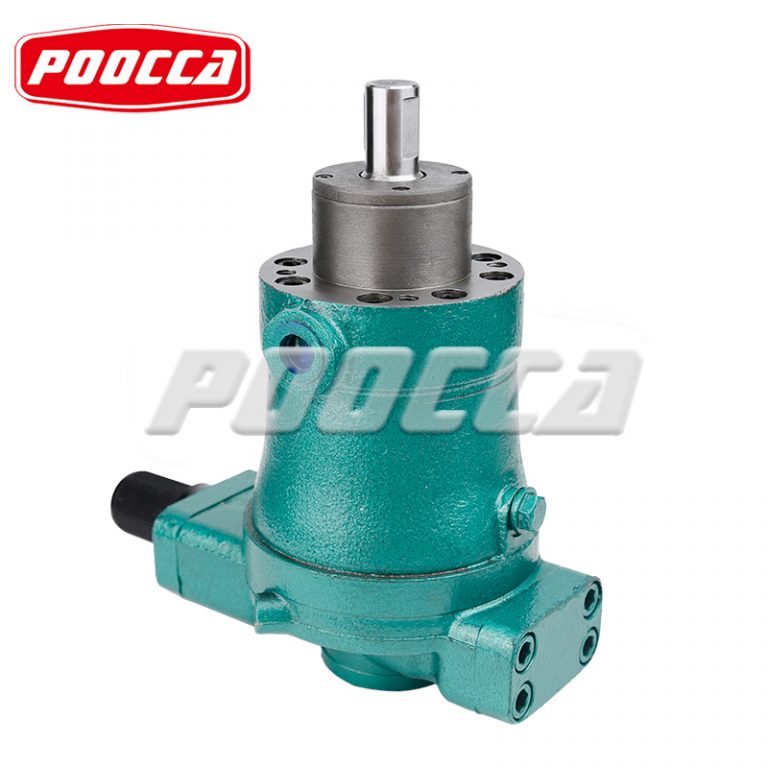

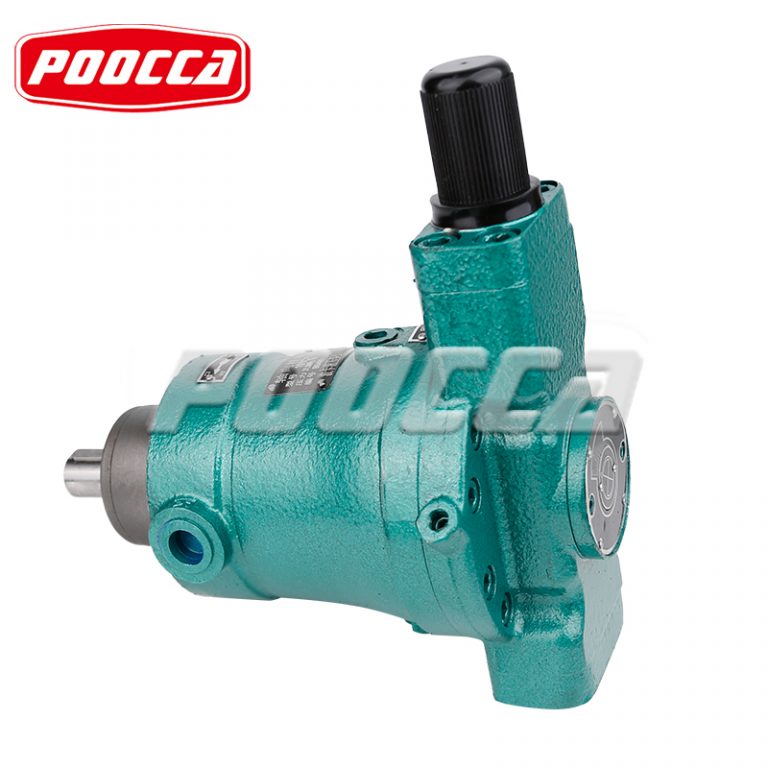

Product Name: Variable Axial Piston Pump YcY Series 10YCY 14-1B, 25YCY 14-1B, 32YCY 14-1B, 40YCY 14-1B, 63YCY 14-1B Pump
Description: Variable pump with pressure compensation
Displacement: 10, 25 (40), 63 (80), 160, 250 (400) (ml/r)
Rated Pressure: Up to 315 bar
Speed: 1.25 ml/r to 60 (80) at 1500 r/min; 160 ml/r to 400 at 1000 r/min
Main Materials: Cast Iron, Copper, Steel
Quality Testing: 100% before shipment
Color: Optional, typically blue๏ผgreen
Customization: Available based on drawings or samples
OEM/ODM: Accepted
|
Model |
Ratedย Pressure
(Bar) |
Nominal
displacement (ml/r) |
Rated flow
(L/min) |
Power-output
(KW) |
||
| 1000rpm | 1500rpm | 1000rpm | ||||
| 2.5 |
YCY14-1B |
315 | 2.5 | 2.5 | 3.75 | 1.43 |
| 10 | 315 | 10 | 10 | 15 | 5.7 | |
| 25 | 315 | 25 | 25 | 37.5 | 14.1 | |
| 40 | 315 | 40 | 40 | 60 | 22.6 | |
| 63 | 315 | 63 | 63 | 94.5 | 35.6 | |
| 80 | 315 | 80 | 80 | 120 | 46.6 | |
| 160 | 315 | 160 | 160 | 240 | 92.2 | |
| 250 | 315 | 250 | 250 | 375 | 133.2 | |
| 400 | 315 | 400 | 400 | 600 | 199.5 | |
ย
Product Name: Variable Axial Piston Pump YcY Series 10YCY 14-1B, 25YCY 14-1B, 32YCY 14-1B, 40YCY 14-1B, 63YCY 14-1B Pump
Description: Variable pump with pressure compensation
Displacement: 10, 25 (40), 63 (80), 160, 250 (400) (ml/r)
Rated Pressure: Up to 315 bar
Speed: 1.25 ml/r to 60 (80) at 1500 r/min; 160 ml/r to 400 at 1000 r/min
Main Materials: Cast Iron, Copper, Steel
Quality Testing: 100% before shipment
Color: Optional, typically blue๏ผgreen
Customization: Available based on drawings or samples
OEM/ODM: Accepted
|
Model |
Ratedย Pressure
(Bar) |
Nominal
displacement (ml/r) |
Rated flow
(L/min) |
Power-output
(KW) |
||
| 1000rpm | 1500rpm | 1000rpm | ||||
| 2.5 |
YCY14-1B |
315 | 2.5 | 2.5 | 3.75 | 1.43 |
| 10 | 315 | 10 | 10 | 15 | 5.7 | |
| 25 | 315 | 25 | 25 | 37.5 | 14.1 | |
| 40 | 315 | 40 | 40 | 60 | 22.6 | |
| 63 | 315 | 63 | 63 | 94.5 | 35.6 | |
| 80 | 315 | 80 | 80 | 120 | 46.6 | |
| 160 | 315 | 160 | 160 | 240 | 92.2 | |
| 250 | 315 | 250 | 250 | 375 | 133.2 | |
| 400 | 315 | 400 | 400 | 600 | 199.5 | |
ย
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
