The Vickers 25M motor provides efficient and reliable performance in a variety of applications. Here is a detailed description of its features:
High efficiency and reliability:
The Vickers 25M motor has excellent energy efficiency and reliability, suitable for a variety of application scenarios.
Various displacement and torque options:
A wide range of displacement and torque options are available to provide flexibility to meet various needs.
Dual pressure plate design:
The dual pressure plate design improves the efficiency of the motor and ensures smooth operation.
Modular design:
The modular design facilitates maintenance and simplifies the inspection and maintenance process.
Flexible mounting options:
Flange and foot mounting options are available, increasing the flexibility of installation and adapting to different installation environments.
Vane motor design:
The vane motor design has excellent efficiency, reliability and adaptability, ensuring optimal performance under various working conditions.
These features make the Vickers 25M motor an ideal choice for a variety of industrial applications.
| Model Series | Torque Nm/6,9 bar (lb in/100 psi) | Displacement cm3/r (in3/r) |
Flow input/required @1200 r/min L/min (USgpm) |
Maximum speed & pressures |
| Vickers motor 25M | 4,7 (42) | 43,9 (2.68) | 52,6 (13.9) | 3600 r/min @ 34 bar (500 psi) โ 4000 r/min @ 34 bar (500 psi) โก |
| 6,2 (55) | 57,7 (3.52) | 69,3 (18.3) | ||
| 7,3 (65) | 68,7 (4.19) | 82,5 (21.8) |

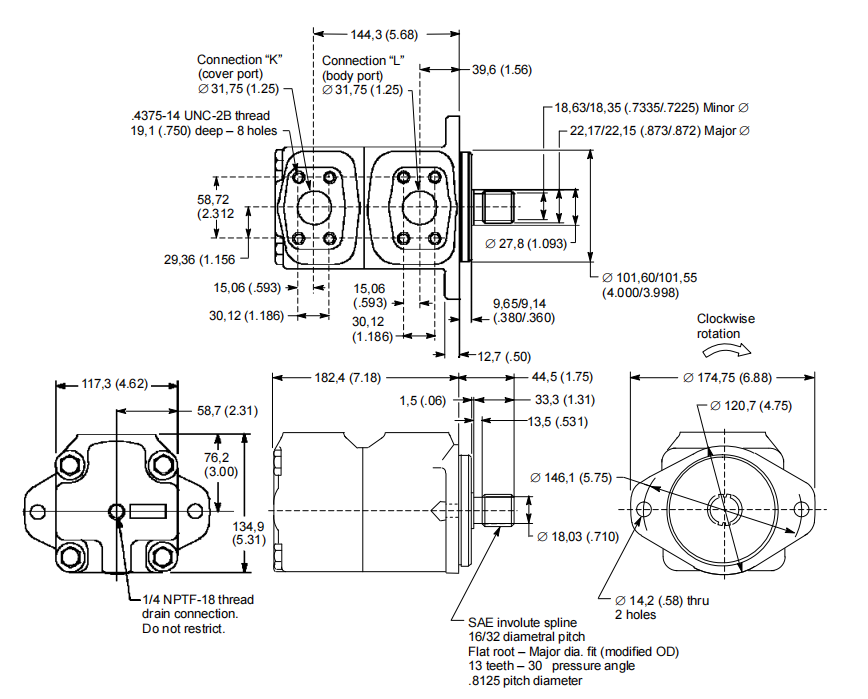

Dimensions are in millimeters (inches)
The splined shaft is shown in the figure below. Key switches are shown on another page.
Viewed from the end of the shaft, the fluid supply connected to “L” turns the shaft clockwise. Fluid supply to connection “K” causes the shaft to rotate counterclockwise.
Cover position “C” is shown in the figure. See model code for additional locations.
It is recommended to use “Ctrl+F ” to find the model or order code you need. If you do not findyour model, please send your model to POOCCA for inquiry.
| 25M30A1A20117 | 35M115A1C20141 | F8-25M55A11C20 | 45M130A1C20141 | 25M35A1C20 | 25M42A1C20 |
| 25M30A1C20117 | F8-35M95A11C20 | F8-25M65A1C20 | F8-45M130A11C20 | 25M65A11C20139 | 35M80A1C20141 |
| 25M42A11C20 | F8-35M95A1C20 | F8-25M65A11A20 | 50M300A11C20L143 | F8-25M42A1C20 | 35M95A1C20141 |
| 25M55A11C20 | 45M130A1A20 | F8-25M65A11C20 | 50M300A11C20R144 | F8-25M42A11C20 | 45M155A1C20 |
| 25M65A1A20 | 45M130A1C20 | 35M95A11C20 | 50M300A11C20139 | F8-25M55A1C20 | 50M220A11C20139 |
| 25M65A1C20 | 45M130A11A20 | 35M80A11C20 | F8-50M300A11C20L143 | 45M185A1A20 | 50M255A1C20141 |
| 25M65A11C20 | 45M130A11C20 | 35M115A11C20 | F8-50M300A11C20L1431 | 45M185A1C20 | 35M95A1C20 |
| 25M55A1A20 | 45M155A11C20 | 35M80A1A20 | 50M300A11C20114 | 45M130A1C20139 | 50M220A1C20141 |
| 25M55A1C20 | 45M185A11C20 | 35M80A1C20 | 50M255A11A20114 | 45M155A1C20141 | 50M300A1C20141 |
| 25M42A1A20 | 45M155A1A20 | 35M95A1A20 | 50M300A1A20114 | 45M185A1C20141 | F8-50M300A1C20114 |
| 50M255A1C20114 | 45M115A1C20 | 50M220A1C20114 | 50M300A1C20114 | 35M115A1A20 | F8-35M115A11C20 |
| 26M30A1A20117 | 36M115A1C20141 | F8-26M55A11C20 | 46M130A1C20141 | 26M36A1C20 | 26M42A1C20 |
| 26M30A1C20117 | F8-36M95A11C20 | F8-26M65A1C20 | F8-46M130A11C20 | 26M65A11C20139 | 36M80A1C20141 |
| 26M42A11C20 | F8-36M95A1C20 | F8-26M65A11A20 | 51M300A11C20L143 | F8-26M42A1C20 | 36M95A1C20141 |
| 26M55A11C20 | 46M130A1A20 | F8-26M65A11C20 | 51M300A11C20R144 | F8-26M42A11C20 | 36M155A1C20 |
| 26M65A1A20 | 46M130A1C20 | 36M95A11C20 | 51M300A11C20139 | F8-26M55A1C20 | 51M220A11C20139 |
| 26M65A1C20 | 46M130A11A20 | 36M80A11C20 | F8-51M300A11C20L143 | 46M185A1A20 | 51M265A1C20141 |
| 26M65A11C20 | 46M130A11C20 | 36M115A11C20 | F8-51M300A11C20L1431 | 46M185A1C20 | 36M95A1C20 |
| 26M55A1A20 | 46M155A11C20 | 36M80A1A20 | 51M300A11C20114 | 46M130A1C20139 | 51M220A1C20141 |
| 26M55A1C20 | 46M185A11C20 | 36M80A1C20 | 51M265A11A20114 | 46M155A1C20141 | 51M300A1C20141 |
| 26M42A1A20 | 46M155A1A20 | 36M95A1A20 | 51M300A1A20114 | 46M185A1C20141 | F8-51M300A1C20114 |
| 51M265A1C20114 | 36M115A1C20 | 51M220A1C20114 | 51M300A1C20114 | 36M115A1A20 | F8-36M115A11C20 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and is the world’s leading hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products. With more than two decades of experience, we have earned trust at home and abroad, exporting to more than 100 countries with an annual export volume of US$16 million. Our dedicated team of more than 300 professionals, including 70 experienced sales staff, works with well-known brands such as Rexroth and Parker to ensure our products and services are outstanding.
Elevator scraper drives, hydrostatic drives, auxiliary applications
The Vickers 25M motor provides efficient and reliable performance in a variety of applications. Here is a detailed description of its features:
High efficiency and reliability:
The Vickers 25M motor has excellent energy efficiency and reliability, suitable for a variety of application scenarios.
Various displacement and torque options:
A wide range of displacement and torque options are available to provide flexibility to meet various needs.
Dual pressure plate design:
The dual pressure plate design improves the efficiency of the motor and ensures smooth operation.
Modular design:
The modular design facilitates maintenance and simplifies the inspection and maintenance process.
Flexible mounting options:
Flange and foot mounting options are available, increasing the flexibility of installation and adapting to different installation environments.
Vane motor design:
The vane motor design has excellent efficiency, reliability and adaptability, ensuring optimal performance under various working conditions.
These features make the Vickers 25M motor an ideal choice for a variety of industrial applications.
| Model Series | Torque Nm/6,9 bar (lb in/100 psi) | Displacement cm3/r (in3/r) |
Flow input/required @1200 r/min L/min (USgpm) |
Maximum speed & pressures |
| Vickers motor 25M | 4,7 (42) | 43,9 (2.68) | 52,6 (13.9) | 3600 r/min @ 34 bar (500 psi) โ 4000 r/min @ 34 bar (500 psi) โก |
| 6,2 (55) | 57,7 (3.52) | 69,3 (18.3) | ||
| 7,3 (65) | 68,7 (4.19) | 82,5 (21.8) |
Dimensions are in millimeters (inches)
The splined shaft is shown in the figure below. Key switches are shown on another page.
Viewed from the end of the shaft, the fluid supply connected to “L” turns the shaft clockwise. Fluid supply to connection “K” causes the shaft to rotate counterclockwise.
Cover position “C” is shown in the figure. See model code for additional locations.
It is recommended to use “Ctrl+F ” to find the model or order code you need. If you do not findyour model, please send your model to POOCCA for inquiry.
