Vickers Hydraulic Vane Motor 25M 35M 45M 50M

Vickers hydraulic vane motors M-Series are available in a variety of displacement and torque options: M2U|M2U|M2-210, M-Series motors: 25M|35M|45M|50M.

Vickers M-Series vane motors offer a variety of torque rating options (4.7 to 33.9 Nm) and displacements (21.6cc/rev to 317cc/rev) to meet different application needs.

The motors have a continuous speed range of 400 to 3,600 rpm and intermittent speeds up to 4,000 rpm. M Series motors are available with continuous pressures up to 155 bar (2,250 psi) and intermittent pressures up to 172 bar (2,500 psi). Please inquire for more information.

Characteristic

Key features and benefits of the Vickers M-Series vane motors include a dual platen design for increased operating efficiency, opposing inlet and outlet chambers to minimize wear, and a modular design for simplified maintenance.

M Series vane motorsโ€™ low inertia rotating components ensure seamless operation, while flange or foot mounting options provide greater application flexibility.

Vickers M Series Vane Motor Parameter

Model Series Torque Nm/6,9 bar (lb in/100 psi) Displacement
cm3/r (in3/r)
Flow input/required @1200 r/min
L/min (USgpm)
Maximum speed & pressures
25M 4,7 (42) 43,9 (2.68) 52,6 (13.9) 3600 r/min @ 34 bar (500 psi) โ€
4000 r/min @ 34 bar (500 psi) โ€ก
6,2 (55) 57,7 (3.52) 69,3 (18.3)
7,3 (65) 68,7 (4.19) 82,5 (21.8)
35M 9,0 (80) 83,6 (5.10) 100,3 (26.5)
10,7 (95) 100,3 (6.12) 120,4 (31.8)
13,0 (115) 121,9 (7.44) 146,1(38.6)
45M 14,7 (130) 138,0 (8.42) 165,4 (43.7) 2600 r/min @ 155 bar (2250 psi) โ€
3000 r/min @ 172 bar (2500 psi) โ€ก
17,5 (155) 163,2 (9.96) 195,7 (51.7)
20,9 (185) 193,2(11.79) 232,0 (61.3)
50M 24,9 (220) 231,2 (14.11) 277,5 (73.3) 2800 r/min @ 34 bar (500 psi) โ€
3200 r/min @ 34 bar (500 psi) โ€ก
2200 r/min @ 155 bar (2250 psi) โ€
2400 r/min @ 172 bar (2500 psi) โ€ก
28,8 (255) 268,1 (16.36) 321,8 (85.0)
33,9 (300) 317,1 (19.35) 380,4 (100.5)

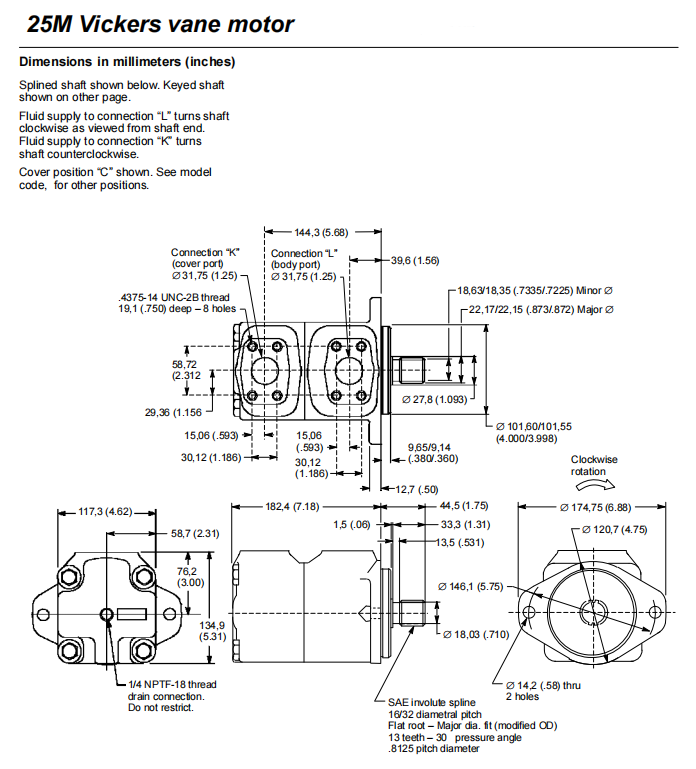

25M Motor Dimension

vickers motor

Hydraulic Process

At POOCCA Hydraulic Manufacturers, we meticulously monitor every stage of the production process to ensure the highest standards. Each component is rigorously inspected for accuracy and durability, strictly following our strict quality control protocols. Only components that pass these rigorous inspections are approved for shipment.

Ensuring that POOCCA Hydraulic products are both reliable and high-performance, earning the trust of customers around the world. By prioritizing quality assurance, we guarantee that our products always meet and exceed industry standards.

Application

Vickers Hydraulic Vane Motor 25M 35M 45M 50M

Vickers hydraulic vane motors M-Series are available in a variety of displacement and torque options: M2U|M2U|M2-210, M-Series motors: 25M|35M|45M|50M. Vickers M-Series vane motors offer a variety of torque rating options (4.7 to 33.9 Nm) and displacements (21.6cc/rev to 317cc/rev) to meet different application needs. The motors have a continuous speed range of 400 to 3,600 rpm and intermittent speeds up to 4,000 rpm. M Series motors are available with continuous pressures up to 155 bar (2,250 psi) and intermittent pressures up to 172 bar (2,500 psi). Please inquire for more information.

Characteristic

Key features and benefits of the Vickers M-Series vane motors include a dual platen design for increased operating efficiency, opposing inlet and outlet chambers to minimize wear, and a modular design for simplified maintenance.

M Series vane motorsโ€™ low inertia rotating components ensure seamless operation, while flange or foot mounting options provide greater application flexibility.

Vickers M Series Vane Motor Parameter

Model Series Torque Nm/6,9 bar (lb in/100 psi) Displacement
cm3/r (in3/r)
Flow input/required @1200 r/min
L/min (USgpm)
Maximum speed & pressures
25M 4,7 (42) 43,9 (2.68) 52,6 (13.9) 3600 r/min @ 34 bar (500 psi) โ€
4000 r/min @ 34 bar (500 psi) โ€ก
6,2 (55) 57,7 (3.52) 69,3 (18.3)
7,3 (65) 68,7 (4.19) 82,5 (21.8)
35M 9,0 (80) 83,6 (5.10) 100,3 (26.5)
10,7 (95) 100,3 (6.12) 120,4 (31.8)
13,0 (115) 121,9 (7.44) 146,1(38.6)
45M 14,7 (130) 138,0 (8.42) 165,4 (43.7) 2600 r/min @ 155 bar (2250 psi) โ€
3000 r/min @ 172 bar (2500 psi) โ€ก
17,5 (155) 163,2 (9.96) 195,7 (51.7)
20,9 (185) 193,2(11.79) 232,0 (61.3)
50M 24,9 (220) 231,2 (14.11) 277,5 (73.3) 2800 r/min @ 34 bar (500 psi) โ€
3200 r/min @ 34 bar (500 psi) โ€ก
2200 r/min @ 155 bar (2250 psi) โ€
2400 r/min @ 172 bar (2500 psi) โ€ก
28,8 (255) 268,1 (16.36) 321,8 (85.0)
33,9 (300) 317,1 (19.35) 380,4 (100.5)

25M Motor Dimension

vickers motor

Hydraulic Process

At POOCCA Hydraulic Manufacturers, we meticulously monitor every stage of the production process to ensure the highest standards. Each component is rigorously inspected for accuracy and durability, strictly following our strict quality control protocols. Only components that pass these rigorous inspections are approved for shipment.

Ensuring that POOCCA Hydraulic products are both reliable and high-performance, earning the trust of customers around the world. By prioritizing quality assurance, we guarantee that our products always meet and exceed industry standards.

Application
