Torqmotor™ TB Series Light Duty Motor

Parker TB motors feature automatic wear compensation, full-flow internal cooling and flushing, eliminating the need for external drains.
TB 0036,TB 0045,TB 0050,TB 0065,TB 0080,TB 0100,TB 0130,TB 0165,TB 0195,TB 0230,TB 0260,TB 0295,TB 0330,TB 0365,TB 0390
Welcome to send your requirements.

Chat Now

Characteristic

Displacement: 11.9 in3/rev.
Mounting Type: 4 Bolt
Porting Type: 1/2″ NPTF
Shaft Type: 1″ Short Woodruff Key 1/4″ Tap
Main Body Outside Diameter: 3.66″
Max Side Load at Key: 1,100 lbs.
Max Speed: 932 RPM
Max Oil Flow: 15 GPM
Max Pressure: 2,400 PSID
Standard Rotation

The TB Series is a rugged, lightweight hydraulic motor available in shaft lengths up to 1 inch. It can handle lateral loads up to 1100 pounds, withstand intermittent pressures up to 2400 psi, and deliver up to 4700 pound-inches of torque. This Parker motor incorporates heavy-duty features including high-pressure shaft seals, roller vane technology for automatic wear compensation, and full-flow internal cooling and flushing.

Parameter

Motor	cm3/rev		cont / int*		cont / int*		max	cont / int*		max	cont / int*
Series	in3/rev	rev/min	l/min		bar		bar	Nm		KW	Nm
TB			g/min		psid		psig	lb-in		HP	lb-in
TB 0036	36	932	34	34	125	165	190	48	67	6.6	44	50
TB 0036	2.2	932	9	9	1800	2400	2750	427	596	8.8	385	440
TB 0045	41	805	34	34	125	165	190	64	88	7.2	39	52
TB 0045	2.5	805	9	9	1800	2400	2750	526	731	9.7	341	461
TB 0050	49	678	34	34	125	165	190	78	107	7.5	36	70
TB 0050	3	678	9	9	1800	2400	2750	693	946	10.1	319	619
TB 0065	65	511	34	34	125	165	190	107	145	7.8	66	99
TB 0065	4	511	9	9	1800	2400	2750	946	1284	10.4	582	977
TB 0080	82	409	34	34	125	165	190	135	184	7.8	92	139
TB 0080	5	409	9	9	1800	2400	2750	1193	1624	10.5	816	1226
TB 0100	98	454	45	45	125	165	190	159	217	10.2	119	158
TB 0100	6	454	12	12	1800	2400	2750	1411	1917	13.8	1050	1400
TB 0130	130	430	45	57	125	165	190	220	297	13.4	167	229
TB 0130	8	430	12	15	1800	2400	2750	1951	2632	18	1482	2024
TB 0165	163	343	45	57	125	155	190	273	346	12.4	199	263
TB 0165	10	343	12	15	1800	2250	2750	2418	3062	16.7	1760	2331
TB 0195	195	287	45	57	125	145	190	340	400	12	270	325
TB 0195	11.9	287	12	15	1800	2100	2750	3011	3537	16.1	2388	2872
TB 0230	228	246	45	57	103	138	190	316	427	11	261	353
TB 0230	13.9	246	12	15	1500	2000	2750	2797	3782	14.8	2354	3121
TB 0260	260	216	45	57	100	131	190	350	465	10.5	291	395
TB 0260	15.9	216	12	15	1450	1900	2750	3096	4117	14.1	2573	3498
TB 0295	293	191	45	57	97	125	190	383	499	10	308	400
TB 0295	17.9	191	12	15	1400	1800	2750	3391	4415	13.4	2724	3544
TB 0330	328	171	45	57	93	114	190	413	509	9.1	332	406
TB 0330	20	171	12	15	1350	1650	2750	3657	4505	12.2	2942	3590
TB 0365	370	151	45	57	86	105	190	440	540	8.7	372	454
TB 0365	22.6	151	12	15	1250	1525	2750	3897	4783	11.6	3296	4021
TB 0390	392	143	45	57	83	100	190	428	525	7.8	339	434
TB 0390	24	143	12	15	1200	1450	2750	3792	4642	10.5	3003	3845

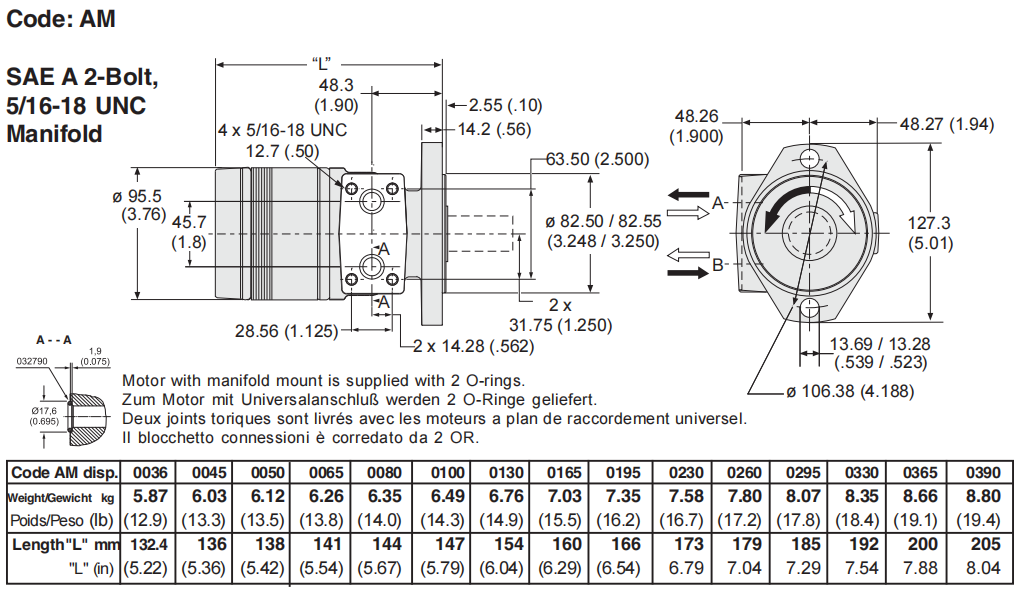

Parker TB Motor Dimension

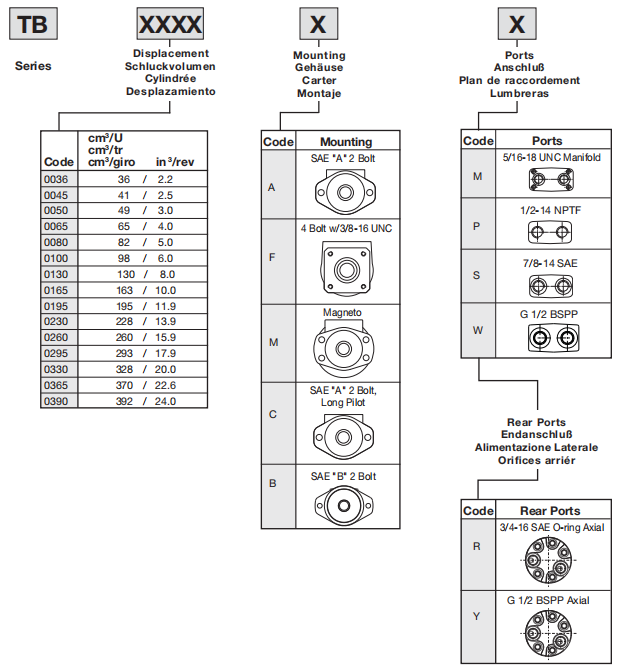

Order Code

Application

Ideal for light-duty applications such as conveyors, gearboxes, winches, and boom rotation, the Parker TB motor boasts DU and sintered bronze/steel bushings, a nominal 1-inch shaft size, and excellent lateral load capability. Its rugged construction, continuous oil flow through the splines, and smooth, ultra-low speed operation ensure long service life. The innovative design eliminates the need for case drains, making it a reliable and efficient choice for a wide range of applications.
