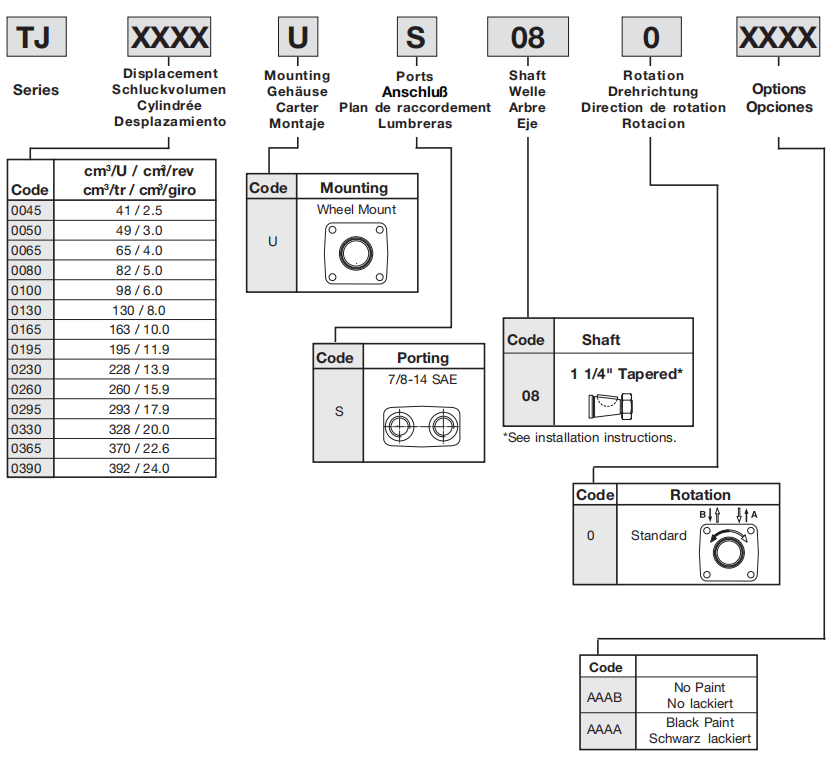

TJ 0045,TJ 0050,TJ 0065,TJ 0080,TJ 0100,TJ 0130,TJ 0165,TJ 0195,TJ 0230,TJ 0260,TJ 0295,TJ 0330,TJ 0365,TJ 0390
TJ Motors’ compact, economical hub motors feature intermittent pressures up to 190 bar and torques up to 648 Nm. The nominal shaft diameter is 31.75 mm.
The Torqmotorโข TJ Series is a rugged hydraulic motor known for its exceptional side load capabilities, high-pressure shaft sealing and seamless low-speed performance. It is ideal for light duty applications such as vehicle propulsion, augers, chain drives and boom rotations. Intermittent pressures are available up to 2750 psi, while maximum dynamic side load capacity at critical points is up to 4100 pounds.
This durable Low Speed High Torque (LSHT) track motor features rugged construction with continuous oil flow over the splines ensuring longevity. It excels at handling heavy side loads and provides smooth operation even at ultra-low speeds. High-pressure shaft seals are standard, and their innovative design eliminates the need for case drains. Its high-quality design and manufacturing ensure reliability. The TJ Series is proudly designed and manufactured in Greenville, Tennessee, USA.
The TJ Series combines TE Series drivetrains with larger, heavier-duty roller bearings and shafts to provide a compact and cost-effective solution. It can withstand intermittent pressures up to 2750 psi and deliver up to 5700 lb-in of torque. Nominal shaft size is 1.25 inches.
| Motor | cm3/rev | cont / int* | cont / int* | max | cont / int* | max | cont / int* | |||||
| Series | in3/rev | rev/min | l/min | bar | bar | Nm | KW | Nm | ||||
| TJ | g/min | psid | psig | lb-in | HP | lb-in | ||||||
| TJ 0045 | 41 | 1024 | 34 | 42 | 140 | 190 | 200 | 71 | 99 | 10.4 | 46 | 64 |
| 2.5 | 9 | 11 | 2000 | 2750 | 2900 | 624 | 876 | 13.9 | 411 | 565 | ||
| TJ 0050 | 49 | 1020 | 34 | 50 | 140 | 190 | 200 | 90 | 127 | 12.8 | 72 | 98 |
| 3 | 9 | 13 | 2000 | 2750 | 2900 | 796 | 1120 | 17.2 | 637 | 871 | ||
| TJ 0065 | 65 | 877 | 45 | 57 | 140 | 190 | 200 | 125 | 176 | 14.7 | 100 | 137 |
| 4 | 12 | 15 | 2000 | 2750 | 2900 | 1106 | 1558 | 19.8 | 885 | 1211 | ||
| TJ 0080 | 82 | 695 | 45 | 57 | 140 | 190 | 200 | 160 | 220 | 17.3 | 128 | 171 |
| 5 | 12 | 15 | 2000 | 2750 | 2900 | 1416 | 1947 | 23.2 | 1133 | 1515 | ||
| TJ 0100 | 98 | 582 | 45 | 57 | 140 | 190 | 200 | 190 | 264 | 17.4 | 152 | 205 |
| 6 | 12 | 15 | 2000 | 2750 | 2900 | 1682 | 2337 | 23.4 | 1345 | 1819 | ||
| TJ 0130 | 130 | 438 | 45 | 57 | 140 | 190 | 200 | 255 | 352 | 17.3 | 204 | 274 |
| 8 | 12 | 15 | 2000 | 2750 | 2900 | 2257 | 3116 | 23.2 | 1806 | 2423 | ||
| TJ 0165 | 163 | 348 | 45 | 57 | 140 | 190 | 200 | 310 | 436 | 17 | 248 | 338 |
| 10 | 12 | 15 | 2000 | 2750 | 2900 | 2744 | 3846 | 22.8 | 2195 | 2992 | ||
| TJ 0195 | 195 | 292 | 45 | 57 | 140 | 190 | 200 | 390 | 528 | 17.4 | 312 | 411 |
| 11.9 | 12 | 15 | 2030 | 2750 | 2900 | 3452 | 4673 | 23.4 | 2762 | 3637 | ||
| TJ 0230 | 228 | 328 | 57 | 75 | 120 | 165 | 200 | 380 | 514 | 17.7 | 304 | 411 |
| 13.9 | 15 | 20 | 1750 | 2400 | 2900 | 3363 | 4554 | 23.8 | 2691 | 3637 | ||
| TJ 0260 | 260 | 287 | 57 | 75 | 110 | 155 | 200 | 400 | 550 | 16.7 | 320 | 449 |
| 15.9 | 15 | 20 | 1650 | 2250 | 2900 | 3540 | 4870 | 22.4 | 2832 | 3977 | ||
| TJ 0295 | 293 | 256 | 57 | 75 | 100 | 145 | 200 | 428 | 582 | 15.7 | 328 | 445 |
| 17.9 | 15 | 20 | 1550 | 2100 | 2900 | 3784 | 5180 | 21 | 2903 | 3939 | ||
| TJ 0330 | 328 | 228 | 57 | 75 | 100 | 135 | 200 | 443 | 600 | 14.8 | 344 | 453 |
| 20 | 15 | 20 | 1550 | 1960 | 2900 | 3926 | 5312 | 19.8 | 3045 | 4014 | ||
| TJ 0365 | 370 | 203 | 57 | 75 | 95 | 125 | 200 | 467 | 648 | 13.6 | 373 | 477 |
| 22.6 | 15 | 20 | 1325 | 1825 | 2900 | 4133 | 5728 | 18.2 | 3301 | 4223 | ||
| TJ 0390 | 392 | 191 | 57 | 75 | 85 | 120 | 200 | 445 | 628 | 12.5 | 348 | 462 |
| 24 | 15 | 20 | 1250 | 1740 | 2900 | 3935 | 5562 | 16.8 | 3080 | 4090 | ||
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and is a comprehensive hydraulic service company. Specializing in the research and development, manufacturing, maintenance and sales of hydraulic products such as pumps, motors, valves and related parts.
Over the past two decades, POOCCAHydraulics has demonstrated continued growth and innovation in the hydraulics industry. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. The annual export volume reaches US$16 million, and its products are sold to more than 100 countries around the world. We maintain long-term and stable cooperative relationships with dealers in more than 75 countries, spanning the United States, Indonesia, Mexico, Thailand, Russia, Brazil and other regions.
Our product portfolio includes well-known brands such as Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other leading brands of hydraulic products.
At POOCCA, our greatest asset is our dedicated team of over 300 professionals. Of these, we have a dynamic sales force of 70 personnel who bring a wealth of experience and deep industry knowledge to our operations.
The Torqmotorโข TJ Series is a rugged hydraulic motor known for its exceptional side load capabilities, high-pressure shaft sealing and seamless low-speed performance. It is ideal for light duty applications such as vehicle propulsion, augers, chain drives and boom rotations. Intermittent pressures are available up to 2750 psi, while maximum dynamic side load capacity at critical points is up to 4100 pounds.
This durable Low Speed High Torque (LSHT) track motor features rugged construction with continuous oil flow over the splines ensuring longevity. It excels at handling heavy side loads and provides smooth operation even at ultra-low speeds. High-pressure shaft seals are standard, and their innovative design eliminates the need for case drains. Its high-quality design and manufacturing ensure reliability. The TJ Series is proudly designed and manufactured in Greenville, Tennessee, USA.
The TJ Series combines TE Series drivetrains with larger, heavier-duty roller bearings and shafts to provide a compact and cost-effective solution. It can withstand intermittent pressures up to 2750 psi and deliver up to 5700 lb-in of torque. Nominal shaft size is 1.25 inches.
