โSunny internal HG0 gear pump adopts axial and radial pressure compensation design, which can maintain high volumetric efficiency even at low speed and low viscosity.
โUltra-low noise, using high-strength cast iron and unique internal noise reduction design to make the noise even lower.
โโInsensitive to oil pollution and long service life.
โHG pump is designed with high pressure, and the maximum working pressure can reach 35MPa.
โWide speed range, the maximum speed can reach 3000r/min.
โCan be combined into double pumps.

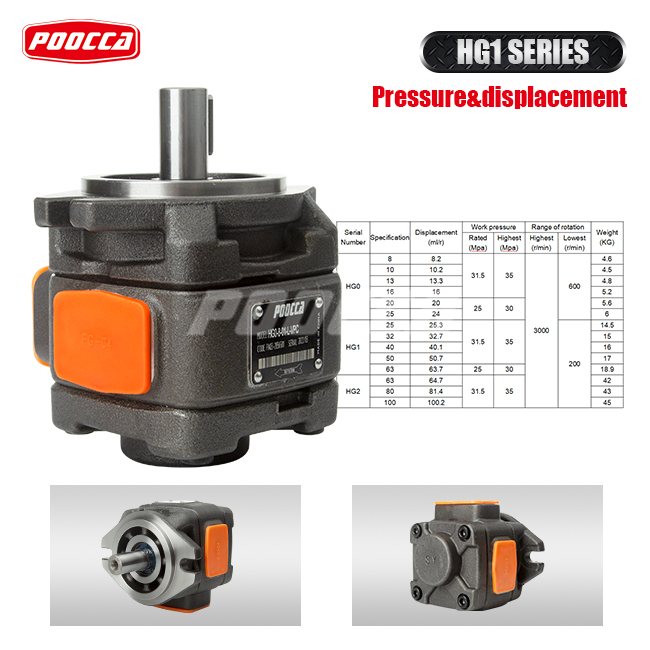

| Serial Number |
Specification | Displacement (ml/r) |
Work pressure | Range of rotation | Weight (KG) |
||
| Rated (Mpa) |
Highest (Mpa) |
Highest (r/min) |
Lowest (r/min) |
||||
| hg0 gear pump | 8 | 8.2 | 31.5 | 35 | 3000 | 600 | 4.6 |
| 10 | 10.2 | 4.5 | |||||
| 13 | 13.3 | 4.8 | |||||
| 16 | 16 | 5.2 | |||||
| 20 | 20 | 25 | 30 | 5.6 | |||
| 25 | 24 | 6 | |||||
1.Quick response within 12 hours
2.Accept small order(MOQ:1pcs)
3.Custom service.Unusual packaging,standard packing or as customer required
4.Excellent after-sales service
5.Strict quality control system.100% factory testing and inspection personnel in accordance with international standards for the high frequency sampling, to ensure the quality of products manufactured
โSunny internal HG0 gear pump adopts axial and radial pressure compensation design, which can maintain high volumetric efficiency even at low speed and low viscosity.
โUltra-low noise, using high-strength cast iron and unique internal noise reduction design to make the noise even lower.
โโInsensitive to oil pollution and long service life.
โHG pump is designed with high pressure, and the maximum working pressure can reach 35MPa.
โWide speed range, the maximum speed can reach 3000r/min.
โCan be combined into double pumps.
| Serial Number |
Specification | Displacement (ml/r) |
Work pressure | Range of rotation | Weight (KG) |
||
| Rated (Mpa) |
Highest (Mpa) |
Highest (r/min) |
Lowest (r/min) |
||||
| hg0 gear pump | 8 | 8.2 | 31.5 | 35 | 3000 | 600 | 4.6 |
| 10 | 10.2 | 4.5 | |||||
| 13 | 13.3 | 4.8 | |||||
| 16 | 16 | 5.2 | |||||
| 20 | 20 | 25 | 30 | 5.6 | |||
| 25 | 24 | 6 | |||||
1.Quick response within 12 hours
2.Accept small order(MOQ:1pcs)
3.Custom service.Unusual packaging,standard packing or as customer required
4.Excellent after-sales service
5.Strict quality control system.100% factory testing and inspection personnel in accordance with international standards for the high frequency sampling, to ensure the quality of products manufactured
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
