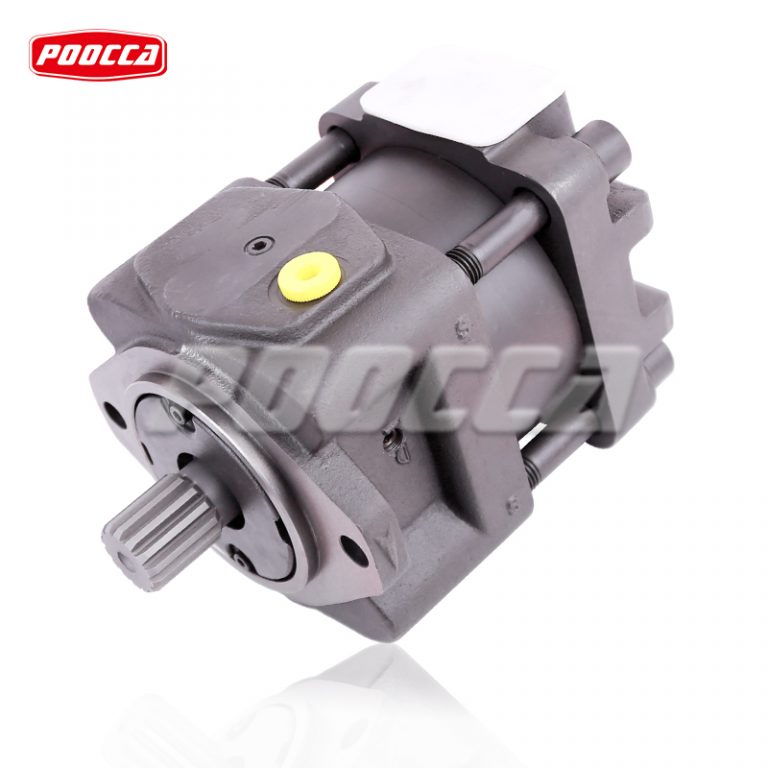

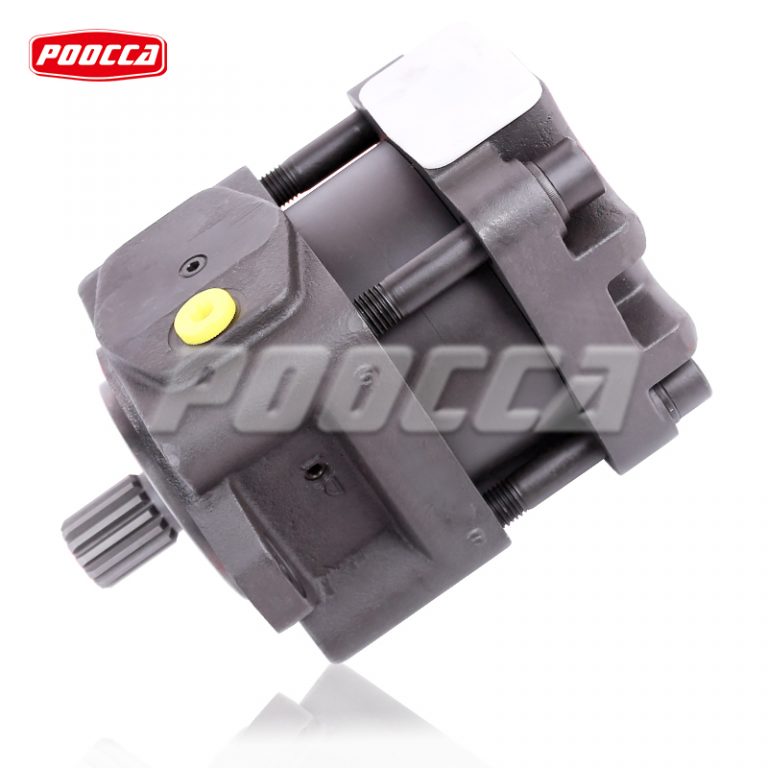

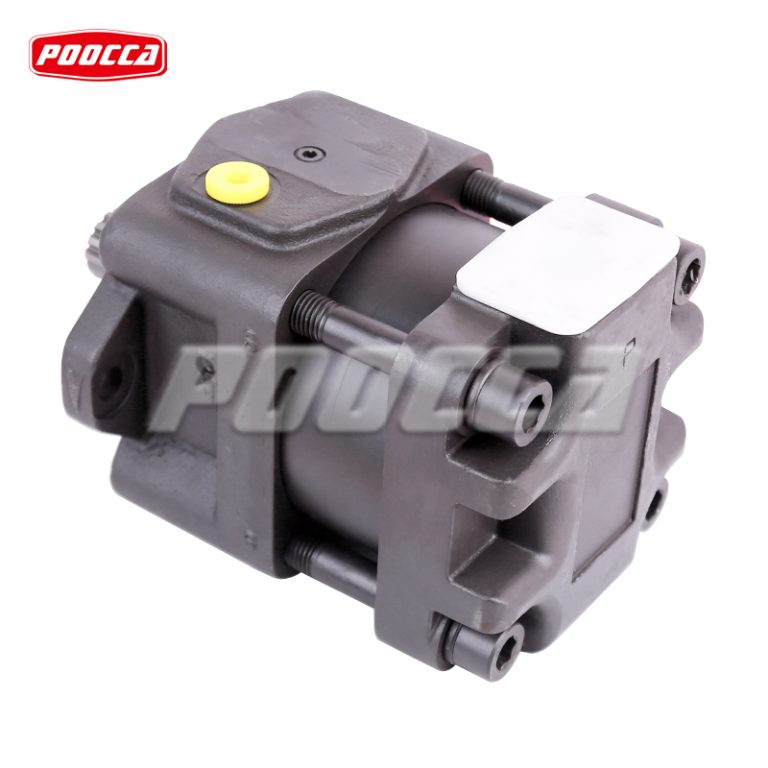

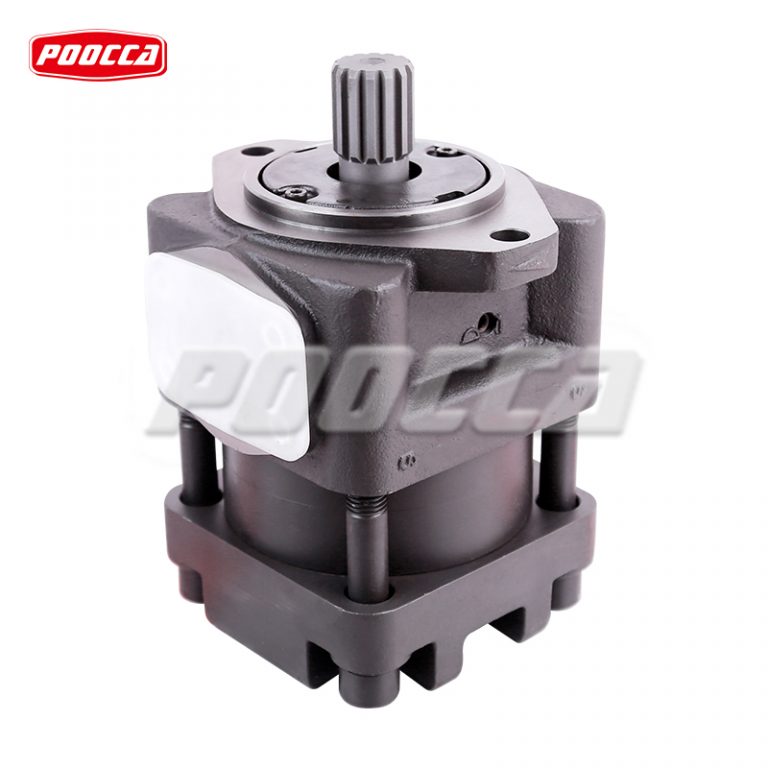

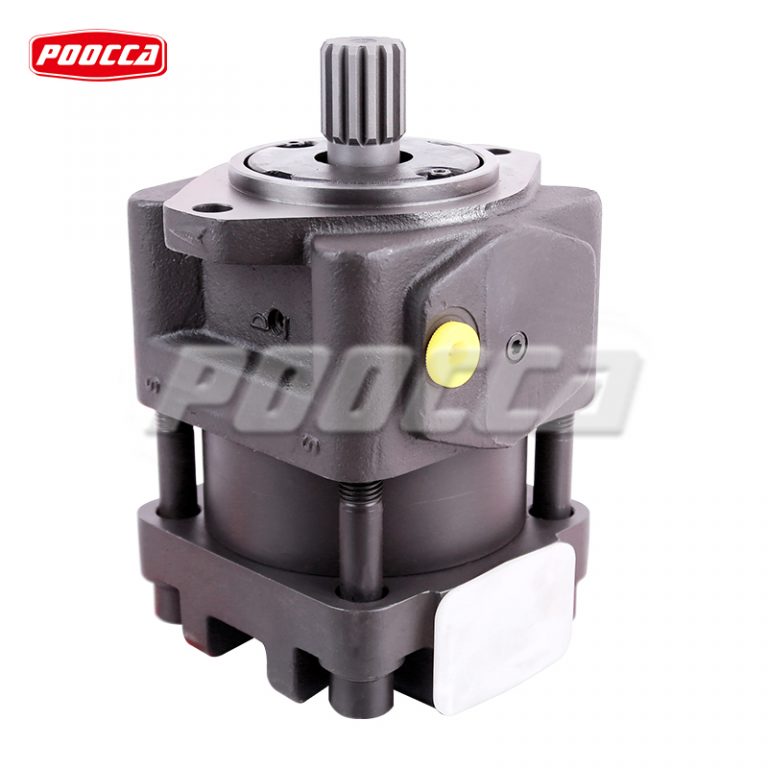

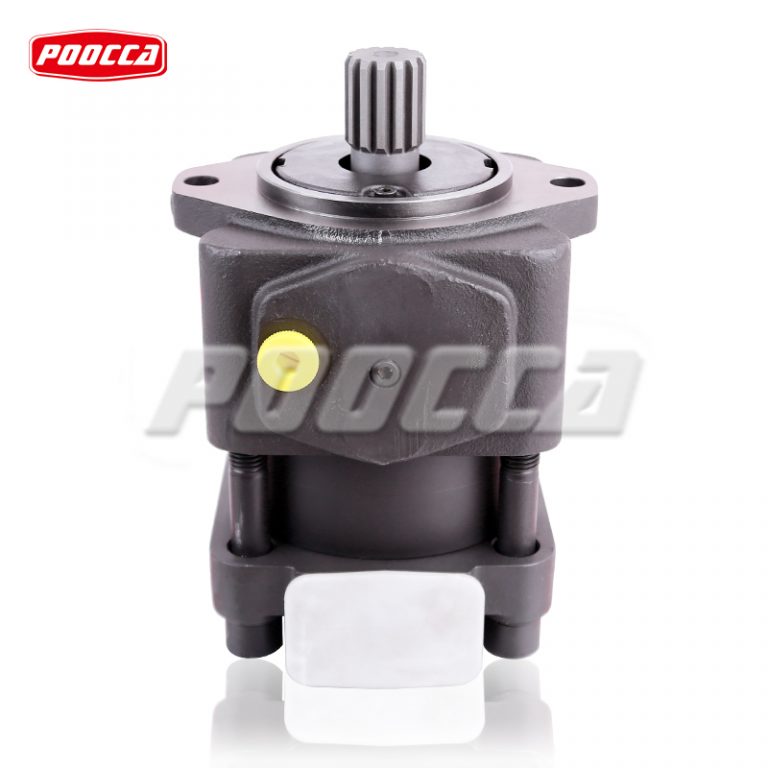

Sumitomo QT Hydraulic Internal Gear Pump

Sumitomo QT series has high, medium and low pressure displacement options. Send your needs to poocca.

Characteristic

High efficiency: QT internal gear pumps are the choice for servo systems and other hydraulic systems.
Structural Enhancements: Structural improvements further improve the QT Series, increasing its operating efficiency.
Noise reduction: The specially designed gear geometry of the Sumitomo QT gear pump significantly reduces noise levels, allowing for quiet operation even under high pressure and high speed rotation.
Comprehensive solutions: poocca hydraulics manufacturers offer complete pumps and accessories that can replace original Sumitomo products.

Parameter

Model Work pressure Power N KW flow/min when no loads
kgf/cm2 60HZ 50HZ
Rate PR Max MP Rate pressure and 1500rpmโ€™s 6P motor 4P motor 6P motor 4P motor
Power 1200rpm 1800rpm 1000rpm 1500rpm
Q23-4 250 320 3 โ€“ 7.5 โ€“ 6.4
QT23-5 3.5 6.5 9.8 5.4 8.2
QT23-6.3 4.3 7.9 11.9 6.5 9.9
QT23-8 5.4 9.8 14.8 8.2 12.3
QT33-10 6.8 11.9 17.9 9.9 14.9
QT33-12.5 8.6 15 22.6 12.5 18.8
QT33-16 10.6 18.6 28 15.5 23.3
QT43-20 13.7 24.1 36.3 20 30.2
QT43-25 16.8 29.9 45 24.8 37.4
QT43-31.5 21.6 38.5 57.9 32 48.2
QT53-40 26.1 45.7 70.3 38.9 58.5
QT53-50 33.5 60.3 90.6 50.2 75.5
QT53-63 41.9 75.9 114 63.2 95
QT63-80 52.7 95.6 143.7 79.6 119.7
QT63-100 66.1 120.3 181.2 100.4 150.9
QT63-125 81.3 149 223.8 124.1 186.4

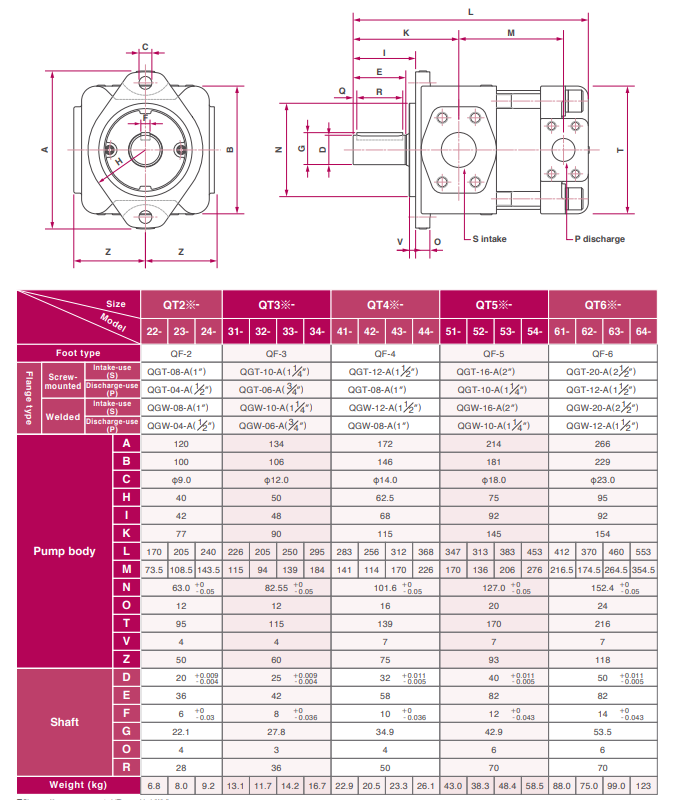

Sumitomo QT Pump Dimension

QT INTERNAL GEAR PUMP

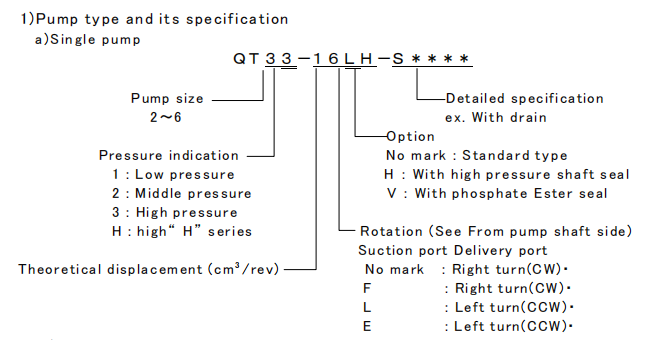

Order Code

Typeย ofย Pump Qย T*1

(ย Lowย )

Qย T*2

(ย Middleย )

Qย T*3

(ย Highย )

Qย T*H

(ย Superย highย )

Ratedย Pressure 6.9ย ย ย (70) 13.7ย (140) 24.5ย (250) 34.3ย ๏ผˆ350๏ผ‰
Max. Pressure 7.8ย (80) 15.7ย (160) 31.4ย (320) 34.3ย (350)

QT GEAR PUMP

QT Pump More models

Poocca hydraulic manufacturer sells multiple models of QT, please send us the model and requirements you need, thank you.

QT61-160-A QT41-50-A QT61-250-A
QT61-200-A QT41-63-A QT22-4-A
QT61-250-A QT51-80-A QT22-5-A
QT31-20-A QT51-100-A QT22-6.3-A
QT31-25-A QT51-125-A QT22-8-A,QT32-10-A
QT31-31.5-A QT61-160-A QT32-12.5-A
QT41-40-A QT61-200-A QT32-16-A
QT42-20-A QT42-25-A QT42-31.5-A

Sumitomo QT Hydraulic Internal Gear Pump

Sumitomo QT series has high, medium and low pressure displacement options. Send your needs to poocca.

Characteristic

High efficiency: QT internal gear pumps are the choice for servo systems and other hydraulic systems.
Structural Enhancements: Structural improvements further improve the QT Series, increasing its operating efficiency.
Noise reduction: The specially designed gear geometry of the Sumitomo QT gear pump significantly reduces noise levels, allowing for quiet operation even under high pressure and high speed rotation.
Comprehensive solutions: poocca hydraulics manufacturers offer complete pumps and accessories that can replace original Sumitomo products.

Parameter

Model Work pressure Power N KW flow/min when no loads
kgf/cm2 60HZ 50HZ
Rate PR Max MP Rate pressure and 1500rpmโ€™s 6P motor 4P motor 6P motor 4P motor
Power 1200rpm 1800rpm 1000rpm 1500rpm
Q23-4 250 320 3 โ€“ 7.5 โ€“ 6.4
QT23-5 3.5 6.5 9.8 5.4 8.2
QT23-6.3 4.3 7.9 11.9 6.5 9.9
QT23-8 5.4 9.8 14.8 8.2 12.3
QT33-10 6.8 11.9 17.9 9.9 14.9
QT33-12.5 8.6 15 22.6 12.5 18.8
QT33-16 10.6 18.6 28 15.5 23.3
QT43-20 13.7 24.1 36.3 20 30.2
QT43-25 16.8 29.9 45 24.8 37.4
QT43-31.5 21.6 38.5 57.9 32 48.2
QT53-40 26.1 45.7 70.3 38.9 58.5
QT53-50 33.5 60.3 90.6 50.2 75.5
QT53-63 41.9 75.9 114 63.2 95
QT63-80 52.7 95.6 143.7 79.6 119.7
QT63-100 66.1 120.3 181.2 100.4 150.9
QT63-125 81.3 149 223.8 124.1 186.4

Sumitomo QT Pump Dimension

QT INTERNAL GEAR PUMP

Order Code

Typeย ofย Pump Qย T*1

(ย Lowย )

Qย T*2

(ย Middleย )

Qย T*3

(ย Highย )

Qย T*H

(ย Superย highย )

Ratedย Pressure 6.9ย ย ย (70) 13.7ย (140) 24.5ย (250) 34.3ย ๏ผˆ350๏ผ‰
Max. Pressure 7.8ย (80) 15.7ย (160) 31.4ย (320) 34.3ย (350)

QT GEAR PUMP

QT Pump More models

Poocca hydraulic manufacturer sells multiple models of QT, please send us the model and requirements you need, thank you.

QT61-160-A QT41-50-A QT61-250-A
QT61-200-A QT41-63-A QT22-4-A
QT61-250-A QT51-80-A QT22-5-A
QT31-20-A QT51-100-A QT22-6.3-A
QT31-25-A QT51-125-A QT22-8-A,QT32-10-A
QT31-31.5-A QT61-160-A QT32-12.5-A
QT41-40-A QT61-200-A QT32-16-A
QT42-20-A QT42-25-A QT42-31.5-A
