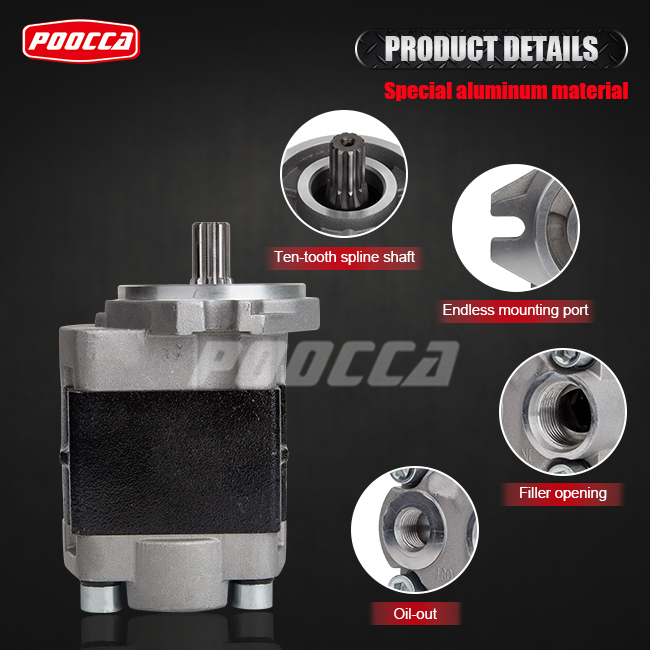

The gear pump in the POOCCA Hydraulic SGP SGP2 series is an external forklift gear pump that incorporates automatic compensation for axial clearance and radial hydraulic balance. It features a three-opening structure, DU bearings for the bearings, and bimetals material for the side plate. The front and rear covers are constructed with high-strength aluminum accessories. The middle section is made of iron casting, and its surface is coated with metal, contributing to improved performance and reliability of the pumps.
| SGP2 Size | Displacement | Rated pressure | Max. peak pressure | Speed min1 | Inlet pressure |
Mass | |||||||
| cm | in3 | MPa | bar | psi | MPa | bar | pis | MIN | MAX | kg | lb | ||
| 20 | 20.3 | 1.238 | 24.5 | 245 | 3553 | 29.4 | 294 | 4263 | 400 | 3000 | bar -0.20-2.0MPa -0.02- 0.2psi -2.9 -29 |
4.9(4.4) 1078(9.68) | |
| 23 | 23.3 | 1.421 | 5.1 (4.6) 11.22 (10.12) | ||||||||||
| 25 | 25.3 | 1.543 | 5.3 (4.8) 11.66 (10.56) | ||||||||||
| 27 | 27.4 | 1.671 | 5.4 (4.9) 11.88 (10.78) | ||||||||||
| 32 | 32.5 | 1.983 | 5.7 (5.1) 12.54 (11.22) | ||||||||||
| 36 | 36.5 | 2.227 | 3000 (2500) | 5.9 (5.3) | 12.98 (11.66) | ||||||||
| 40 | 40.6 | 2477 | 226 | 226 | 3277 | 275 | 275 | 3988 | 2500 (2300) | 6.1 (5 4) | 1342(1188) | ||
| 44 | 44.7 | 2727 | 206 | 206 | 2987 | 245 | 245 | 3553 | 2300 (2300) | 6 3 (5 6) | 1386 (1232) | ||
| 48 | 48.7 | 2970 | 186 | 186 | 2697 | 226 | 226 | 3277 | 2300 (2000) | 6.6 (5 9) | 1452 (1298) | ||
| 52 | 52.8 | 3.221 | 17.2 | 172 | 2494 | 20.6 | 206 | 2987 | 2200 (2000) | 6.8 (6.1) | 14.96 (13.42) | ||
