SMT16B screw pump (up to 40bar / fino a 40bar
Sizes:20 25 32 40 45 55 60 70 80 90* 110*
Shaft speed:From 500 to 3.600 rpm / Da 500 a 3.600 rpm

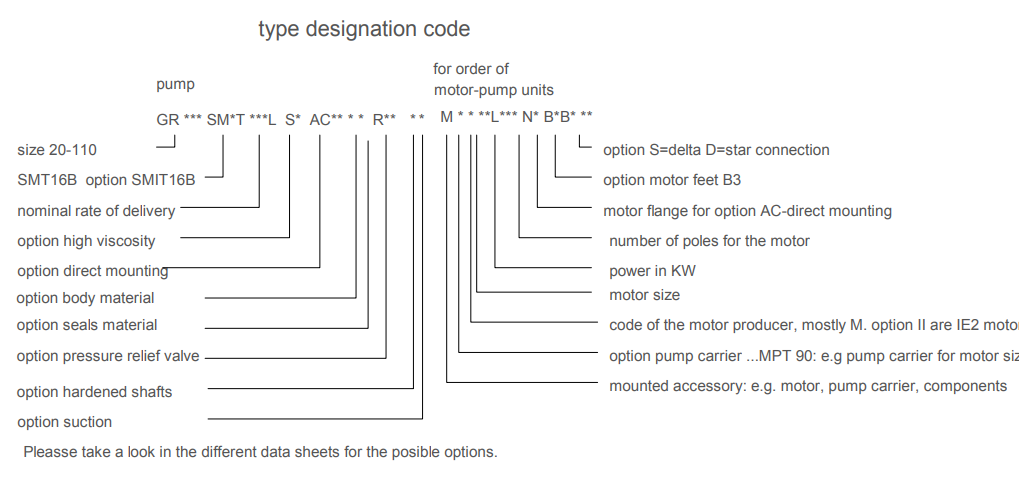

GR20-SMT16B,GR25-SMT16B,GR32-SMT16B,GR40-SMT16B,GR-SMT16B45,GR55-SMT16B,GR60-SMT16B,GR70-SMT16B,GR80-SMT16B,GR90-SMT16B,GR110-SMT16B
| Settima SMT16B | srew pump for industrial applications with shaft seal, low pressure |

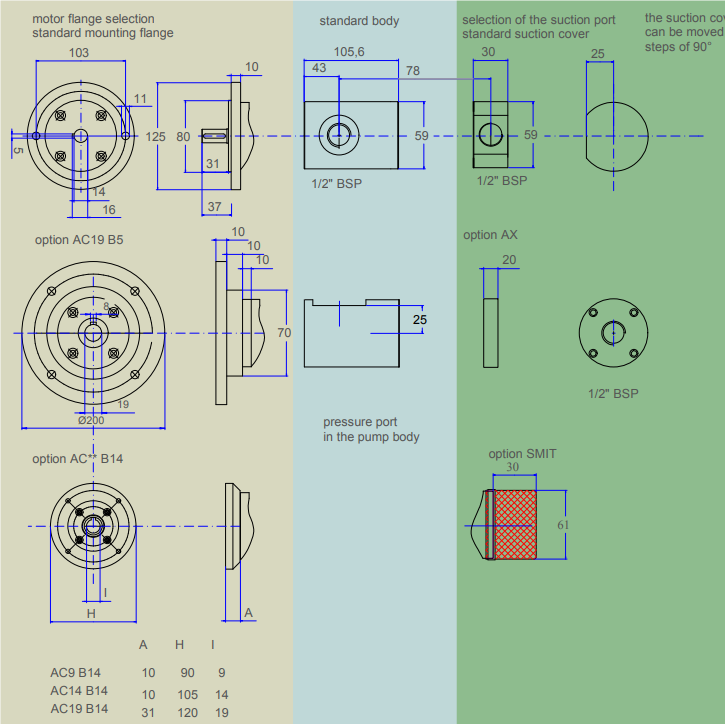

| Mounting flanges | flanges ISO 3019/2 according to ICE standard for option AC-direct mounting |
| Pipe connections | SAE 3000PSI and BSP srew threads |
| Mounting position | in any order, SMIT complete or suction-sited in oil |
| drive | to be exempt from axial and radial shaft stresses |
| rotation | clockwise ,from shaftโs view |
| revolution | speed 500 to 3600 rev/min (special mediums, air, high viscosity after consulting) |
| sizes | 20 25 32 40 45 55 60 70 80 90* 110* |
| Rate of deliveries | 8 – 3400 l/min (2750 rev/min 2 pol.) |
| pressures | pcont.=40 bar, ppeek=50 bar, (special mediums, air, hight viscosity after consulting) |
| inlet pressures | min. 0,7 bar absolute, max 3 bar / *GR90+GR110 2pol operation 0.5 – 3 bar inlet pressure |
| service mediums | HLP oil according to DIN 51524 part 1+2 |
| biodegradable mediums HETG+HEPTG*HEE | |
| ย synthesized fluids and emulsions | |
| HFA water-oil-emulsions min. 5% oil contingent | |
| HFB water-oil-emulsions 50% oil contingent | |
| HFC water glycol, water contingent max. 35 – 55% | |
| HFD phosphaticaly ester | |
| Lubrication oils with hight viscosity , cavitation or air contingent | |
| synthesized fluids MIL-H, Skydrol | |
| All these fluids require a close technical examination and | |
| ย could modify the promised technical proberties | |
| viscosity | 4 – 2000 mm2 /s (attend options S1-S4 + SN) |
| seals | standard viton option NBR, FPM, EPDM |
| noise | 52 – 68 dba (2750 rev/min hydraulic oil) |
| body | material standard alu, option anodic oxide, caste iron, carbon steel 18NiCrMo5 |
| srews | C25 steel for the main screw, caste iron for the lateral screws, option nitrided or case hardened shafts |
| temperature | -20 bis +60 ยฐC ambient temperature |
| ย -20 bis +180ยฐC medium temperature dependent on the seals material! | |
| filtration | recommmended on NAS1638 class 10 or ISO 4406-19/16 filtration 25>= 75 |
| maintenance | none |
Settima SMT16B Screw Pump Series:GR20-SMT16B,GR25-SMT16B,GR32-SMT16B,GR40-SMT16B,GR-SMT16B45,GR55-SMT16B,GR60-SMT16B,GR70-SMT16B,GR80-SMT16B,GR90-SMT16B,GR110-SMT16B

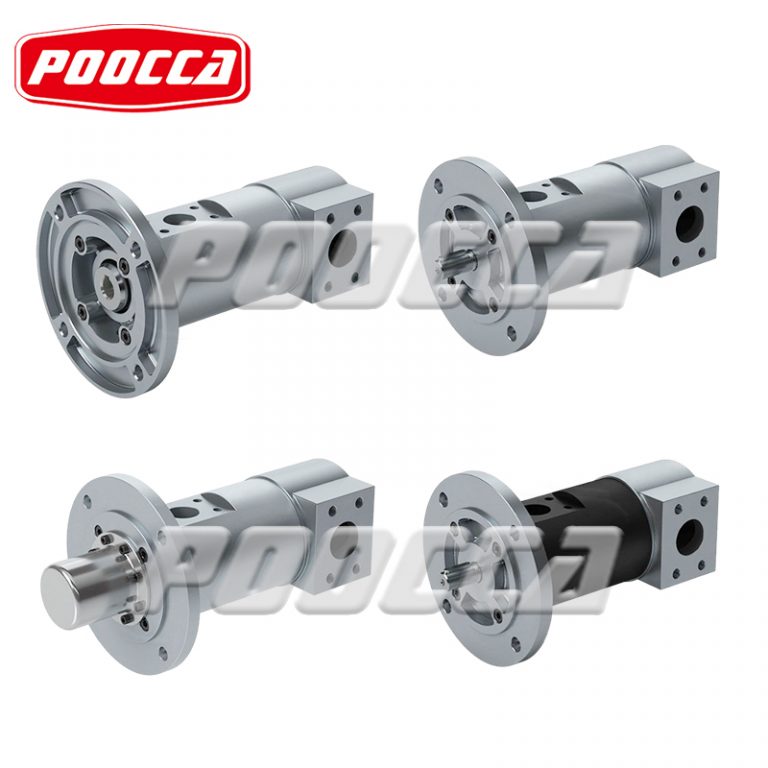

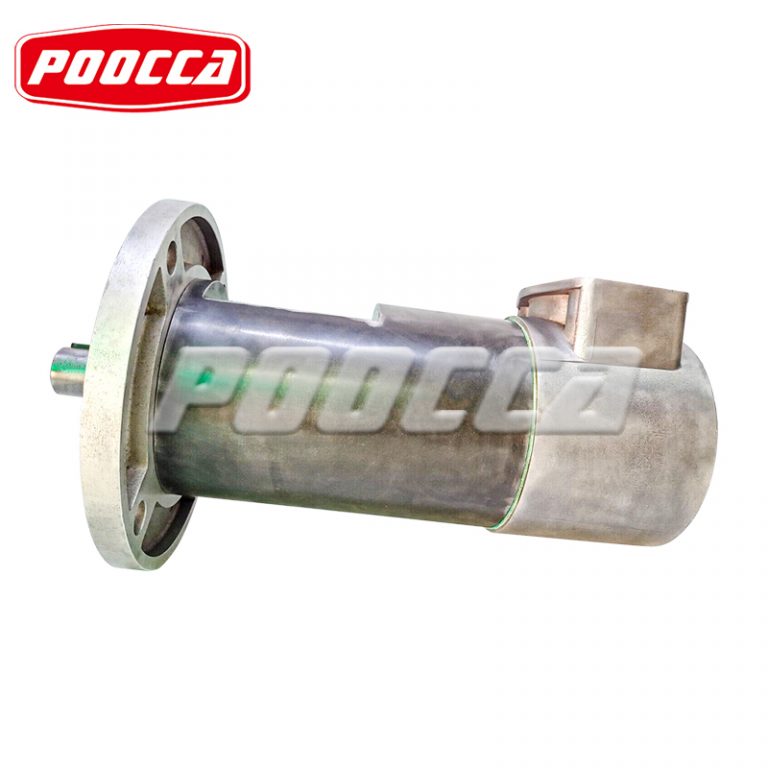

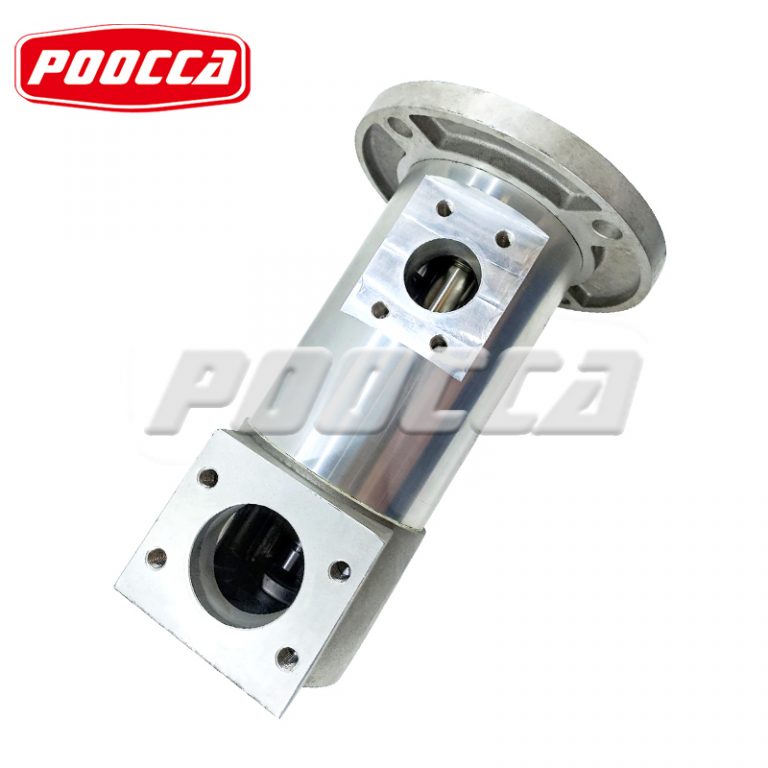

The SMT16B is a three-screw pump designed for industrial low-pressure applications (up to 40 bar). The pump is ideal for long life and smooth fluid flow with its reliability and noiseless performance. The SMT16B pump is self-priming and assembled in a pump body. Its pump body and screw design eliminate axial loads. The functional pressure creates some tolerances between the balance piston of the main screw and the surrounding body, which lubricates and cools the sealing parts while generating balanced fluid dynamics. The moving torque of the lateral screw is transmitted hydraulically by the pumped fluid, which allows the screw to rotate without mechanical wear.
The advanced design and high-precision manufacturing of the screws ensure extremely low noise and pulsation levels. The geometry and high-precision machining of the three screws form a sealed chamber. During the screw rotation, the main screw forms a cavity that contains the fluid and drives it smoothly axially from the inlet to the outlet.
The SMT16B pump can be equipped with an internal or external safety relief valve. Compared to the SMT pump, the SMT16B has a shorter screw and is suitable for applications where space is limited.
Hydraulic system manufacturer POOCCA specializes in the design, production, service and sales of Hydraulic Pumps, Motors, Valves, Components and Custom Solutions. Our annual exports exceed $16 million, reflecting our global reach and the trust earned through long-term partnerships with more than 75 countries around the world.
We have over 2,000 different gear pumps, piston pumps, vane pumps, motors, hydraulic valves, hydraulic distributors and accessories to meet the needs of various industries such as construction, agriculture, mining and others.
The main mission of the Manufacturer POOCCA Hydraulic is to provide High Quality Products to every User of Hydraulic Systems at affordable Prices. Most items are in stock and can be shipped quickly.
At its core, POOCCA is more than just a hydraulics manufacturer, it is a trusted partner committed to ensuring customer success through quality, innovation and sustainability in the hydraulics industry.
POOCCA manufacturers ensure that the product manufacturing process meets the highest standards in all aspects. We strictly implement a quality management system to ensure every step is taken care of. From raw material procurement to production and processing, assembly testing, final packaging and shipping, we always pay great attention and rigor. Our quality control team strictly ensures that every hydraulic pump and motor meets strict quality standards and customer needs. As we continue to improve our manufacturing processes and quality management, our product qualification rate remains above 99.99%. By providing customers with higher quality hydraulic pumps, motors, hydraulic valves and other products, we ensure a win-win situation.
