Sauer Danfoss OMV Series Orbit Motor

OMV315, OMV400, OMV500, OMV630, OMV800, OMV1000

OMV Motor Displacement: 315-1000ml/r

Flange options:
4-Ø18 square flange Ø200, pilot Ø160×11 (specify “4”)
Rim Ø224, Pilot Ø180×10 (designated “W”)

Shaft specifications:
Shaft Ø50 with parallel key 14×9×70 (designated “A”)

Oil port options:
G1 Manifold with 4×M12, G1/4 (designated “D”)

Chat Now

Sauer Danfoss OMV Series Orbit Motor

Characteristic

Operational performance:
The Danfoss OMV motor achieves smooth operation within the full speed range,
Maintain stable operating torque within the speed range,
High starting torque ensures efficient performance

Design features:
Equipped with a high-pressure shaft seal design, the Danfoss OMV motor can withstand high return oil pressure without the need for additional oil discharge pipes
Durable and compact structural design, combining durability and space efficiency
Provide high radial and axial load capacity to ensure long-term reliable performance

Application and adaptability:
Danfoss OMV motors are suitable for both open and closed circuit hydraulic systems
Compatible with multiple hydraulic oils, widely adaptable, suitable for various industrial scenarios

Efficiency and lifespan:
Efficient design, optimized energy utilization, and improved overall system performance
Even under harsh working conditions, Danfoss OMV hydraulic motors can still ensure a long service life

Parameter

Type			OMV	OMV	OMV	OMV	OMV
			OMVW	OMVW	OMVW	OMVW	OMVW
			OMVS	OMVS	OMVS	OMVS	OMVS
Motor size			315	400	500	630	800
Geometric displacement	cm³ [in³]		314.5 [19. 19]	400.9 [24.46]	499.6 [30.49]	629.1 [38.39]	801.8 [48.93]
Max. speed	min- 1 [rpm]	cont.	510	500	400	315	250
Max. speed	min- 1 [rpm]	int1)	630	600	480	380	300
Max. torque	Nm [lbf·in]	cont.	920 [8140]	1180 [10440]	1460 [12920]	1660 [14690]	1880 [16640]
Max. torque	Nm [lbf·in]	int.1)	1110 [9820]	1410 [12480]	1760 [15580]	1940 [17170]	2110 [18680]
Max. output	kW [hp]	cont.	42.5 [57.0]	53.5 [71.7]	53.5 [71.7]	48.0 [64.4]	42.5 [57.0]
Max. output	kW [hp]	int.1)	51.0 [68.4]	64.0 [85.8]	64.0 [85.8]	56.0 [75. 1]	48.0 [64.4]
Max. pressure drop	bar [psi]	cont.	200 [2900]	200 [2900]	200 [2900]	180 [2610]	160 [2320]
		int.1)	240 [3480]	240 [3480]	240 [3480]	210 [3050]	180 [2610]
		peak2)	280 [4060]	280 [4060]	280 [4060]	240 [3480]	210 [3050]
Max. oil flow	l/min	cont.	160 [42.3]	200 [52.8]	200 [52.8]	200 [52.8]	200 [52.8]
	[USgal/	cont.	160 [42.3]	200 [52.8]	200 [52.8]	200 [52.8]	200 [52.8]
	min]	int.1)	200 [52.8]	240 [63.4]	240 [63.4]	240 [63.4]	240 [63.4]
Max. starting pressure with unloaded shaft	bar [psi]		8 [116]	8 [116]	8 [116]	8 [116]	8 [116]
Min. starting torque	at max. press. drop cont. Nm [lbf·in]		710 [6280]	910 [8050]	1130 [10000]	1330 [11770]	1510 [13360]
Min. starting torque	at max. press. drop int.1) Nm [lbf·in]		850 [7520]	1090 [9650]	1360 [12040]	1550 [13720]	1700 [15050]

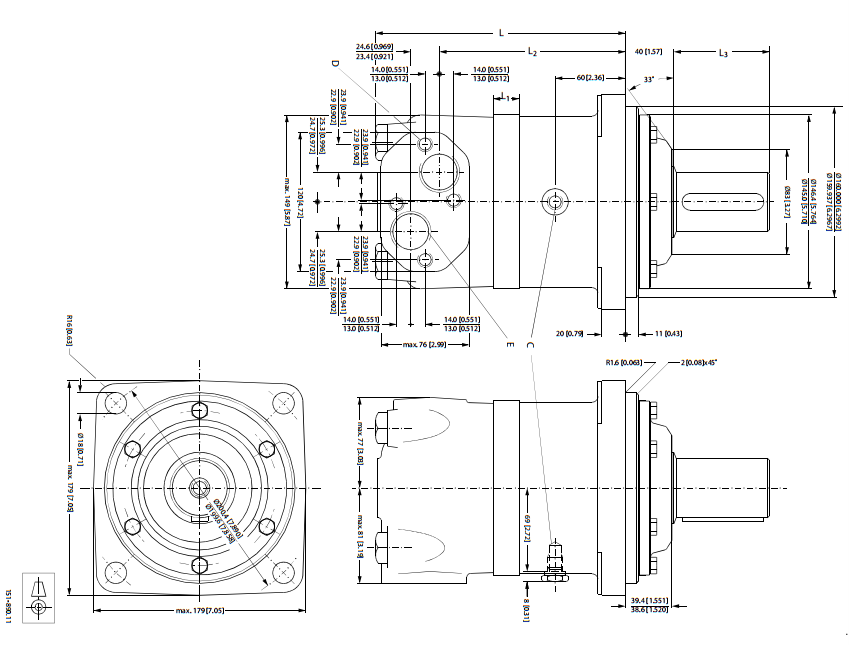

Sauer Danfoss OMV Series Motor Dimension

Product Details

Sauer Danfoss OMV Motor Shaft type:Splined Shaft,Cylindrical Shaft,Tapered Shaft

Flange Type:A1/2 Flange,A3 Flange,Other Flange

Port Type:S Type,L Type,H Type

There are different shafts, front covers, oil ports to choose from, please send us an email poocca.
