1.5PE gear pump model range: 1.4, 2.1, 2.8, 3.5, 4.1, 5.2, 6.2, 7.6, 9.3 and 11

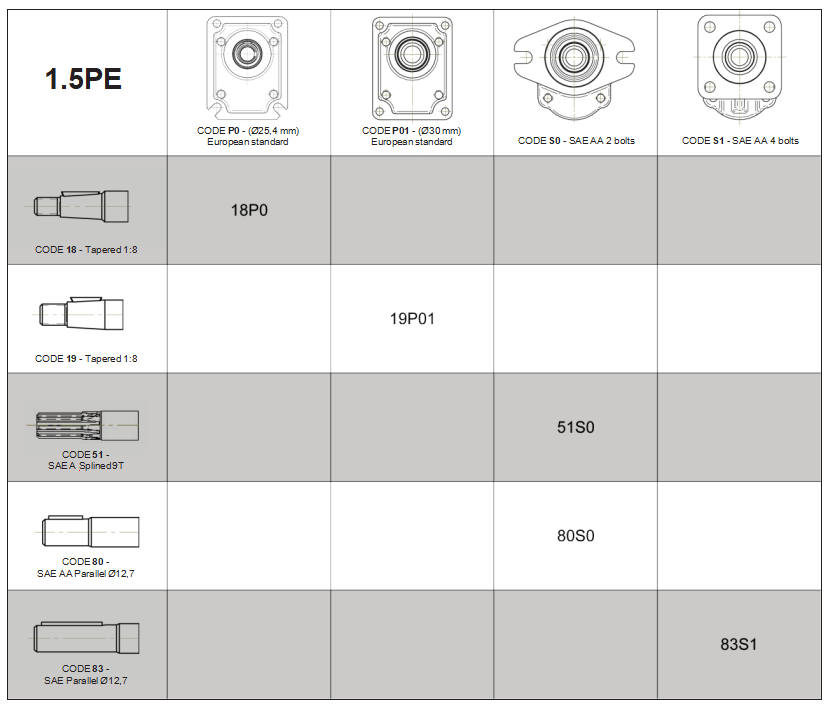

Salami hydraulic gear pump 1.5PE series products are equipped with 12 teeth integral gears with flanges, which meet the main European and American standards. The products are available with a variety of shaft and port options to ensure wide applicability in different applications.
Displacement range: 1.4 cmยณ/rev to 11 cmยณ/rev
Operating pressure range (P1): 250 bar / 3625 psi to 170 bar / 2465 psi
Intermittent pressure range (P2): 190 bar / 2755 psi
Peak pressure range (P2): 290 bar / 4205 psi to 220 bar / 3190 psi
Maximum speed range:
P1: 700 rpm to 600 rpm
P2: 5000 rpm to 3000 rpm
The design of the 1.5PE hydraulic pump ensures excellent performance and efficient operation, suitable for high pressure and high speed environments.
| Displacement | Continuous
pressure P1** |
Intermittent pressure P2 | Peak pressure P3 | Max.
speed |
Min. speed | |||||
| GROUP 1.5 – E SERIES GEAR PUMP | cm3/rev | cu.in/rev | bar | psi | bar | psi | bar | psi | min-1 | |
| 1.5PE – 1.4 | 1.4 | 0.09 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 5000 | 700 |
| 1.5PE – 2.1 | 2.1 | 0.13 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 5000 | 700 |
| 1.5PE – 2.8 | 2.8 | 0.17 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4500 | 700 |
| 1.5PE – 3.5 | 3.5 | 0.21 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4500 | 700 |
| 1.5PE – 4.1 | 4.1 | 0.25 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4000 | 700 |
| 1.5PE – 5.2 | 5.2 | 0.32 | 230 | 3335 | 250 | 3625 | 270 | 3915 | 4000 | 700 |
| 1.5PE – 6.2 | 6.2 | 0.38 | 230 | 3335 | 250 | 3625 | 270 | 3915 | 3600 | 600 |
| 1.5PE – 7.6 | 7.6 | 0.46 | 200 | 2900 | 220 | 3190 | 250 | 3625 | 3300 | 600 |
| 1.5PE – 9.3 | 9.3 | 0.57 | 180 | 2610 | 200 | 2900 | 240 | 3480 | 3000 | 600 |
| 1.5PE – 11 | 11 | 0.67 | 170 | 2465 | 190 | 2755 | 220 | 3190 | 3000 | 600 |
Poocca is a leading hydraulic manufacturer with over 20 years of industry expertise. With stable partnerships in multiple countries, we have won unanimous praise for our competitive prices and excellent quality. Our commitment to excellence ensures customers around the world trust us to meet their hydraulic needs. Whether it’s reliability, performance or innovation, Poocca delivers reliable solutions that exceed expectations. Choose Poocca for hydraulic solutions you can trust.
At Poocca, customization is at the heart of what we do. From custom model specifications to personalized logos and packaging, we offer a full range of customization options to meet your unique needs. Our team of professionals work closely with you to experience Poocca customization.
1.5PE gear pump model range: 1.4, 2.1, 2.8, 3.5, 4.1, 5.2, 6.2, 7.6, 9.3 and 11
Salami hydraulic gear pump 1.5PE series products are equipped with 12 teeth integral gears with flanges, which meet the main European and American standards. The products are available with a variety of shaft and port options to ensure wide applicability in different applications.
Displacement range: 1.4 cmยณ/rev to 11 cmยณ/rev
Operating pressure range (P1): 250 bar / 3625 psi to 170 bar / 2465 psi
Intermittent pressure range (P2): 190 bar / 2755 psi
Peak pressure range (P2): 290 bar / 4205 psi to 220 bar / 3190 psi
Maximum speed range:
P1: 700 rpm to 600 rpm
P2: 5000 rpm to 3000 rpm
The design of the 1.5PE hydraulic pump ensures excellent performance and efficient operation, suitable for high pressure and high speed environments.
| Displacement | Continuous
pressure P1** |
Intermittent pressure P2 | Peak pressure P3 | Max.
speed |
Min. speed | |||||
| GROUP 1.5 – E SERIES GEAR PUMP | cm3/rev | cu.in/rev | bar | psi | bar | psi | bar | psi | min-1 | |
| 1.5PE – 1.4 | 1.4 | 0.09 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 5000 | 700 |
| 1.5PE – 2.1 | 2.1 | 0.13 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 5000 | 700 |
| 1.5PE – 2.8 | 2.8 | 0.17 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4500 | 700 |
| 1.5PE – 3.5 | 3.5 | 0.21 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4500 | 700 |
| 1.5PE – 4.1 | 4.1 | 0.25 | 250 | 3625 | 270 | 3915 | 290 | 4205 | 4000 | 700 |
| 1.5PE – 5.2 | 5.2 | 0.32 | 230 | 3335 | 250 | 3625 | 270 | 3915 | 4000 | 700 |
| 1.5PE – 6.2 | 6.2 | 0.38 | 230 | 3335 | 250 | 3625 | 270 | 3915 | 3600 | 600 |
| 1.5PE – 7.6 | 7.6 | 0.46 | 200 | 2900 | 220 | 3190 | 250 | 3625 | 3300 | 600 |
| 1.5PE – 9.3 | 9.3 | 0.57 | 180 | 2610 | 200 | 2900 | 240 | 3480 | 3000 | 600 |
| 1.5PE – 11 | 11 | 0.67 | 170 | 2465 | 190 | 2755 | 220 | 3190 | 3000 | 600 |
Poocca is a leading hydraulic manufacturer with over 20 years of industry expertise. With stable partnerships in multiple countries, we have won unanimous praise for our competitive prices and excellent quality. Our commitment to excellence ensures customers around the world trust us to meet their hydraulic needs. Whether it’s reliability, performance or innovation, Poocca delivers reliable solutions that exceed expectations. Choose Poocca for hydraulic solutions you can trust.
At Poocca, customization is at the heart of what we do. From custom model specifications to personalized logos and packaging, we offer a full range of customization options to meet your unique needs. Our team of professionals work closely with you to experience Poocca customization.
