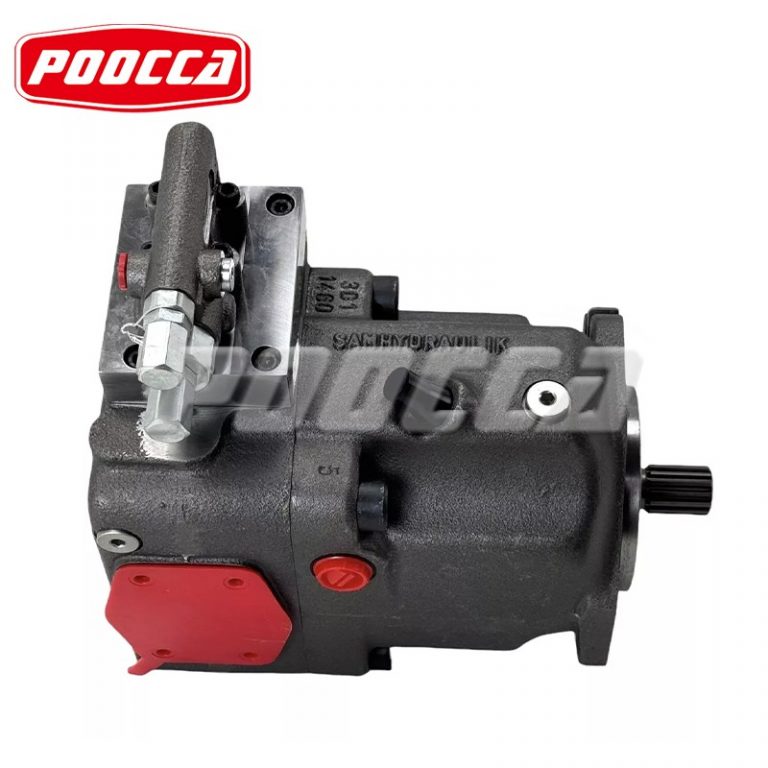

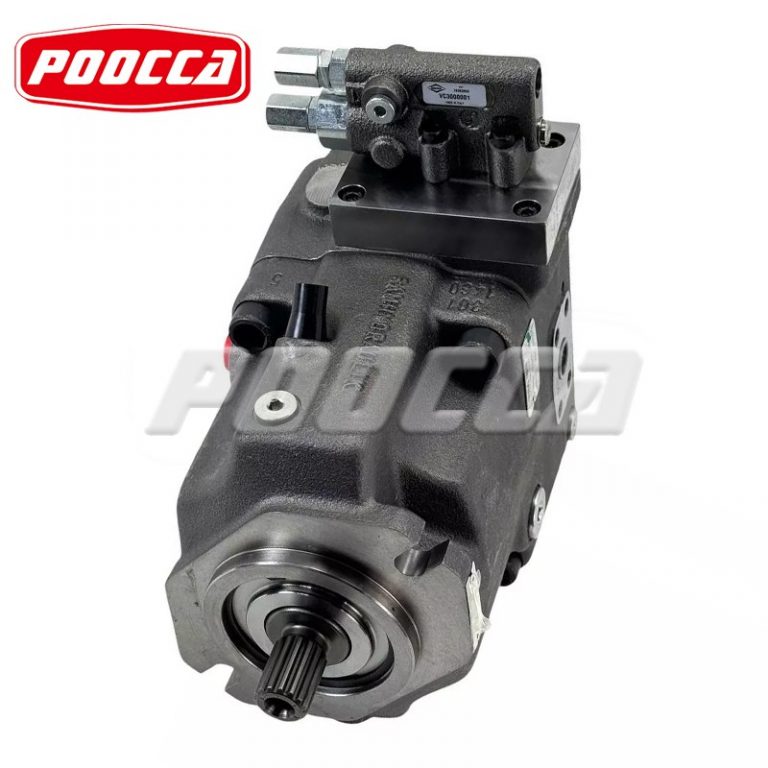

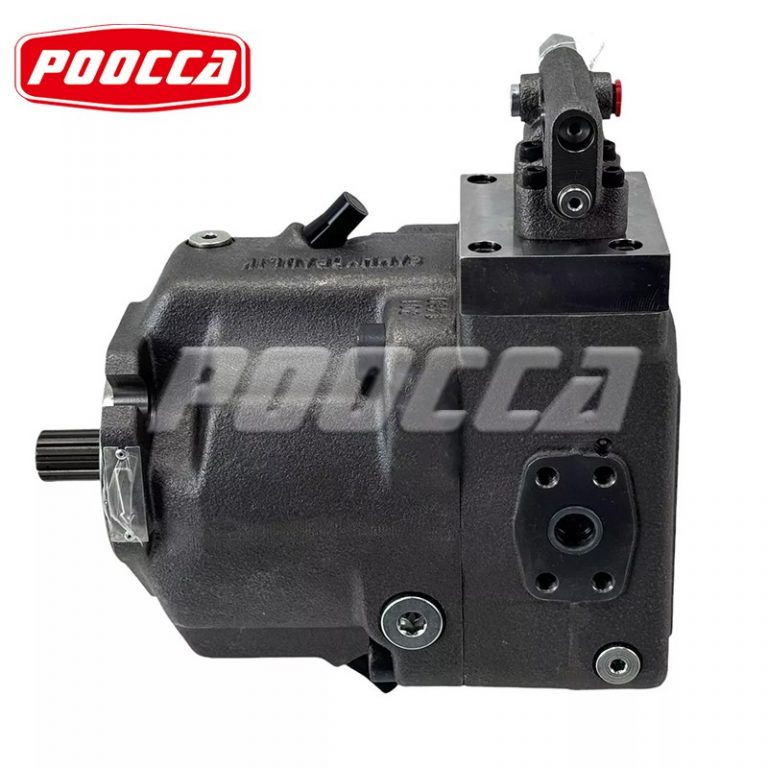

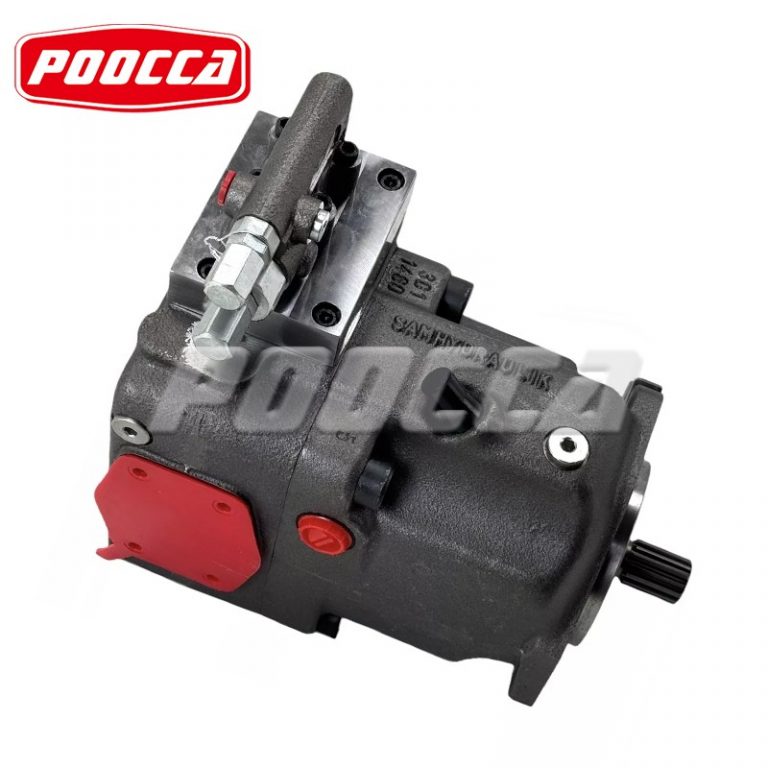

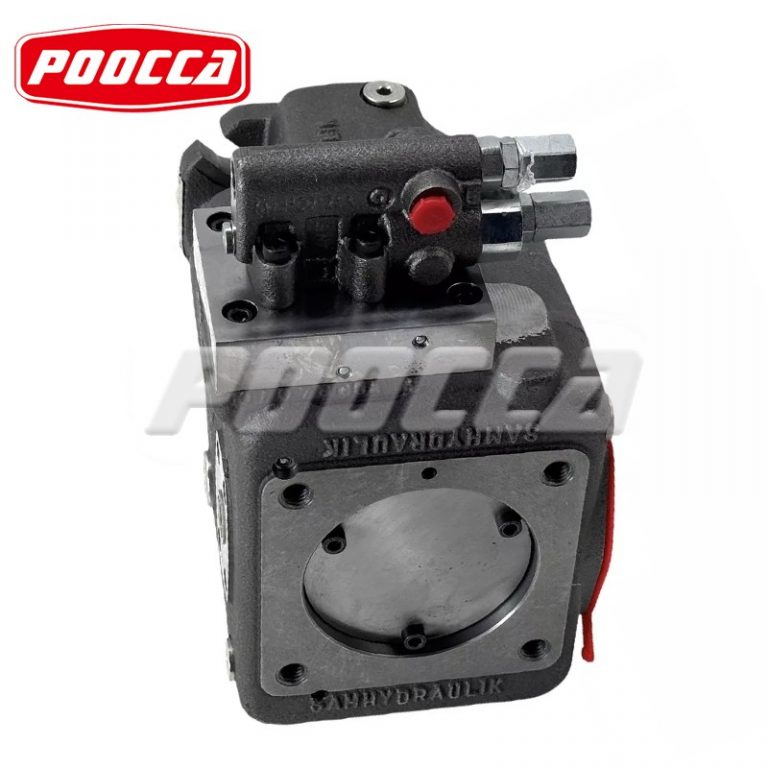

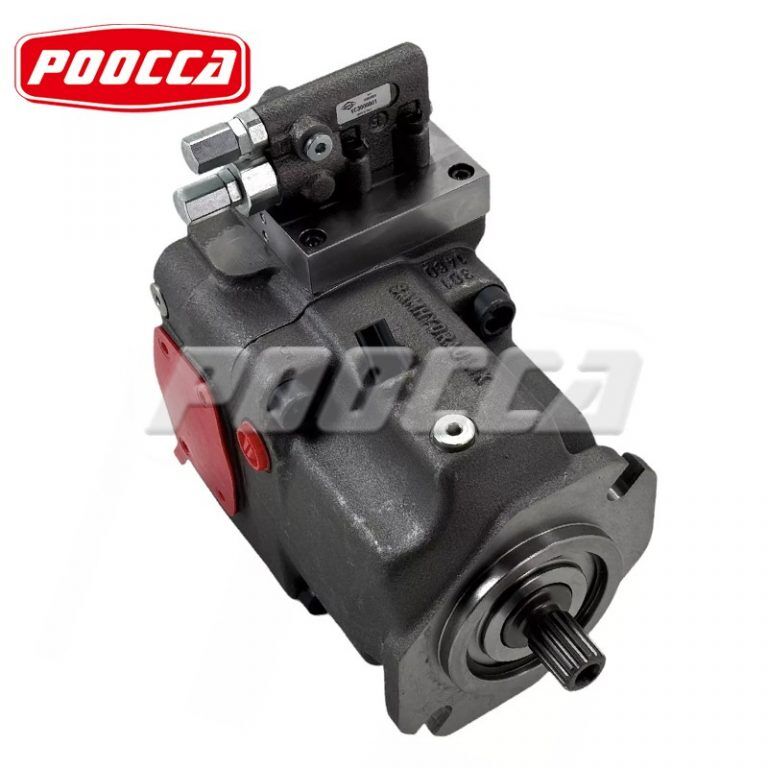

S5AV Axial Piston Pumps S5AV P 063 S11 DX LSPCX

S5AV Hydraulic Pump Displacement: 32.00/43.3/49.65/63.98/75.00/93.76
Maximum Flow: 100-197 l/min
Maximum Continuous Pressure: 280-320 bar
Dana Brevini S5AV 032, S5AV 045, S5AV 050, S5AV 063, S5AV 075, S5AV 093 Piston Pump

Chat Now

Features

• Compact size of the S5AV hydraulic pump
• Quiet pump operation
• High efficiency
• Accurate control functions
• Reduced maintenance
• Long pump life with Dana Brevini S5AV piston pumps
• Flexible machine design

Type	Displacement cm3/rev [in3/rev]	Max. flow l/min [U.S. gpm]	Max. pressure cont. bar [psi]
S5AV 032	32.00 [1.95]	100 [26.4]	280 [4000]
S5AV 045	43.3 [2.64]	117 [30.88]	300 [4350]
S5AV 050	49.65 [3.05]	149 [39.3]	320 [4600]
S5AV 063	63.98 [3.90]	160 [42.24]	320 [4600]
S5AV 075	75.00 [4.57]	169 [44.62]	350 [5000]
S5AV 093	93.76 [5.72]	197 [52]	320 [4600]

S5AV Piston Pump Parameter

S5AV Piston Pump Size

032

045

050

063

075

093

Displacement (1)

g max

cm3/rev

[in3/rev]

32.00 [1.95]

43.3 [2.64]

49.65 [3.05]

63.98 [3.90]

75.00 [4.57]

93.76 [5.72]

Displacement (1)

g min

cm3/rev

[in3/rev]

0 [0]

Press. max. cont.

pnom

bar [psi]

280

[4000]

300

[4350]

320

[4600]

320

[4600]

350

[5000]

320

[4600]

Press. max. peak

pmax

bar [psi]

350

[5000]

350

[5000]

380

[5500]

380

[5500]

420

[6000]

380

[5500]

Max speed at Vg max(1)

n max nom

rpm

3150

2700

3000

2500

2250

2100

Minimum

Recommended Speed

n min

rpm

500

Max flow at n max nom e

Vg max

qmax nom

l/min

[U.S.gpm]

100 [26.4]

117

[30.88]

149 [39.3]

160

[42.24]

169

[44.62]

197 [52]

Max power at

qmax nom e pnom

max nom

kW [hp]

46 [62]

57 [76]

[105]

[114]

113

[151]

121

[162]

Torque constant

Nm/bar

[lbf.ft/psi]

0.51 [0.026]

0.69 [0.035]

0.79 [0.040]

1.01 [0.052]

1.20 [0.061]

1.49 [0.076]

Max torque cont.

at pnom

nom

[lbf.ft]

142

[105]

207

[152.5]

253

[186]

326

[240]

418

[308]

477

[351]

Max torque peak

at pmax

max

[lbf.ft]

177

[130]

241

[177]

300

[221]

387

[285]

500

[368]

567

[418]

Moment of inertia (2)

kg·m2

[lbf.ft2]

0.0034

[0.081]

0.0034 [0.081]

0.0065 [0.154]

0.0098 [0.232]

Weight (2)

kg [lbs]

19 [42]

20 [44]

30 [66]

31 [68]

42 [92]

44 [96]

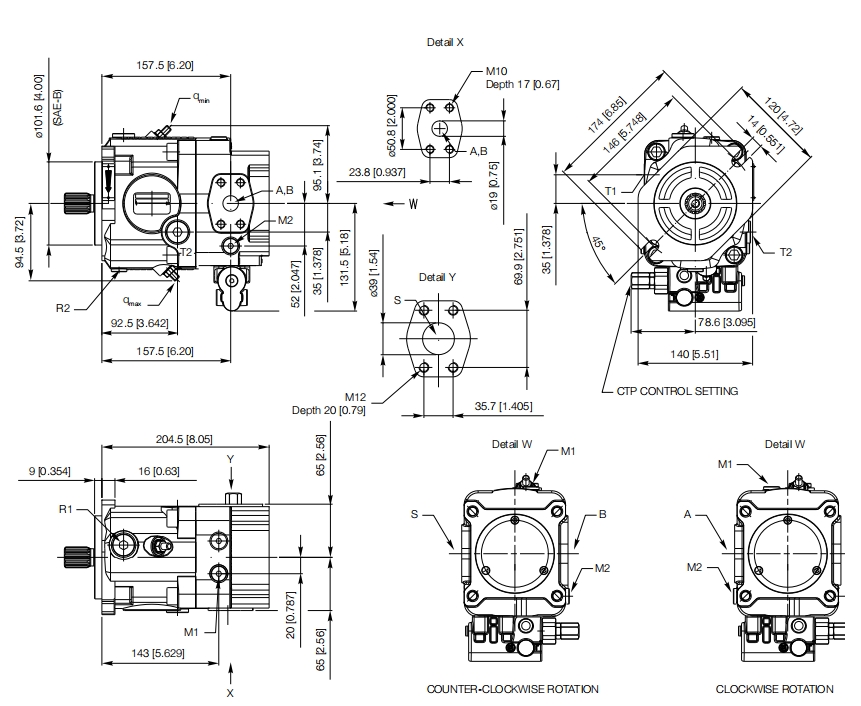

Dimension

Dana Brevini S5AV Pump Application

• Dana Brevini S5AV Pump Industrial equipments
• Earth moving machines and construction machinery
• Agricultural and forestry machines
• Marine and Off-Shore equipments
