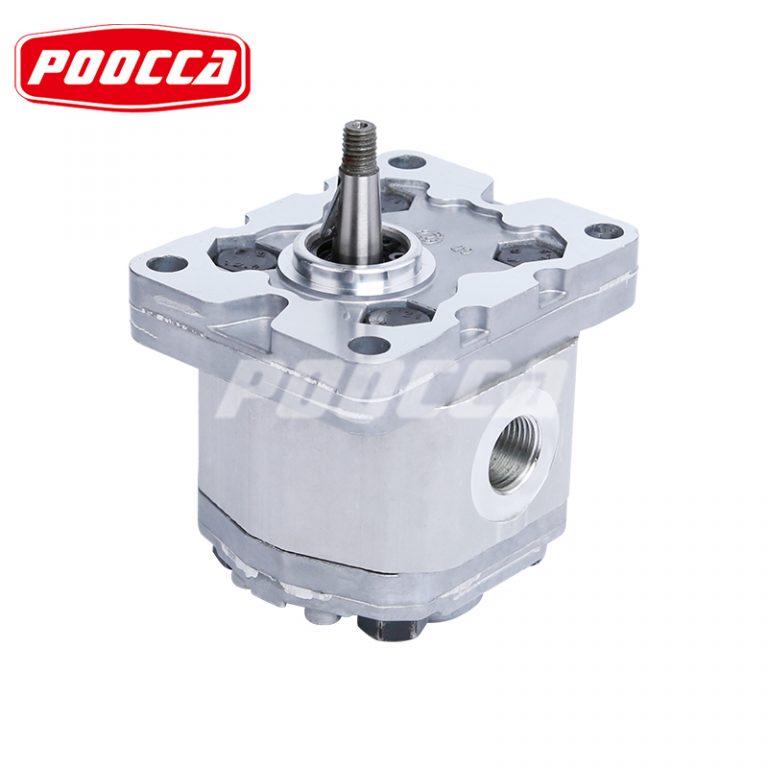

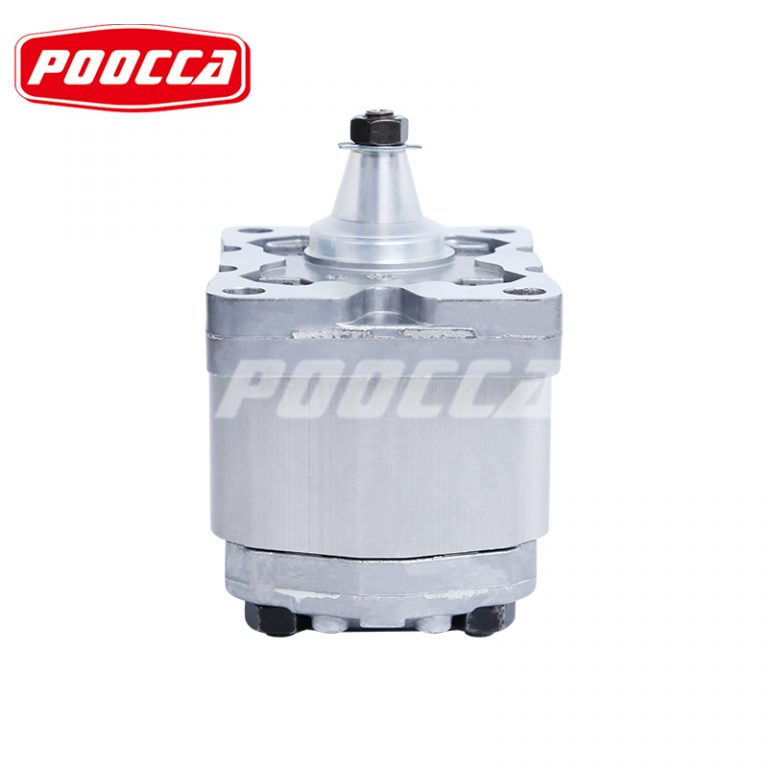

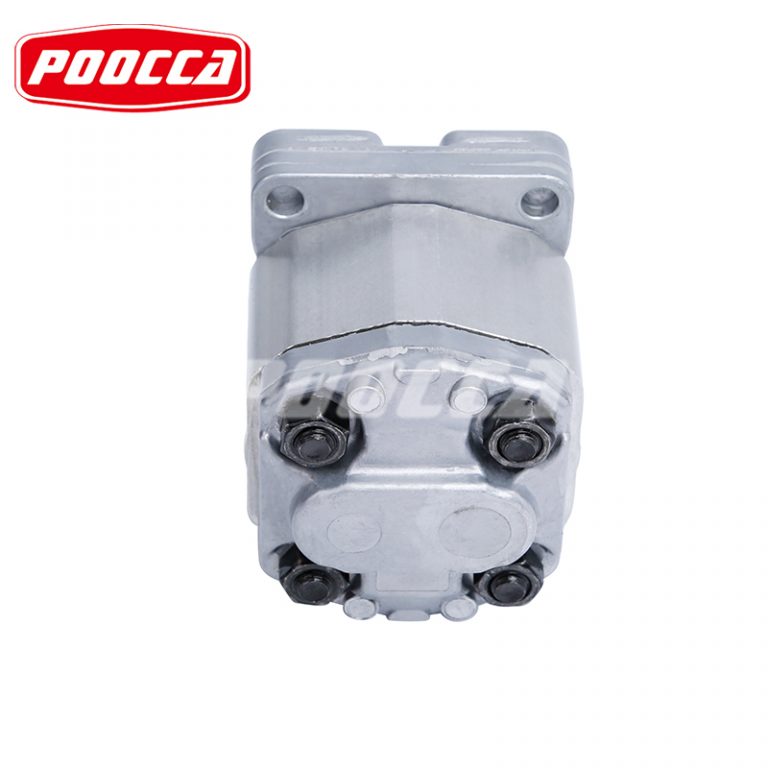

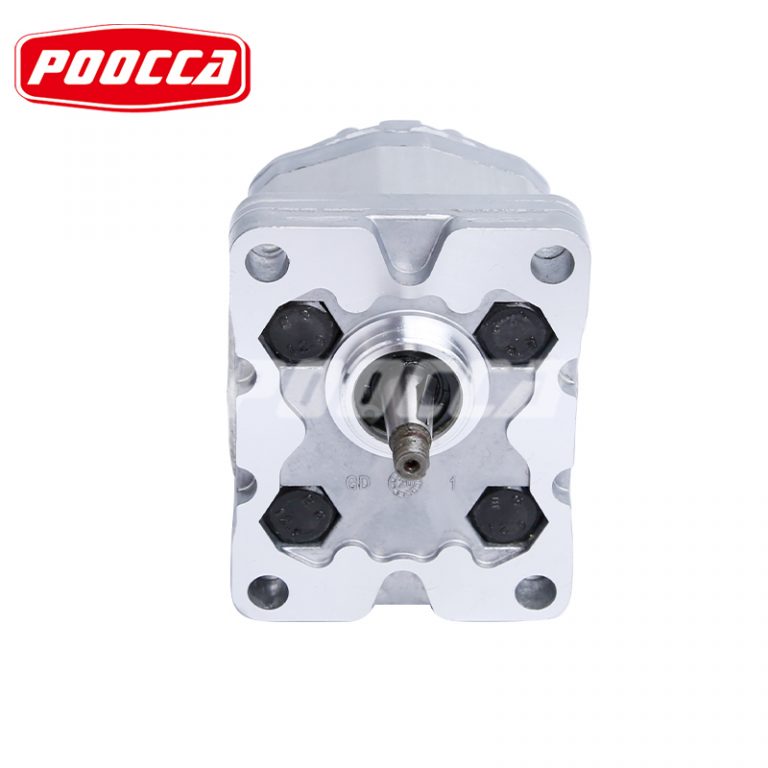

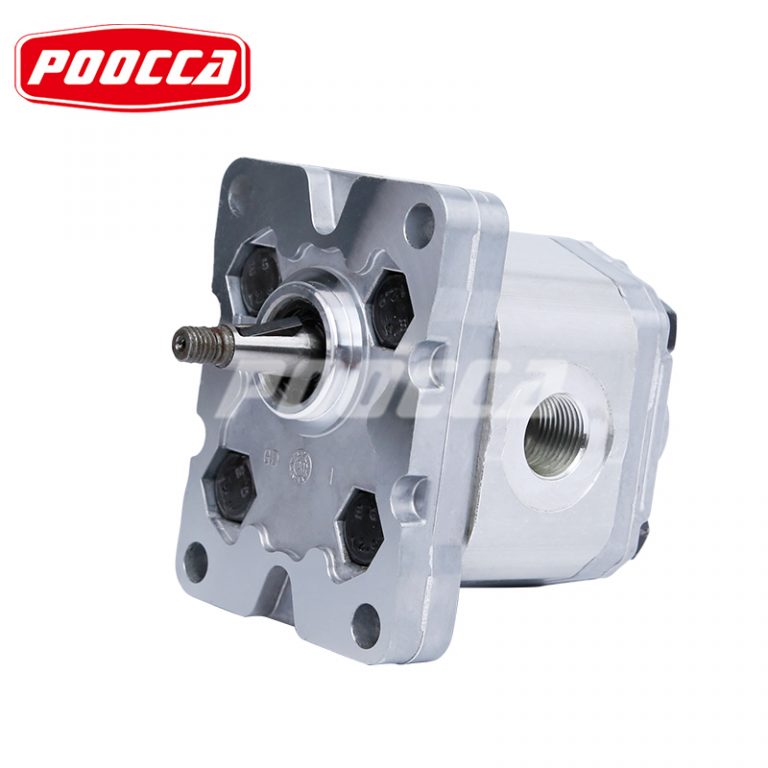

Ronzio Z1 Gear Pump

The Ronzio Z1 gear pump cover is designed for high pressure applications (up to 300 bar) with axial compensation and high volumetric efficiency.
Offering a wide range of capacities, extruded aluminum bodies, quiet operation, and customizable options for shafts, flanges, and ports.
Wide range of capacities : 0.8 -1.1-1.6-2.1-2.6-3.2-3.7-4.2-4.8-5.5-6.2-7.8-8.8 -10.5 cm3/rev

Chat Now

Characteristic

1.Ronzio Z1 gear pump cover is made of cast iron and alloy.
2. They can continuously withstand high pressures up to 300 bar (4350 psi).
3. Axial compensation is achieved through pressure balance bushing blocks.
4. High volumetric efficiency, reaching an average of 95%.
5. Wide capacity range, from 0.8 to 10.5 cm3/rev.
7. Its body is made of extruded aluminum.
8. Quiet operation due to precise projection of gear tooth profile.
9.A variety of shafts, flanges and ports are available to suit different applications.
10. High temperature sealing is available.
11. The Z1 Gear Pump is available in single-rotation pumps and motors, as well as dual-rotation options.
12.A variety of pumps are available, including tandem pumps in aluminum and cast iron series produced by Ronzio Oleodinamica.

Ronzio Z1 Gear Pump Parameter

*Z1 Gear Pump Flangia E Coperchi In Alluminio / Alloy Cover And Flange*
Tipo *Type*		08	11	16	21	26	32	37	42	48	55	62	78	88	105
Cilindrata Capacity	Cm3 / giro Cm3 / rev	0.80	1.08	1.59	2.09	2.59	3.15	3.68	4.19	4.79	5.49	6.2	7.81	8.82	10.5
P1 Pressione max continua Max working pressure	Bar	240	240	240	240	230	210	210	190	180	170	150	130	120	100
P2 Pressione intermittente intermittent pressure	Bar	260	260	250	250	250	240	230	210	200	180	160	140	130	120
P3 Pressione max di picco Max peak pressure	Bar	280	280	280	280	280	270	260	240	230	210	190	170	160	130
Velocità max per pressione P1 Max speed for P1 pressure	Giri / min Rpm	6000	6000	6000	6000	5500	4500	4000	3800	3500	3500	3000	3000	3000	3000
Velocità max a vuoto Max speed without load	Giri / min Rpm	8000	8000	8000	8000	8000	7000	6000	5500	5000	4500	4500	4000	4000	4000
Velocità min. per pressione P1 Min speed for P1 pressure	Giri / min Rpm	1100	1100	950	800	700	600	500	450	400	400	400	400	400	400

*Ronzio Gear Pump Flangia E Coperchi In Ghisa / Cast Iron Cover And Flange*
Tipo *Type*		08	11	16	21	26	32	37	42	48	55	62	78	88	105
Cilindrata Capacity	Cm3 / giro Cm3 / rev	0.80	1.08	1.59	2.09	2.59	3.15	3.68	4.19	4.79	5.49	6.2	7.81	8.82		10.5
P1 Pressione max continua Max working pressure	Bar	300	300	300	300	280	280	260	250	250	230	220	190	160		140
P2 Pressione intermittente Intermittent pressure	Bar	320	320	320	320	310	290	270	260	260	240	240	190	180		160
P3 Pressione max di picco Max peak pressure	Bar	320	320	320	320	310	290	270	260	260	240	240	190	180		160
P3 Pressione max di picco Max peak pressure	Bar	350	350	350	350	350	310	290	270	270	260	250	210	190		180
Velocità max per pressione P1 Max speed for P1 pressure	Giri / min Rpm	8000	8000	8000	7000	5500	4500	4500	4000	3600	3600	3500	3000	3000		3000
Velocità max a vuoto Max speed without load	Giri / min Rpm	8000	8000	8000	8000	8000	7000	6000	5500	5000	4500	4500	4000	4000		4000
Velocità min. per pressione P1 Min speed for P1 pressure	Giri / min Rpm	1100	1100	1000	900	800	700	600	500	400	400	400	400	400		400

Dimension

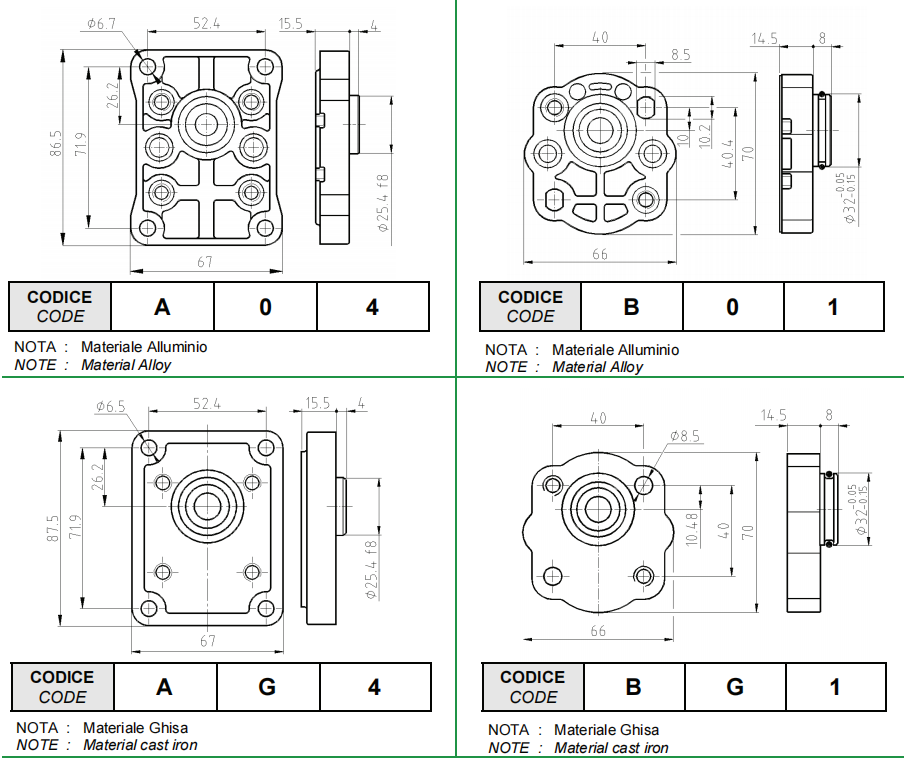

Ronzio Z1 Gear Pump Flanges

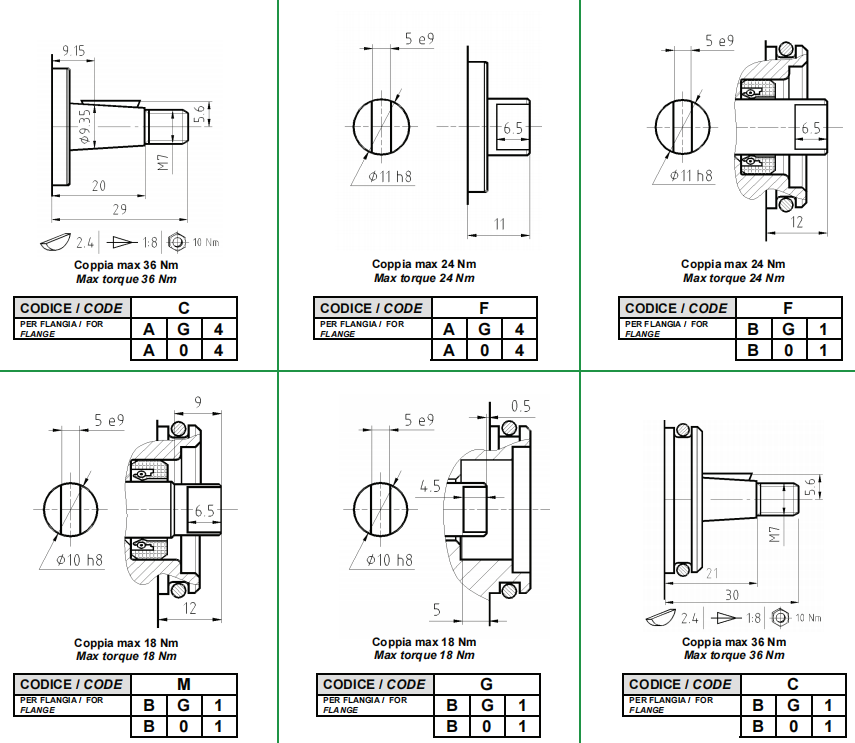

Z1 Gear Pump Shafts

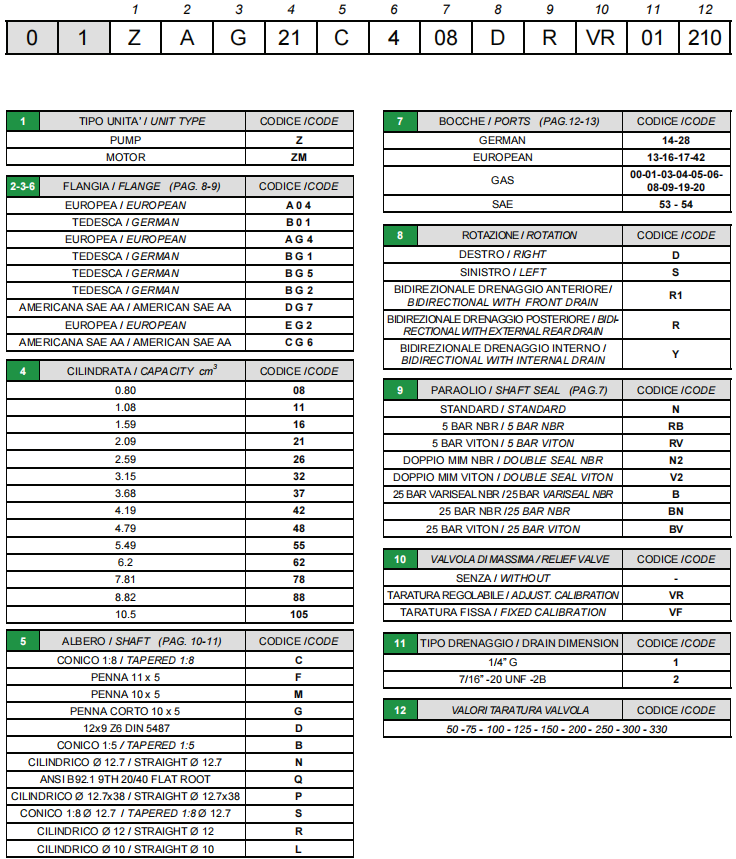

Order Code

POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.

For two decades, POOCCA Hydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.

Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.

At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.
