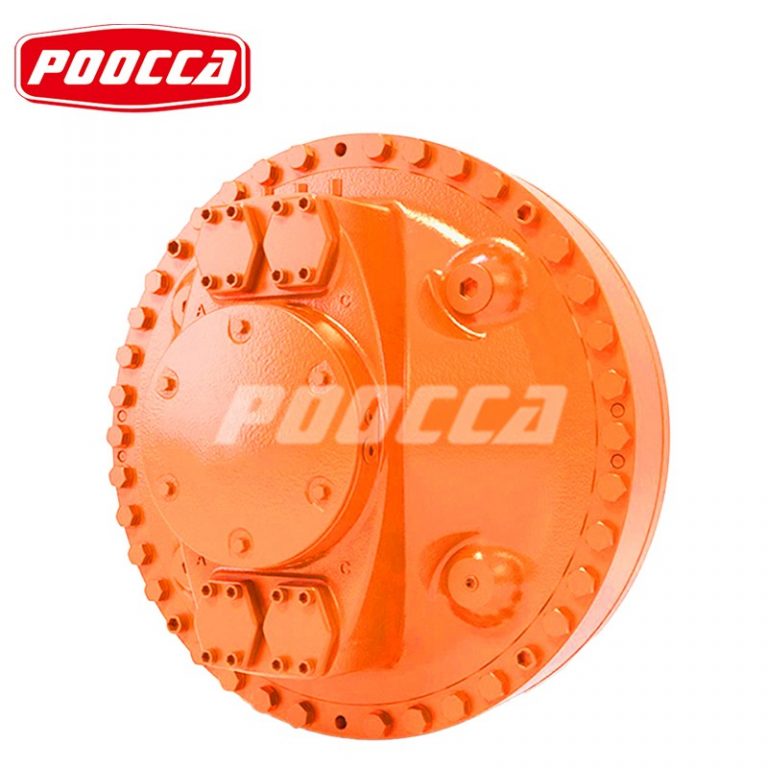

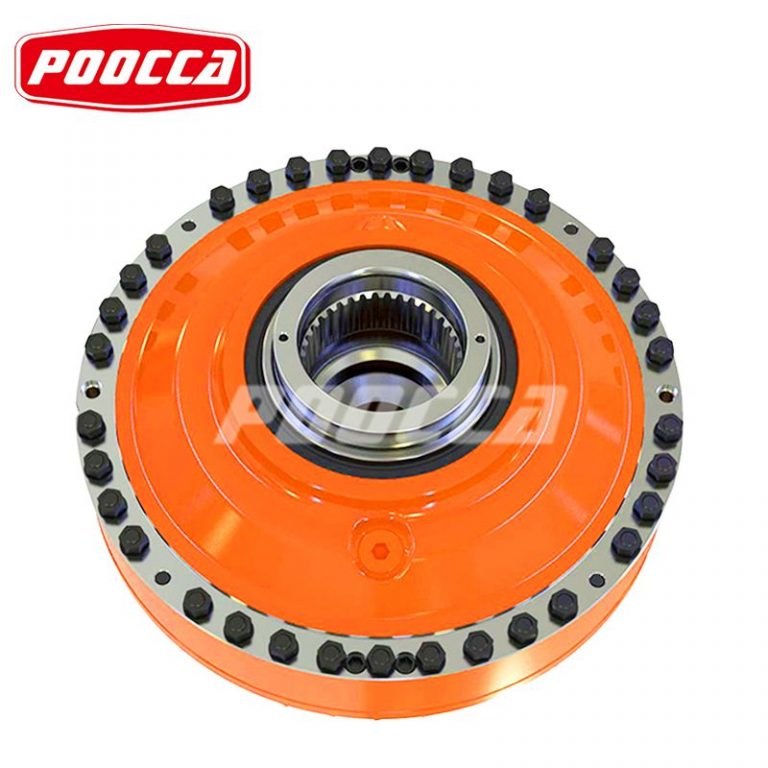

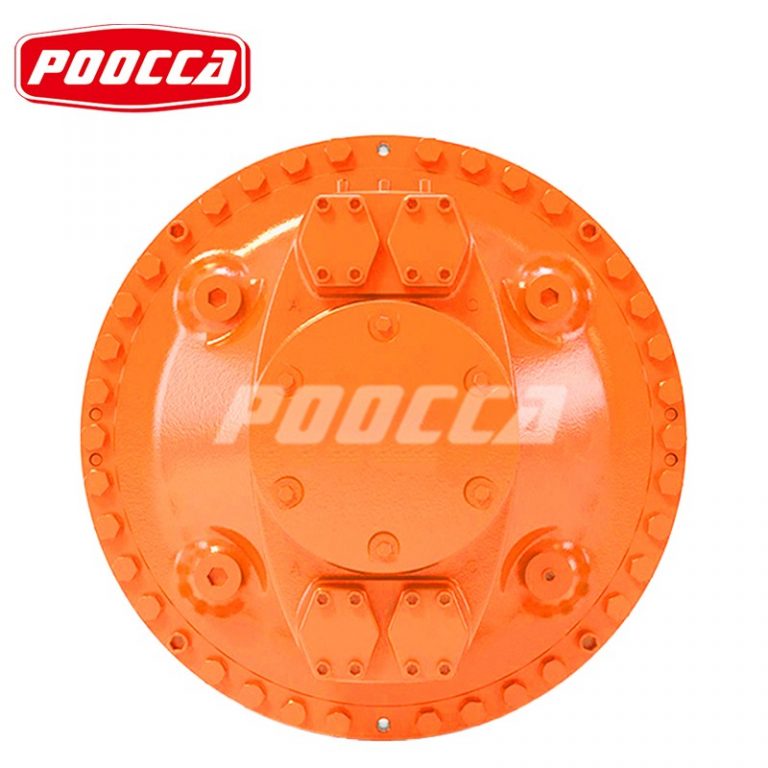

Rexroth Hagglunds CA Hydraulic Motor

CA 50 20,CA 50 25,CA 50 32,CA 50 40,CA 50,CA 70 40,CA 70 50,CA 70 60,CA 70,CA 100 40,CA 100 50,CA 100 64,CA 100 80,CA 100,CA 140 80,CA 140 100,CA 140 120,CA 140,CA 210 160,CA 210 180,CA 210

Chat Now

Characteristic

Displacement range: 1256 to 13200 cc/rev
This represents a fluid volume displaced per revolution of 1256 to 13200 cubic centimeters.

Specific torque: 20 to 210 Nm/bar
Specific torque refers to the torque produced by the motor under unit pressure. Here, the pressure variation ranges from 20 to 210 Newton meters per bar of pressure.

Maximum pressure: 350 bar
Hagglunds CA hydraulic motors are engineered to operate efficiently at pressures up to 350 bar, demonstrating their ability to handle hydraulic systems operating at this pressure threshold.

Speed range: up to 400 rpm
Able to operate in speed ranges up to 400 rpm, providing adaptability for a variety of applications.

Available frame sizes: 50, 70, 100, 140 and 210
CA motors are available in a variety of frame sizes, including 50, 70, 100, 140 and 210. This emphasizes the motor’s versatility in adapting to various system requirements.

CA Motor Parameter

Metric	Full displacement				Max. **	Displacement shift
	Displace-	Specific	Rated	Max. ***	pressure	Displace-	Specific	Rated	Max. speed	Ratio
	ment	torque	speed	speed		ment	torque	speed	Max. speed	Ratio
Motor type	Vi	Ts Nm/bar	n	n	p	Vi	Ts Nm/bar	n	n	p
Motor type	cm3/rev	Ts Nm/bar	rpm	rpm	bar	cm3/rev	Ts Nm/bar	rpm	rpm	bar
CA 50 20	1 256	20	400	400	350	Not recommended to be used in
CA 50 25	1 570	25	350	400	350	reduced displacement
CA 50 32	2 010	32	280	400	350
CA 50 40	2 512	40	230	350	350
CA 50	3 140	50	200	280	350	1 570	25	200	280	1:02
CA 70 40	2 512	40	270	400	350
CA 70 50	3 140	50	225	320	350	1 570	25	225	320	1:02
CA 70 60	3 771	60	195	275	350	1 886	30	195	275	1:02
CA 70	4 400	70	180	240	350	2 200	35	180	240	1:02
CA 100 40	2 512	40	390	400	350
CA 100 50	3 140	50	320	400	350
CA 100 64	4 020	64	260	390	350
CA 100 80	5 024	80	220	310	350	2 512	40	220	310	1:02
CA 100	6 280	100	190	270	350	3 140	50	190	270	1:02
CA 140 80	5 024	80	245	340	350
CA 140 100	6 280	100	205	275	350	3 140	50	205	275	1:02
CA 140 120	7 543	120	180	245	350	3 771	60	180	245	1:02
CA 140	8 800	140	170	220	350	4 400	70	170	220	1:02
CA 210 160	10 051	160	105	150	350	5 026	80	105	150	1:02
CA 210 180	11 314	180	100	135	350	5 657	90	100	135	1:02
CA 210	13 200	210	85	115	350	6 600	105	85	115	1:02

US	Full displacement				Max. **	Displacement shift
	Displace-	Specific	Rated	Max. ***	pressure	Displace-	Specific	Rated	Max. speed	Ratio
	ment	torque	speed	speed		ment	torque	speed	Max. speed	Ratio
Motor type	Vi	Ts Nm/bar	n	n	p	Vi	Ts Nm/bar	n	n	p
Motor type	cm3/rev	Ts Nm/bar	rpm	rpm	bar	cm3/rev	Ts Nm/bar	rpm	rpm	bar
CA 50 20	76.6	1 017	400	400	5 000	Not recommended to be used in
CA 50 25	95.8	1 271	350	400	5 000	reduced displacement
CA 50 32	122.6	1 627	280	400	5 000
CA 50 40	153.3	2 034	230	350	5 000
CA 50	191.6	2 543	200	280	5 000	95.8	1 271	200	280	1:02
CA 70 40	153.3	2 034	270	400	5 000
CA 70 50	191.6	2 543	225	320	5 000	95.8	1 271	225	320	1:02
CA 70 60	230.1	3 051	195	275	5 000	115.1	1 526	195	275	1:02
CA 70	268.5	3 560	180	240	5 000	134.3	1 780	180	240	1:02
CA 100 40	153.3	2 034	390	400	5 000
CA 100 50	191.6	2 543	320	400	5 000
CA 100 64	245.3	3 254	260	390	5 000
CA 100 80	306.6	4 068	220	310	5 000	153.3	2 034	220	310	1:02
CA 100	383.2	5 085	190	270	5 000	191.6	2 543	190	270	1:02
CA 140 80	306.6	4 068	245	340	5 000
CA 140 100	383.2	5 085	205	275	5 000	191.6	2 543	205	275	1:02
CA 140 120	460.3	6 102	180	245	5 000	230.1	3 050	180	245	1:02
CA 140	537	7 119	170	220	5 000	268.5	3 560	170	220	1:02
CA 210 160	613.2	8 136	105	150	5 000	306.7	4 068	105	150	1:02
CA 210 180	690.4	9 154	100	135	5 000	345.2	4 577	100	135	1:02
CA210	805.5	10 678	85	115	5 000	402.8	5 339	85	115	1:02

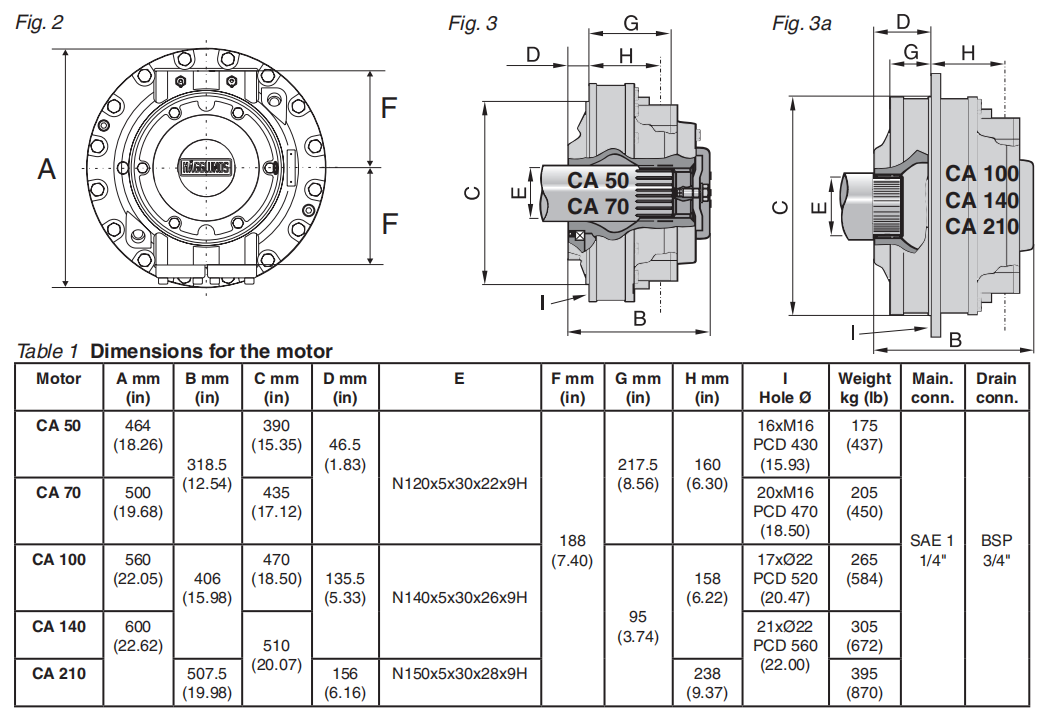

Dimension

About POOCCA

POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and has subsidiaries in Hong Kong, Guangdong, Jiangsu, Zhejiang and other places. We are a comprehensive hydraulic service provider specializing in the research and development, manufacturing, maintenance and sales of hydraulic products such as pumps, motors, valves and related components. With decades of experience providing power transmission and drive solutions to hydraulic system users around the world, we have earned a strong reputation in the industry.

For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume exceeds USD 16 million, reaching more than 100 countries around the world. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.

FAQ

Q: When was POOCCA established?
A: POOCCA Hydraulic Manufacturer was founded in 1997, boasting 26 years of experience in the hydraulic industry.

Q: What are the primary products offered by POOCCA?
A: With a diverse range of 1,600 product categories, our main offerings include gear pumps, plunger pumps, vane pumps, motors, hydraulic accessories, and hydraulic valves.

Q: How long does it take to receive an order?
A: Lead times for product delivery vary based on product type and availability. Regular products typically require 5-7 days, while special products are subject to customization time and quantity.

Q: What is your product warranty policy?
A: We offer a 12-month warranty on all our products.

Q: Where are your manufacturing facilities located, and what is your production capacity?
A: Our factories are situated in Guangdong, Jiangsu, and Zhejiang. Our annual export volume reaches up to 16 million US dollars.

Q: What payment methods are accepted?
A: We accept various payment methods, including credit card, bank transfer, PayPal, and more. For larger orders, a 30% advance payment is required, with the remaining 70% due before shipment.
