A7VO pumps are available in the following sizes: 28, 55, 80, 107 and 160.
Nominal pressure: 350 bar
Maximum pressure: 400 bar
High speed option: Available in 250 cc/rev (coded 250H)
Long life bearings: A7VO piston pumps are available in sizes ranging from 250 cc/rev to 500 cc/rev
Angle indicator options: Available with optical or electric rotation angle indicators
A7VO28, A7VO55, A7VO80, A7VO107, A7VO160
Product Description
The Rexroth A7VO tilt-axis piston pump is an important hydraulic transmission equipment, which adopts a tilt-axis axial conical piston rotor group and is designed for open-circuit hydrostatic transmission. This transmission method is widely used in mobile and fixed equipment, such as construction machinery, agricultural machinery, mining machinery and other fields.
Performance characteristics and contact information
For technical parameters, physical drawings, dimensions and other information of Rexroth piston pumps, please contact Poocca immediately. The flow rate of Rexroth piston pumps is proportional to the transmission speed and displacement, and can be adjusted steplessly between the maximum flow rate (qv max) and the minimum flow rate (qv min = 0). This means that in various application scenarios, the equipment can adjust the flow rate according to actual needs and provide flexible operating options.
Structure and control
The A7VO hydraulic piston pump is equipped with a variety of control devices, such as solenoid valves and proportional valves. Users can choose the appropriate control device according to specific needs to achieve precise and efficient hydraulic transmission. Its compact structural design and powerful bearing system ensure excellent performance in long-term use, reduce the frequency of maintenance and replacement, and save costs and time for users.
| Rexroth A7VO Axial Piston Pump | |||||||
| Size | NG | 28 | 55 | 80 | 107 | 160 | |
| Displacement, geometric, per revolution | Vg max | cm3 | 28.1 | 54.8 | 80 | 107 | 160 |
| Maximum rotational At Vgย max | nnom | rpm | 3150 | 2500 | 2240 | 2150 | 1900 |
| speed1) At Vgย < 0.74 ร Vgย max | nmax1 | rpm | 4250 | 3400 | 3000 | 2900 | 2560 |
| Maximum rotational | nmax2 | rpm | 4750 | 3750 | 3350 | 3200 | 2850 |
| speed2) | |||||||
| Flow At Vgย maxย and nnom | qv | l/min | 89 | 137 | 179 | 230 | 304 |
| Power At Vgย max, nnomย and ฮp = 350 bar | P | kW | 52 | 80 | 105 | 134 | 177 |
| Torque At Vgย maxย and ฮp = 350 bar | T | Nm | 156 | 305 | 446 | 596 | 891 |
| Rotary stiffness Vgย maxย to Vgย /2 | cmin | kNm/rad | 5 | 10 | 16 | 21 | 36 |
| Vgย /2 to 0 (interpolated) | cmax | kNm/rad | 16 | 32 | 49 | 67 | 104 |
| Moment of inertia rotary group | JGR | kgmยฒ | 0.0042 | 0.0042 | 0.008 | 0.0127 | 0.0253 |
| Maximum angular acceleration | ฮฑ | rad/sยฒ | 35900 | 31600 | 24200 | 19200 | 15300 |
| Case volume | V | l | 0.5 | 0.75 | 1.2 | 1.5 | 2.4 |
| Weight (approx.) | m | kg | 17 | 25 | 40 | 49 | 71 |

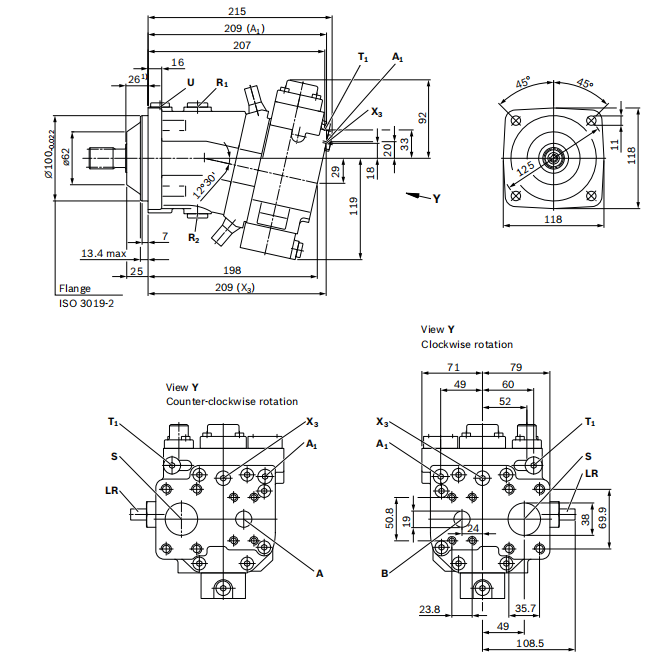

A7VO28,A7VO55,A7VO80,A7VO107,A7VO160 piston pump dimensional drawings, only the dimensions of some models are shown below, please contact us if you need other sizes.
Poocca Hydraulic Pump Manufacturer is an experienced enterprise that has been focusing on the field of hydraulic pumps for many years. We have ISO, CE, ROHS and other certifications, which prove that our hydraulic products comply with international standards and regulatory requirements, further improving the quality and reliability of our products.
As an experienced hydraulic pump manufacturer, we are committed to providing more efficient, stable and reliable hydraulic pump products.
Poocca often participates in hydraulic pump exhibitions to showcase its latest products and technological achievements. At the exhibition, Poocca won recognition and praise from customers and audiences with its design, high-quality products and professional services.
Product Description
The Rexroth A7VO tilt-axis piston pump is an important hydraulic transmission equipment, which adopts a tilt-axis axial conical piston rotor group and is designed for open-circuit hydrostatic transmission. This transmission method is widely used in mobile and fixed equipment, such as construction machinery, agricultural machinery, mining machinery and other fields.
Performance characteristics and contact information
For technical parameters, physical drawings, dimensions and other information of Rexroth piston pumps, please contact Poocca immediately. The flow rate of Rexroth piston pumps is proportional to the transmission speed and displacement, and can be adjusted steplessly between the maximum flow rate (qv max) and the minimum flow rate (qv min = 0). This means that in various application scenarios, the equipment can adjust the flow rate according to actual needs and provide flexible operating options.
Structure and control
The A7VO hydraulic piston pump is equipped with a variety of control devices, such as solenoid valves and proportional valves. Users can choose the appropriate control device according to specific needs to achieve precise and efficient hydraulic transmission. Its compact structural design and powerful bearing system ensure excellent performance in long-term use, reduce the frequency of maintenance and replacement, and save costs and time for users.
| Rexroth A7VO Axial Piston Pump | |||||||
| Size | NG | 28 | 55 | 80 | 107 | 160 | |
| Displacement, geometric, per revolution | Vg max | cm3 | 28.1 | 54.8 | 80 | 107 | 160 |
| Maximum rotational At Vgย max | nnom | rpm | 3150 | 2500 | 2240 | 2150 | 1900 |
| speed1) At Vgย < 0.74 ร Vgย max | nmax1 | rpm | 4250 | 3400 | 3000 | 2900 | 2560 |
| Maximum rotational | nmax2 | rpm | 4750 | 3750 | 3350 | 3200 | 2850 |
| speed2) | |||||||
| Flow At Vgย maxย and nnom | qv | l/min | 89 | 137 | 179 | 230 | 304 |
| Power At Vgย max, nnomย and ฮp = 350 bar | P | kW | 52 | 80 | 105 | 134 | 177 |
| Torque At Vgย maxย and ฮp = 350 bar | T | Nm | 156 | 305 | 446 | 596 | 891 |
| Rotary stiffness Vgย maxย to Vgย /2 | cmin | kNm/rad | 5 | 10 | 16 | 21 | 36 |
| Vgย /2 to 0 (interpolated) | cmax | kNm/rad | 16 | 32 | 49 | 67 | 104 |
| Moment of inertia rotary group | JGR | kgmยฒ | 0.0042 | 0.0042 | 0.008 | 0.0127 | 0.0253 |
| Maximum angular acceleration | ฮฑ | rad/sยฒ | 35900 | 31600 | 24200 | 19200 | 15300 |
| Case volume | V | l | 0.5 | 0.75 | 1.2 | 1.5 | 2.4 |
| Weight (approx.) | m | kg | 17 | 25 | 40 | 49 | 71 |
A7VO28,A7VO55,A7VO80,A7VO107,A7VO160 piston pump dimensional drawings, only the dimensions of some models are shown below, please contact us if you need other sizes.
Poocca Hydraulic Pump Manufacturer is an experienced enterprise that has been focusing on the field of hydraulic pumps for many years. We have ISO, CE, ROHS and other certifications, which prove that our hydraulic products comply with international standards and regulatory requirements, further improving the quality and reliability of our products.
As an experienced hydraulic pump manufacturer, we are committed to providing more efficient, stable and reliable hydraulic pump products.
Poocca often participates in hydraulic pump exhibitions to showcase its latest products and technological achievements. At the exhibition, Poocca won recognition and praise from customers and audiences with its design, high-quality products and professional services.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
