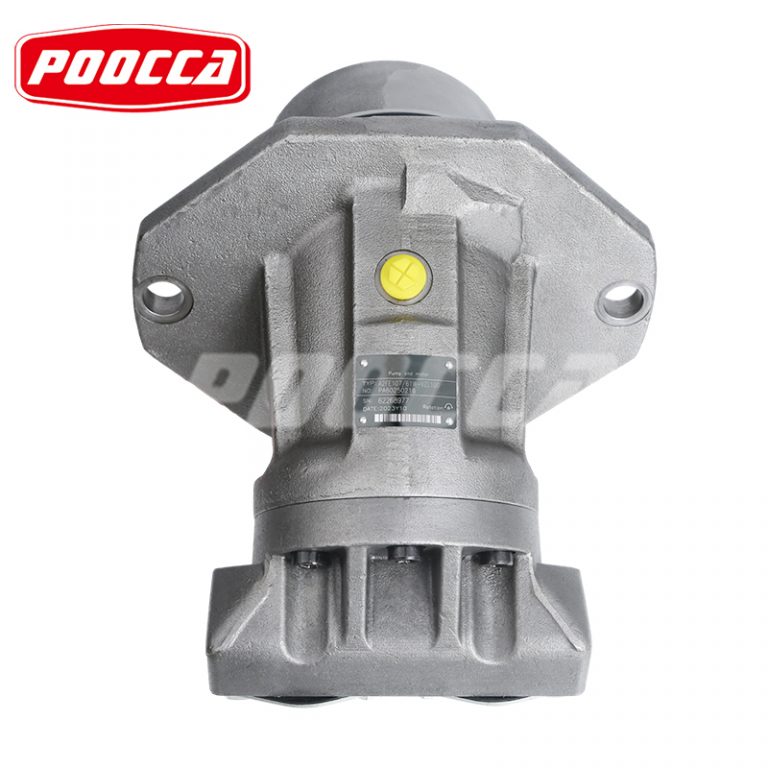

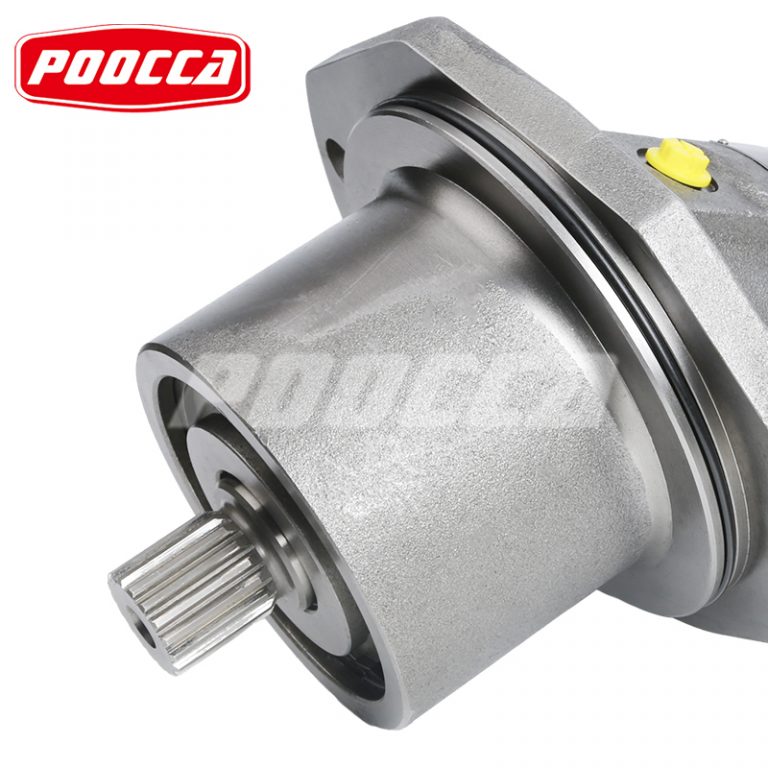

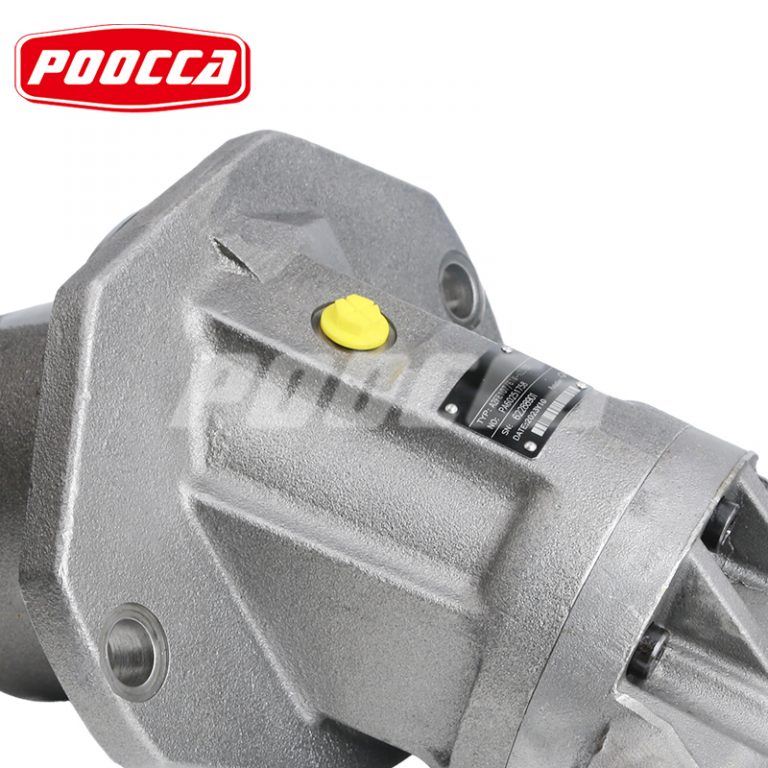

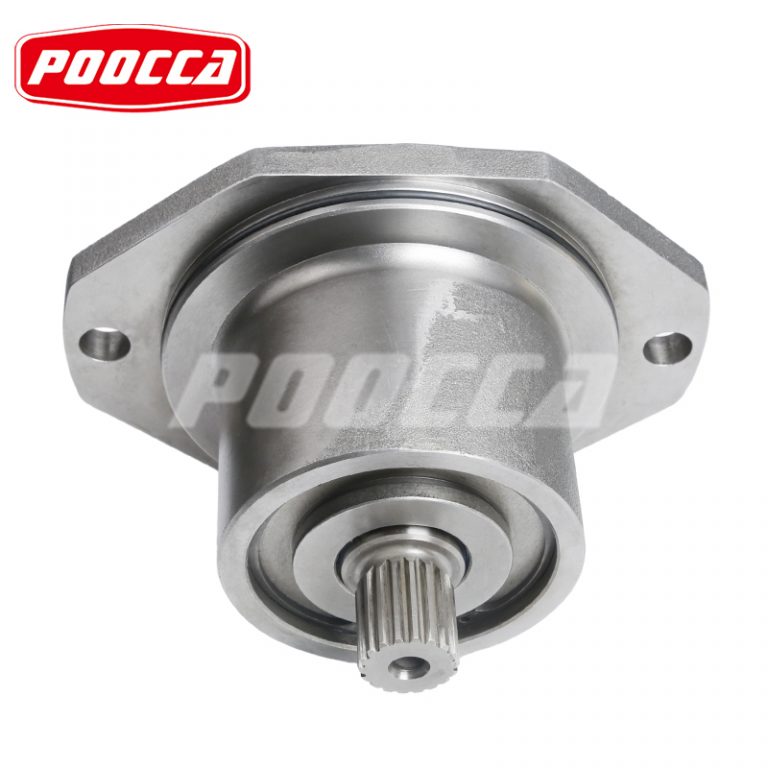

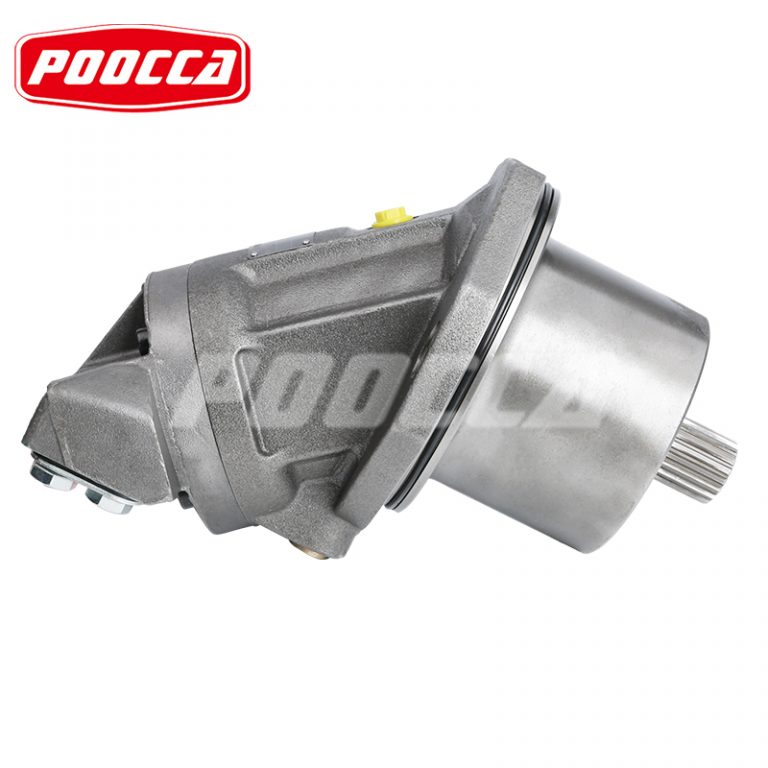

Rexroth A2FE Fixed Piston Motors

A2FE Motor Sizes:28,32,45,56,63,80,90,107,125,160,180,250,355cc/rev
Nominal Pressure:400 bar
Maximum Pressure:450 bar
Inclined axis tapered piston elements for open and closed circuits

Rexroth A2FE Parameter

The Rexroth A2FE piston motor series offers a comprehensive range of models to meet a wide range of hydraulic system requirements. From the compact A2FE28 and A2FE32 models to the powerful A2FE355, the series can meet a wide range of applications.

With sizes including the A2FE45, A2FE56, A2FE63, A2FE80, A2FE90, A2FE107, A2FE125, A2FE160, A2FE180 and A2FE250, there is a product to suit every need, ensuring optimal efficiency and functionality.

Designed for precision and durability, Rexroth A2FE piston motors are built to withstand harsh conditions, providing superior performance and service life.

Hydraulic Piston Motor A2FE
Size NG 28 32 45 56 63 80
Displacement Vg cm3 28.1 32 45.6 56.1 63 80.4
Speed maximum1) nnom rpm 6300 6300 5600 5000 5000 4500
nmax rpm 6900 6900 6200 5500 5500 5000
Input flow3) at nnom and Vg qV L/min qV L/min 177 202 255 281 315 362
Torque4) Dp = 350 bar T Nm 157 178 254 313 351 448
at Vg and Dp = 400 bar T Nm 179 204 290 357 401 512
Rotary stiffness c kNm/ 2.93 3.12 4.18 5.94 6.25 8.73
rad
Moment of inertia for rotary group JGR kgm2 0.0012 0.0012 0.0024 0.0042 0.0042 0.0072
Maximum angular acceleration a rad/s2 6500 6500 14600 7500 7500 6000
Case volume V L 0.2 0.2 0.33 0.45 0.45 0.55
Mass (approx.) m kg 10.5 10.5 15 18 19 23
Size NG 90 107 125 160 180 250 355
Displacement Vg cm3 90 106.7 125 160.4 180 250 355
Speed maximum1) nnom rpm 4500 4000 4000 3600 3600 2700 2240
nmax rpm 5000 4400 4400 4000 4000 โ€“ โ€“
Input flow3)
at nnom and Vg qV L/min
qV L/min 405 427 500 577 648 675 795
Torque4) Dp = 350 bar T Nm 501 594 696 893 1003 1393 1978
at Vg and Dp = 400 bar T Nm 573 679 796 1021 1146 โ€“ โ€“
Rotary stiffness c kNm/ 9.14 11.2 11.9 17.4 18.2 73.1 96.1
rad
Moment of inertia for rotary group JGR kgm2 0.0072 0.0116 0.0116 0.022 0.022 0.061 0.102
Maximum angular acceleration a rad/s2 6000 4500 4500 3500 3500 10000 8300
Case volume V L 0.55 0.8 0.8 1.1 1.1 2.5 3.5
Mass (approx.) m kg 25 34 36 47 48 82 110

Characteristic



Efficient design:
The A2FE plug-in metering piston motor features a helical shaft design with an axially tapered piston rotor.
The carefully optimized design allows for seamless integration into the reducer.
Tailored for track drives, ensuring professional-grade performance.

Simplified integration:
The mounting flange is located in the center of the Rexroth piston motor housing, facilitating integration with the reducer.
The innovative structural design enables a compact and efficient combination of motor and reducer components, enhancing overall functionality.

Robust construction:
Designed for reliability, the integrated structure ensures safe assembly.
Each unit is rigorously inspected and meets strict quality standards to ensure consistent performance reliability.

Simplified installation:
Installing the A2FE hydraulic motor is very simple, without complex adjustments.
Simply plug it into the mechanical reducer, without strict installation tolerances.
The simple installation process saves time and effort, improving operational efficiency.

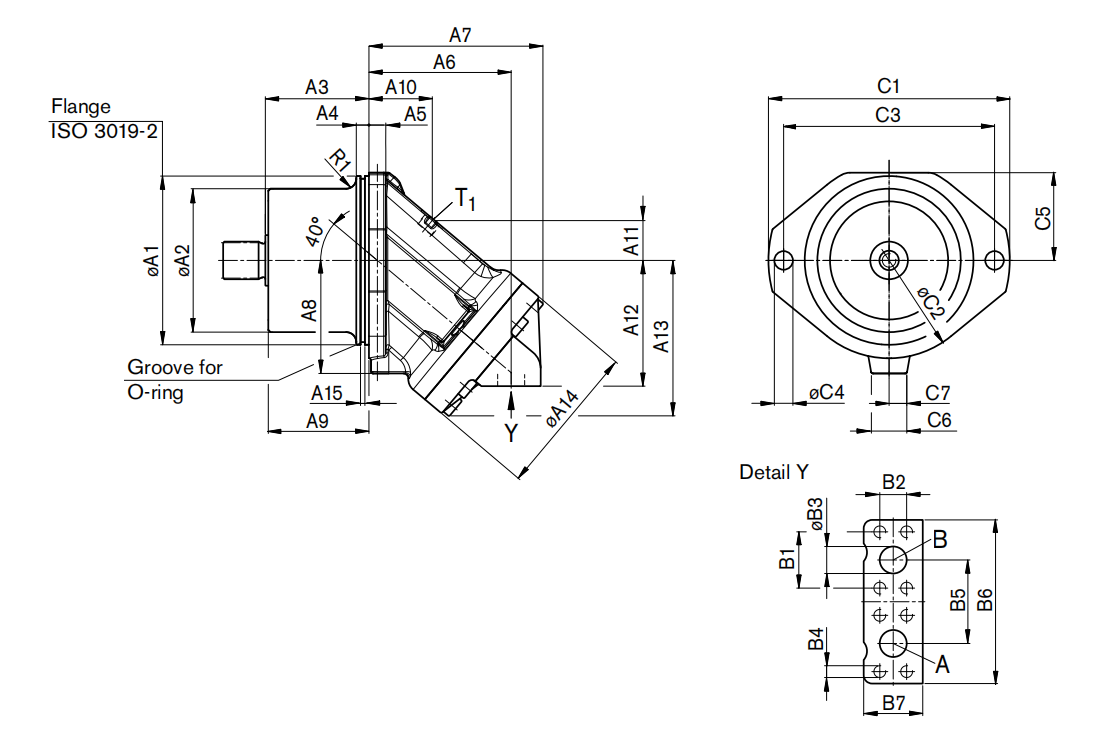

Rexroth A2FE Fixed Piston Motors Dimension

A2FE sizes 28 to 180
If you need more drawings of Rexroth A2FE motor models, you can contact poocca Hydraulic Manufacturing and we will provide you with detailed information about the products you need.

A2FE45, A2FE56, A2FE63, A2FE80, A2FE90, A2FE107, A2FE125, A2FE160, A2FE180 and A2FE250

Custom Made

At POOCCA, we offer customization options for special models, brands, and packaging logos to suit your needs. Whether it’s your special needs, personalized branding or custom packaging, we can transform your vision into a tangible product. Take advantage of our adaptable customization services. Meet your needs with custom solutions from POOCCA Hydraulic Works. Let us work with you to create products that truly connect with your audience and reflect your brand.
