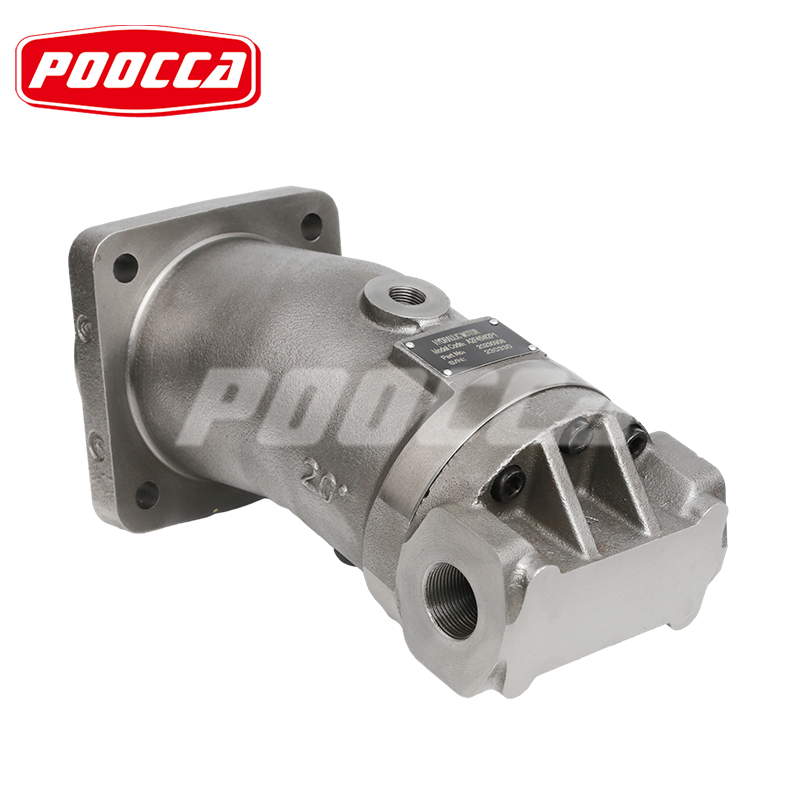

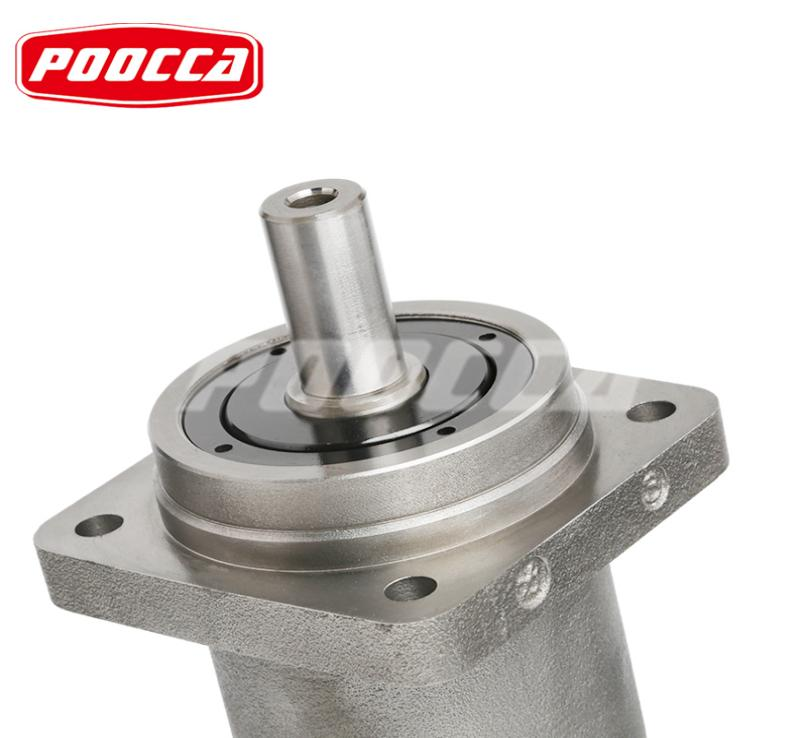

Rexroth A2F Hydraulic Pump Hydraulic Motor

Model size:
The A2F series offers a variety of displacement options, covering a range of sizes including: 10, 12, 23, 28, 45, 55, 63, 80, 107, 125, 160, 200, 250, 355, 500.

Specific models are: A2F10, A2F12, A2F23, A2F28, A2F45, A2F55, A2F63, A2F80, A2F107, A2F125, A2F160, A2F200, A2F250, A2F355, A2F500.

Chat Now

Characteristic

Design:
The Rexroth A2F piston pump-motor uses a fixed displacement helical gear shaft design combined with an axial tapered piston unit to provide stable and efficient hydraulic power.
Versatility:
The device can be used as both a hydraulic pump and a hydraulic motor in open and closed hydraulic transmission systems, and has a wide range of adaptability.
Pump working principle:
The flow rate is proportional to the drive speed and displacement and can be adjusted according to demand.

Motor working principle:
The output speed of the A2F piston pump motor is proportional to the flow rate and inversely proportional to the pressure difference.
Torque characteristics:
When the pressure difference between the high and low pressure sides increases, the output torque increases accordingly, providing stronger power.
Bearing design:
The self-centering spherical control area is used to reduce friction and wear and ensure torque-free piston bearings.

Efficiency:
Supports low peripheral speed operation, achieves high efficiency and reduces energy consumption.
Stability:
The drive shaft can withstand radial loads to ensure the stability of system operation.
Technical advantages:
Rexroth A2F piston pump and motor technology optimizes flow characteristics, improves control accuracy, and effectively reduces noise levels.

Parameter

Size			10	12	23	28	45	55	63	80	107	125	160	200	250	355	500
Displacement Vg(ml/r)			9.4	11.6	22.7	28.1	44.3	54.8	63	80	107	125	160	200	250	355	500
MaxSpeed N max(r/min)	Close CIrcuit		7500	6000	5600	4750	4500	3750	4000	2250	3000	3150	3650	2500	2500	2240	2000
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	4700	3750	3750	2800	2850	2360	2550	2120	1900	2120	1650	1700	1400	1250	1120
		0.10	5000	4000	4000	3000	3000	2500	2700	2240	2000	2240	1750	1800	1500	1320	1200
		0.15	6000	4900	4900	3600	3550	3000	3300	2750	2450	2750	2100	2180	1850	1650	1500
Max Flow Q max(l/min)	Close Circuit		71	70	127	133	199	206	253	268	321	394	424	500	625	795	1000
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	43	42	83	76	122	125	156	165	197	257	256	330	340	430	543
		0.10	46	45	88	82	129	133	165	174	208	272	272	349	364	455	582
		0.15	55	55	108	98	157	159	202	213	251	333	326	423	449	568	728
Max. Power KW P=35Mpa	Close Circuit		41	41	74	78	116	120	147	156	187	230	247	292	385	454	583
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	25	25	48	44	71	73	91	96	115	150	149	192	198	251	317
		0.10	27	26	51	48	75	78	96	101	121	159	159	204	212	265	340
		0.15	32	32	63	57	92	93	118	124	148	194	190	247	262	331	424
Torque(N.m)	▲P=10MPa		15	18	36	44.7	70	87	100	127	170	199	254	318	398	564	795
Torque(N.m)	△P=35MPa		52	65	126	156	247	305	351	445	595	696	890	1113	1391	1976	2783
Approx Weight(Kg)			5	5	12	12	23	23	33	33	44	63	63	88	88	138	185

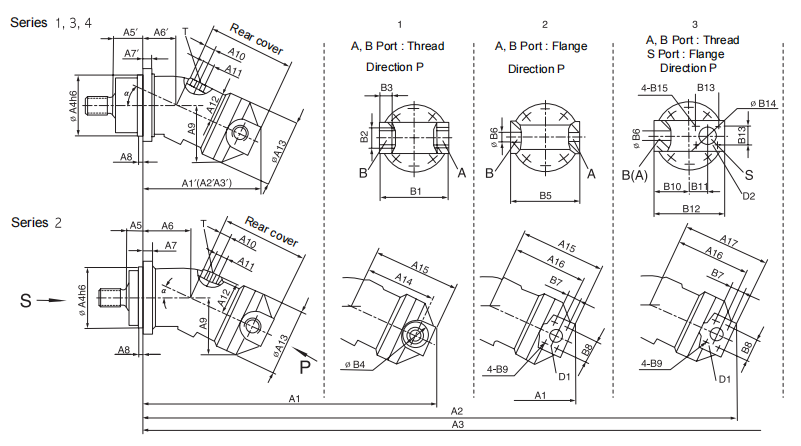

Dimension

About POOCCA

Poocca Hydraulic Manufacturer’s products are manufactured in accordance with qualified specifications from material selection to production to testing. In terms of material selection, POOCCA Hydraulic manufacturers will choose high-quality raw materials to ensure product performance and reliability. During the production process, POOCCA Hydraulic manufacturers will strictly control every link to ensure product quality and precision. POOCCA Hydraulic manufacturers will also conduct strict testing on their products to ensure that they comply with relevant standards and requirements. These inspections include visual inspection, dimensional measurement, performance testing, etc. POOCCA Hydraulic manufacturer is committed to providing customers with high-quality, reliable hydraulic products to meet customer needs.

Customer Feedback

The feedback from customers who have made purchases in our POOCCA has been positive. Thank you to the customers who have always supported us.

Custom Made

Poocca accepts customization. Whether it is the size, displacement or material of the product, it can be customized according to your needs.
Product packaging and logos can also be designed and customized for free.
Welcome to send your requirements, our poocca hydraulic manufacturer will reply as soon as possible.

A2F Piston Pump Motor More Models

Please send your model and pump picture to Poocca pump motor manufacturer, we will provide you with preferential prices as soon as possible.

A2F10R4P4	A2F10L4P4	A2F10W4P4	A2F55R3P1	A2F55L3P1	A2F55W3P1
A2F10R4P1	A2F10L4P1	A2F10W4P1	A2F55R2P3	A2F55L2P3	A2F55W2P3
A2F10R2P1	A2F10L2P1	A2F10W2P1	A2F55R2Z1	A2F55L2Z1	A2F55W2Z1
A2F10R2Z1	A2F10L2Z1	A2F10W2Z1	A2F63R3Z4	A2F63L3Z4	A2F63W3Z4
A2F12R4P4	A2F12L4P4	A2F12W4P4	A2F63R2Z4	A2F63L2Z4	A2F63W2Z4
A2F12R4P1	A2F12L4P1	A2F12W4P1	A2F63R3P1	A2F63L3P1	A2F63W3P1
A2F12R2P1	A2F12L2P1	A2F12W2P1	A2F63R2Z1	A2F63L2Z1	A2F63W2Z1
A2F12R2Z1	A2F12L2Z1	A2F12W2Z1	A2F80R3Z4	A2F80L3Z4	A2F80W3Z4
A2F23R3Z4	A2F23L3Z4	A2F23W3Z4	A2F80R2Z4	A2F80L2Z4	A2F80W2Z4
A2F23R2Z4	A2F23L2Z4	A2F23W2Z4	A2F80R3P1	A2F80L3P1	A2F80W3P1
A2F23R3P1	A2F23L3P1	A2F23W3P1	A2F80R2Z1	A2F80L2Z1	A2F80W2Z1
A2F23R2Z1	A2F23L2Z1	A2F23W2Z1	A2F107R3Z4	A2F107L3Z4	A2F107W3Z4
A2F28R3Z4	A2F28L3Z4	A2F28W3Z4	A2F107R2Z4	A2F107L2Z4	A2F107W2Z4
A2F28R2Z4	A2F28L2Z4	A2F28W2Z4	A2F107R3P2	A2F107L3P2	A2F107W3P2
A2F28R3P1	A2F28L3P1	A2F28W3P1	A2F107R2Z1	A2F107L2Z1	A2F107W2Z1
A2F28R2Z1	A2F28L2Z1	A2F28W2Z1	A2F160R3P2	A2F160L3P2	A2F160W3P2
A2F45R3Z4	A2F45L3Z4	A2F45W3Z4	A2F160R2P3	A2F160L2P3	A2F160W2P3
A2F45R2Z4	A2F45L2Z4	A2F45W2Z4	A2F160R3P1	A2F160L3P1	A2F160W3P1
A2F45R3P1	A2F45L3P1	A2F45W3P1	A2F160R2Z1	A2F160L2Z1	A2F160W2Z1
A2F45R2Z1	A2F45L2Z1	A2F45W2Z1	A2F250R5P2	A2F250L5P2	A2F250W5P2
A2F55R3Z4	A2F55L3Z4	A2F55W3Z4	A2F250R5P1	A2F250L5P1	A2F250W5P1
A2F55R2Z4	A2F55L2Z4	A2F55W2Z4	A2F355R5P2	A2F355L5P2	A2F355W5P1
A2F107R2Z2	A2F107L2Z2	A2F107W2Z2	A2F500R5P2	A2F500L5P2	A2F500W5P1
