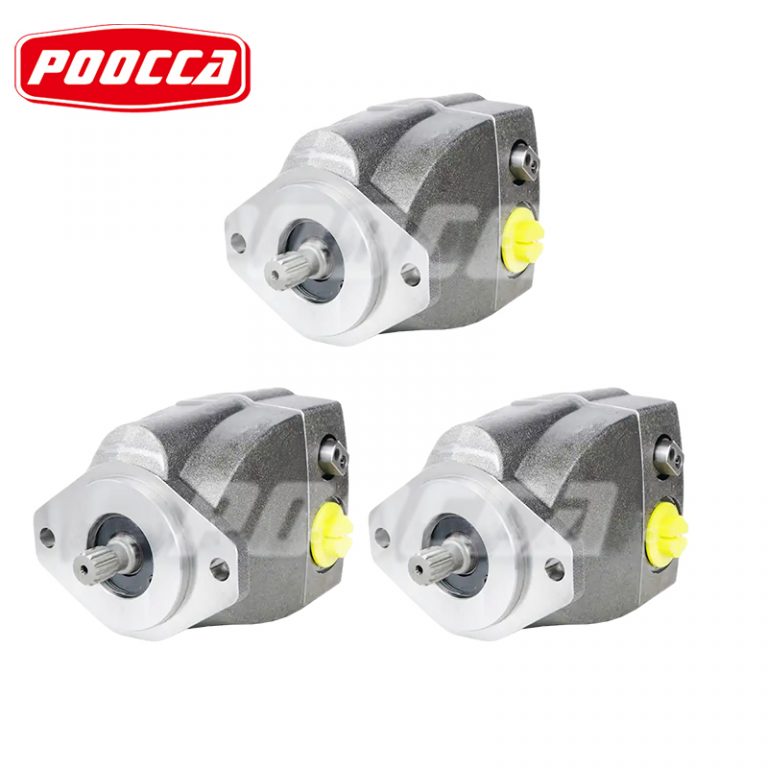

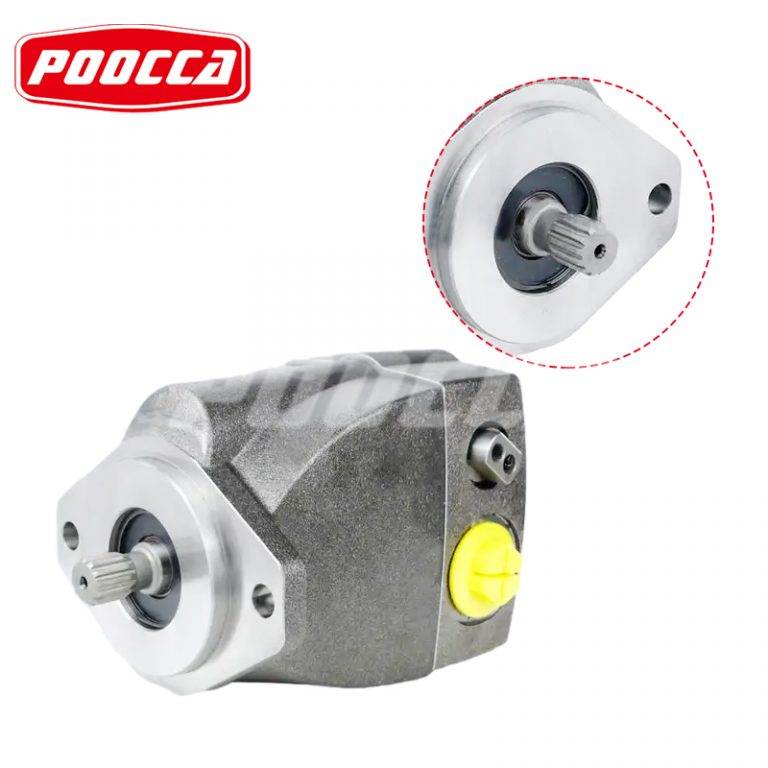

A1VO Piston Pump Sizes 18, 28, 35
Nominal pressure 250 bar
Maximum pressure 280 bar
Open circuitr
A1VO 18,A1VO 28,A1VO 35 For load-sensing systems in smaller working machines
Submit your requirements and POOCCA will respond promptly and provide detailed product specifications and actual drawings to meet your needs.
The Rexroth A1VO Piston Pump is an axial piston swash plate design for open hydrostatic drives. Its flow rate is proportional to the drive speed and displacement.
The adjustable angle of the swash plate allows the volume flow to be continuously varied, providing the flexibility and adaptability required for a wide range of applications.
A wide range of adaptive control options are available, including numerous drive and regulation functions, which allow precise management of flow, pressure and other key parameters to ensure optimal performance.
The compact design of the pump facilitates easy integration into a variety of systems, reducing overall space requirements.
The high efficiency of the A1VO 35 pump not only allows for effective operation, but also reduces energy consumption and operating costs.
The high power density of the pump provides powerful performance despite limited space and resources.
The quiet operation of the Rexroth piston pump ensures a comfortable working environment and minimizes noise pollution.
For open hydrostatic drives, the combination of its adaptability, compact design, high efficiency, high power density and low noise makes the A1VO Rexroth piston pump a versatile and reliable solution for a wide range of applications.
Hydraulic oil cleanliness and shaft seal specifications:
Cleanliness level and service life:
Finer filtration improves hydraulic oil cleanliness.
This improvement in cleanliness extends the service life of the axial piston unit.
Gravimetric analysis of hydraulic fluids is critical to quantifying solid contaminant levels.
Cleanliness levels are determined according to ISO 4406 standards.
Standard operating conditions require a minimum cleanliness level of 20/18/15.
High temperature precautions:
When the hydraulic oil temperature increases from 90ยฐC to a maximum of 115ยฐC:
According to ISO 4406, a higher cleanliness level of at least 19/17/14 is required.
Shaft seal specifications:
FKM shaft seals are suitable for a wide temperature range from -25ยฐC to +115ยฐC.
it ensures
