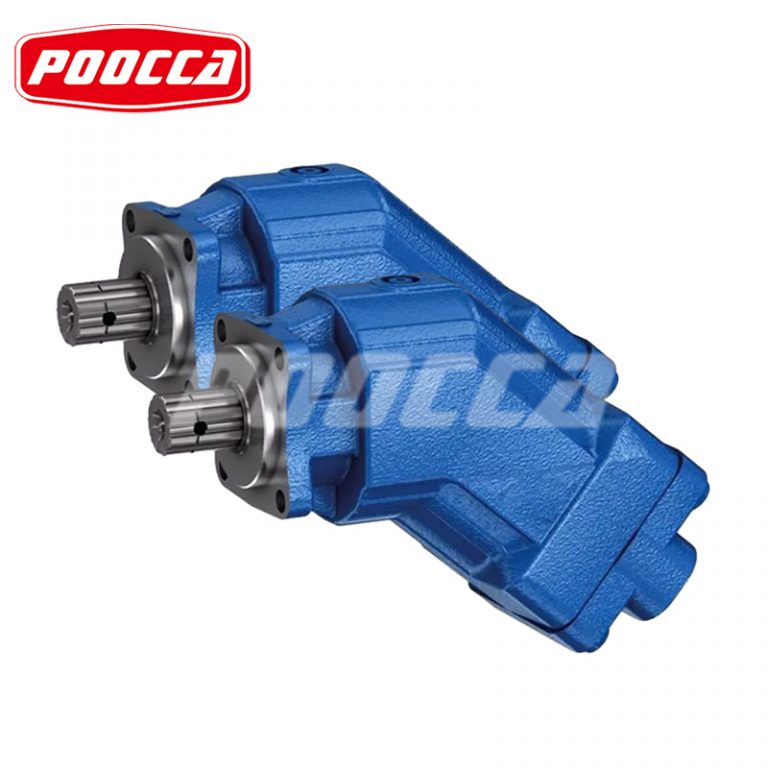

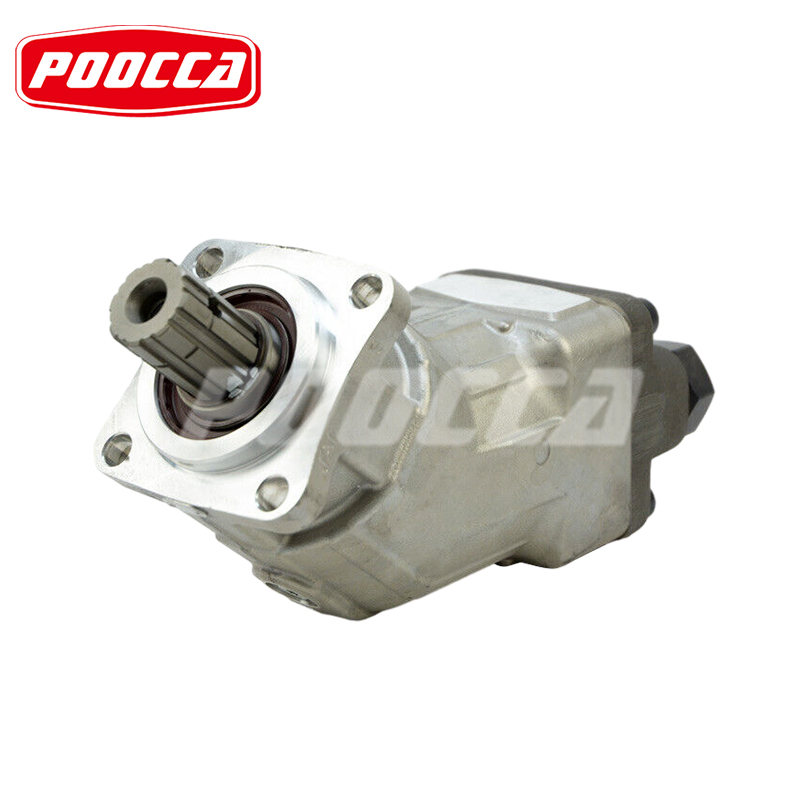

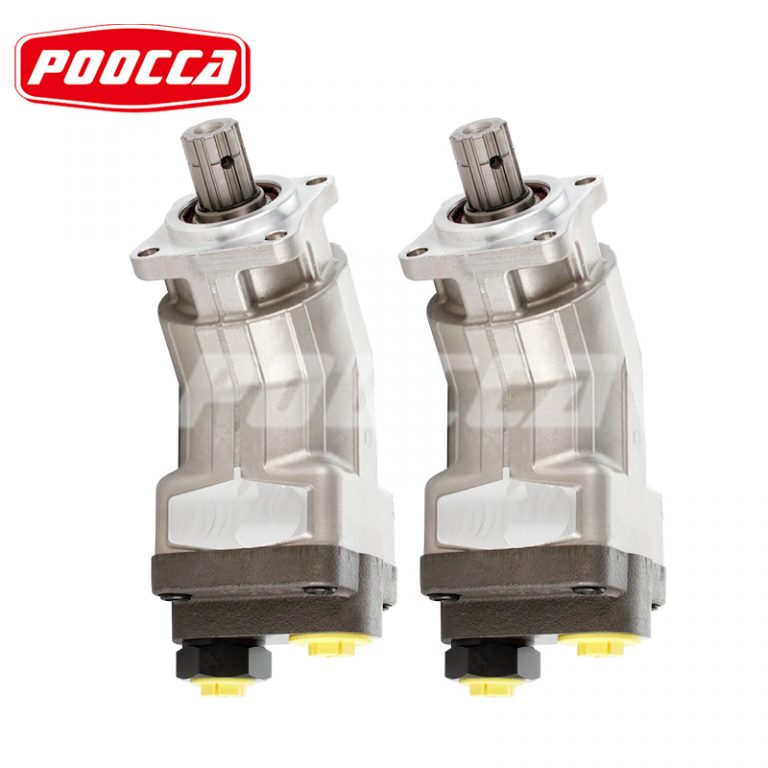

Designed specifically for commercial vehicles, the A17FO piston pump features a unique axially fixed piston configuration with a curved shaft, providing excellent performance and compact size. Its flow rate is adjusted proportionally to drive speed and displacement, ensuring stable hydraulic power when needed. The pump’s 40ยฐ high-angle rotation design enables high power density, compact size and optimized efficiency, resulting in a cost-effective solution.
The pump also features a simple reversing function to quickly change flow direction, and is self-priming, eliminating the need for additional drain lines. Its specially designed flange and shaft can be easily and efficiently mounted directly to the power take-off of a commercial vehicle.
In order to reduce noise, a series of noise reduction measures have been incorporated into the design of the A17FO plunger pump. Overall, it is an ideal choice for commercial vehicles and is capable of meeting a variety of complex hydraulic needs.
Within this range, poocca hydraulics manufacturer also offers various models of rexroth piston pumps:
RE 91510: Stationary pump A17NFO, operating at 250/300 bar
RE 91540: 2-circuit stationary pump A18FDO, operating at 350/400 bar
RE 92260: Variable displacement pump A17VO, operating at 300/350 bar
RE 92270: Variable displacement pump A18VO, operating at 350/400 bar
RE 92280: Variable displacement pump A18VLO, operating at 350/400 bar
| Size | NG | A17FO 23 | A17FO 32 | A17FO 45 | A17FO 63 | A17FO 80 | A17FO 107 | |
| Displacement | Vg | cm3 | 22.9 | 32 | 45.6 | 63 | 80.4 | 106.7 |
| Speed maximum1) ย ย ย ย ย at Vg | nnom | rpm | 2920 | 2900 | 2560 | 2300 | 2130 | 1860 |
| Flow ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at nnom and Vg | qv max | l/min | 67 | 93 | 117 | 145 | 171 | 198 |
| Power ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at nnom, Vg and ฮp = 300 bar | Pmax | kW | 33 | 46 | 58 | 72 | 86 | 99 |
| Torque ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at Vg and ฮp = 300 bar | T | Nm | 109 | 153 | 218 | 301 | 384 | 509 |
| Mass moment | TG | Nm | On request | |||||
| Rotary stiffness | c | Nm/rad | 304 | 304 | 435 | 520 | 711 | 806 |
| Moment of inertia for rotary group | JGR | kgm2 | 0.0012 | 0.0012 | 0.003 | 0.0042 | 0.0072 | 0.0116 |
| Maximum angular acceleration | ฮฑ | rad/sยฒ | On request | |||||
| Filling capacity | V | L | On request | |||||
| Mass (approx.) | m | kg | 5.8 ย ย ย ย ย ย ย ย 5.8 | 5.8 | 8 | 9 | 11.6 | 14.5 |

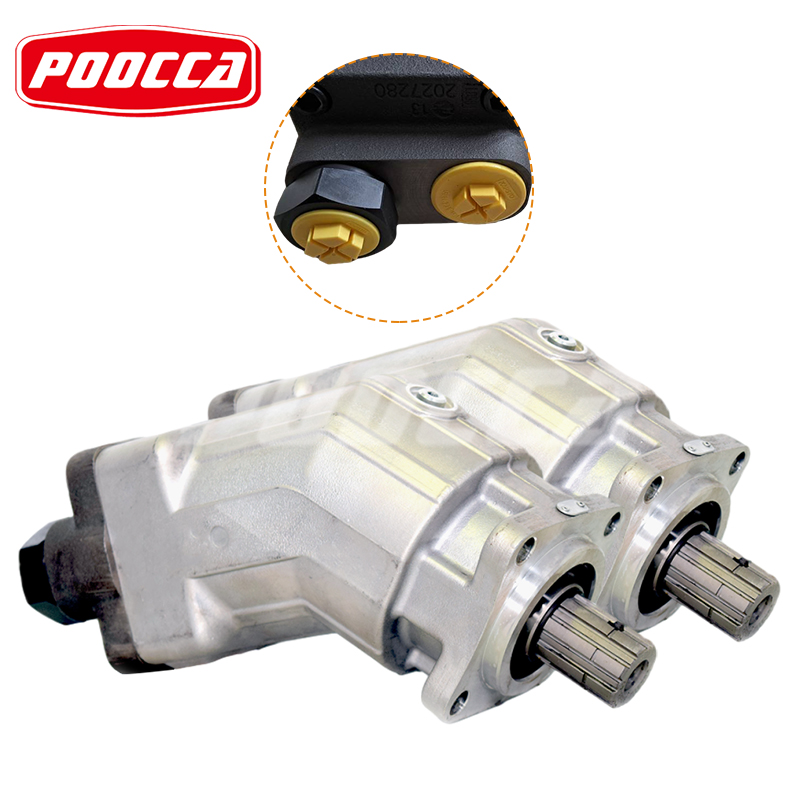

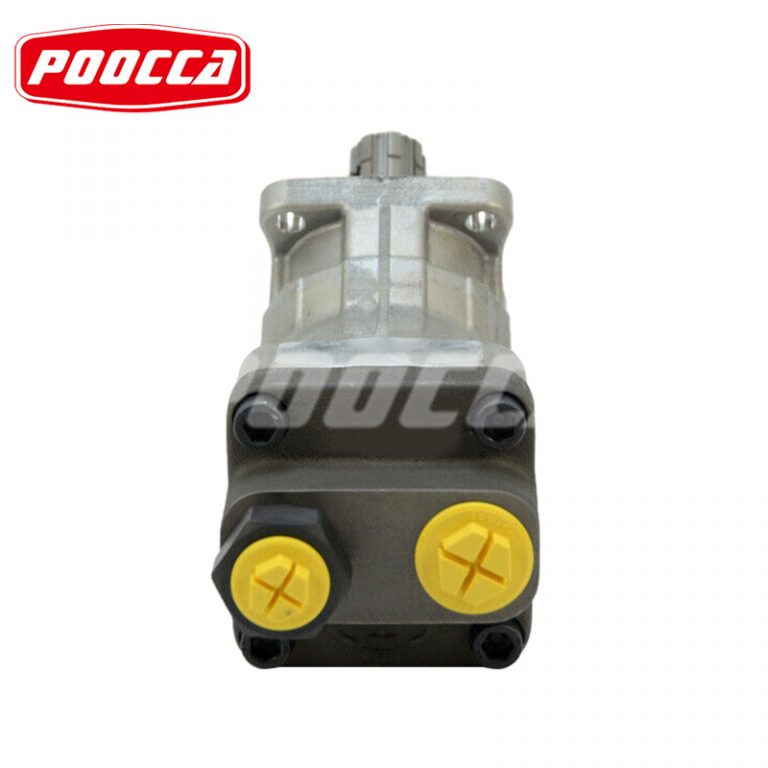

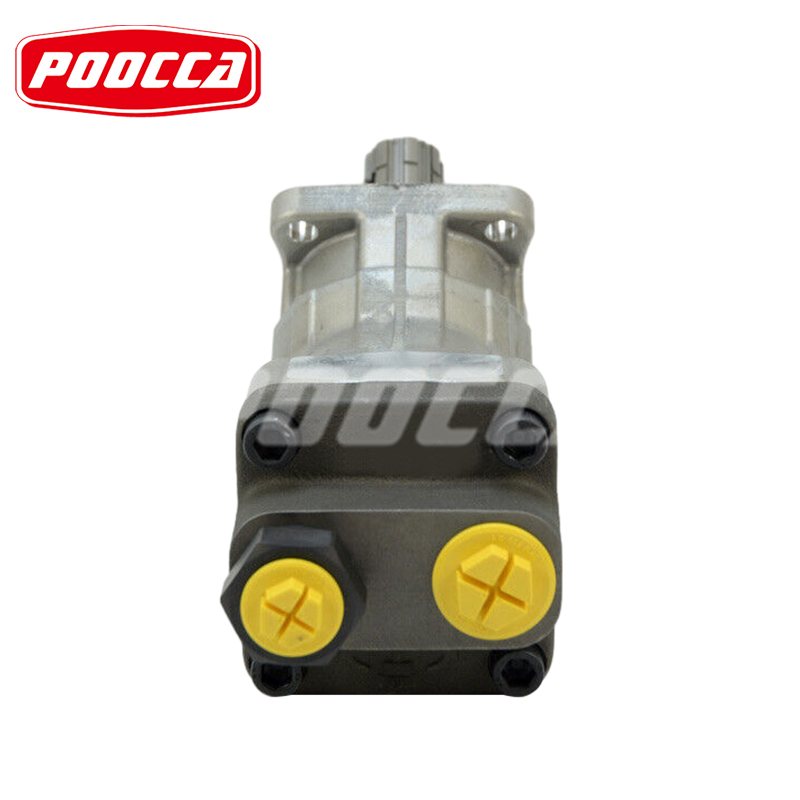

The direction of rotation of the axial piston unit is determined by a pressure connection screwed into the service line port and can be easily changed.
By changing the pressure connections, the service line port and suction port can be swapped. Therefore, the allowed driving direction changes.
On delivery, the pressure connection (1) is pre-assembled in the right-hand service line port of the axial piston unit. Permissible driving direction of the pump when viewed from the drive shaft: counterclockwise. The power take-off rotates clockwise.
Pressure connections are delivered pre-assembled and must be tightened to the torque specified in the respective specifications.
Designed specifically for commercial vehicles, the A17FO piston pump features a unique axially fixed piston configuration with a curved shaft, providing excellent performance and compact size. Its flow rate is adjusted proportionally to drive speed and displacement, ensuring stable hydraulic power when needed. The pump’s 40ยฐ high-angle rotation design enables high power density, compact size and optimized efficiency, resulting in a cost-effective solution.
The pump also features a simple reversing function to quickly change flow direction, and is self-priming, eliminating the need for additional drain lines. Its specially designed flange and shaft can be easily and efficiently mounted directly to the power take-off of a commercial vehicle.
In order to reduce noise, a series of noise reduction measures have been incorporated into the design of the A17FO plunger pump. Overall, it is an ideal choice for commercial vehicles and is capable of meeting a variety of complex hydraulic needs.
Within this range, poocca hydraulics manufacturer also offers various models of rexroth piston pumps:
RE 91510: Stationary pump A17NFO, operating at 250/300 bar
RE 91540: 2-circuit stationary pump A18FDO, operating at 350/400 bar
RE 92260: Variable displacement pump A17VO, operating at 300/350 bar
RE 92270: Variable displacement pump A18VO, operating at 350/400 bar
RE 92280: Variable displacement pump A18VLO, operating at 350/400 bar
| Size | NG | A17FO 23 | A17FO 32 | A17FO 45 | A17FO 63 | A17FO 80 | A17FO 107 | |
| Displacement | Vg | cm3 | 22.9 | 32 | 45.6 | 63 | 80.4 | 106.7 |
| Speed maximum1) ย ย ย ย ย at Vg | nnom | rpm | 2920 | 2900 | 2560 | 2300 | 2130 | 1860 |
| Flow ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at nnom and Vg | qv max | l/min | 67 | 93 | 117 | 145 | 171 | 198 |
| Power ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at nnom, Vg and ฮp = 300 bar | Pmax | kW | 33 | 46 | 58 | 72 | 86 | 99 |
| Torque ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย at Vg and ฮp = 300 bar | T | Nm | 109 | 153 | 218 | 301 | 384 | 509 |
| Mass moment | TG | Nm | On request | |||||
| Rotary stiffness | c | Nm/rad | 304 | 304 | 435 | 520 | 711 | 806 |
| Moment of inertia for rotary group | JGR | kgm2 | 0.0012 | 0.0012 | 0.003 | 0.0042 | 0.0072 | 0.0116 |
| Maximum angular acceleration | ฮฑ | rad/sยฒ | On request | |||||
| Filling capacity | V | L | On request | |||||
| Mass (approx.) | m | kg | 5.8 ย ย ย ย ย ย ย ย 5.8 | 5.8 | 8 | 9 | 11.6 | 14.5 |
The direction of rotation of the axial piston unit is determined by a pressure connection screwed into the service line port and can be easily changed.
By changing the pressure connections, the service line port and suction port can be swapped. Therefore, the allowed driving direction changes.
On delivery, the pressure connection (1) is pre-assembled in the right-hand service line port of the axial piston unit. Permissible driving direction of the pump when viewed from the drive shaft: counterclockwise. The power take-off rotates clockwise.
Pressure connections are delivered pre-assembled and must be tightened to the torque specified in the respective specifications.
