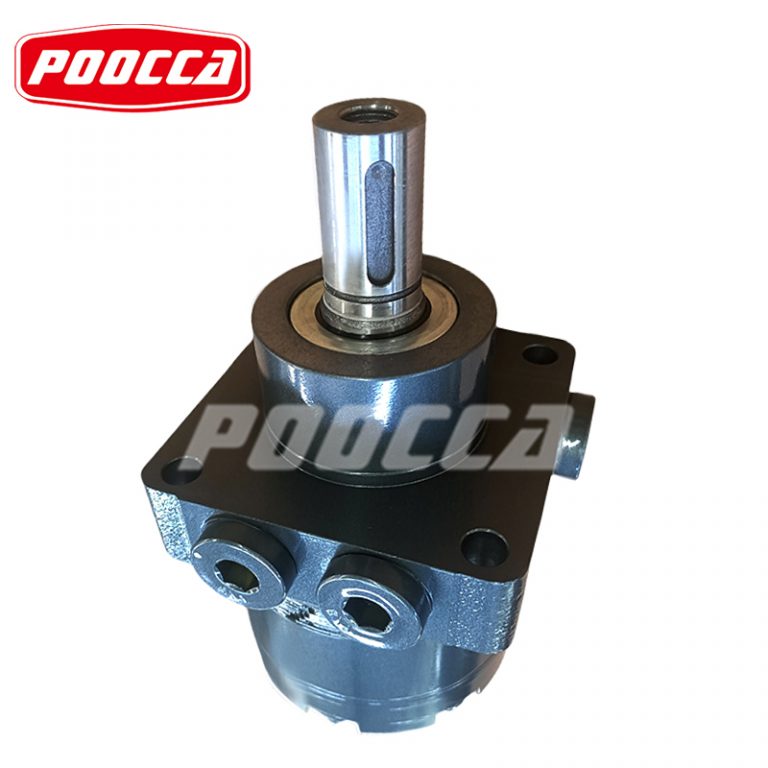

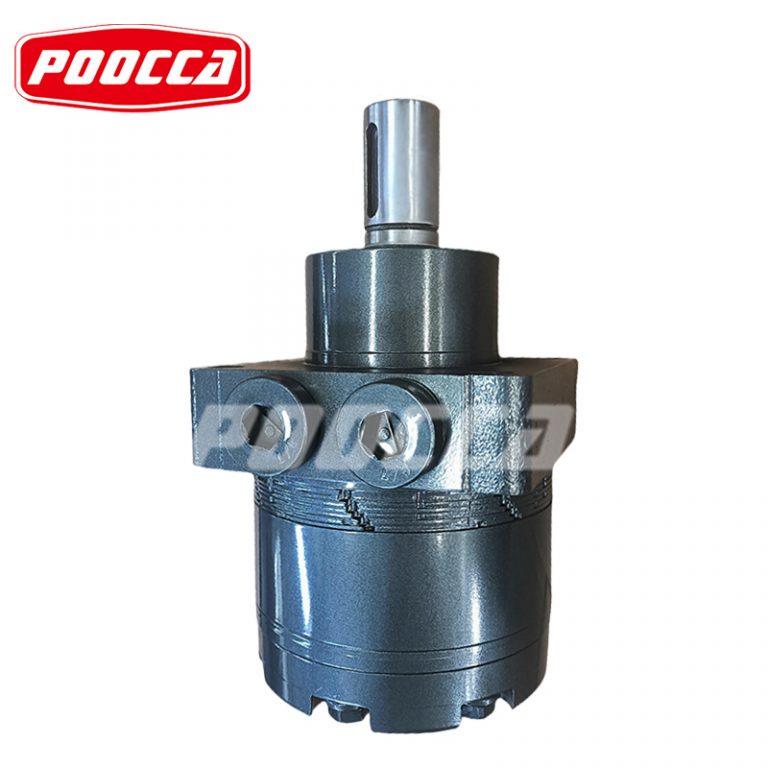

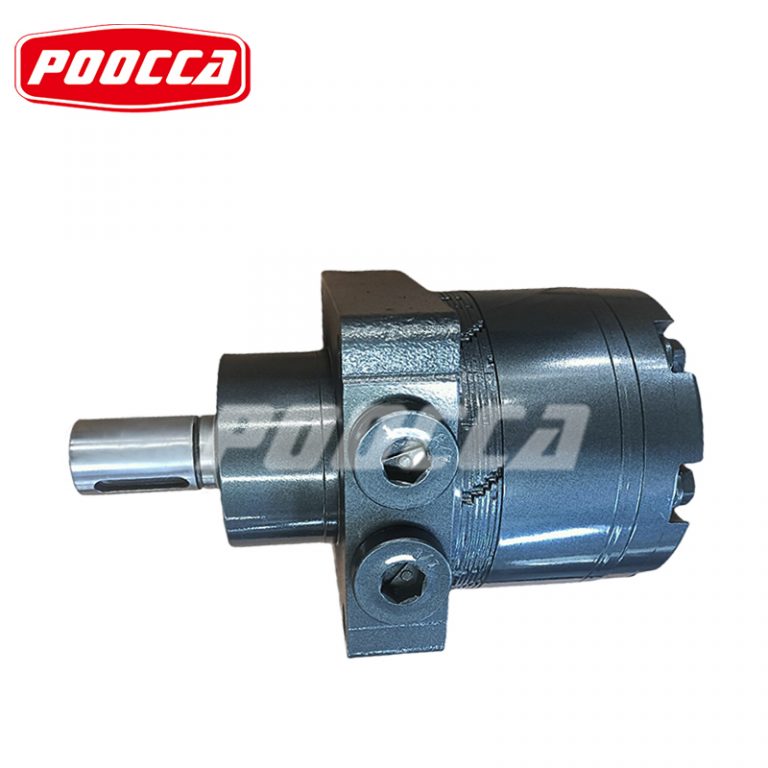

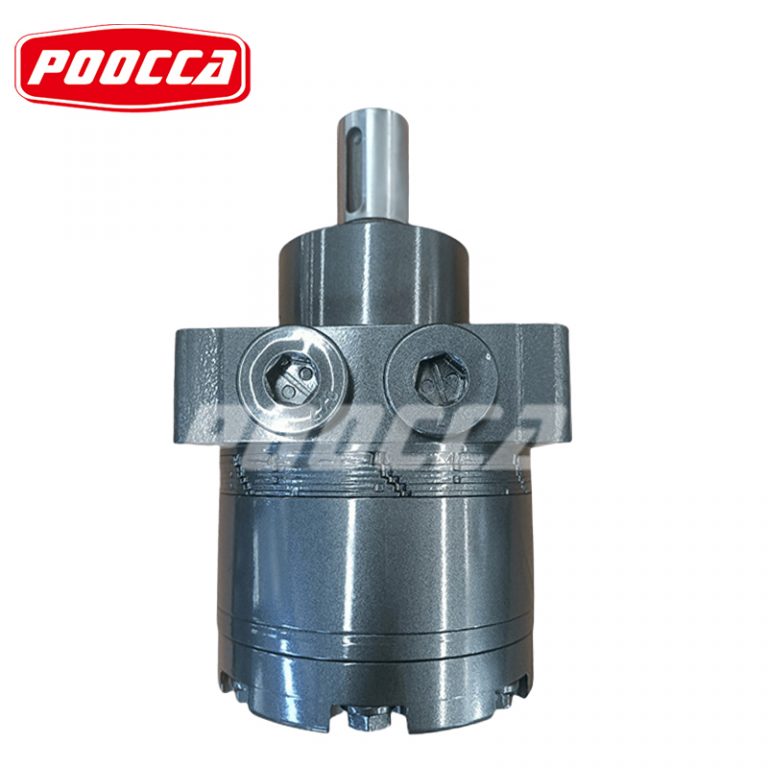

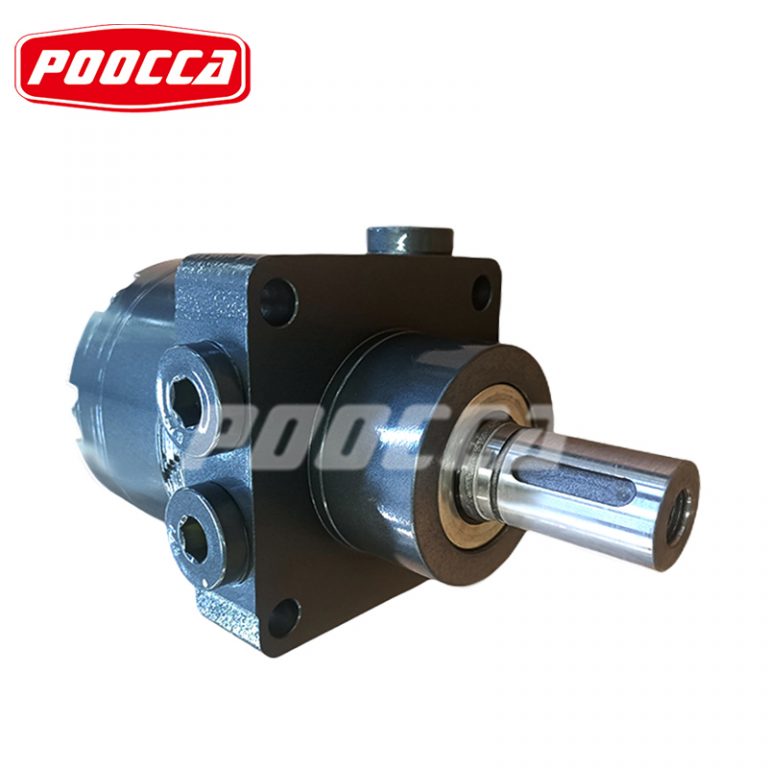

Parker TF orbitย motors feature rugged construction and are suitable for the most demanding applications. Its powertrain uses a patented 60:40 spline geometry for increased strength. All splines receive a continuous coolant flush to ensure durability. The design of roller blades and sealed commutation ensures high volumetric efficiency, smooth low-speed operation, and extended service life. Shaft seals are capable of withstanding the entire system pressure and are cleaned with coolant to extend life.
Parker TF Motor | ||||||||||||||
Pump model | 80 | 100 | 130 | 140 | 170 | 195 | 240 | 280 | 360 | 405 | 475 | |||
Displacement | cc/rev | 81 | 100 | 128 | 141 | 169 | 197 | 238 | 280 | 364 | 405 | 477 | ||
in3/rev | 4.94 | 6.1 | 7.81 | 8.6 | 10.31 | 12.02 | 14.52 | 17.09 | 22.21 | 24.71 | 29.11 | |||
Maximum Speed – Continuous | rev/min | 550 | 600 | 470 | 370 | 355 | 300 | 320 | 270 | 200 | 170 | 150 | ||
Maximum Speed – Intermittent | rev/min | 730 | 750 | 580 | 530 | 440 | 380 | 420 | 350 | 260 | 230 | 200 | ||
Maximum Oil Flow – Continuous | l/min | 45 | 60 | 60 | 60 | 60 | 60 | 75 | 75 | 75 | 75 | 75 | ||
Maximum Oil Flow – Intermittent | l/min | 60 | 75 | 75 | 75 | 75 | 75 | 100 | 100 | 100 | 100 | 100 | ||
Maximum differential | pressure – | bar | 210 | 160 | 140 | 140 | 140 | 140 | 140 | 140 | 130 | 130 | 115 | |
Continuous | psi | 3046 | 2321 | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 | 1885 | 1885 | 1668 | ||
Maximum differential | pressure – | bar | 280 | 240 | 210 | 210 | 210 | 210 | 210 | 210 | 190 | 175 | 140 | |
Intermittent | psi | 4061 | 3481 | 3046 | 3046 | 3046 | 3046 | 3046 | 3046 | 2756 | 2538 | 2031 | ||
Maximum supply pressure | bar | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | ||
psi | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | 4350 | |||
Maximum Torque – Continuous | Nm | 220 | 200 | 230 | 250 | 320 | 365 | 430 | 550 | 590 | 660 | 680 | ||
Maximum Torque – Intermittent | Nm | 295 | 320 | 360 | 390 | 490 | 560 | 670 | 800 | 910 | 920 | 850 | ||
Maximum performance | KW | 22 | 25 | 22 | 22 | 23 | 22 | 28 | 28 | 24 | 22 | 17 | ||
[HP] | 29.5 | 33.53 | 29.5 | 29.5 | 30.84 | 29.5 | 37.55 | 37.55 | 32.18 | 29.5 | 22.8 | |||
Minimum Starting Torque – Continuous | Nm | 172 | 168 | 192 | 197 | 264 | 304 | 368 | 440 | 510 | 575 | 603 | ||
Minimum Starting Torque – Intermittent | Nm | 236 | 252 | 280 | 308 | 388 | 448 | 548 | 672 | 779 | 789 | 740 | ||
Weight of motor with E and M Flanges | Kg | 13.6 | 13.7 | 13.9 | 14 | 14.2 | 14.7 | 15 | 15.5 | 16 | 16.5 | 17.5 | ||
Lbs | 30 | 30.2 | 30.6 | 30.9 | 31.3 | 32.4 | 33.1 | 34.2 | 35.3 | 36.4 | 38.6 | |||
Weight of motor with H and V Flanges | Kg | 14 | 14 | 14.2 | 14.3 | 14.6 | 14.9 | 15.3 | 15.6 | 16.3 | 17 | 17.5 | ||
Lbs | 30.9 | 30.9 | 31.3 | 31.5 | 32.2 | 32.8 | 33.7 | 34.4 | 35.9 | 37.5 | 38.6 | |||

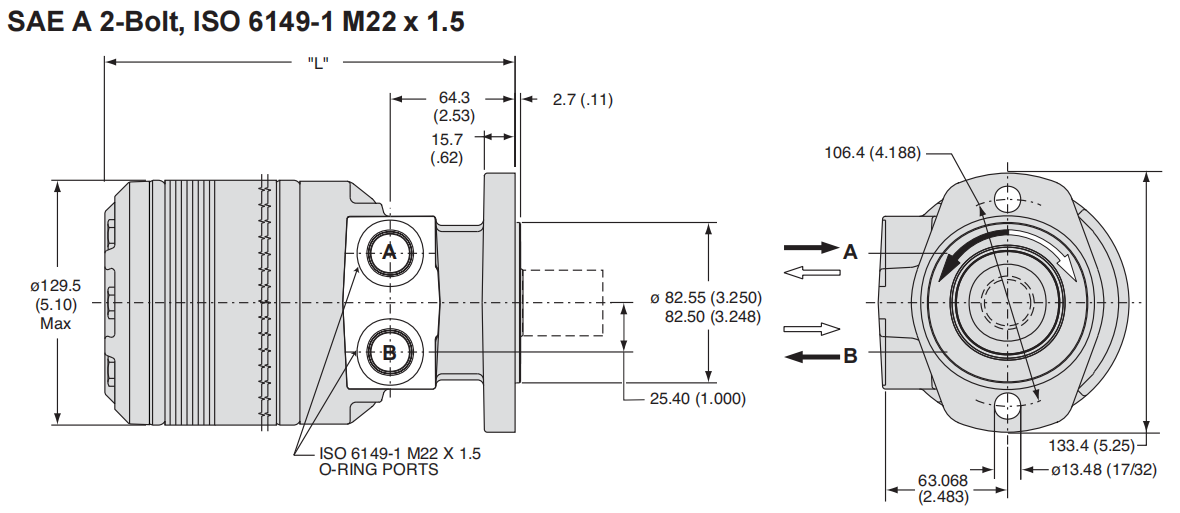

Dimension L | E Flange | mm | 186 | 186 | 189 | 191 | 194 | 197 | 202 | 206 | 215 | 220 | 229 | |
M Flange | mm | 191 | 191 | 194 | 196 | 199 | 202 | 207 | 212 | 220 | 225 | 234 | ||
H Flange | mm | 146 | 146 | 149 | 151 | 154 | 157 | 162 | 167 | 175 | 180 | 189 | ||
V Flange | mm | 213 | 213 | 216 | 218 | 221 | 224 | 229 | 233 | 242 | 247 | 256 |

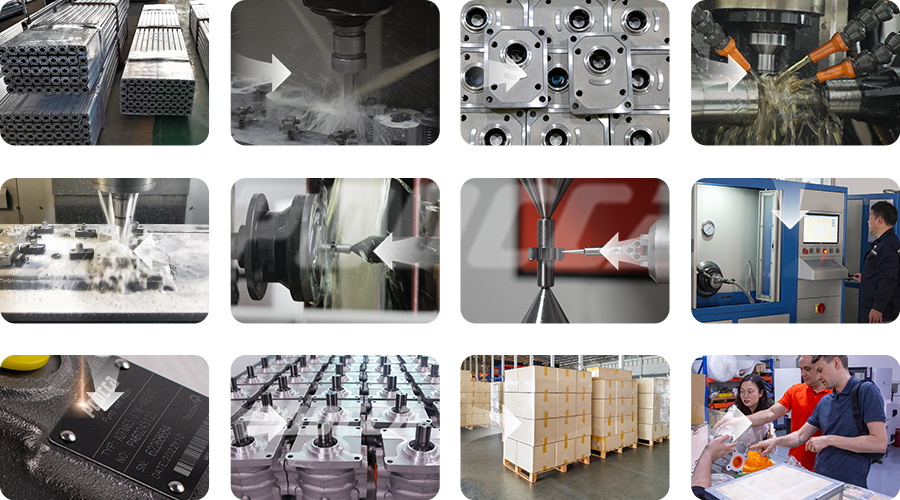

POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.
At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.
