Torque Range: Our systems offer a torque range of up to 370 kNm (or 272,898 lb-ft)
Speed โโRange: Harness speeds up to 125 rpm ensure fast and efficient operation.
Power Range: Power up to 1000 kW.
Maximum Operating Pressure: Our systems can withstand pressures up to 350 bar (or 5,076 psi) to operate in the most demanding conditions.
Frame Size: Available in a wide range of sizes from 280 to 1120, providing flexibility for a variety of setups.
Displacement: Our systems offer a displacement range of 15,100 to 70,400 cubic centimeters per revolution (or 921 to 4,296 in-cubic per revolution).
Specific Torque: Benefit from specific torque values โโfrom 240 to 1120 Nm/bar (or 12,204 to 56,952 ft-lbs/1,000 psi).
| Descriptionย | Code | 0140 | 0160 | 0190 | 0230 | 0250 | 0280 | 0330 | 0360 | 0380 | 0440 | 0520 |
| Displacements | cm3/rev in3/rev | 14 | 16 | 19 | 23 | 25 | 28 | 33 | 36 | 38 | 44 | 52 |
| 0.85 | 0.98 | 1.16 | 1.4 | 1.53 | 1.71 | 2.01 | 2.2 | 2.32 | 2.68 | 3.17 | ||
| Continuous Pressure | bar psi |
250 | 220 | 200 | ||||||||
| 3625 | 3190 | 2900 | ||||||||||
| Intermittent Pressure | bar psi |
275 | 255 | 220 | 215 | |||||||
| 3988 | 3698 | 3190 | 3118 | |||||||||
| Minimum Speed @Max. Outlet Pressure | rpm | 500 | ||||||||||
| Maximum Speed @ 0 Inlet & Max. Outlet Pressure | rpm | 3400 | 3300 | 3100 | 3000 | 2800 | 2600 | |||||
| Pump Input Power @ Max. Pressure and 1500 rpm | kW
HP |
9.6 | 11 | 13.1 | 15.8 | 17.2 | 19.3 | 22.7 | 24.6 | 26.1 | 27 | 28.6 |
| 12.87 | 14.75 | 17.57 | 21.19 | 23.07 | 25.88 | 30.44 | 32.99 | 35 | 36.21 | 38.35 | ||
| Dimension โLโ | mm in |
68.3 | 70.3 | 73.3 | 77.4 | 79.4 | 82.4 | 87.5 | 90.5 | 92.5 | 98.6 | 106.7 |
| 2.69 | 2.77 | 2.89 | 3.05 | 3.13 | 3.24 | 3.44 | 3.56 | 3.64 | 3.88 | 4.2 | ||
| Approximate Weight * | kg LB | 7.92 | 8 | 8.12 | 8.29 | 8.37 | 8.5 | 8.7 | 8.83 | 8.91 | 9.16 | 9.49 |
| 17.5 | 17.68 | 17.95 | 18.32 | 18.5 | 18.79 | 19.23 | 19.51 | 19.69 | 20.24 | 20.97 | ||

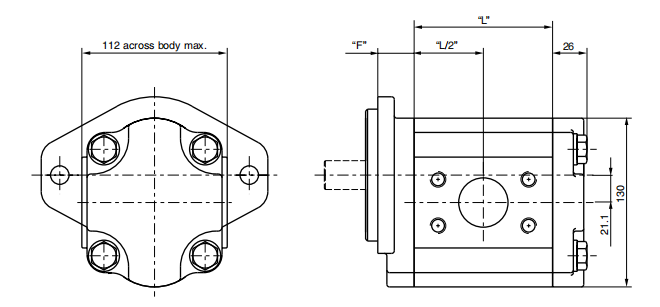

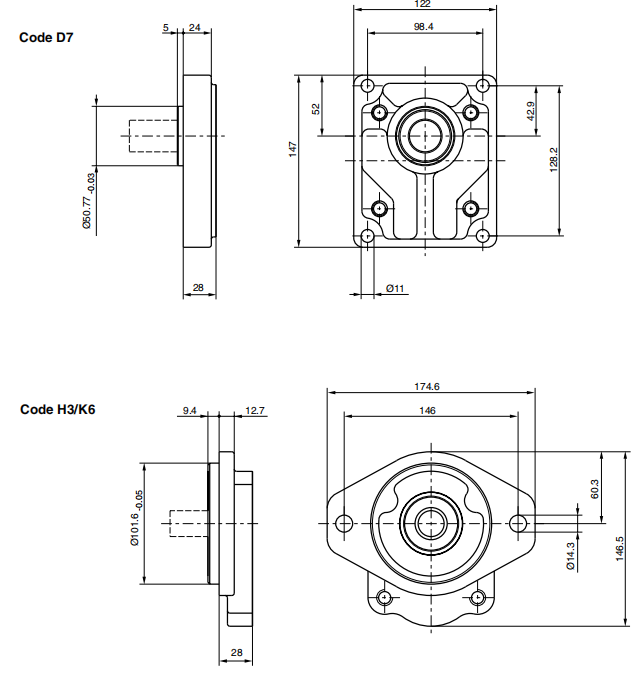

poocca will provide you with dimensional drawings of relevant models to help you purchase the correct signal of the parker pgp hydraulic gear pump.
Features and Benefits:
Three-piece construction enables distribution flexibility,Aluminum pumping sections ensure lightweight design,Journal bushings promote extended lifespan,Pressure balanced thrust blocks deliver high efficiency,Multiple sections are available for enhanced versatility
Technical Specifications:
Sizes range from 16 to 70 cc
Operating pressures up to 275 bar (3,988 psi)
Speeds reach up to 3,400 rpm
CW, CCW, and Bi-rotational pump options are available
SAE shafts, flanges, and porting options are provided.

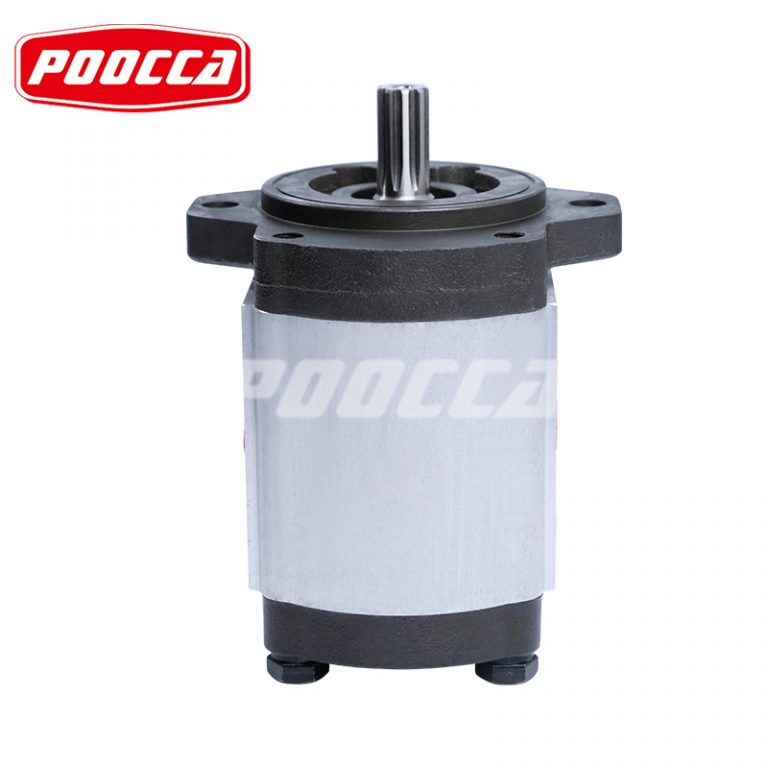

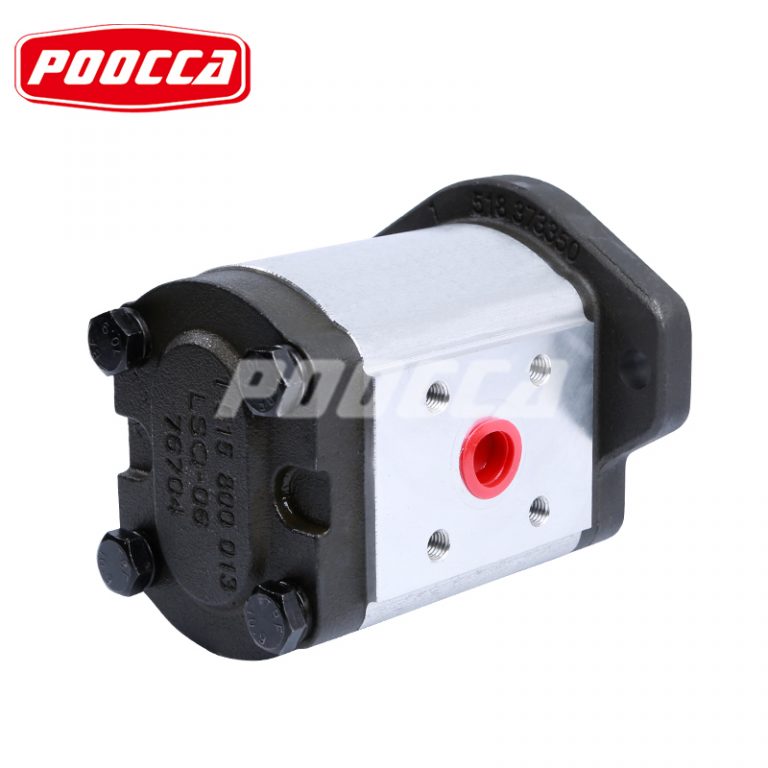

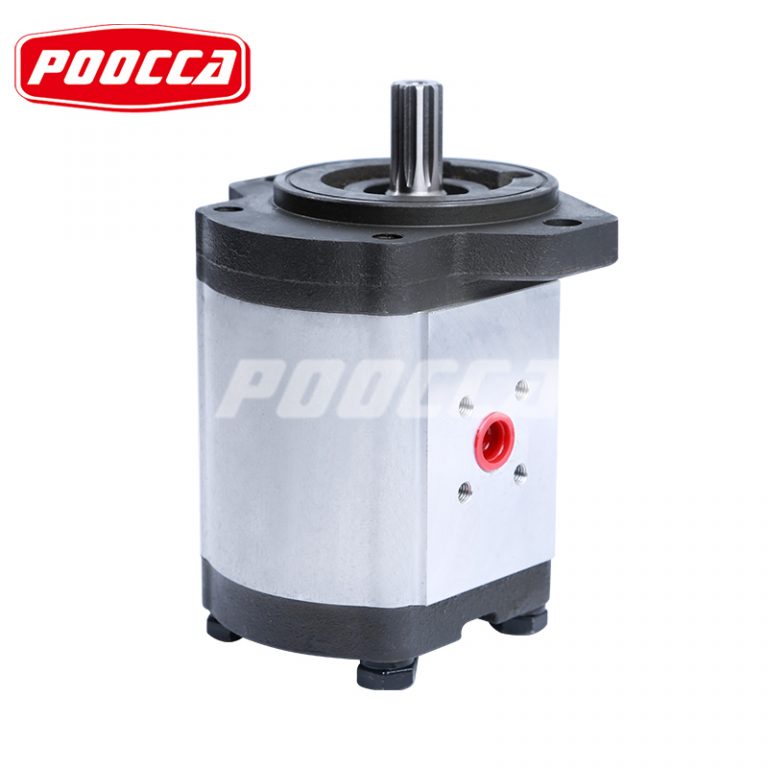

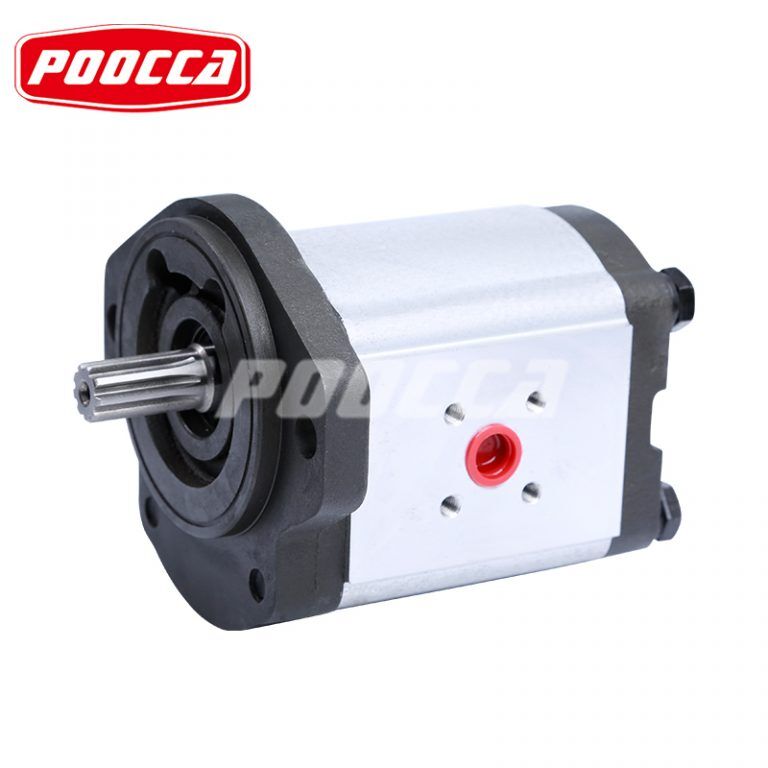

The Parker Aluminum PGP517 Series is a fixed displacement gear pump, each equipped with a standard pump, clutch pump, tandem pump or priority flow valve and equipped with a main circuit safety valve for increased safety and efficiency.
Applications for the Parker Aluminum Pump PGP517 Series include:
Aerial work equipment, agricultural machinery, construction equipment, forestry equipment, material handling equipment, lawn equipment, power steering pumps with priority valves, brake pumps, tree trimmers, trencher pumps, hydraulic power units, aerial lifts, transfer pumps , lubricating oil pump
Torque Range: Our systems offer a torque range of up to 370 kNm (or 272,898 lb-ft)
Speed โโRange: Harness speeds up to 125 rpm ensure fast and efficient operation.
Power Range: Power up to 1000 kW.
Maximum Operating Pressure: Our systems can withstand pressures up to 350 bar (or 5,076 psi) to operate in the most demanding conditions.
Frame Size: Available in a wide range of sizes from 280 to 1120, providing flexibility for a variety of setups.
Displacement: Our systems offer a displacement range of 15,100 to 70,400 cubic centimeters per revolution (or 921 to 4,296 in-cubic per revolution).
Specific Torque: Benefit from specific torque values โโfrom 240 to 1120 Nm/bar (or 12,204 to 56,952 ft-lbs/1,000 psi).
| Descriptionย | Code | 0140 | 0160 | 0190 | 0230 | 0250 | 0280 | 0330 | 0360 | 0380 | 0440 | 0520 |
| Displacements | cm3/rev in3/rev | 14 | 16 | 19 | 23 | 25 | 28 | 33 | 36 | 38 | 44 | 52 |
| 0.85 | 0.98 | 1.16 | 1.4 | 1.53 | 1.71 | 2.01 | 2.2 | 2.32 | 2.68 | 3.17 | ||
| Continuous Pressure | bar psi |
250 | 220 | 200 | ||||||||
| 3625 | 3190 | 2900 | ||||||||||
| Intermittent Pressure | bar psi |
275 | 255 | 220 | 215 | |||||||
| 3988 | 3698 | 3190 | 3118 | |||||||||
| Minimum Speed @Max. Outlet Pressure | rpm | 500 | ||||||||||
| Maximum Speed @ 0 Inlet & Max. Outlet Pressure | rpm | 3400 | 3300 | 3100 | 3000 | 2800 | 2600 | |||||
| Pump Input Power @ Max. Pressure and 1500 rpm | kW
HP |
9.6 | 11 | 13.1 | 15.8 | 17.2 | 19.3 | 22.7 | 24.6 | 26.1 | 27 | 28.6 |
| 12.87 | 14.75 | 17.57 | 21.19 | 23.07 | 25.88 | 30.44 | 32.99 | 35 | 36.21 | 38.35 | ||
| Dimension โLโ | mm in |
68.3 | 70.3 | 73.3 | 77.4 | 79.4 | 82.4 | 87.5 | 90.5 | 92.5 | 98.6 | 106.7 |
| 2.69 | 2.77 | 2.89 | 3.05 | 3.13 | 3.24 | 3.44 | 3.56 | 3.64 | 3.88 | 4.2 | ||
| Approximate Weight * | kg LB | 7.92 | 8 | 8.12 | 8.29 | 8.37 | 8.5 | 8.7 | 8.83 | 8.91 | 9.16 | 9.49 |
| 17.5 | 17.68 | 17.95 | 18.32 | 18.5 | 18.79 | 19.23 | 19.51 | 19.69 | 20.24 | 20.97 | ||
poocca will provide you with dimensional drawings of relevant models to help you purchase the correct signal of the parker pgp hydraulic gear pump.
Features and Benefits:
Three-piece construction enables distribution flexibility,Aluminum pumping sections ensure lightweight design,Journal bushings promote extended lifespan,Pressure balanced thrust blocks deliver high efficiency,Multiple sections are available for enhanced versatility
Technical Specifications:
Sizes range from 16 to 70 cc
Operating pressures up to 275 bar (3,988 psi)
Speeds reach up to 3,400 rpm
CW, CCW, and Bi-rotational pump options are available
SAE shafts, flanges, and porting options are provided.
The Parker Aluminum PGP517 Series is a fixed displacement gear pump, each equipped with a standard pump, clutch pump, tandem pump or priority flow valve and equipped with a main circuit safety valve for increased safety and efficiency.
Applications for the Parker Aluminum Pump PGP517 Series include:
Aerial work equipment, agricultural machinery, construction equipment, forestry equipment, material handling equipment, lawn equipment, power steering pumps with priority valves, brake pumps, tree trimmers, trencher pumps, hydraulic power units, aerial lifts, transfer pumps , lubricating oil pump
