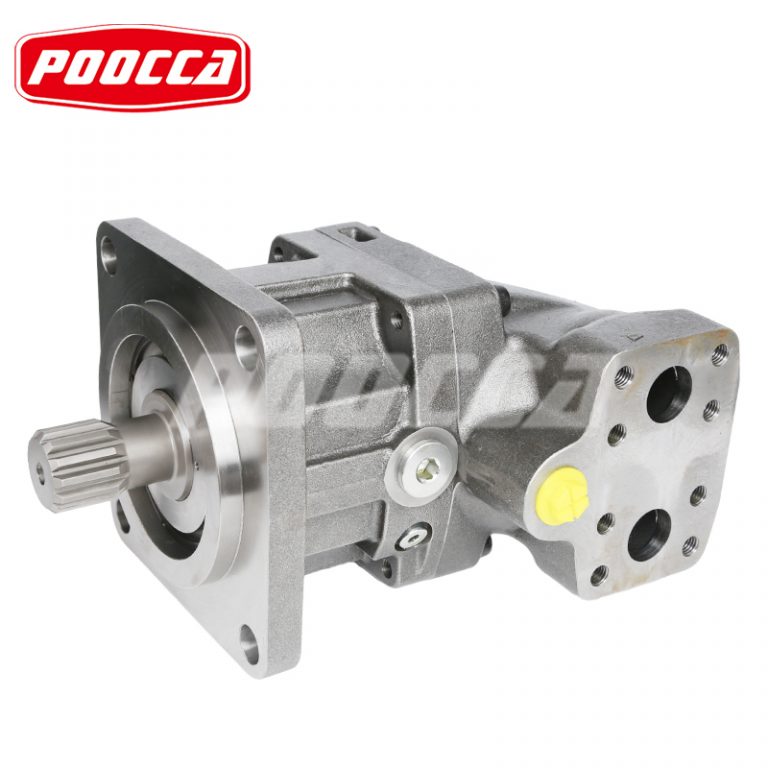

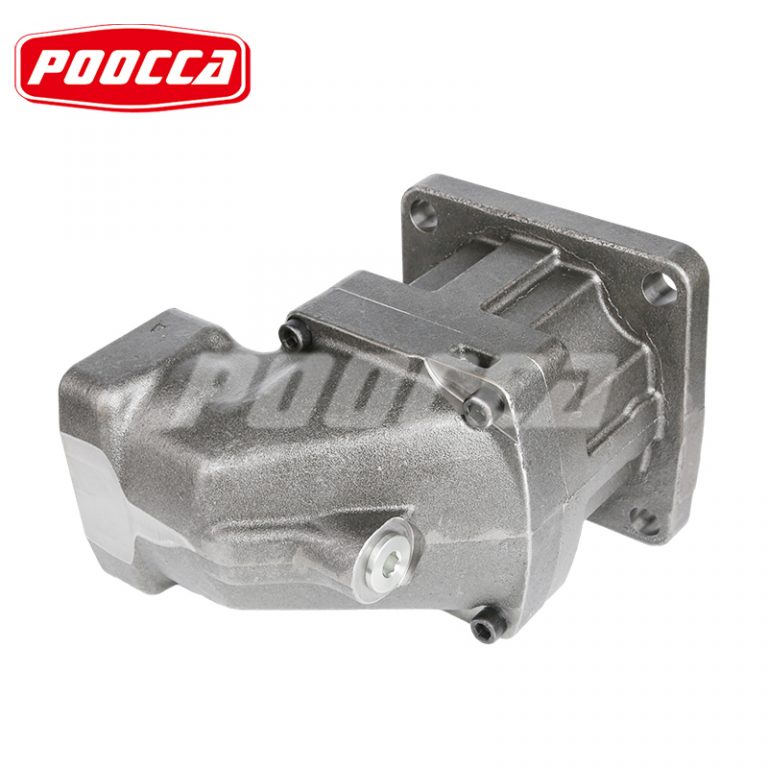

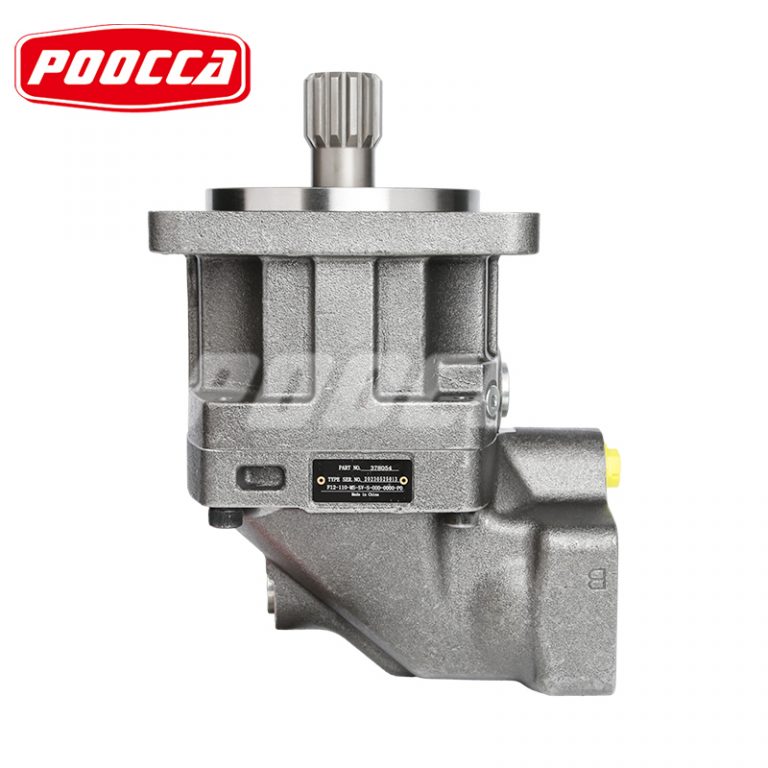

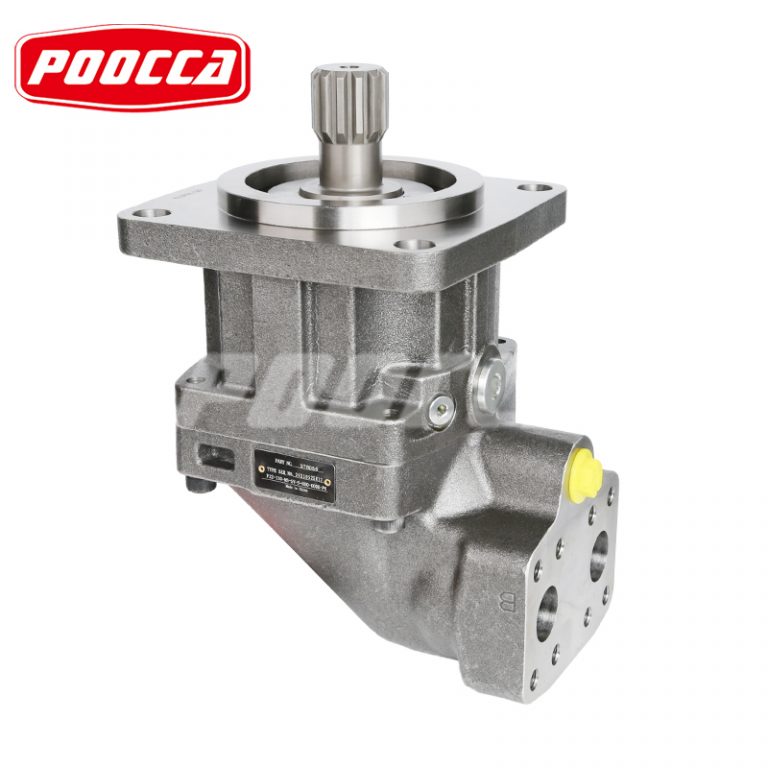

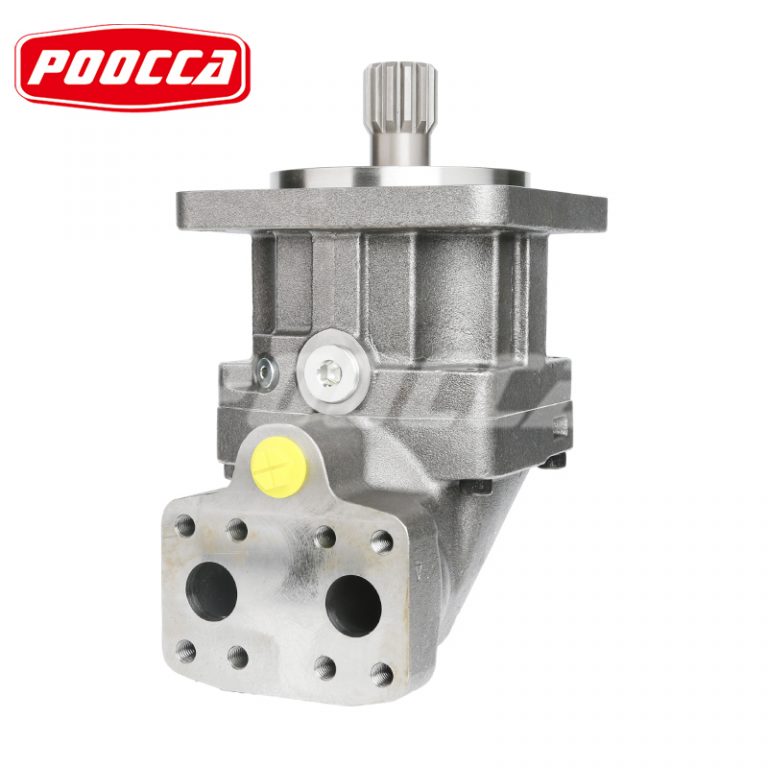

โขParkerF12 is a bent axis, fixed displacement heavy duty motor/pump range. They can be used in numerous applications in both open and closed loop circuits.

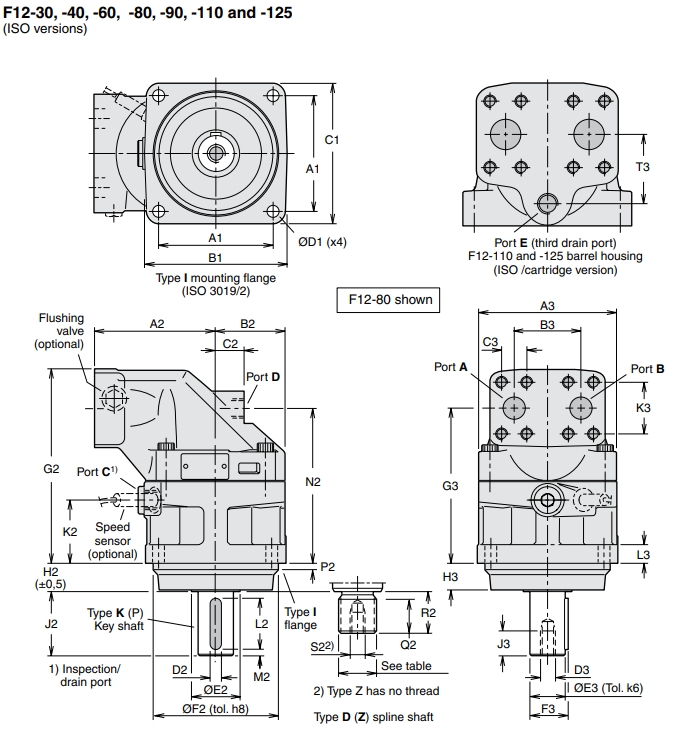

โข The F12 range complies with current ISO and SAE mounting flanges and shaft end configurations. A very compact cartridge version is also available.
โข Due to the unique spherical piston design, the F12 motor can be used for exceptionally high shaft speeds.

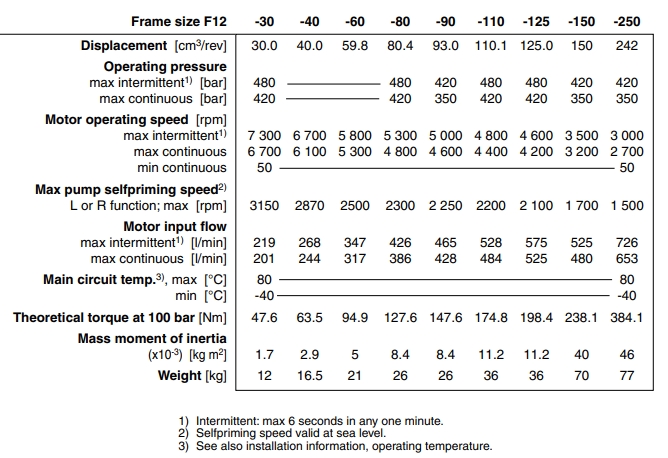

Operating pressures up to 480 bar provide high output power capabilities.
โข Our unique timing gear design synchronizes the shaft and cylinder making the F12 very tolerant of high “G” forces and torsional vibrations.
โข The 40ยฐ angle between shaft and cylinder allows for a very compact, lightweight motor/pump.
โข Laminated piston rings offer important advantages such as low internal leakage and resistance to thermal shock.
โข The pump version features a highly engineered valve plate for increased self-priming speed and reduced noise, and is available in both left and right turning.
โข The F12 motor produces very high torque at start-up and at low speeds.
โข Heavy duty roller bearings accommodate considerable external axial and radial shaft loads.
โข The F12 design is simple and straightforward with very few moving parts, making it a very reliable motor/pump.
โข The unique piston locking, timing gear and bearing arrangement, along with the limited number of parts, results in a very robust design with long life and, most importantly, proven reliability.
โขParkerF12 is a bent axis, fixed displacement heavy duty motor/pump range. They can be used in numerous applications in both open and closed loop circuits.
โข The F12 range complies with current ISO and SAE mounting flanges and shaft end configurations. A very compact cartridge version is also available.
โข Due to the unique spherical piston design, the F12 motor can be used for exceptionally high shaft speeds.
Operating pressures up to 480 bar provide high output power capabilities.
โข Our unique timing gear design synchronizes the shaft and cylinder making the F12 very tolerant of high “G” forces and torsional vibrations.
โข The 40ยฐ angle between shaft and cylinder allows for a very compact, lightweight motor/pump.
โข Laminated piston rings offer important advantages such as low internal leakage and resistance to thermal shock.
โข The pump version features a highly engineered valve plate for increased self-priming speed and reduced noise, and is available in both left and right turning.
โข The F12 motor produces very high torque at start-up and at low speeds.
โข Heavy duty roller bearings accommodate considerable external axial and radial shaft loads.
โข The F12 design is simple and straightforward with very few moving parts, making it a very reliable motor/pump.
โข The unique piston locking, timing gear and bearing arrangement, along with the limited number of parts, results in a very robust design with long life and, most importantly, proven reliability.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
