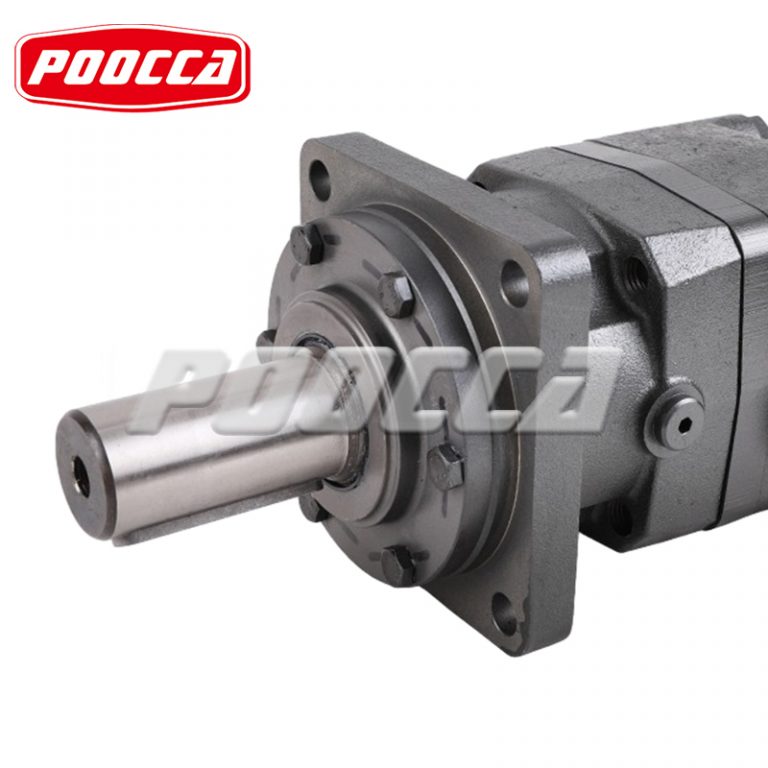

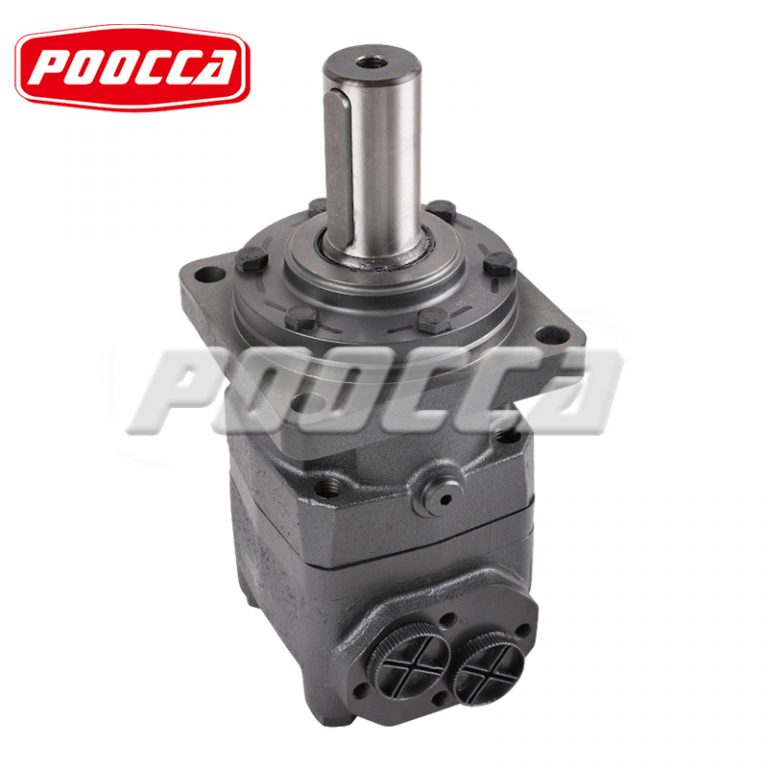

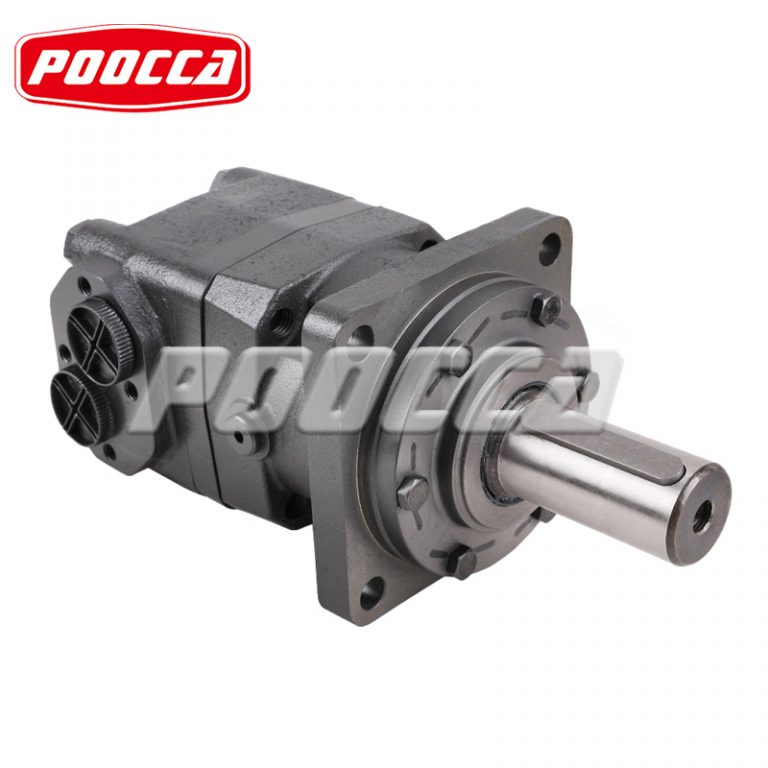

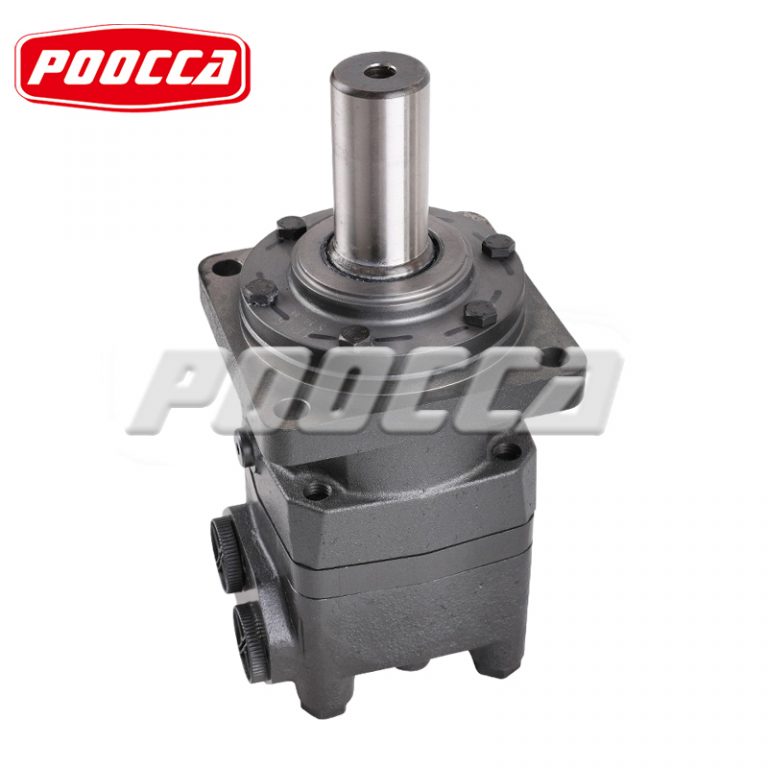

OMT Hydraulic Motors

OMT160, OMT200, OMT230, OMT250, OMT315, OMT400, OMT500, OMT630, OMT800

Diaplacement: 160ml/r-800ml/r

Rotational speed range: up tp 615 rpm; maximum

Continuous pressure: up to 200 bar.

Application: conveyors, winchers, loaders

There are different shafts, front covers, oil ports to choose from, please send us an email poocca.

Chat Now

Characteristic

**OMT series motors adopt advanced Geroler gear set design, have disc flow distribution and high-voltage starting functions, and can provide multiple operating variants according to application requirements.
**OMT track motor starts with low voltage, ensuring smooth, reliable operation and high efficiency. The output shaft uses tapered roller bearings, which can withstand high axial and radial forces and is suitable for a wide range of high-pressure and high-torque applications.
The **advanced disc flow distribution design automatically compensates during operation, improving volumetric efficiency and service life, ensuring smooth and reliable operation of the motor.

Parameter

Danfoss OMT Hydraulic Orbit Motors			OMT	OMT	OMT	OMT	OMT	OMT
			OMTW	OMTW	OMTW	OMTW	OMTW	OMTW
			OMTS	OMTS	OMTS	OMTS	OMTS	OMTS
			OMT FX	OMT FX	OMT FX	OMT FX	OMT FX	OMT FX
			OMT FL	OMT FL	OMT FL	OMT FL	OMT FL	OMT FL
			OMT FH	OMT FH	OMT FH	OMT FH	OMT FH	OMT FH
Motor size			160	200	250	315	400	500
Maximum torque	Nm	cont.	470	590	730	950	1080	1220
	[lbf·in]	cont.	[4160]	[5220]	[6460]	[8410]	[9560]	[10800]
		int.1)	560	710	880	1140	1260	1370
		int.1)	[4960]	[6280]	[7790]	[10090]	[11150]	[12130]
Maximum output	kW	cont.	26.5	33.5	33.5	33.5	30	26.5
	[hp]	cont.	[35.5]	[44.9]	[44.9]	[44.9]	[40.2]	[35.5]
		int.1)	32	40	40	40	35	30
		int.1)	[42.9]	[53.6]	[53.6]	[53.6]	[46.9]	[40.2]
Maximum pressure drop	bar	cont.	200	200	200	200	180	160
	[psi]	cont.	[2900]	[2900]	[2900]	[2900]	[2610]	[2320]
		int.1)	240	240	240	240	210	180
		int.1)	[3480]	[3480]	[3480]	[3480]	[3050]	[2610]
		peak2)	280	280	280	280	240	210
		peak2)	[4060]	[4060]	[4060]	[4060]	[3480]	[3050]
Maximum oil flow	l/min [USgal/min]	cont.	100	125	125	125	125	125
		cont.	[26.4]	[33.0]	[33.0]	[33.0]	[33.0]	[33.0]
		int.1)	125	150	150	150	150	150
		int.1)	[33.0]	[39.6]	[39.6]	[39.6]	[39.6]	[39.6]
Maximum starting pressure with unloaded shaft	bar		10	10	10	10	10	10
Maximum starting pressure with unloaded shaft	[psi]		[145]	[145]	[145]	[145]	[145]	[145]
Minimum starting torque	at maximum pressure drop cont.		340	430	530	740	840	950
	Nm [lbf·in]		[3010]	[3810]	[4690]	[6550]	[7430]	[8410]
	at maximum pressure drop int.1)		410	520	630	890	970	1060
	Nm [lbf·in]		[3630]	[4600]	[5580]	[7880]	[8590]	[9380]

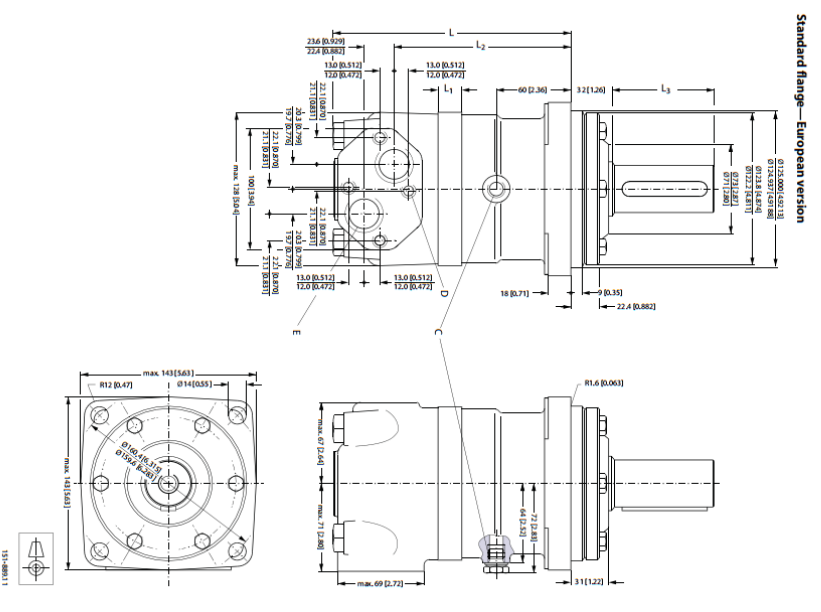

Dimension

Product Details

OMT series motors also offer a variety of operating variants with Geroler gear set design, disc distribution flow and high-voltage starting function. OMT series motors also offer a variety of options, including different output shaft, front cover and oil port configurations. You can choose the appropriate shaft type, such as keyway shaft, spline shaft or threaded shaft, according to your specific application needs to ensure the best transmission effect. Front covers are also available in a variety of options to meet different installation requirements and space constraints. The diversity of oil port configurations makes hydraulic connections more flexible and facilitates installation and maintenance.
