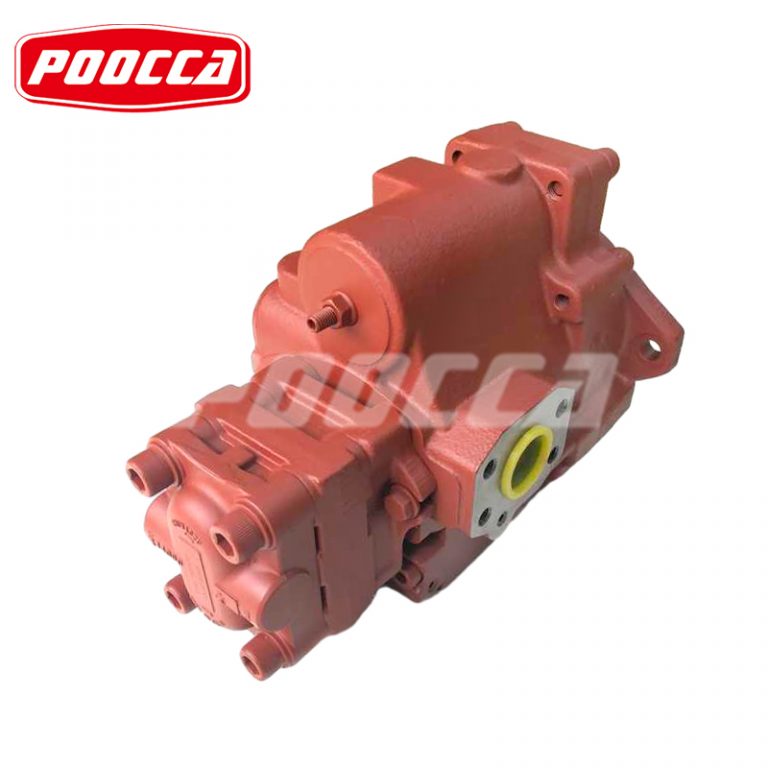

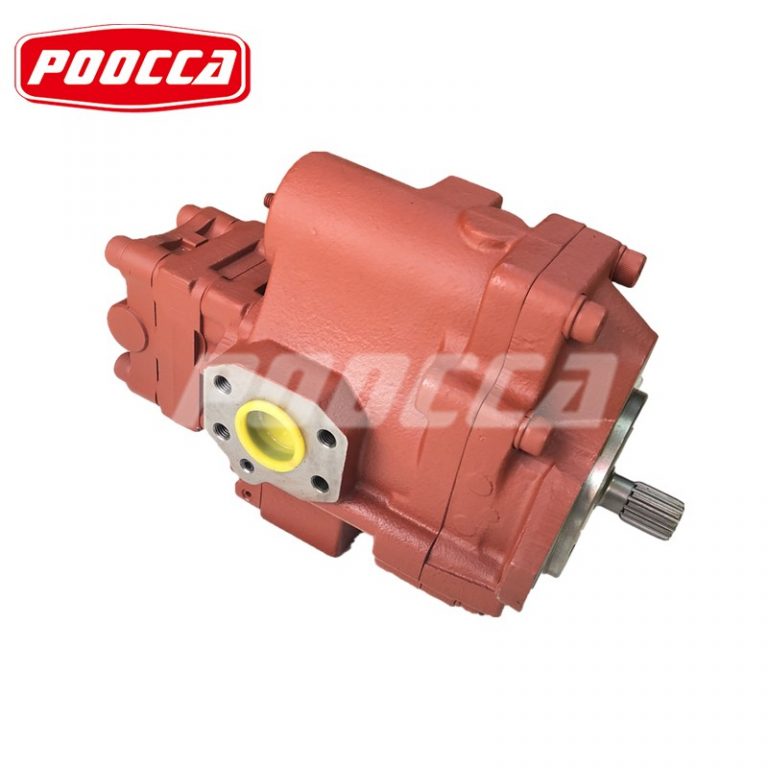

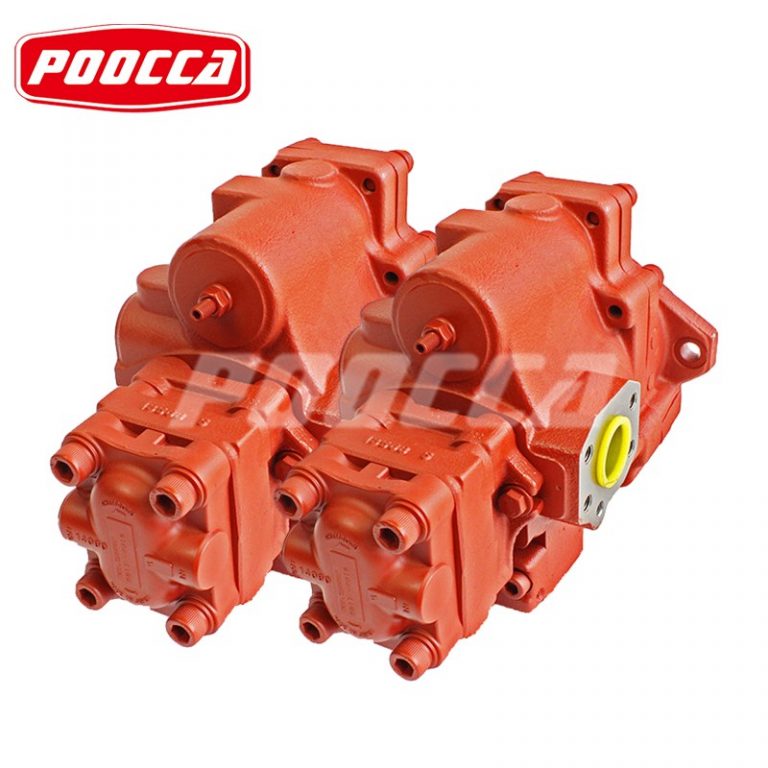

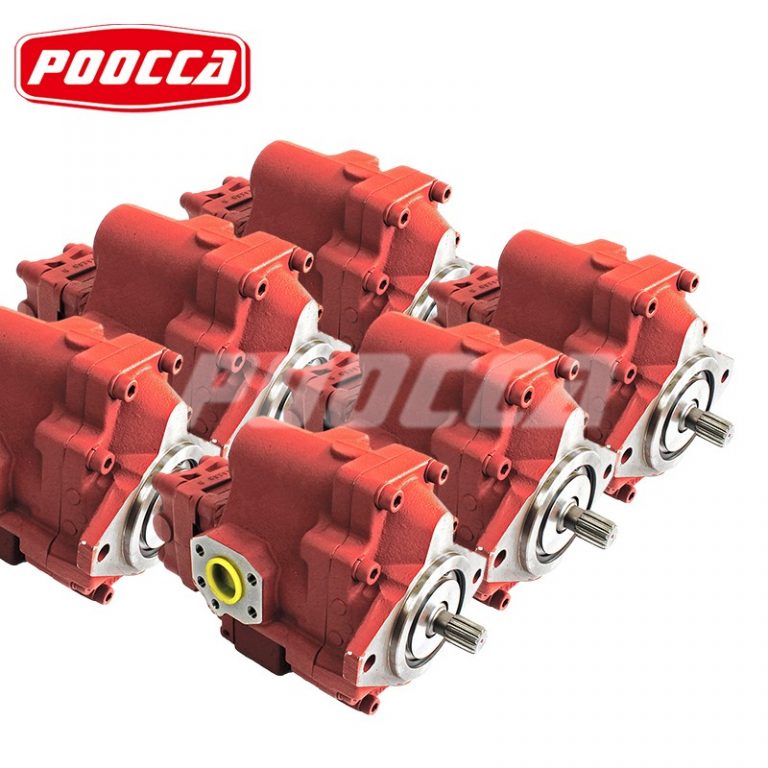

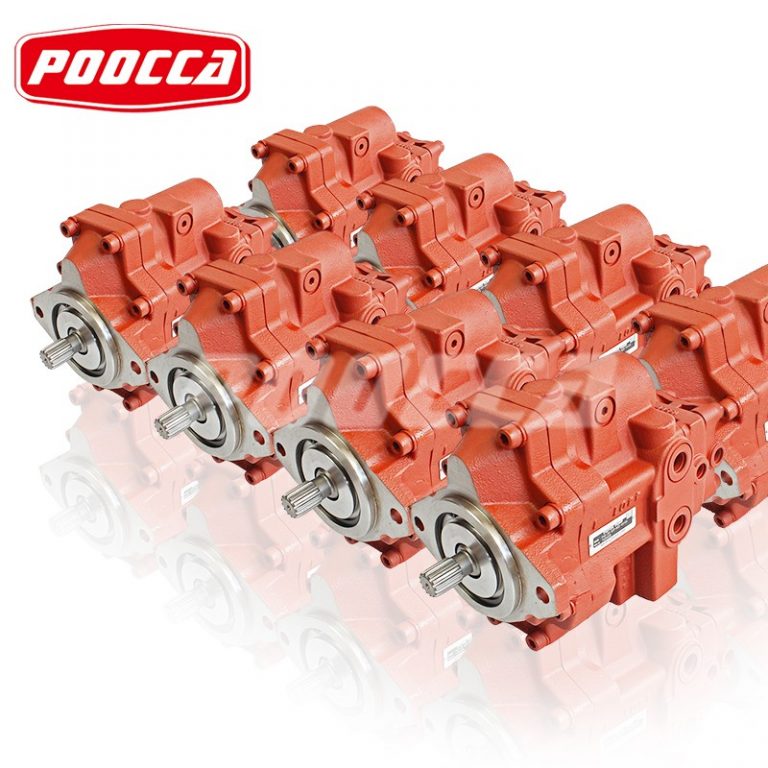

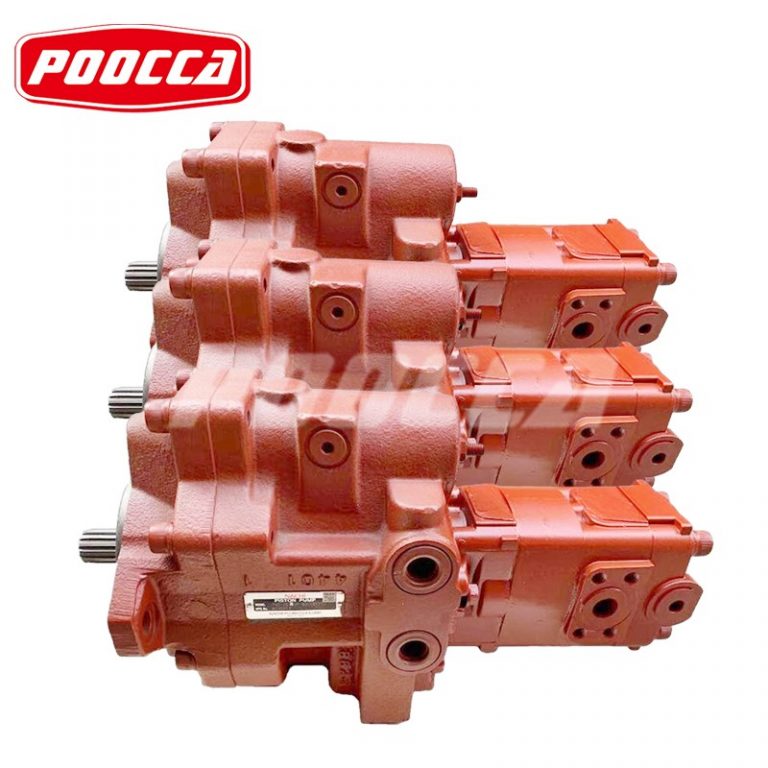

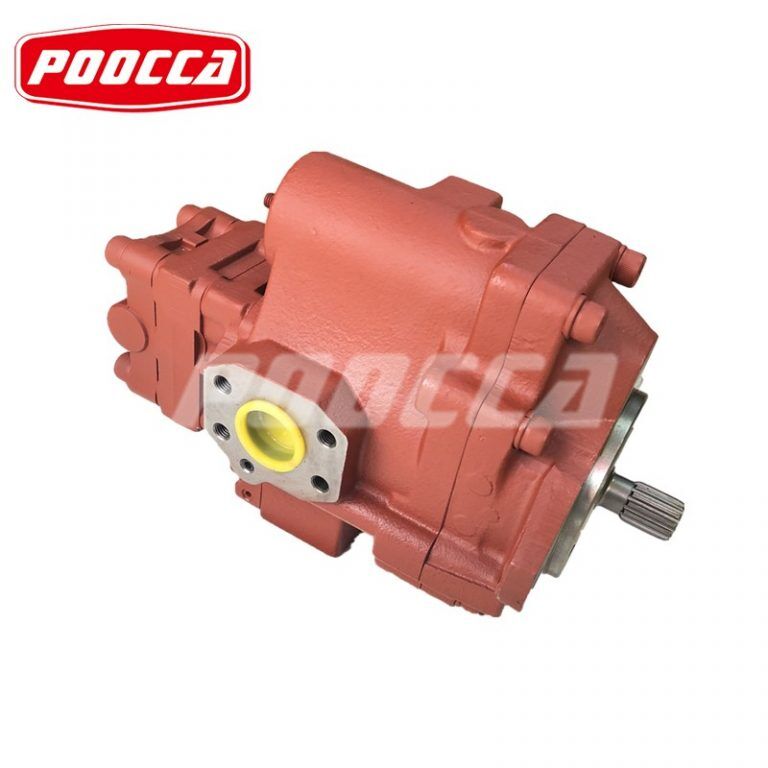

Nachi PVD hydraulic piston pumps are available in a variety of sizes, PVD-00B, PVD-0B, PVD-1B, PVD-2B, PVD-3B.
Maximum pressure: 24.5MPa (3553 psi)
Maximum speed: 2800min
Suitable for 1 ton to 6 ton forklifts.
Internal drainage type, no drain pipe required.
Equipped with constant power control as a standard feature.
Contact us now for consultation and purchase.
โข Compact
PVD piston pumps are easy to install in the engine room due to their very short overall length.

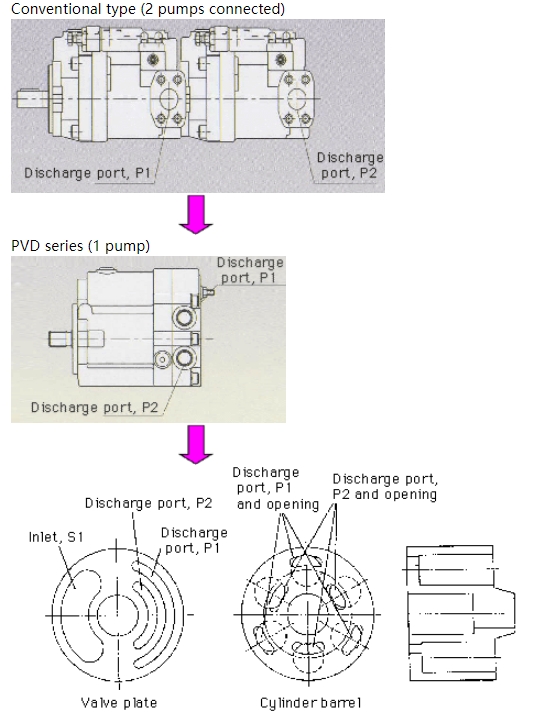

โข Flow Variation Less Than 1%
Minimal flow variation between each port.
โข High Efficiency
Axial piston pumps maintain high efficiency in the high pressure range.
โข Total Horsepower Control – Never Stall Your Engine
Nachi PVD hydraulic pump constant horsepower control (including feedback from the optional gear pump) keeps pump drive power below the engine power curve.
โข Optional Gear Pumps
Single or dual gear pumps can be mounted on the back of the piston pump.
โข Eliminate case drain lines
|
Model |
Max. displacement |
Max. pressure |
Driveย speed | Constantย torqueย ย ย control | Option
G:ย Gearย pumpย P:ย Powerย shiftย B: Valveย block |
Mass |
||
| Max.ย speed | Ratedย speed | Min.ย speed | ||||||
| cm3/revย (in3/rev) | MPaย (psi) | min.-1 | min.-1 | min.-1 | kgย ย (lbs) | |||
|
PVD-00B |
8×2
(0.49×2) |
24.5 (3553) |
2800 |
2800 |
900 |
Standard |
G,ย P
(Option) |
9ย ย ย (20) |
|
PVD-0B |
12×2
(0.73×2) |
2800 |
2600 |
G,ย P,ย Bย ย (Option) | 13ย ย (29) | |||
|
PVD-1B |
17×2
(1.04×2) |
2700 |
2500 |
G,ย P,ย Bย ย (Option) | 15ย ย (33) | |||
|
PVD-2B |
22.5×2ย ย (1.37×2) |
2600 |
2400 |
G,ย P,ย Bย ย (Option) | 20ย ย (44) | |||
|
PVD-3B |
33×2
(2.01×2) |
2400 |
2200 |
G,ย P,ย Bย ย (Option) | 27ย ย (60) | |||
Nachi PVD hydraulic piston pumps are driven by the engine to generate hydraulic pressure as the power source of the machine. In an excavator, driving, swinging, and shoveling movements are all performed using hydraulic pressure.
POOCCA is a leading brand in the hydraulic industry with a history dating back to 1997. It has branches in Hong Kong, Guangdong, Jiangsu, Zhejiang and other places in China. It is a strong comprehensive hydraulic company. Our expertise lies in the design, manufacture, repair and sale of hydraulic pumps, motors, valves, accessories and customized solutions.
We have more than 1,600 different products serving various industries such as construction, agriculture, mining, etc. Our company exports more than 16 million US dollars each year and has established long-term partnerships with distributors in more than 75 countries.
Thank you for your trust and support for Poocca hydraulic products! Our hydraulic pumps, hydraulic motors and related accessories have been highly praised by customers as soon as they were delivered. They all praised the good performance and stable quality of the products, and they can meet the needs of various complex working conditions.
Poocca always adheres to the concept of “quality first, customer first” to meet your needs with more efficient and durable hydraulic solutions.
Choose Poocca, your trusted hydraulic partner! Welcome to contact us to experience our high-quality products and services.
