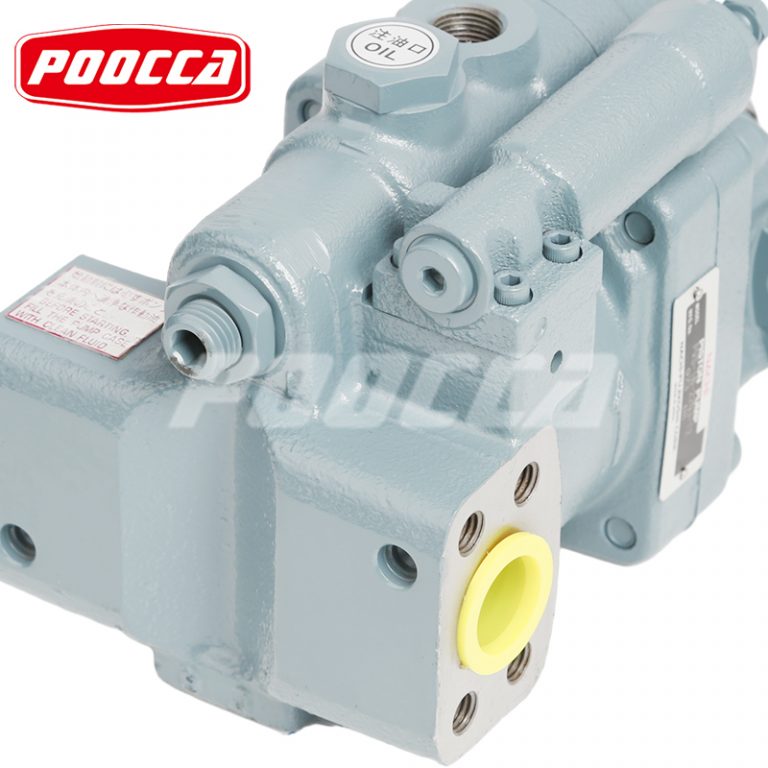

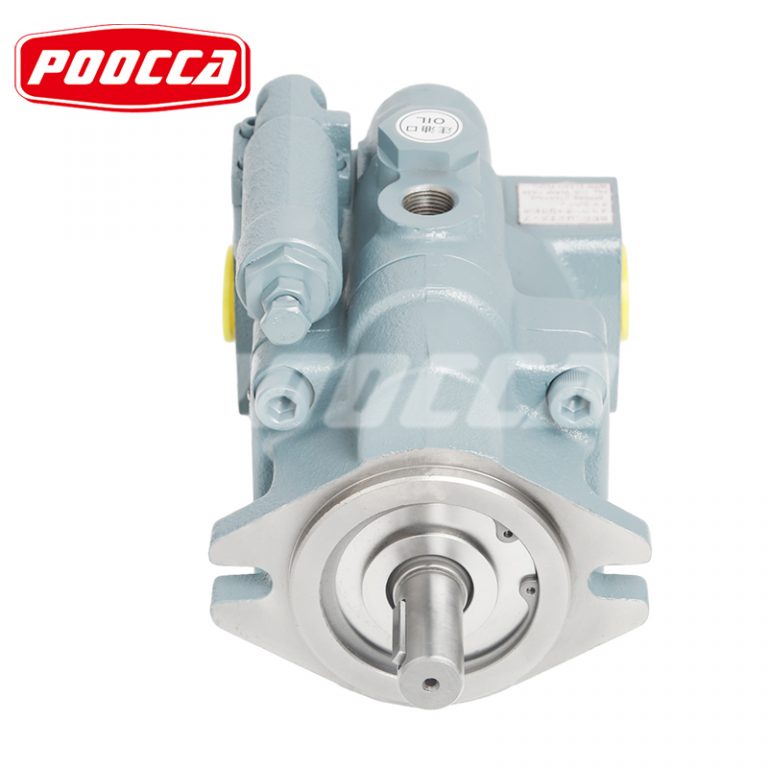

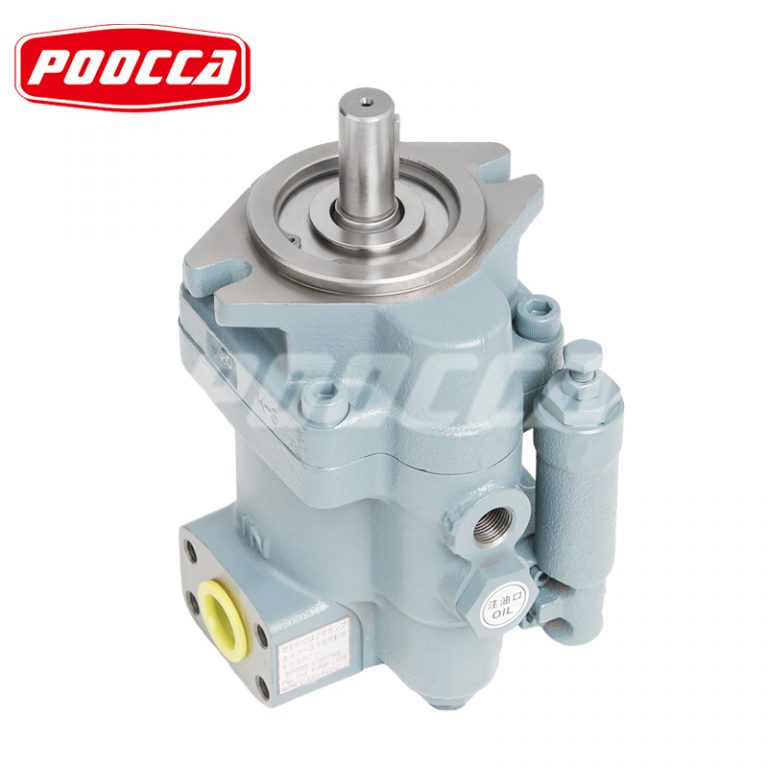

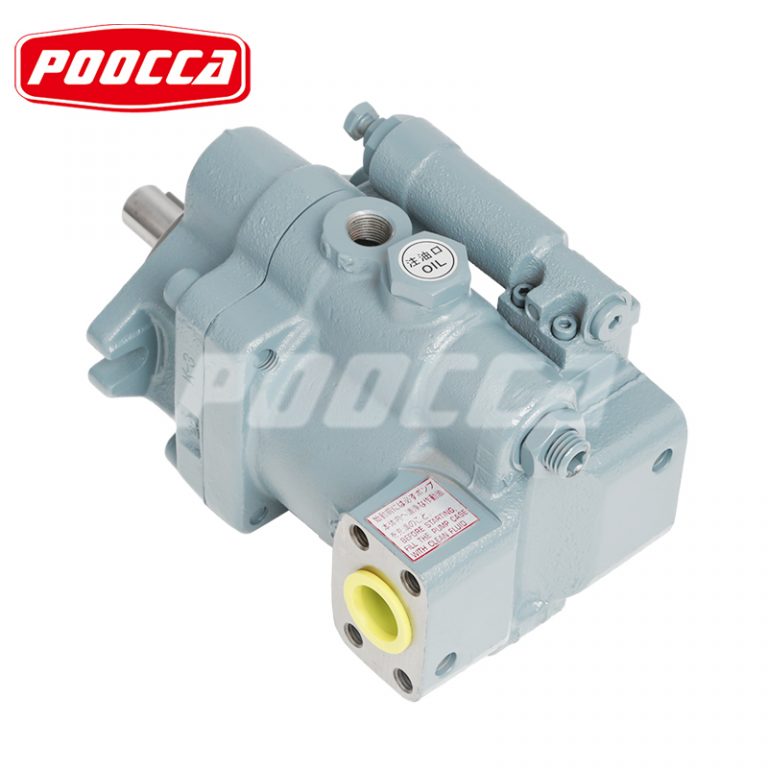

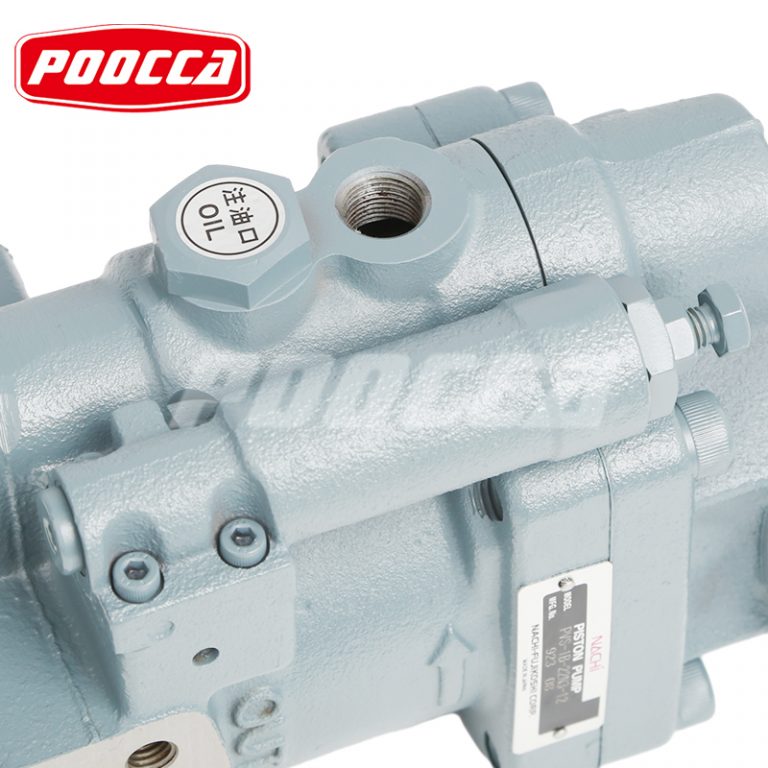

Nachi Piston Pump PVS Series

PVS Piston Pump Nominal Pressure: 160 bar
Maximum Pressure: 250 bar
Operation Mode: Open Circuit
Nachi PVS series piston pumps offer a displacement range of 8 to 45cc/rev and can withstand a continuous pressure of 210 bar.

Characteristic

The PVS piston pump adopts a unique semi-cylindrical swash plate design to maintain a stable flow output when the surface is pressurized, effectively eliminating excess flow, and saving energy and reducing hydraulic costs according to the load cycle.

The design adopts a low-noise mechanism, including a slipper, swash plate and a distribution plate, to ensure silent operation. The new vibration and noise control mechanism effectively reduces the vibration level through a unique three-point support system. Nachi PVS hydraulic piston pumps also optimize the inlet and outlet shapes and apply high-performance radial bearings to further reduce noise.

Utilizing advanced processing technology, it ensures efficient operation and reduces power loss, especially when idling. During maintenance, the pressure adjustment and capacity adjustment mechanisms are located on the same side, making operation and adjustment more convenient.

Nachi PVS Piston Pump Parameter

Model No. Volumecm3/rev Discharge volume at no-load r/min Pressure Permitted Rotating speed min-1 Mass
adjustment range peak kg
MPa pressure
{kgf/cm2} MPa
1000 min-1 1200ย min-1 1500ย min-1 1800 min-1 {kgf/cm2} Min. Max.
PVS-0B-8ย *ย 0-30 8 8 9.6 12 14.4 2- 3.5 (20.4-35.7) 25 500 2000 7.7
1 2- 7 {20.4-71.4) (255}
2 3- 14 {30.6-143)
3 3- 21 {30.6-214}
PVS-1B-16ย * 0-(* }-12 16.5 16.5 19.8 24.7 29.7 2- 3.5 (20.4-35.7) 25 500 2000 10.5
1 2- 7 {20.4-71.4) (255}
2 3- 14 {30.6-143)
3 3- 21 {30.6-214}
PVS-1B-22ย * 0-{ย *ย }-12 22 22 26.4 33 39.6 2- 3.5 (20.4-35.7) 25 500 2000 10.5
1 2- 7 {20.4-71.4) (255}
2 3- 14 {30.6-143)
3 3- 21 {30.6-214}
PVS-2B-35ย * 0-{ย *ย }-12 35 35 42 52.5 63 2- 3.5 (20.4-35.7) 25 500 2000 21
1 2- 7 {20.4-71.4) (255}
2 3- 14 {30.6-143)
3 3- 21 {30.6-214}
PVS-2B45 * 0-{ย *ย }-12 45 45 54 67.5 81 2- 3.5 (20.4-35.7) 25 500 2000 21
1 2- 7 {20.4-71.4) (255}
2 3- 14 {30.6-143)
3-(ย *ย }-20 3- 21 {30.6-214}

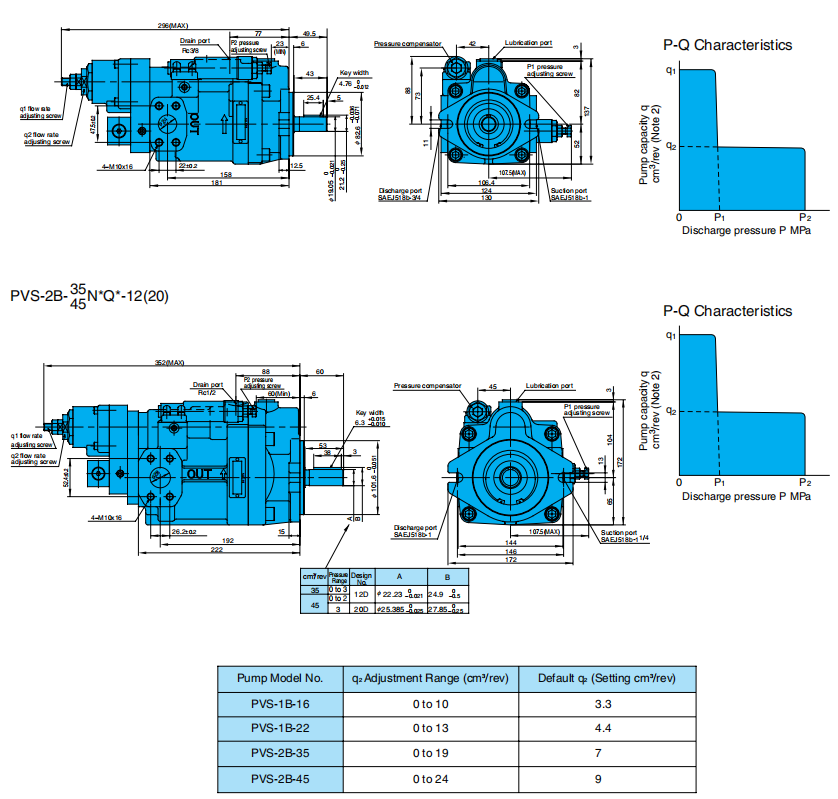

Dimension

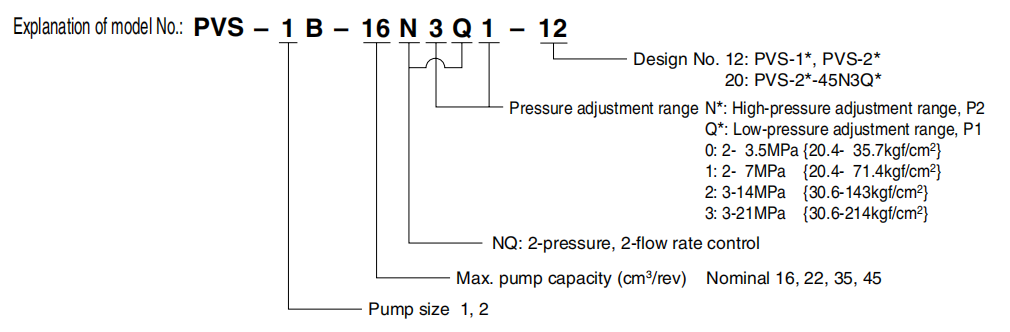

PVS Pump Control Type

Installation method

PVS Pump Installation and Piping Precautions:
1.Use a flexible connection between the drive shaft and pump shaft to avoid excessive radial and axial pressure.
2.Ensure alignment between the transmission shaft and pump shaft is within 0.05 mm and 1ยฐ.
3.The coupling length to the pump shaft should be at least two-thirds of its total length.
4.Ensure the connecting flange between the oil pump and motor is strong enough.
5.The oil pump should have a self-priming pressure of -0.03 MPa or higher, with a suction port flow rate โ‰ค 2 m/sec.
6.Directly connect the oil drain line back to the fuel tank, ensuring oil discharge back pressure is below 0.1 MPa.

Hydraulic Oil Management:
1.Use high-quality hydraulic oil with viscosity from 20 to 200 mm/s (ISO VG32-68).
2.Operate within an oil temperature range of 5-60ยฐC; start at low pressure and speed below 5ยฐC.
3.Use a 100 ฮผm (150 mesh) filtration precision for the oil suction filter, and install a return oil filter with less than 20 ฮผm filtration accuracy (above 10 ฮผm for pressures โ‰ฅ 14 MPa).
4.Maintain hydraulic oil contamination within NAS10 standards.
5.Operate in ambient temperatures of 0-60ยฐC.
