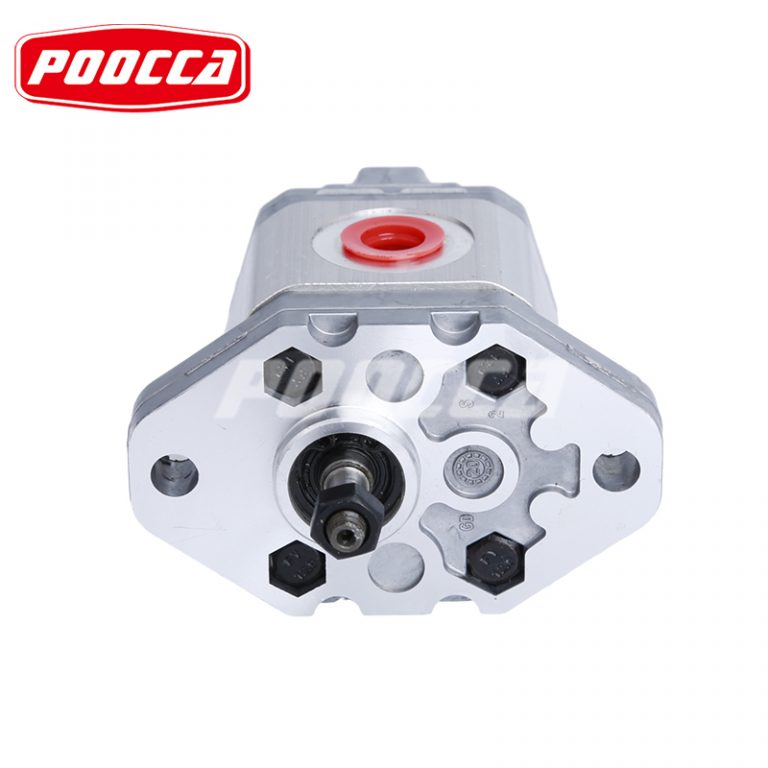

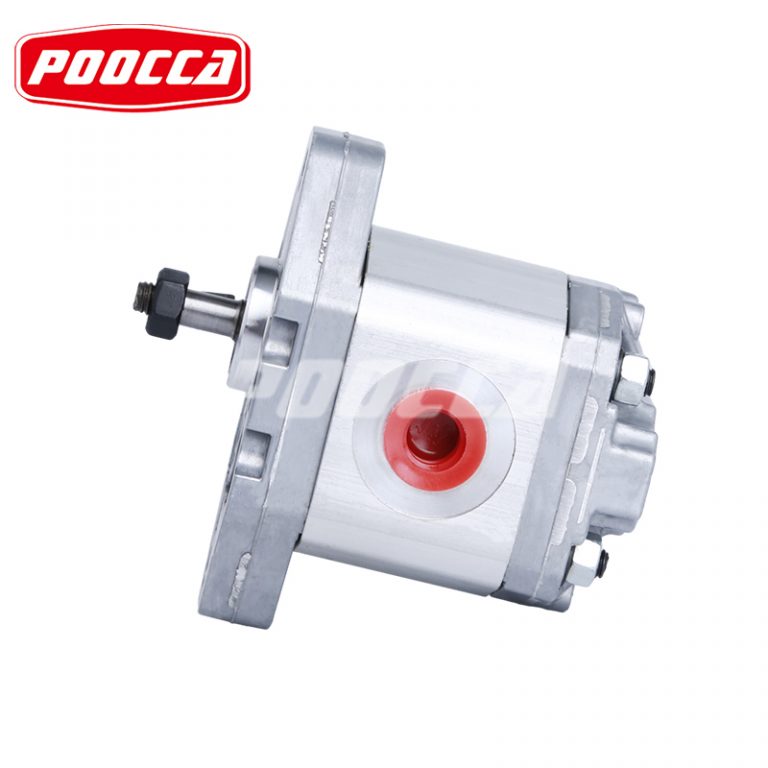

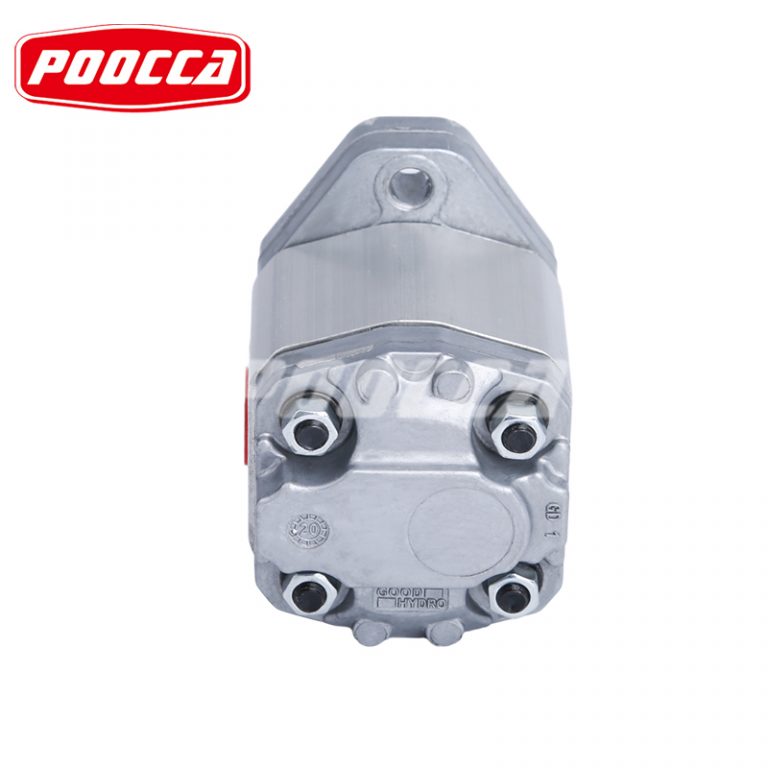

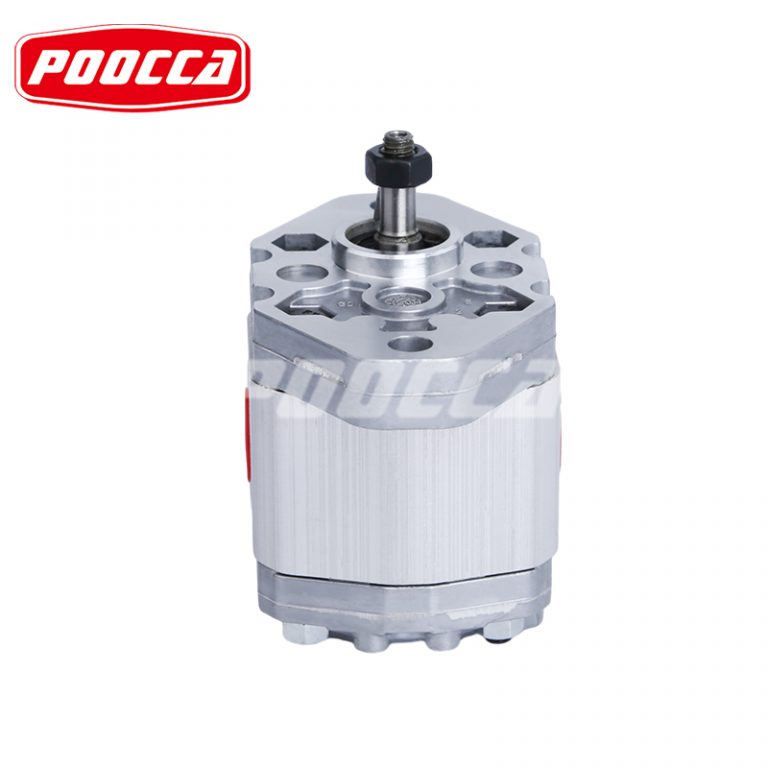

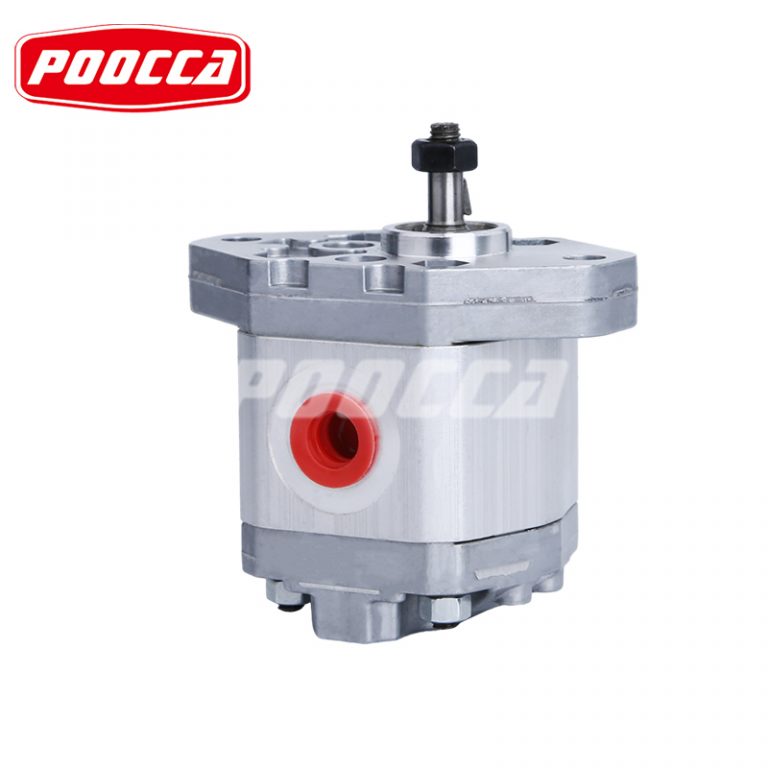

Group 0.5 Gear Pump
Medium Hydraulic oil
Viscosity (cSt):Allowed 6-500, recommended 10-100, start
Working temperature pump:-15โฐ – +80โฐC
Pressure (continue):190 bar
Max. pressure (intermittent):210 bar
Max. peak pressure:230 bar
Inlet pressure:0,7 – 3 bar
RPM (maximum):7000 rpm
RPM (minimal):1000 rpm
Efficiency:93% between 1000 – 3000rpm
Material front and back cover Aluminium
Material housing Aluminium
Sealing NBR
Material gears Special hardened steel
Pump type ELIKA (low noise)
Direction CW
Flow at 1500 rpm 0,75 l/min
Shaft-type Straight axe
Datasheets See datasheet for more product information
| TYPE | DISPLACEMENT | FLOW at 1500r/min | MAX PRESSURE | MAX SPEED | ||
| cmยณ/giro [cmยณ/rev] | litri/min [litres/min] | P1
bar |
P2
bar |
P3
bar |
giri/min[rpm] | |
| 0.5 D 0.50 | 0.5 | 0.75 | 190 | 210 | 230 | 7000 |
| 0.5 D 0.75 | 0.63 | 0.94 | 190 | 210 | 230 | 7000 |
| 0.5 D 1.00 | 0.88 | 1.31 | 190 | 210 | 230 | 7000 |
| 0.5 D 1.30 | 1 | 1.5 | 190 | 210 | 230 | 6000 |
| 0.5 D 1.60 | 1.25 | 1.88 | 190 | 210 | 230 | 5000 |
| 0.5 D 2.00 | 1.5 | 2.25 | 190 | 210 | 230 | 4000 |
Poocca is a comprehensive hydraulic service provider, focusing on the research and development, manufacturing, maintenance and sales of hydraulic pumps, motors and valves. Our areas of expertise cover various industries such as mining machinery, ships, engineering, power plants, injection molding machines, die casting machines and steel mills.
Our product range includes:
Piston pumps: A10VSO, A11VSO, A4VSO, A4VG, A7VO, PVH, PV series, etc.
Gear pumps: AZPF, ALP, 1P, 0.25-0.5, PGP, SGP, HG series, etc.
Vane pumps: VQ, T6T7, PV2R series, with single pump, double pump and triple pump configurations.
Motors: A2FM, A2FE, A6VM, 2000 series, 6000 series, etc.
We prioritize meeting your needs in a timely and efficient manner. Contact us today to ensure you get everything you need for your hydraulic system.
Hydraulic gear pumps with external gear for small units are used to supply hydraulic systems with pressurized oil medium or simply to pump and filter oil. Hydraulic gear pumps for small units are available in various sizes with a required oil flow of 0.8 – 8 ccm/rev, depending on customer needs. These 0.5-D-0.50 marzocchi hydraulic pumps with external gear can operate at continuous pressures of up to 230 bar.
0.5-D-0.50 marzocchi
Every choice is an affirmation of quality and service. poocca will continue to maintain excellent quality and service and provide stronger support for the careers of our hydraulic pump customers. Let us join hands to create a better future! Hydraulic pump manufacturers always adhere to the business philosophy of “customer first, quality first” and continuously improve product quality and customer satisfaction.
Group 0.5 Gear Pump
Medium Hydraulic oil
Viscosity (cSt):Allowed 6-500, recommended 10-100, start
Working temperature pump:-15โฐ – +80โฐC
Pressure (continue):190 bar
Max. pressure (intermittent):210 bar
Max. peak pressure:230 bar
Inlet pressure:0,7 – 3 bar
RPM (maximum):7000 rpm
RPM (minimal):1000 rpm
Efficiency:93% between 1000 – 3000rpm
Material front and back cover Aluminium
Material housing Aluminium
Sealing NBR
Material gears Special hardened steel
Pump type ELIKA (low noise)
Direction CW
Flow at 1500 rpm 0,75 l/min
Shaft-type Straight axe
Datasheets See datasheet for more product information
| TYPE | DISPLACEMENT | FLOW at 1500r/min | MAX PRESSURE | MAX SPEED | ||
| cmยณ/giro [cmยณ/rev] | litri/min [litres/min] | P1
bar |
P2
bar |
P3
bar |
giri/min[rpm] | |
| 0.5 D 0.50 | 0.5 | 0.75 | 190 | 210 | 230 | 7000 |
| 0.5 D 0.75 | 0.63 | 0.94 | 190 | 210 | 230 | 7000 |
| 0.5 D 1.00 | 0.88 | 1.31 | 190 | 210 | 230 | 7000 |
| 0.5 D 1.30 | 1 | 1.5 | 190 | 210 | 230 | 6000 |
| 0.5 D 1.60 | 1.25 | 1.88 | 190 | 210 | 230 | 5000 |
| 0.5 D 2.00 | 1.5 | 2.25 | 190 | 210 | 230 | 4000 |
Poocca is a comprehensive hydraulic service provider, focusing on the research and development, manufacturing, maintenance and sales of hydraulic pumps, motors and valves. Our areas of expertise cover various industries such as mining machinery, ships, engineering, power plants, injection molding machines, die casting machines and steel mills.
Our product range includes:
Piston pumps: A10VSO, A11VSO, A4VSO, A4VG, A7VO, PVH, PV series, etc.
Gear pumps: AZPF, ALP, 1P, 0.25-0.5, PGP, SGP, HG series, etc.
Vane pumps: VQ, T6T7, PV2R series, with single pump, double pump and triple pump configurations.
Motors: A2FM, A2FE, A6VM, 2000 series, 6000 series, etc.
We prioritize meeting your needs in a timely and efficient manner. Contact us today to ensure you get everything you need for your hydraulic system.
Hydraulic gear pumps with external gear for small units are used to supply hydraulic systems with pressurized oil medium or simply to pump and filter oil. Hydraulic gear pumps for small units are available in various sizes with a required oil flow of 0.8 – 8 ccm/rev, depending on customer needs. These 0.5-D-0.50 marzocchi hydraulic pumps with external gear can operate at continuous pressures of up to 230 bar.
0.5-D-0.50 marzocchi
Every choice is an affirmation of quality and service. poocca will continue to maintain excellent quality and service and provide stronger support for the careers of our hydraulic pump customers. Let us join hands to create a better future! Hydraulic pump manufacturers always adhere to the business philosophy of “customer first, quality first” and continuously improve product quality and customer satisfaction.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
