Displacement:
The GHP3 gear pump has a displacement of 15 cc/rev.
Pressure rating:
The gear pump has a pressure rating of 300 bar.
Speed โโrange:
The gear pump operates from 500 to 2500 rpm, providing flexible speed options.
Viscosity range:
The GHP3 gear pump can accommodate viscosities ranging from 10 to 1500 cSt.
Operating temperature:
The GHP3 pump can operate normally in a temperature range of -20ยฐC to +80ยฐC.
Efficiency:
The Marzocchi GHP3 gear pump operates at an efficiency of 90%.
Standard accessories:
Standard pump shaft wrench (code 522058) M 14×1.5 external angle nut (code 523017), washer (code 5230061).

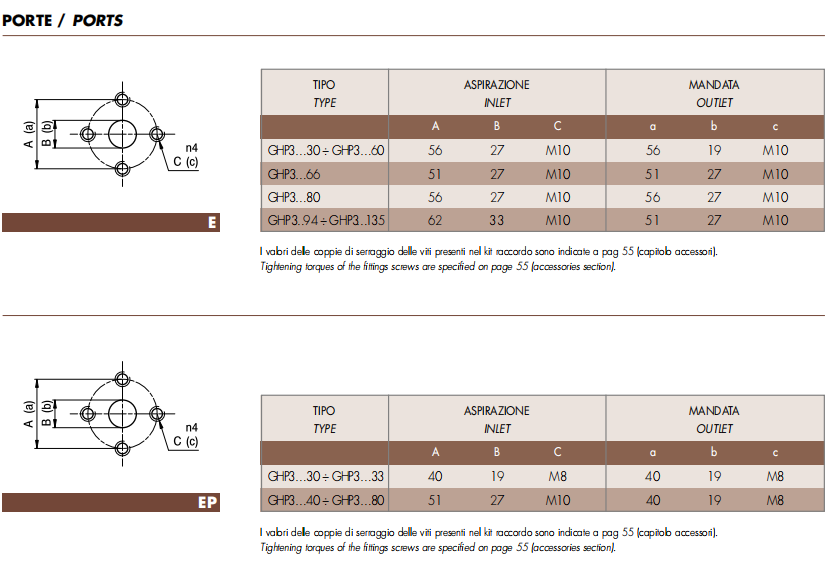

Standard ports: 10 threads, depth 19 mm.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHP3-D(S)-30 | 20 | 29 | 280 | 295 | 310 | 3500 |
| GHP3-D(S)-33 | 22 | 31 | 280 | 295 | 310 | 3500 |
| GHP3-D(S)-40 | 26 | 37 | 280 | 295 | 310 | 3000 |
| GHP3-D(S)-50 | 33 | 48 | 270 | 285 | 300 | 3000 |
| GHP3-D(S)-60 | 39 | 56 | 260 | 275 | 290 | 3000 |
| GHP3-D(S)-66 | 44 | 62 | 250 | 265 | 280 | 2800 |
| GHP3-D(S)-80 | 52 | 74 | 230 | 245 | 260 | 2400 |
| GHP3-D(S)-94 | 61 | 87 | 210 | 225 | 240 | 2800 |
| GHP3-D(S)-110 | 71 | 101 | 200 | 215 | 230 | 2500 |
| GHP3-D(S)-120 | 78 | 112 | 180 | 215 | 210 | 2300 |
| GHP3-D(S)-135 | 87 | 124 | 160 | 175 | 190 | 2000 |
| GHP3A Gear Pump | ||||||
| GHP3A-D(S)-30 | 20 | 29 | 280 | 295 | 310 | 3500 |
| GHP3A-D(S)-33 | 22 | 31 | 280 | 295 | 310 | 3500 |
| GHP3A-D(S)-40 | 26 | 37 | 280 | 295 | 310 | 3000 |
| GHP3A-D(S)-50 | 33 | 48 | 270 | 285 | 300 | 3000 |
| GHP3A-D(S)-60 | 39 | 56 | 260 | 275 | 290 | 3000 |
| GHP3A-D(S)-66 | 44 | 62 | 250 | 265 | 280 | 2800 |
| GHP3A-D(S)-80 | 52 | 74 | 230 | 245 | 260 | 2400 |
| GHP3A-D(S)-94 | 61 | 87 | 210 | 225 | 240 | 2800 |
| GHP3A-D(S)-110 | 71 | 101 | 200 | 215 | 230 | 2500 |
| GHP3A-D(S)-120 | 78 | 112 | 180 | 215 | 210 | 2300 |
| GHP3A-D(S)-135 | 87 | 124 | 160 | 175 | 190 | 2000 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.
At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.
Displacement:
The GHP3 gear pump has a displacement of 15 cc/rev.
Pressure rating:
The gear pump has a pressure rating of 300 bar.
Speed โโrange:
The gear pump operates from 500 to 2500 rpm, providing flexible speed options.
Viscosity range:
The GHP3 gear pump can accommodate viscosities ranging from 10 to 1500 cSt.
Operating temperature:
The GHP3 pump can operate normally in a temperature range of -20ยฐC to +80ยฐC.
Efficiency:
The Marzocchi GHP3 gear pump operates at an efficiency of 90%.
Standard accessories:
Standard pump shaft wrench (code 522058) M 14×1.5 external angle nut (code 523017), washer (code 5230061).
Standard ports: 10 threads, depth 19 mm.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHP3-D(S)-30 | 20 | 29 | 280 | 295 | 310 | 3500 |
| GHP3-D(S)-33 | 22 | 31 | 280 | 295 | 310 | 3500 |
| GHP3-D(S)-40 | 26 | 37 | 280 | 295 | 310 | 3000 |
| GHP3-D(S)-50 | 33 | 48 | 270 | 285 | 300 | 3000 |
| GHP3-D(S)-60 | 39 | 56 | 260 | 275 | 290 | 3000 |
| GHP3-D(S)-66 | 44 | 62 | 250 | 265 | 280 | 2800 |
| GHP3-D(S)-80 | 52 | 74 | 230 | 245 | 260 | 2400 |
| GHP3-D(S)-94 | 61 | 87 | 210 | 225 | 240 | 2800 |
| GHP3-D(S)-110 | 71 | 101 | 200 | 215 | 230 | 2500 |
| GHP3-D(S)-120 | 78 | 112 | 180 | 215 | 210 | 2300 |
| GHP3-D(S)-135 | 87 | 124 | 160 | 175 | 190 | 2000 |
| GHP3A Gear Pump | ||||||
| GHP3A-D(S)-30 | 20 | 29 | 280 | 295 | 310 | 3500 |
| GHP3A-D(S)-33 | 22 | 31 | 280 | 295 | 310 | 3500 |
| GHP3A-D(S)-40 | 26 | 37 | 280 | 295 | 310 | 3000 |
| GHP3A-D(S)-50 | 33 | 48 | 270 | 285 | 300 | 3000 |
| GHP3A-D(S)-60 | 39 | 56 | 260 | 275 | 290 | 3000 |
| GHP3A-D(S)-66 | 44 | 62 | 250 | 265 | 280 | 2800 |
| GHP3A-D(S)-80 | 52 | 74 | 230 | 245 | 260 | 2400 |
| GHP3A-D(S)-94 | 61 | 87 | 210 | 225 | 240 | 2800 |
| GHP3A-D(S)-110 | 71 | 101 | 200 | 215 | 230 | 2500 |
| GHP3A-D(S)-120 | 78 | 112 | 180 | 215 | 210 | 2300 |
| GHP3A-D(S)-135 | 87 | 124 | 160 | 175 | 190 | 2000 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.
At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
