GHP2 oil pumps are supplied with standard pump key l code 522067 accessories) mounting flange 82-2 (A) conforms to SAEJ744c inlet and outlet standard ports
Machined to fit threaded ports with Oringseal SAE J1 926/1MSO 11926-11 in truncated housing.
4.5 cc/rev to 35.2 cc/rev displacement; maximum speed 2,500 to 4,000 rpm; flow rate 1500 rpm, flow range 6.4 to 50.2 L/min
Displacement: The GHP2 gear pump displaces 10 cubic centimeters per revolution.
Pressure Rating: It can handle pressures up to 250 bar.
Speed Range: Operating speeds range from 500 to 3000 rpm.
Viscosity Range: Suitable for fluids with viscosities ranging from 10 to 1000 centistokes.
Operating Temperature: The Marzocchi GHP2 gear pump operates within a temperature range of -20ยฐC to +80ยฐC.
Efficiency: Its efficiency is rated at 88%.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHP2-D(S)-6 | 4.5 | 6.4 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-9 | 6.4 | 9.1 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-10 | 7 | 10 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-12 | 8.3 | 11.8 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-13 | 9.6 | 13.7 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-16 | 11.5 | 16.4 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-20 | 14.1 | 20.1 | 260 | 275 | 290 | 3200 |
| GHP2-D(S)-22 | 16 | 22.8 | 260 | 275 | 290 | 2800 |
| GHP2-D(S)-25 | 17.9 | 25.5 | 260 | 275 | 290 | 2500 |
| GHP2-D(S)-30 | 21.1 | 30.1 | 230 | 245 | 260 | 2200 |
| GHP2-D(S)-34 | 23.7 | 33.7 | 230 | 245 | 260 | 2000 |
| GHP2-D(S)-37 | 25.5 | 36.4 | 210 | 225 | 240 | 1800 |
| GHP2-D(S)-40 | 28.2 | 40.1 | 200 | 215 | 230 | 1800 |
| GHP2-D(S)-50 | 35.2 | 50.2 | 160 | 175 | 190 | 1800 |
| GHP2A-D(S)-6 | 4.5 | 6.4 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-9 | 6.4 | 9.1 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-10 | 7 | 10 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-12 | 8.3 | 11.8 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-13 | 9.6 | 13.7 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-16 | 11.5 | 16.4 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-20 | 14.1 | 20.1 | 260 | 275 | 290 | 3200 |
| GHP2A-D(S)-22 | 16 | 22.8 | 260 | 275 | 290 | 2800 |
| GHP2A-D(S)-25 | 17.9 | 25.5 | 260 | 275 | 290 | 2500 |
| GHP2A-D(S)-30 | 21.1 | 30.1 | 230 | 245 | 260 | 2200 |
| GHP2A-D(S)-34 | 23.7 | 33.7 | 230 | 245 | 260 | 2000 |
| GHP2A-D(S)-37 | 25.5 | 36.4 | 210 | 225 | 240 | 1800 |
| GHP2A-D(S)-40 | 28.2 | 40.1 | 200 | 215 | 230 | 1800 |
| GHP2A-D(S)-50 | 35.2 | 50.2 | 160 | 175 | 190 | 1800 |

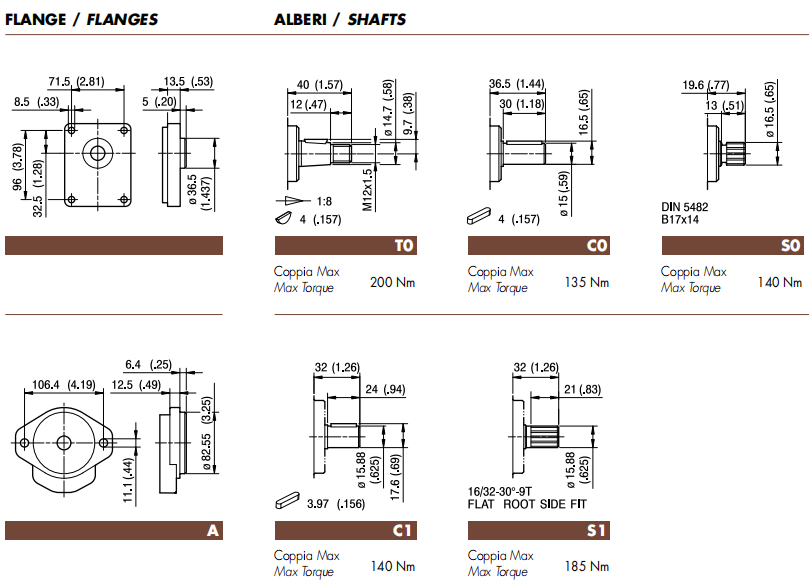

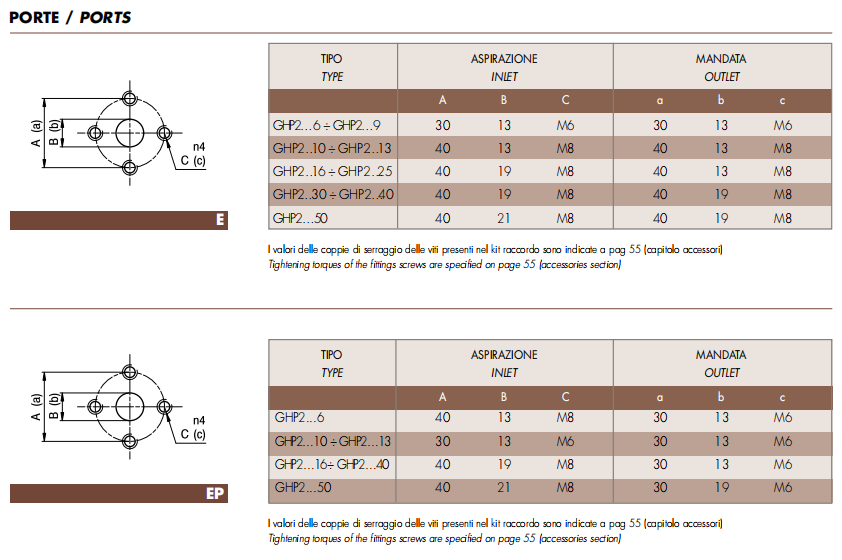

Only some of the Flanges&Ports are shown. For more dimensional drawings and information of marzocchi ghp2 hydraulic gear pump, please send your requirements and poocca will reply to you as soon as possible.
The Marzocchi GHP series offers the same configurations as the ALP series and guarantees extremely high reliability in ultra-high voltage applications.
These GHP2 pumps are ideal for mobile applications from agricultural machinery to construction machinery; cast iron allows for more flange, cover and port options.
Displacement: The GHP2 gear pump displaces 10 cubic centimeters per revolution.
Pressure Rating: It can handle pressures up to 250 bar.
Speed Range: Operating speeds range from 500 to 3000 rpm.
Viscosity Range: Suitable for fluids with viscosities ranging from 10 to 1000 centistokes.
Operating Temperature: The Marzocchi GHP2 gear pump operates within a temperature range of -20ยฐC to +80ยฐC.
Efficiency: Its efficiency is rated at 88%.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHP2-D(S)-6 | 4.5 | 6.4 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-9 | 6.4 | 9.1 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-10 | 7 | 10 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-12 | 8.3 | 11.8 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-13 | 9.6 | 13.7 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-16 | 11.5 | 16.4 | 280 | 295 | 310 | 4000 |
| GHP2-D(S)-20 | 14.1 | 20.1 | 260 | 275 | 290 | 3200 |
| GHP2-D(S)-22 | 16 | 22.8 | 260 | 275 | 290 | 2800 |
| GHP2-D(S)-25 | 17.9 | 25.5 | 260 | 275 | 290 | 2500 |
| GHP2-D(S)-30 | 21.1 | 30.1 | 230 | 245 | 260 | 2200 |
| GHP2-D(S)-34 | 23.7 | 33.7 | 230 | 245 | 260 | 2000 |
| GHP2-D(S)-37 | 25.5 | 36.4 | 210 | 225 | 240 | 1800 |
| GHP2-D(S)-40 | 28.2 | 40.1 | 200 | 215 | 230 | 1800 |
| GHP2-D(S)-50 | 35.2 | 50.2 | 160 | 175 | 190 | 1800 |
| GHP2A-D(S)-6 | 4.5 | 6.4 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-9 | 6.4 | 9.1 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-10 | 7 | 10 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-12 | 8.3 | 11.8 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-13 | 9.6 | 13.7 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-16 | 11.5 | 16.4 | 280 | 295 | 310 | 4000 |
| GHP2A-D(S)-20 | 14.1 | 20.1 | 260 | 275 | 290 | 3200 |
| GHP2A-D(S)-22 | 16 | 22.8 | 260 | 275 | 290 | 2800 |
| GHP2A-D(S)-25 | 17.9 | 25.5 | 260 | 275 | 290 | 2500 |
| GHP2A-D(S)-30 | 21.1 | 30.1 | 230 | 245 | 260 | 2200 |
| GHP2A-D(S)-34 | 23.7 | 33.7 | 230 | 245 | 260 | 2000 |
| GHP2A-D(S)-37 | 25.5 | 36.4 | 210 | 225 | 240 | 1800 |
| GHP2A-D(S)-40 | 28.2 | 40.1 | 200 | 215 | 230 | 1800 |
| GHP2A-D(S)-50 | 35.2 | 50.2 | 160 | 175 | 190 | 1800 |
Only some of the Flanges&Ports are shown. For more dimensional drawings and information of marzocchi ghp2 hydraulic gear pump, please send your requirements and poocca will reply to you as soon as possible.
The Marzocchi GHP series offers the same configurations as the ALP series and guarantees extremely high reliability in ultra-high voltage applications.
These GHP2 pumps are ideal for mobile applications from agricultural machinery to construction machinery; cast iron allows for more flange, cover and port options.
