Marzocchi ALP2 gear pumps have a displacement range of 4.5 to 35.2 cc/rev;
Maximum speed range is 2500 to 4000 rpm;
Flow range is 6.4 to 50.2 l/min at 1500 rpm.
Marzocchi ALP oil pumps are available at factory direct prices and are in stock.
Contact Poocca Hydraulics today

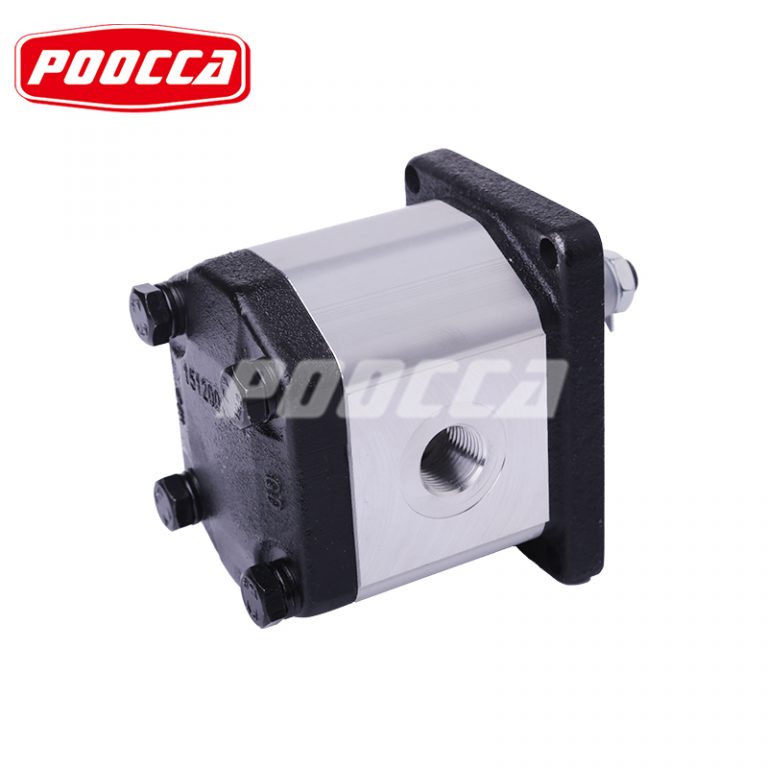

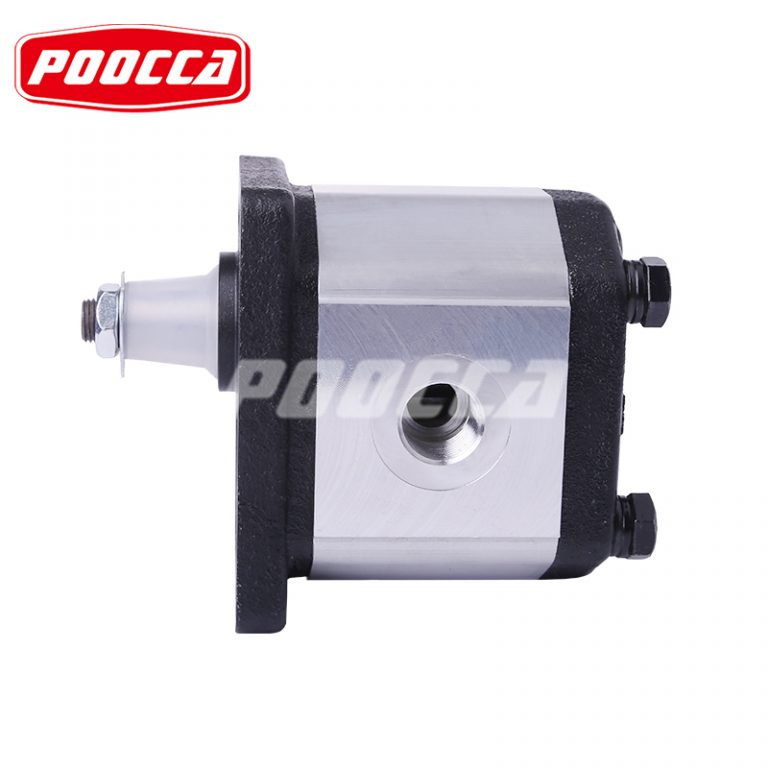

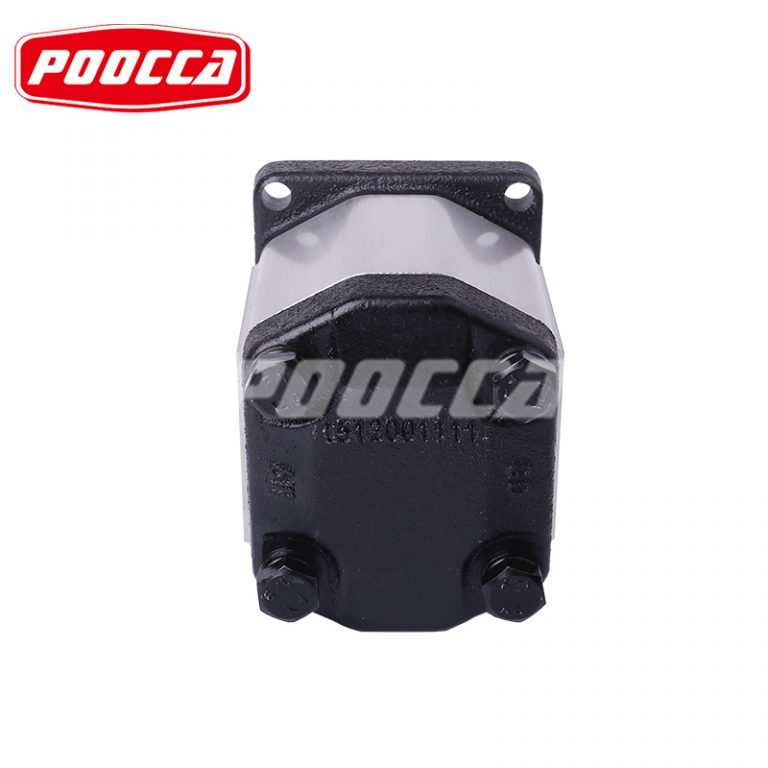

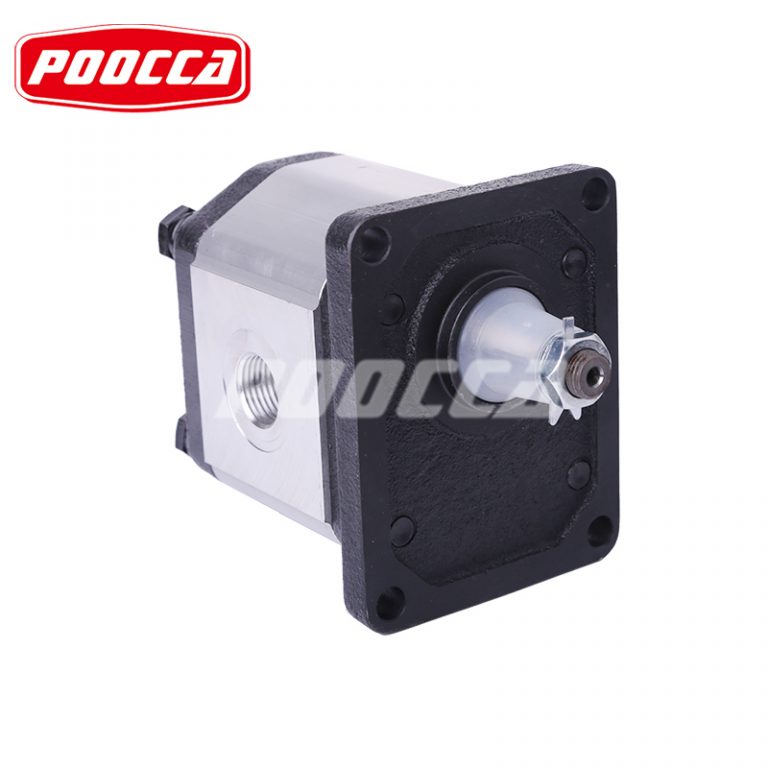

Model: ALP2 Hydraulic Gear Pump
Pump body material: Aluminum alloy housing.
Maximum working pressure: 16 MPa.
Maximum flow rate: Approx. 15 liters/minute.
Input speed: Max. 3000 rpm.
Gear type: External gear.
Bidirectional pump design, supports forward and reverse flow.
Material characteristics and advantages:
High temperature resistance: The ALP2 hydraulic gear pump pump body, flange and cover are made of special high temperature resistant aluminum, which can effectively prevent deformation even in high pressure environments (whether continuous pressure, intermittent pressure or peak pressure).
High strength: Specially designed gears are supported by aluminum alloy bushings to ensure that the pump has high strength and stability.
Low maintenance: Marzocchi gear pump sliding bearings are coated with wear-resistant materials, further reducing maintenance requirements.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| ALP2 Gear Pump | cmยณ/rev | litri/min | bar | bar | bar | rpm |
| ALP2-D(S)-6 | 4.5 | 6.4 | 250 | 270 | 290 | 4000 |
| ALP2-D(S)-9 | 6.4 | 9.1 | 250 | 270 | 290 | 4000 |
| ALP2-D(S)-10 | 7 | 10 | 250 | 270 | 290 | 4000 |
| ALP2-D(S)-12 | 8.3 | 11.8 | 250 | 270 | 290 | 4000 |
| ALP2-D(S)-13 | 9.6 | 13.7 | 250 | 270 | 290 | 4000 |
| ALP2-D(S)-16 | 11.5 | 16.4 | 230 | 250 | 270 | 4000 |
| ALP2-D(S)-20 | 14.1 | 20.1 | 230 | 250 | 270 | 3200 |
| ALP2-D(S)-22 | 16 | 22.8 | 210 | 225 | 240 | 2800 |
| ALP2-D(S)-25 | 17.9 | 25.5 | 210 | 225 | 240 | 2500 |
| ALP2-D(S)-30 | 21.1 | 30.1 | 180 | 195 | 210 | 2200 |
| ALP2-D(S)-34 | 23.7 | 33.7 | 180 | 195 | 210 | 2000 |
| ALP2-D(S)-37 | 25.5 | 36.4 | 170 | 185 | 200 | 1800 |
| ALP2-D(S)-40 | 28.2 | 40.1 | 170 | 185 | 200 | 1800 |
| ALP2-D(S)-50 | 35.2 | 50.2 | 140 | 155 | 170 | 1800 |
