Marzocchi Gear Motor GHM3

Marzocchi Group 3 Gear Motor GHM3
GHM3 Gear Motor Size:33,40,50,60,66,80,94,110,120,135
Min. speed: 600-400rpm
For more ALP GHP ALM GHM hydraulic gear pump motors for sale, contact a Poocca gear pump dealer today.

GHM Gear Motor Characteristic

GHM3 models include:GHM3,GHM3A,GHM3A2,GHM3BK1,GHM35

GHM3 Uni-directional motor
Displacement range: 20 to 87 cc/rev
Maximum continuous inlet pressure PI: 230 bar
Maximum continuous back pressure PC: 6 bar
Maximum peak inlet pressure pp: 270 bar
Maximum speed: 3500 rpm

Marzocchi GHM3 bidirectional hydraulic motor
Displacement range: 22 to 87 cc/rev
Maximum continuous inlet pressure PI: 230 bar
Maximum continuous back pressure PC: 220 bar
Maximum peak inlet pressure pp: 250 bar
Maximum speed: 3500 rpm
Maximum discharge line pressure: 6 bar

Marzocchi GHM Parameter

GHM3 Gear Motor TYPE DISPLACEMENT FLOW at 1500 rev/min MAX PRESSURE MAX SPEED
P1 P2 P3
GHM3-R-33-E1 22 31 280 270 295 3500
GHM3-R-40-E1 26 37 280 270 295 3000
GHM3-R-50-E1 33 48 270 260 285 3000
GHM3-R-60-E1 39 56 260 250 275 3000
GHM3-R-66-E1 44 62 250 240 265 2800
GHM3-R-80-E1 52 74 230 220 245 2400
GHM3-R-94-E1 61 87 210 200 225 2800
GHM3-R-110-E1 71 101 200 190 215 2500
GHM3-R-120-E1 78 112 180 170 195 2300
GHM3-R-135-E1 87 124 160 150 175 2000

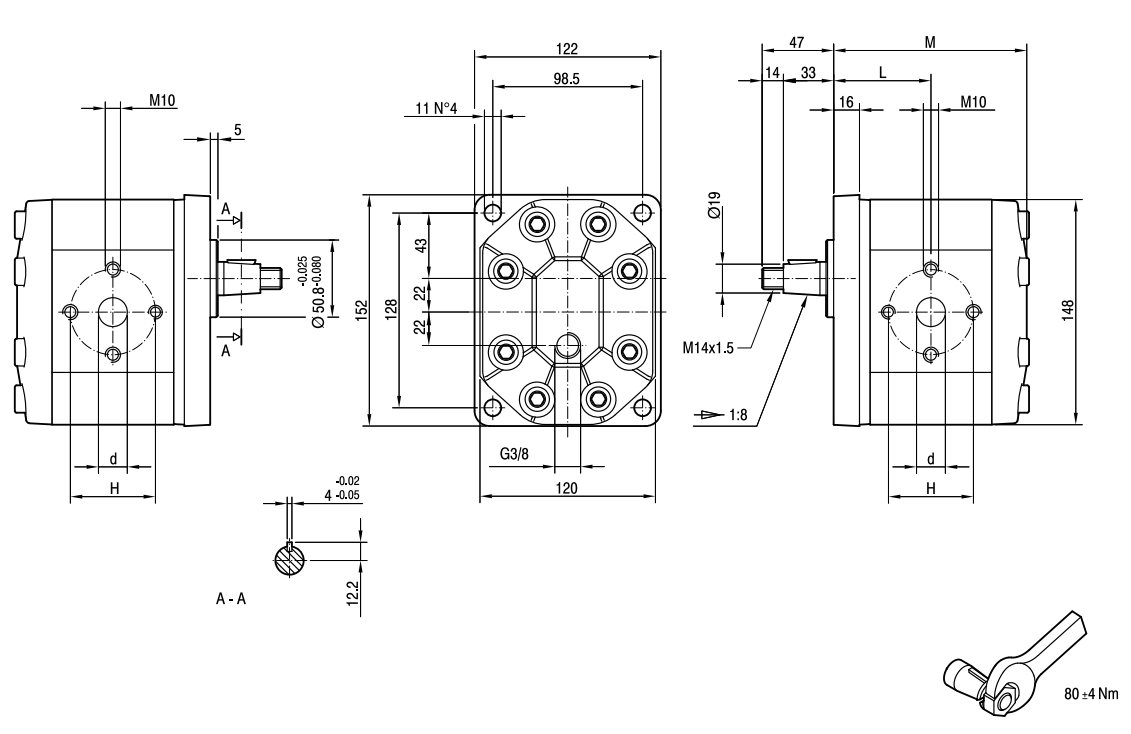

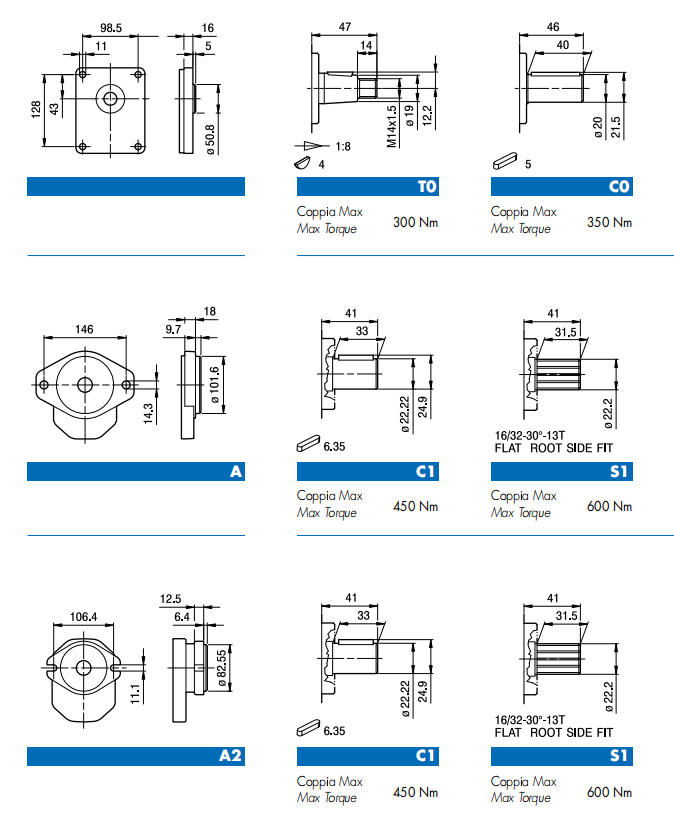

Dimension

Marzocchi Gear Motor GHM3 Marzocchi Gear Motor GHM3

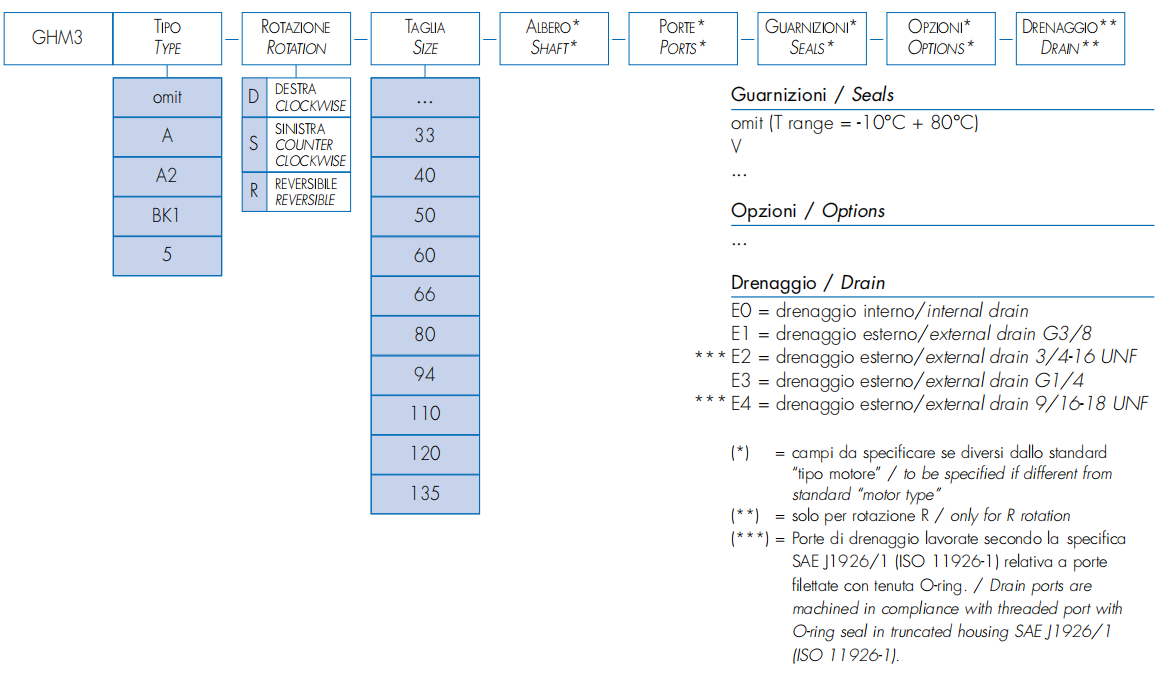

Order Code

Marzocchi Gear Motor GHM3

About POOCCA

POOCCA Hydraulic Manufacturer is not just a factory, but also a hydraulic partner at your side. From R&D to manufacturing, maintenance and sales, we provide a comprehensive range of hydraulic pumps, motors and valves for various industries.

Our best-selling products include piston pumps such as A10VSO, A11VSO, A4VSO, gear pumps such as AZPF, ALP, GHP, vane pumps such as VQ, T6T7, and motors such as ALM, GHM, A2FM, A2FE, A6VM.

With expertise in the fields of mining, shipbuilding, engineering and power plants, our solutions meet the needs of different industries. We specialize in customizing hydraulic systems with the aim of localization, cost reduction and replacement of imported components. Services include system upgrades and energy efficiency improvements.

At POOCCA, your satisfaction is our top priority. Contact us now to upgrade your hydraulic system or consult our products, we are always here to provide you with timely hydraulic solutions.

POOCCA Hydraulic Manufacturer

Application

Marzocchi GHM3 gear motors are suitable for a wide range of industrial and mobile hydraulic systems. Their versatility makes them suitable for tasks requiring reliable, efficient power transmission, such as material handling equipment, agricultural machinery, construction machinery and industrial machinery. GHM motors excel in providing precise control and high torque output, making them ideal for applications that require accurate motion, speed control and heavy-duty performance. Whether powering conveyors, hydraulic winches or agricultural implements, GHM3 gear motors ensure reliable operation in harsh environments.

Marzocchi Gear Motor GHM3

Marzocchi Group 3 Gear Motor GHM3 GHM3 Gear Motor Size:33,40,50,60,66,80,94,110,120,135 Min. speed: 600-400rpm For more ALP GHP ALM GHM hydraulic gear pump motors for sale, contact a Poocca gear pump dealer today.

GHM Gear Motor Characteristic

GHM3 models include:GHM3,GHM3A,GHM3A2,GHM3BK1,GHM35

GHM3 Uni-directional motor
Displacement range: 20 to 87 cc/rev
Maximum continuous inlet pressure PI: 230 bar
Maximum continuous back pressure PC: 6 bar
Maximum peak inlet pressure pp: 270 bar
Maximum speed: 3500 rpm

Marzocchi GHM3 bidirectional hydraulic motor
Displacement range: 22 to 87 cc/rev
Maximum continuous inlet pressure PI: 230 bar
Maximum continuous back pressure PC: 220 bar
Maximum peak inlet pressure pp: 250 bar
Maximum speed: 3500 rpm
Maximum discharge line pressure: 6 bar

Marzocchi GHM Parameter

GHM3 Gear Motor TYPE DISPLACEMENT FLOW at 1500 rev/min MAX PRESSURE MAX SPEED
P1 P2 P3
GHM3-R-33-E1 22 31 280 270 295 3500
GHM3-R-40-E1 26 37 280 270 295 3000
GHM3-R-50-E1 33 48 270 260 285 3000
GHM3-R-60-E1 39 56 260 250 275 3000
GHM3-R-66-E1 44 62 250 240 265 2800
GHM3-R-80-E1 52 74 230 220 245 2400
GHM3-R-94-E1 61 87 210 200 225 2800
GHM3-R-110-E1 71 101 200 190 215 2500
GHM3-R-120-E1 78 112 180 170 195 2300
GHM3-R-135-E1 87 124 160 150 175 2000

Dimension

Marzocchi Gear Motor GHM3 Marzocchi Gear Motor GHM3

Order Code

Marzocchi Gear Motor GHM3

About POOCCA

POOCCA Hydraulic Manufacturer is not just a factory, but also a hydraulic partner at your side. From R&D to manufacturing, maintenance and sales, we provide a comprehensive range of hydraulic pumps, motors and valves for various industries.

Our best-selling products include piston pumps such as A10VSO, A11VSO, A4VSO, gear pumps such as AZPF, ALP, GHP, vane pumps such as VQ, T6T7, and motors such as ALM, GHM, A2FM, A2FE, A6VM.

With expertise in the fields of mining, shipbuilding, engineering and power plants, our solutions meet the needs of different industries. We specialize in customizing hydraulic systems with the aim of localization, cost reduction and replacement of imported components. Services include system upgrades and energy efficiency improvements.

At POOCCA, your satisfaction is our top priority. Contact us now to upgrade your hydraulic system or consult our products, we are always here to provide you with timely hydraulic solutions.

POOCCA Hydraulic Manufacturer

Application

Marzocchi GHM3 gear motors are suitable for a wide range of industrial and mobile hydraulic systems. Their versatility makes them suitable for tasks requiring reliable, efficient power transmission, such as material handling equipment, agricultural machinery, construction machinery and industrial machinery. GHM motors excel in providing precise control and high torque output, making them ideal for applications that require accurate motion, speed control and heavy-duty performance. Whether powering conveyors, hydraulic winches or agricultural implements, GHM3 gear motors ensure reliable operation in harsh environments.
