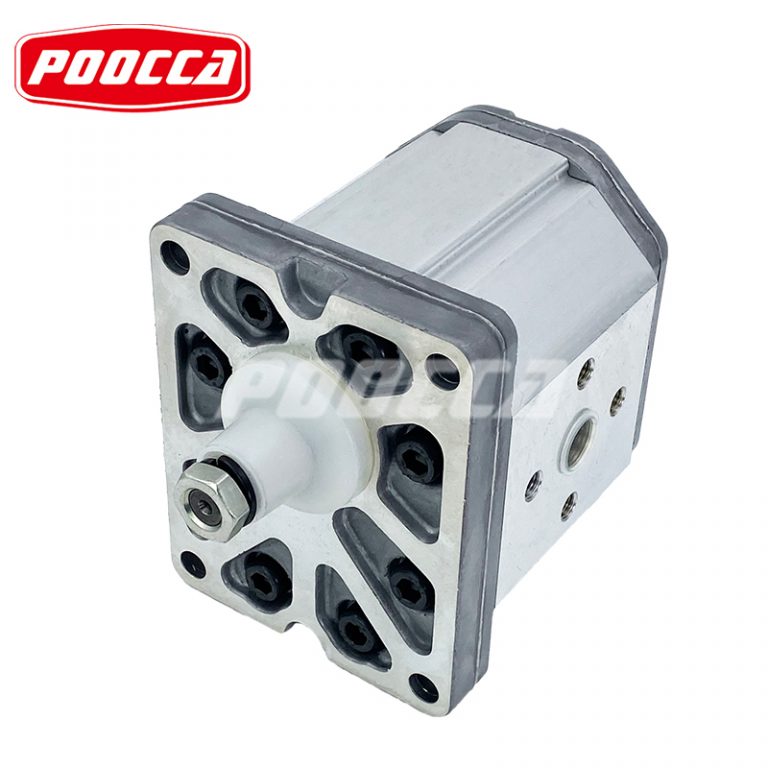

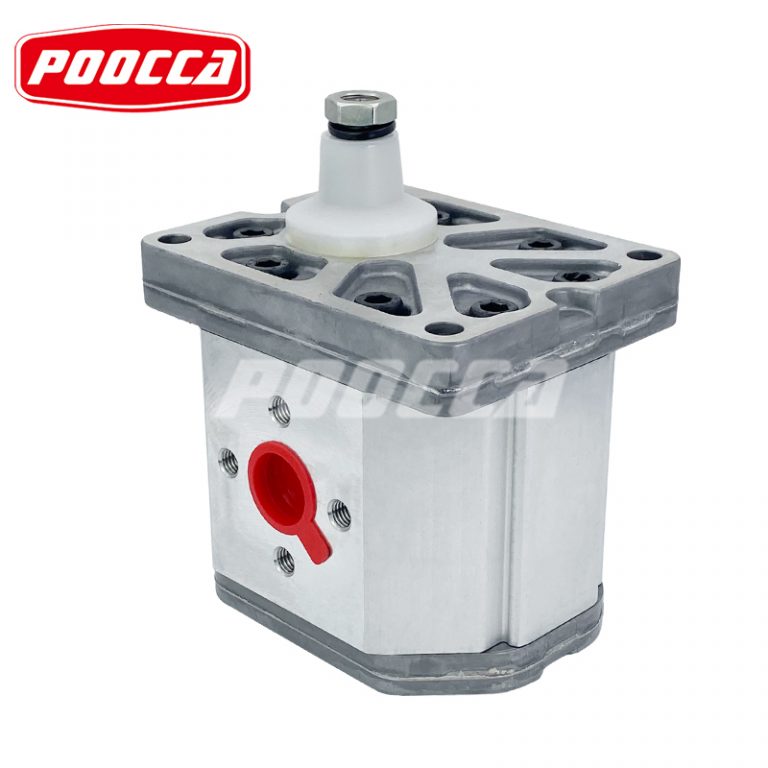

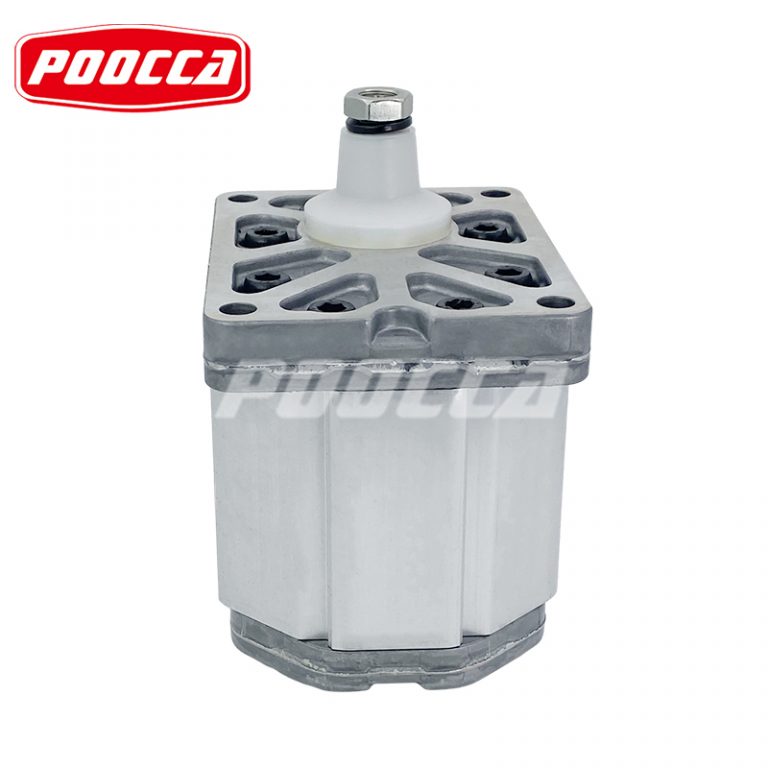

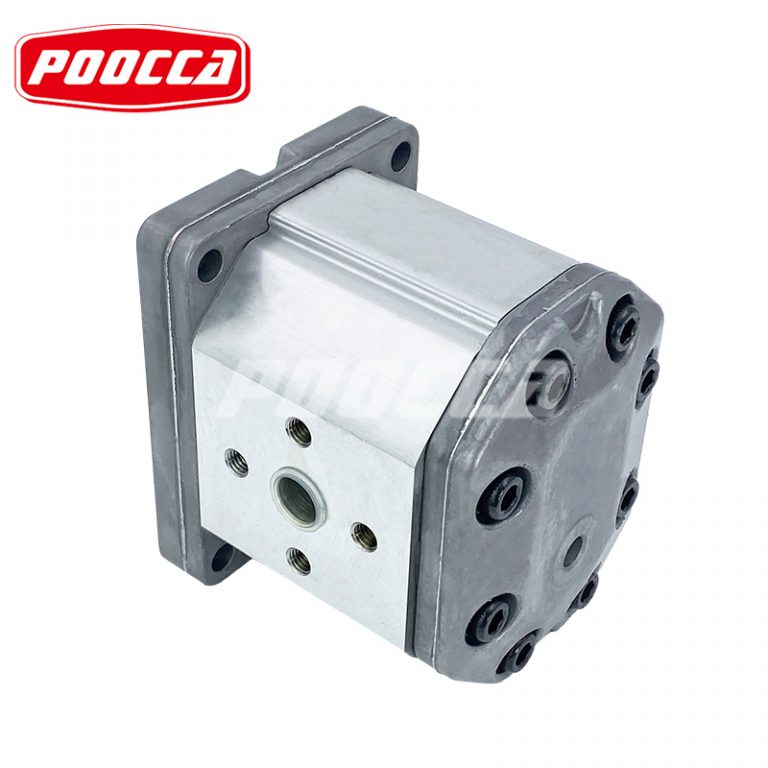

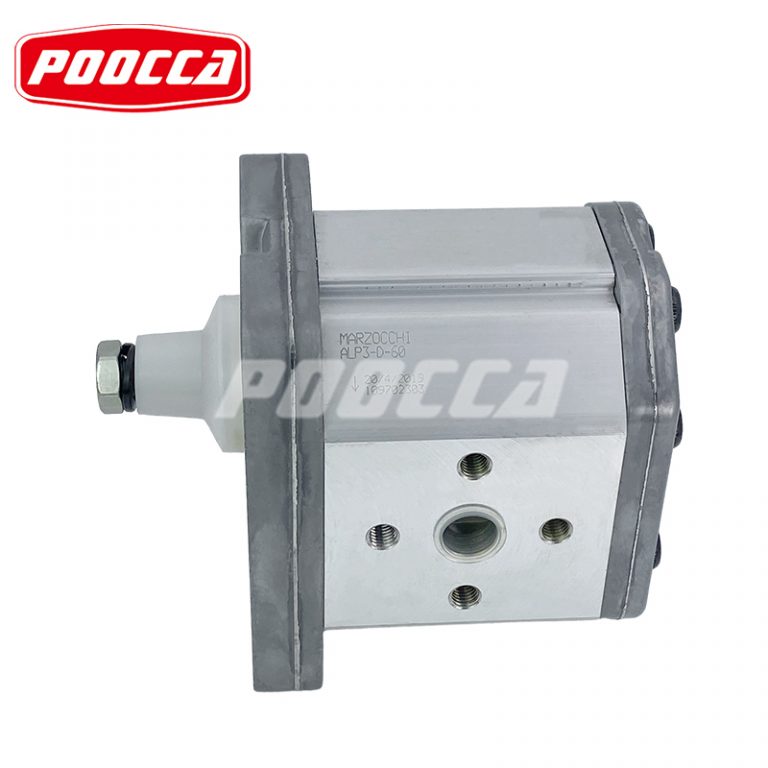

Marzocchi ALP3 hydraulic gear pump is an industrial hydraulic equipment. The displacement range of ALP3 pump is 20~87cc/rev, the normal pressure is 230bar, and the peak pressure is 270bar. In addition, this gear pump is designed to perform well in high-temperature fluid environments, with an operating temperature range of -10ยฐC to +120ยฐC.
1. Excellent hydraulic performance: It has excellent hydraulic performance and can provide stable pressure output to meet the needs of various industrial applications.
2. High mechanical efficiency: The ALP3 gear pump has high mechanical efficiency and can effectively convert the input mechanical energy into hydraulic energy, thereby improving energy utilization.
3. Low noise: This gear pump runs smoothly and has low noise, which can reduce noise pollution to the surrounding environment and improve the quality of the working environment.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| Marzocchi AL3 | cmยณ/rev | litri/min | bar | bar | bar | rpm |
| ALP3-D(S)-33 | 22 | 31 | 230 | 250 | 270 | 3500 |
| ALP3-D(S)-40 | 26 | 37 | 230 | 250 | 270 | 3000 |
| ALP3-D(S)-50 | 33 | 48 | 230 | 250 | 270 | 3000 |
| ALP3-D(S)-60 | 39 | 56 | 220 | 240 | 260 | 3000 |
| ALP3-D(S)-66 | 44 | 62 | 210 | 230 | 250 | 2800 |
| ALP3-D(S)-80 | 52 | 74 | 200 | 215 | 250 | 2400 |
| ALP3-D(S)-94 | 61 | 87 | 190 | 205 | 220 | 2800 |
| ALP3-D(S)-110 | 71 | 101 | 170 | 185 | 200 | 2500 |
| ALP3-D(S)-120 | 78 | 112 | 160 | 175 | 190 | 2300 |
| ALP3-D(S)-135 | 87 | 124 | 140 | 155 | 170 | 2000 |
Marzocchi ALP3 hydraulic gear pump is an industrial hydraulic equipment. The displacement range of ALP3 pump is 20~87cc/rev, the normal pressure is 230bar, and the peak pressure is 270bar. In addition, this gear pump is designed to perform well in high-temperature fluid environments, with an operating temperature range of -10ยฐC to +120ยฐC.
1. Excellent hydraulic performance: It has excellent hydraulic performance and can provide stable pressure output to meet the needs of various industrial applications.
2. High mechanical efficiency: The ALP3 gear pump has high mechanical efficiency and can effectively convert the input mechanical energy into hydraulic energy, thereby improving energy utilization.
3. Low noise: This gear pump runs smoothly and has low noise, which can reduce noise pollution to the surrounding environment and improve the quality of the working environment.
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| Marzocchi AL3 | cmยณ/rev | litri/min | bar | bar | bar | rpm |
| ALP3-D(S)-33 | 22 | 31 | 230 | 250 | 270 | 3500 |
| ALP3-D(S)-40 | 26 | 37 | 230 | 250 | 270 | 3000 |
| ALP3-D(S)-50 | 33 | 48 | 230 | 250 | 270 | 3000 |
| ALP3-D(S)-60 | 39 | 56 | 220 | 240 | 260 | 3000 |
| ALP3-D(S)-66 | 44 | 62 | 210 | 230 | 250 | 2800 |
| ALP3-D(S)-80 | 52 | 74 | 200 | 215 | 250 | 2400 |
| ALP3-D(S)-94 | 61 | 87 | 190 | 205 | 220 | 2800 |
| ALP3-D(S)-110 | 71 | 101 | 170 | 185 | 200 | 2500 |
| ALP3-D(S)-120 | 78 | 112 | 160 | 175 | 190 | 2300 |
| ALP3-D(S)-135 | 87 | 124 | 140 | 155 | 170 | 2000 |
