Marzocchi Group 2 hydraulic gearmotors are available in displacements from 4.5 to 28.2 cc/rev. The ALP2 motor has a maximum speed of 2,500 to 4,000 rpm and a flow rate of 6.4 to 40.1 liters per minute, depending on the model.

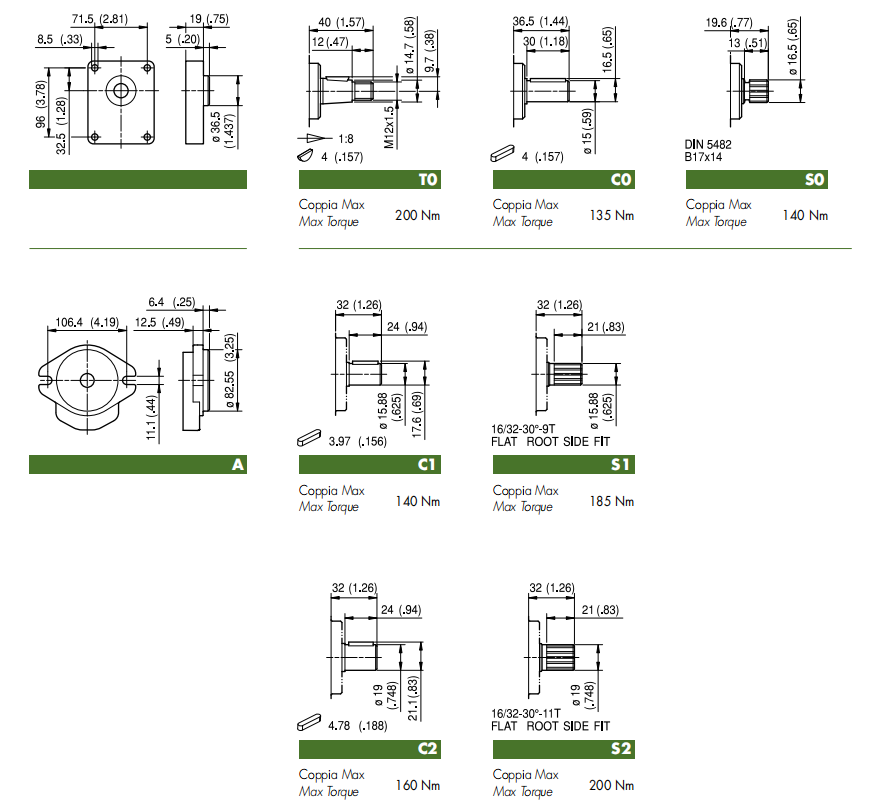

These motors are available with a variety of mounting flanges, output shafts and ports, providing the versatility to adapt to a variety of applications.

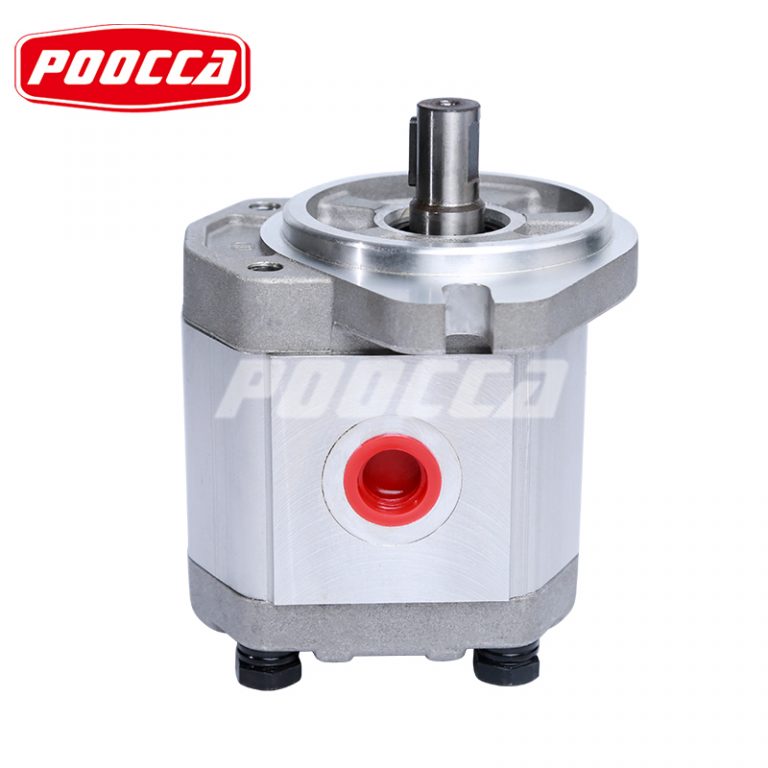

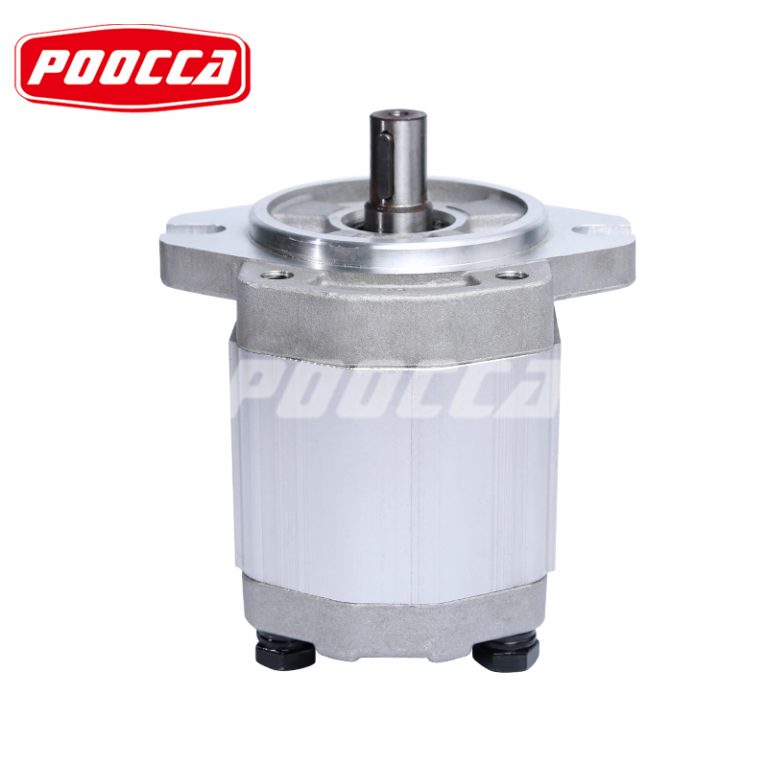

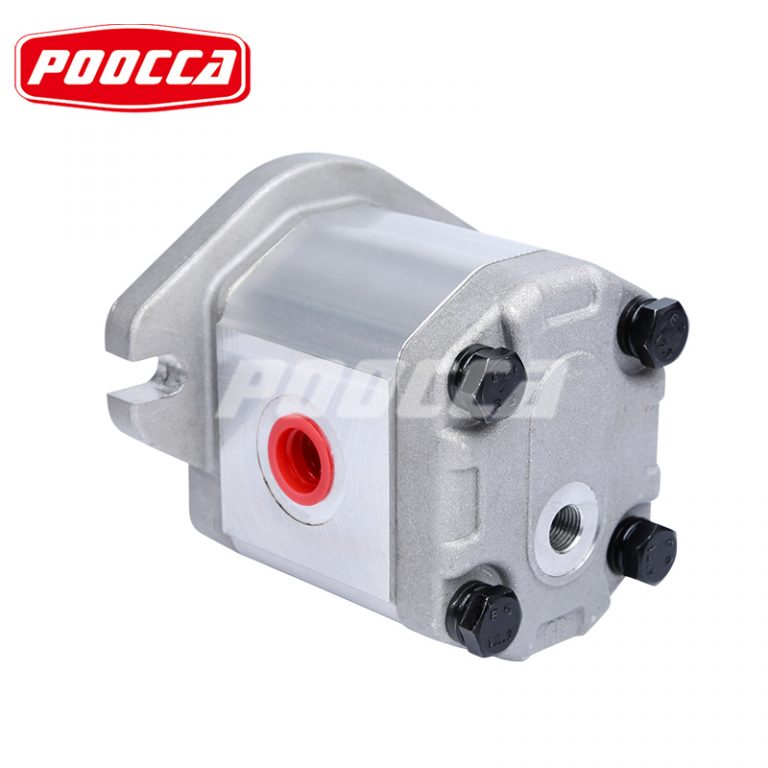

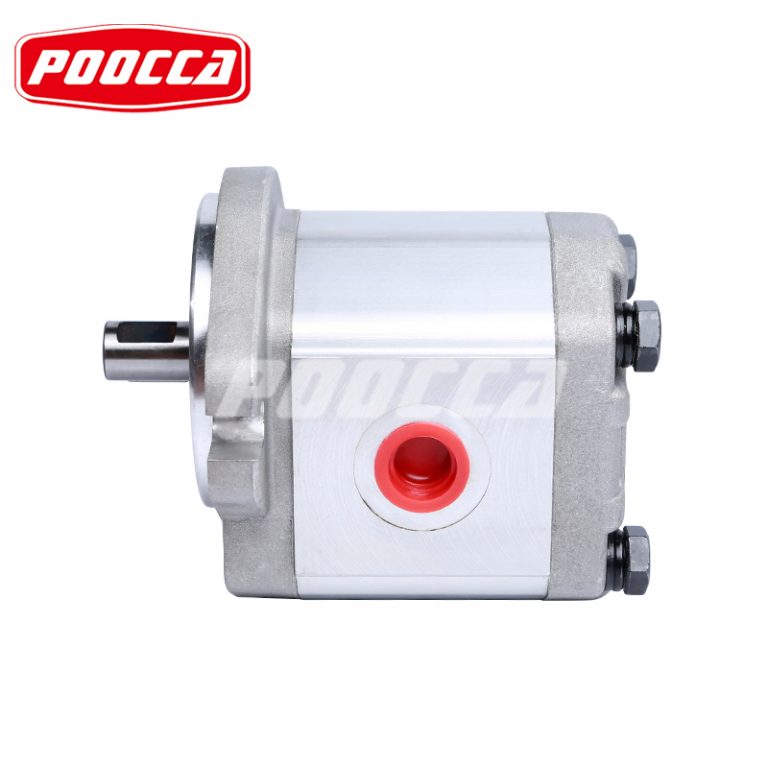

The Marzocchi ALM2 hydraulic motor efficiently converts hydraulic pressure and flow into torque and angular displacement. This rotating mechanical power is then transmitted to the load through the motor shaft. Hydraulic oil is directed into the motor, causing the gear set to rotate. The rotation of one of the gears is directly connected to the output shaft of the motor, thereby producing the required rotating mechanical power.
| TYPE | DISPLACEMENT | FLOW at 1500 rev/min | MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| ALM2-R-6-E1 | 4,5 | 6,4 | 250 | 240 | 270 | 4000 |
| ALM2-R-9-E1 | 6,4 | 9,1 | 250 | 240 | 270 | 4000 |
| ALM2-R-10-E1 | 7 | 10 | 250 | 240 | 270 | 4000 |
| ALM2-R-12-E1 | 8,3 | 11,8 | 250 | 240 | 270 | 3500 |
| ALM2-R-13-E1 | 9,6 | 13,7 | 250 | 240 | 270 | 3000 |
| ALM2-R-16-E1 | 11,5 | 16,4 | 230 | 220 | 250 | 4000 |
| ALM2-R-20-E1 | 14,1 | 20,1 | 230 | 220 | 250 | 4000 |
| ALM2-R-22-E1 | 16,0 | 22,8 | 210 | 200 | 225 | 4000 |
| ALM2-R-25-E1 | 17,9 | 25,5 | 210 | 200 | 225 | 3600 |
| ALM2-R-30-E1 | 21,1 | 30,1 | 180 | 170 | 195 | 3200 |
| ALM2-R-34-E1 | 23,7 | 33,7 | 180 | 170 | 195 | 3000 |
| ALM2-R-37-E1 | 25,5 | 36,4 | 170 | 160 | 185 | 2800 |
| ALM2-R-40-E1 | 28,2 | 40,1 | 170 | 160 | 185 | 2500 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and has subsidiaries in Hong Kong, Guangdong, Jiangsu, Zhejiang and other places. We are a comprehensive hydraulic service provider specializing in the research and development, manufacturing, maintenance and sales of hydraulic products such as pumps, motors, valves and related components. With decades of experience providing power transmission and drive solutions to hydraulic system users around the world, we have earned a strong reputation in the industry.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume exceeds USD 16 million, reaching more than 100 countries around the world. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Marzocchi Group 2 hydraulic gearmotors are available in displacements from 4.5 to 28.2 cc/rev. The ALP2 motor has a maximum speed of 2,500 to 4,000 rpm and a flow rate of 6.4 to 40.1 liters per minute, depending on the model.
These motors are available with a variety of mounting flanges, output shafts and ports, providing the versatility to adapt to a variety of applications.
The Marzocchi ALM2 hydraulic motor efficiently converts hydraulic pressure and flow into torque and angular displacement. This rotating mechanical power is then transmitted to the load through the motor shaft. Hydraulic oil is directed into the motor, causing the gear set to rotate. The rotation of one of the gears is directly connected to the output shaft of the motor, thereby producing the required rotating mechanical power.
