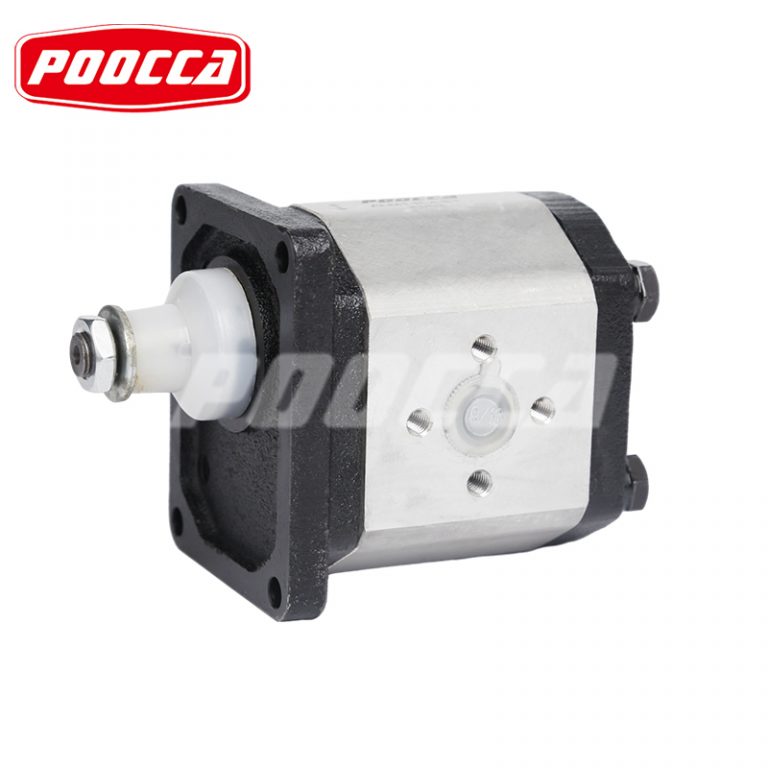

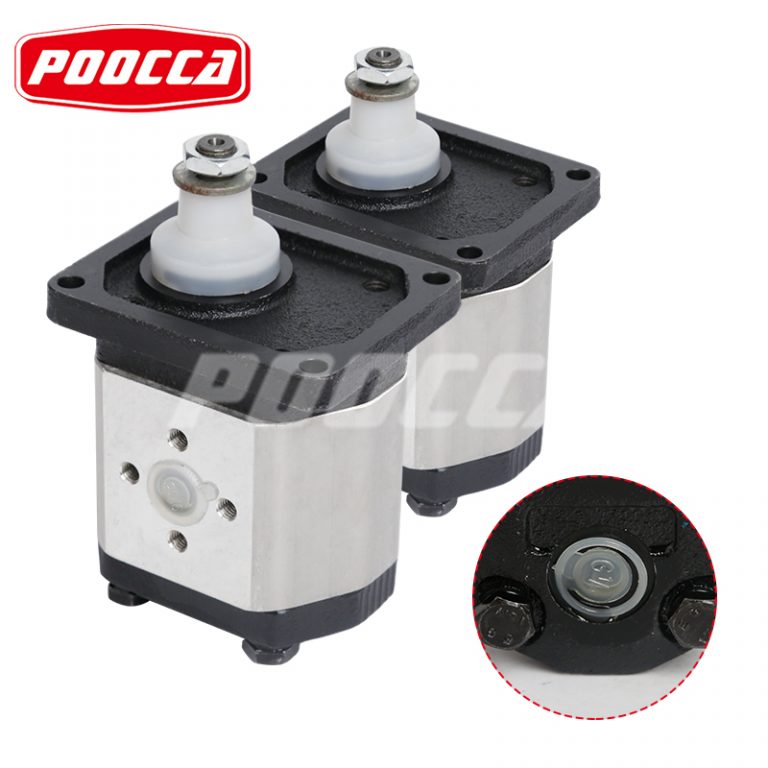

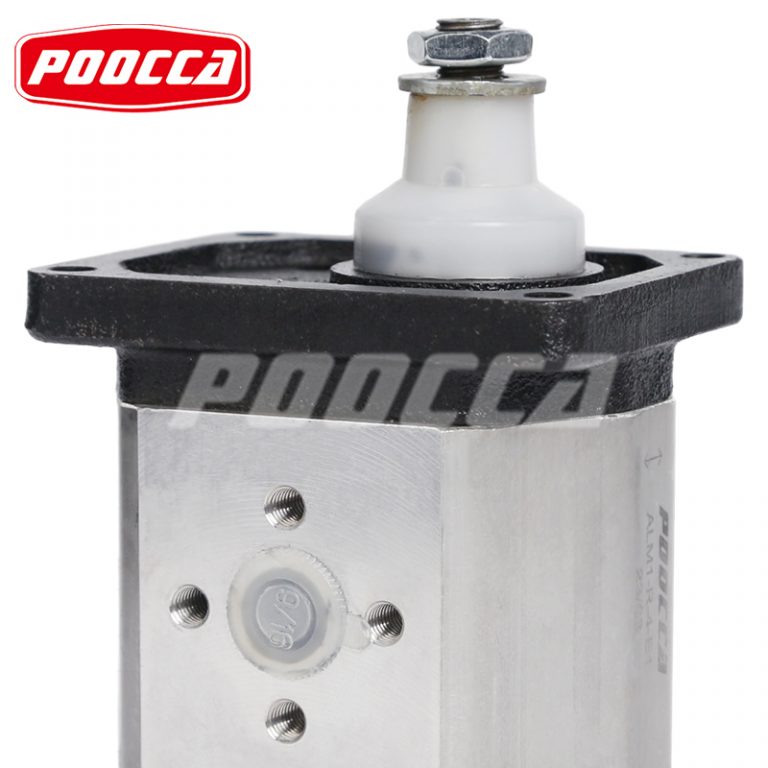

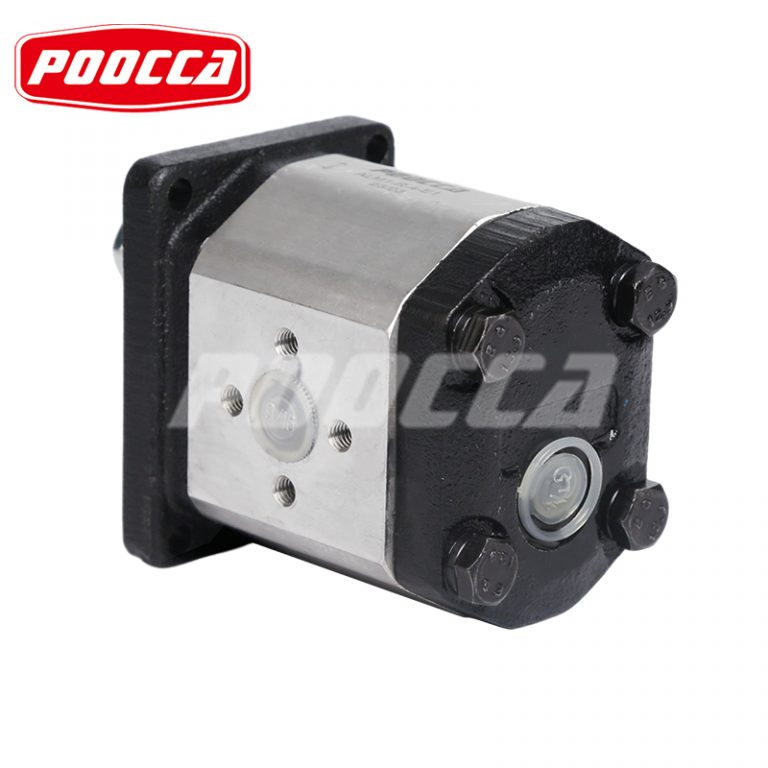

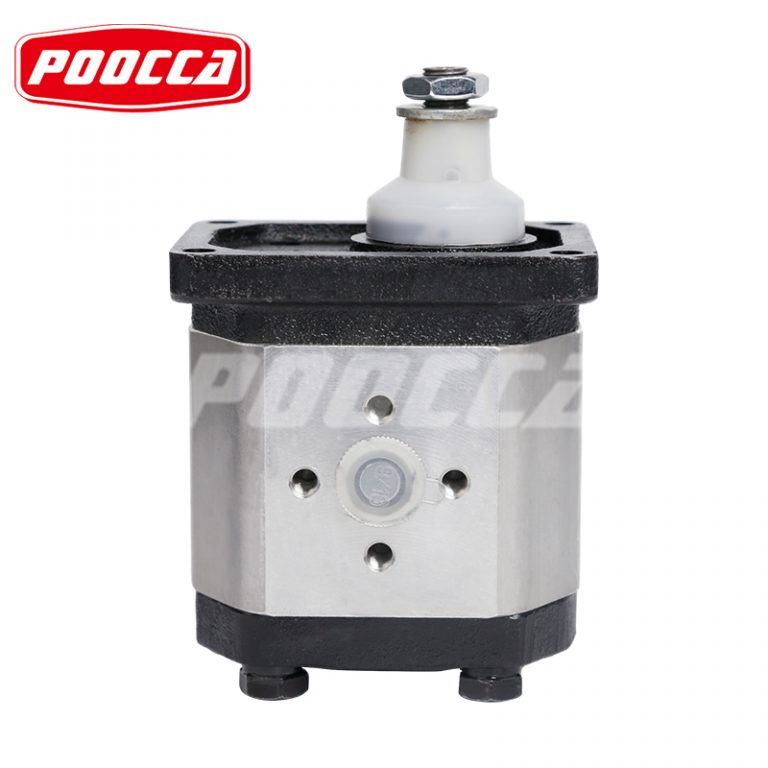

The Marzocchi ALM hydraulic gear motor is well-suited for applications in both mobile and industrial sectors, particularly in situations with medium to high pressure requirements. It offers options for both unidirectional and bidirectional operations, featuring internal and external drain configurations.
Belonging to Group 1, the ALM series is designed to be mounted according to the DIN Group 1 standard. The minimum displacement is 2.5 cubic centimeters per revolution, while the maximum displacement reaches 4.2 cubic centimeters per revolution. The hydraulic motor can handle a maximum continuous pressure of 180 bar (2610 PSI).
TYPE | DISPLACEMENT | FLOW at 1500 rev/min | MAX PRESSURE | MAX SPEED | ||
P1 | P2 | P3 | ||||
ALM1-R-4-E1 | 2,8 | 3,9 | 250 | 240 | 270 | 5000 |
ALM1-R-5-E1 | 3,5 | 4,9 | 250 | 240 | 270 | 5000 |
ALM1-R-6-E1 | 4,1 | 5,9 | 250 | 240 | 270 | 4000 |
ALM1-R-7-E1 | 5,2 | 7,4 | 230 | 220 | 245 | 4000 |
ALM1-R-9-E1 | 6,2 | 8,8 | 230 | 220 | 245 | 3800 |
ALM1-R-11-E1 | 7,6 | 10,8 | 200 | 190 | 215 | 3200 |
ALM1-R-13-E1 | 9,3 | 13,3 | 180 | 170 | 195 | 2600 |
ALM1-R-16-E1 | 11,0 | 15,7 | 170 | 160 | 185 | 2200 |
The Marzocchi ALM hydraulic gear motor is well-suited for applications in both mobile and industrial sectors, particularly in situations with medium to high pressure requirements. It offers options for both unidirectional and bidirectional operations, featuring internal and external drain configurations.
Belonging to Group 1, the ALM series is designed to be mounted according to the DIN Group 1 standard. The minimum displacement is 2.5 cubic centimeters per revolution, while the maximum displacement reaches 4.2 cubic centimeters per revolution. The hydraulic motor can handle a maximum continuous pressure of 180 bar (2610 PSI).
TYPE | DISPLACEMENT | FLOW at 1500 rev/min | MAX PRESSURE | MAX SPEED | ||
P1 | P2 | P3 | ||||
ALM1-R-4-E1 | 2,8 | 3,9 | 250 | 240 | 270 | 5000 |
ALM1-R-5-E1 | 3,5 | 4,9 | 250 | 240 | 270 | 5000 |
ALM1-R-6-E1 | 4,1 | 5,9 | 250 | 240 | 270 | 4000 |
ALM1-R-7-E1 | 5,2 | 7,4 | 230 | 220 | 245 | 4000 |
ALM1-R-9-E1 | 6,2 | 8,8 | 230 | 220 | 245 | 3800 |
ALM1-R-11-E1 | 7,6 | 10,8 | 200 | 190 | 215 | 3200 |
ALM1-R-13-E1 | 9,3 | 13,3 | 180 | 170 | 195 | 2600 |
ALM1-R-16-E1 | 11,0 | 15,7 | 170 | 160 | 185 | 2200 |
