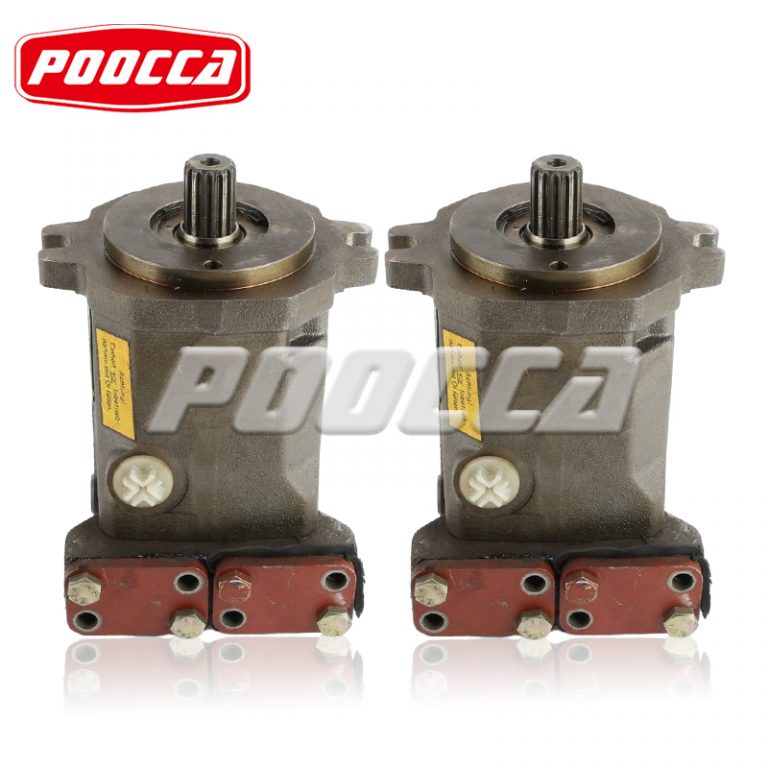

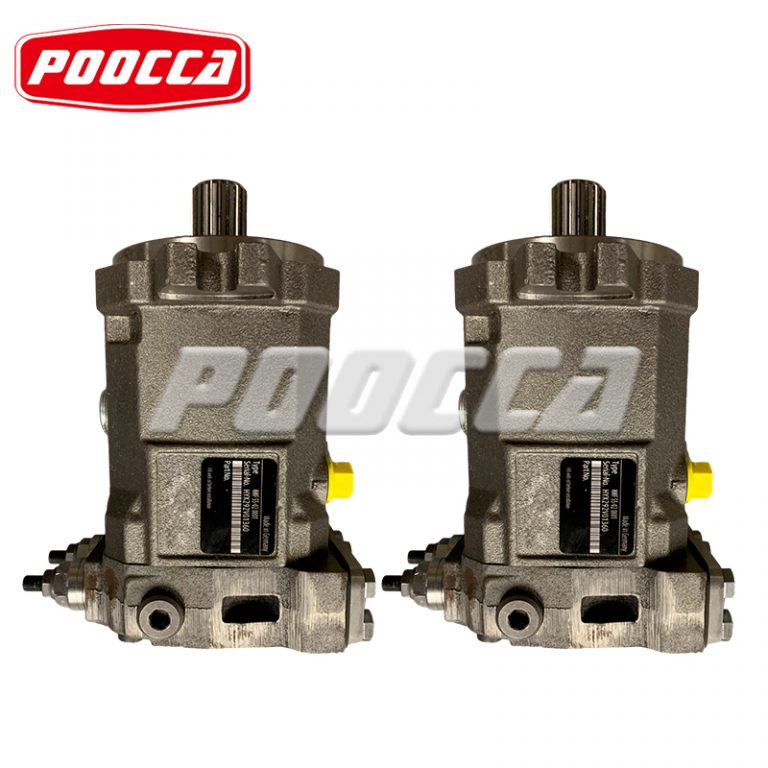

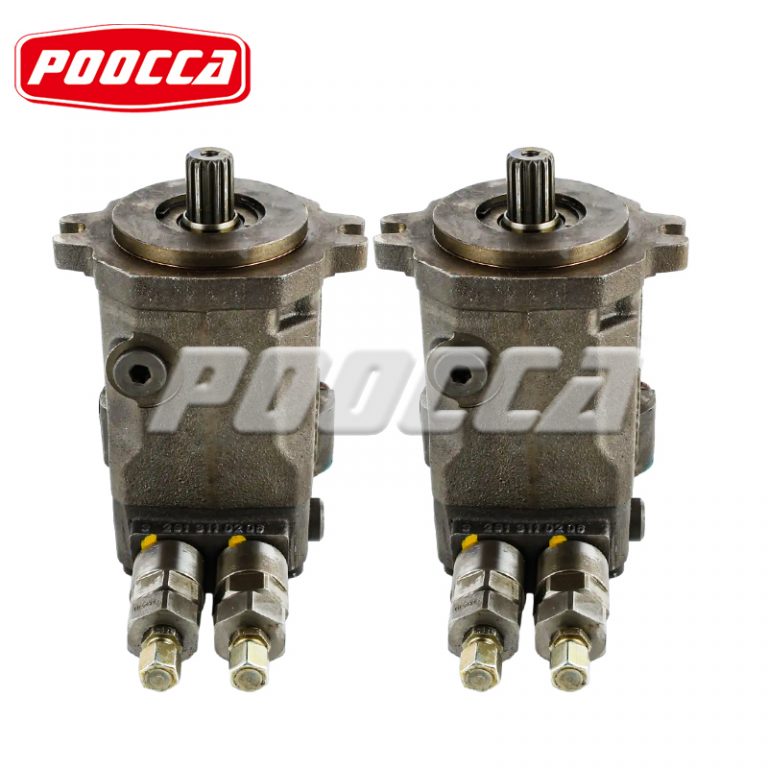

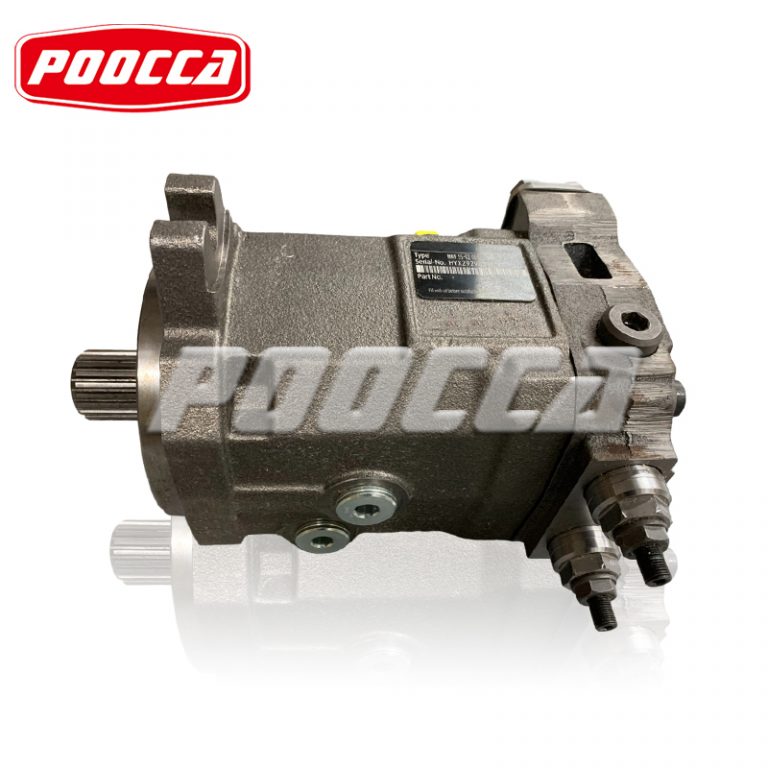

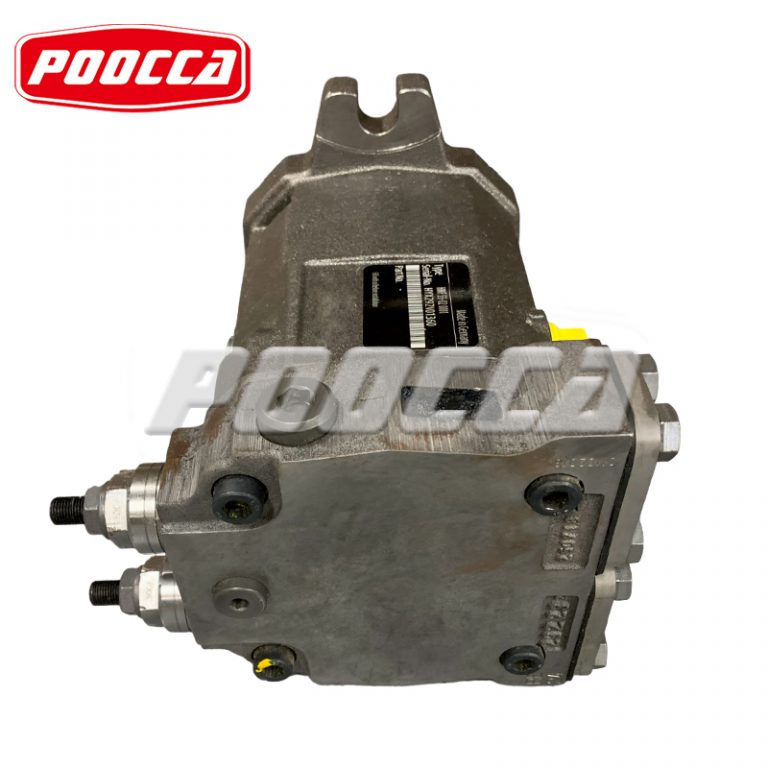

Linde HMF Hydraulic Piston Motor

Professional motor hydraulic manufacturer with 20+ years of experience.
Displacement:28.6 cc/rev
Maximum Operating Speed:4500 rpm
Maximum Speed:4800 rpm
Nominal Pressure:450 bar
Maximum Pressure:500 bar
Output Torque (at ∆p=430 bar):196 Nm
Corner Power:92 kW
Weight Approx. (without oil):16 kg

Linde Fixed displacement HMF piston motors include HMF28, HMF35, HMF55, HMF63, HMF75, HMF85

Chat Now

Youtube Video

HMF Motor Characteristic

Linde HMF high-pressure axial piston motors are designed for closed-loop and open-loop swashplate systems and feature optimized starting and low-speed characteristics.

Optional drain valves for circuit and case flushing are available, as well as the possibility of integrating a high-pressure valve. They are equipped with through shafts, either bare shaft end or coupling flange, and have SAE high-pressure ports in radial and axial configurations. The motors also feature SAE mounting flanges with ANSI or SAE splined shafts and are available in a plug-in version.

Optional speed sensor included. The benefits of HMF motors include smooth operation at low speeds, high starting torque, reduced emissions through reduced speed, and a compact design.

Parameter

Rated size	HMF Motor		28	35	55	63	75	85
Displacement HMV-02 can be set to 0 cc/rev displacement	Maximum Vmax .	cc/rev	28.6	35.6	54.7	63	75.9	85.6
Displacement HMV-02 can be set to 0 cc/rev displacement	Minimum Vmin only for variable and regulating motors	cc/rev	–	–	18.3	–	25.3	–
Speed	Max. operating speed at Vmax	rpm	4500	4500	4300	3900	3800	3600
	Maximum speed at Vmax*	rpm	4800	4800	4400	4200	4100	3850
	Max. operating speed at Vmin	rpm	–		4700	–	4400	–
	Maximum speed at Vmin*	rpm	–		5300	–	5000	–
Pressure	Nominal pressure	bar	450
	Maximum pressure**	bar	500
	Permissible housing pressure	bar	2.5
Torque	Output torque (p=430 bar)	Nm	196	244	374	431	519	586
Power	Corner power (theoretical)	kW	92	115	161	176	207	221
Permissible shaft loads	Axial input /output force	N	2000
Permissible shaft loads	Radial	N	on request
Perm. housing temp.	Perm. housing temperature with minimum perm. viscosity > 10 cSt	°C	105
Weights	Fixed displacement motor with 2-hole mounting flange	kg	16	16	19	24	26	33
	Variable and regulating motor with 2- or 4-hole mounting flange	kg	–	–	28	–	32	–
	Moment of inertia	kgm2 x 10-2	0.25	0.25	0.49	0.72	0.79	0.97

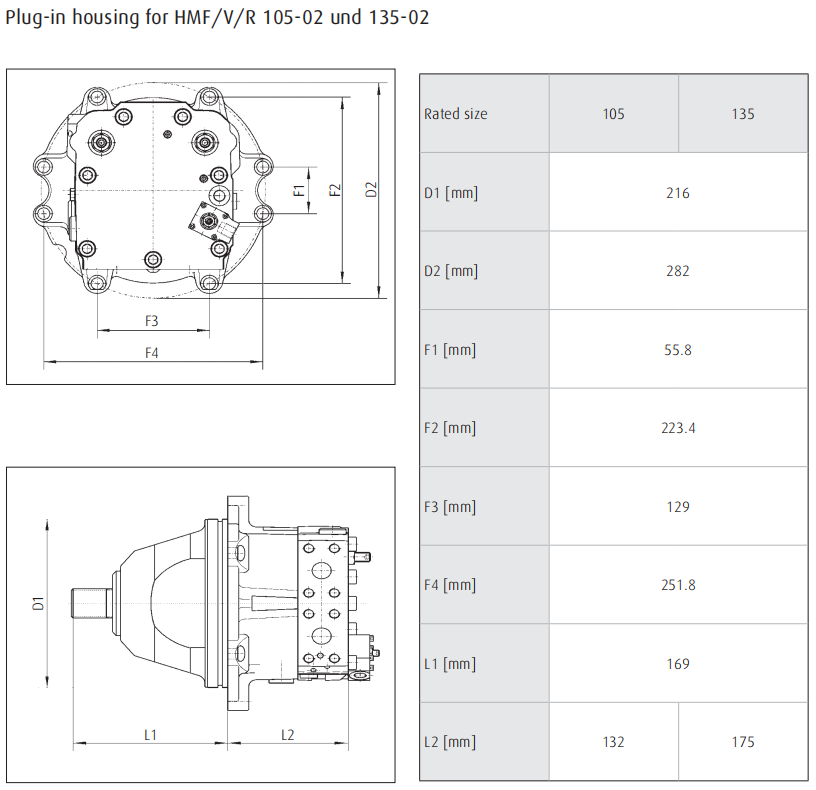

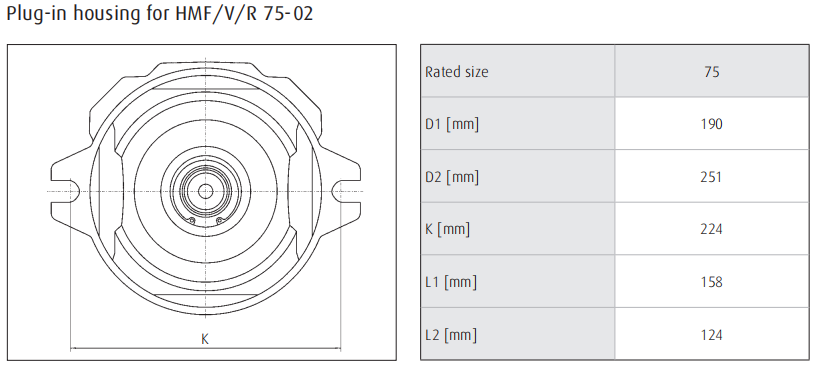

HMF Motor Dimension

Design Features
High pressure axial piston motor in swash plate design for closed and open loop systems
Optimised start-up and low-speed characteristics
Optionally with purge valves for circuit and case flushing
Optional fixed or adjustable high pressure relief valve
SAE High pressure ports, radial or axial
SAE mounting flange with ANSI or SAE spline shaft

Product Advantages
Smooth low-speed operation
High starting torque
Compact design
High power density
High reliability
Long service life
