Leduc XPI Series: The best choice for compact truck pumps, efficient, reliable and easy to install – your ideal solution

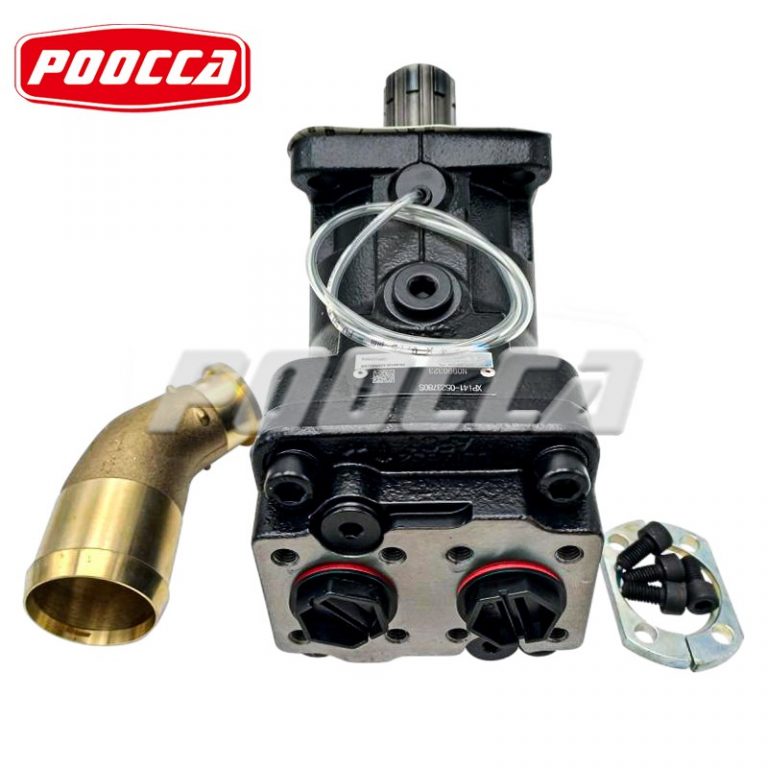

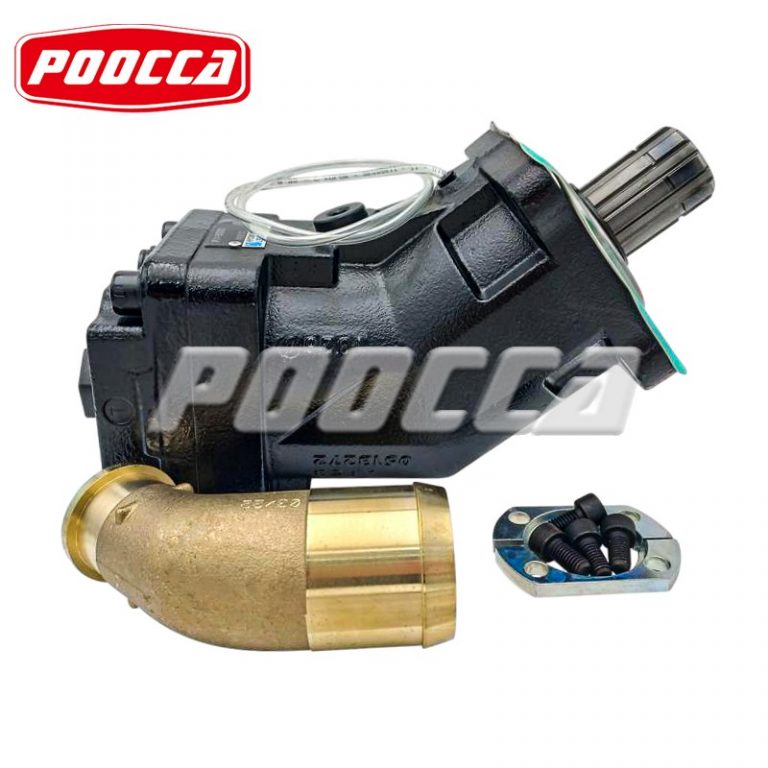

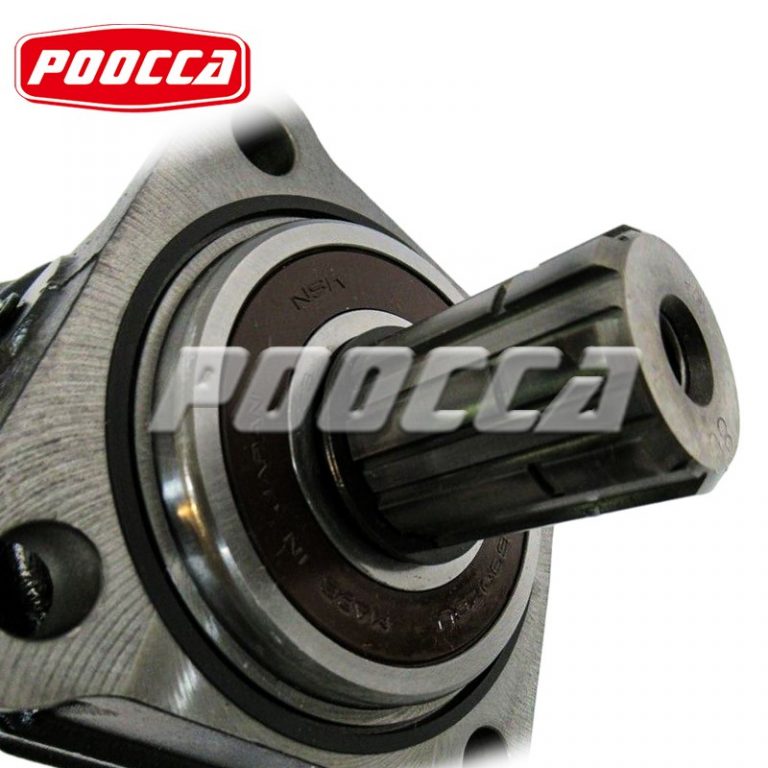

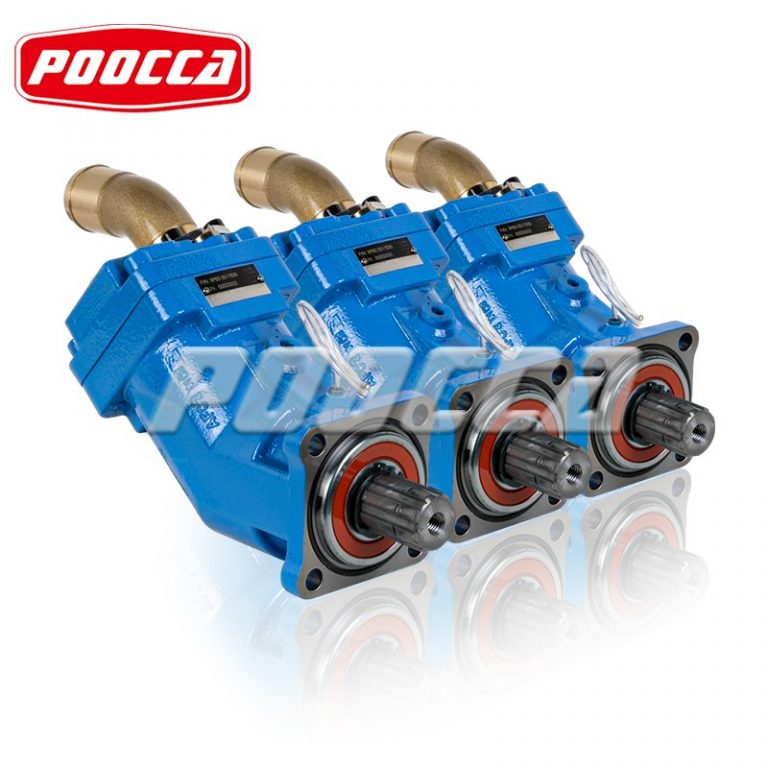

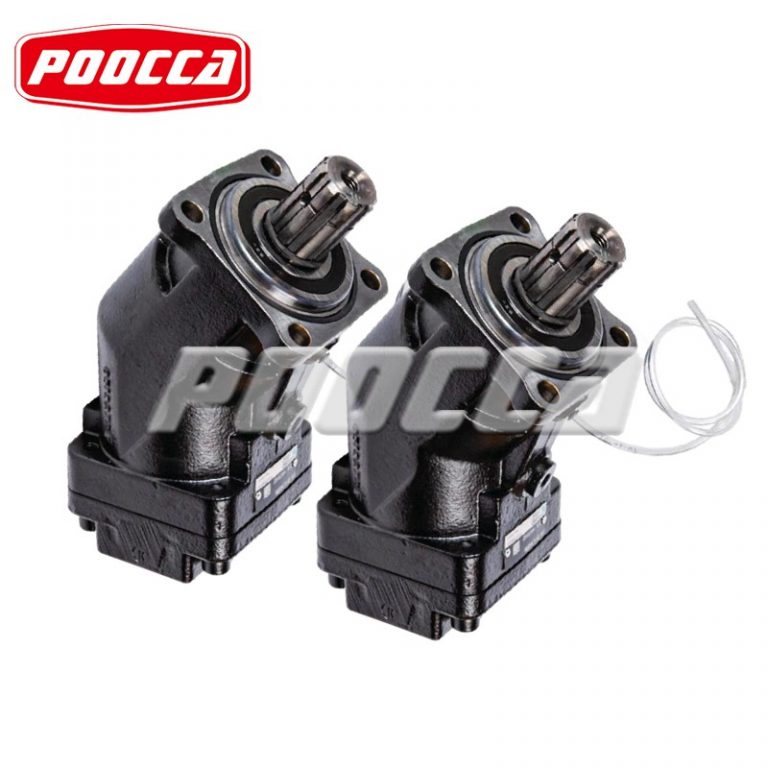

Hydro Leduc XPI piston pump are designed for applications with limited space. The XPI series pumps feature a fixed displacement bent axis design that can provide up to 420 bar continuous peak pressure and a maximum speed range of 1750 to 3150 rpm.
. 7 pistons
. Innovative plate – barrel synchronisation
. use of materials with high mechanical resistance
. reinforced sealing
Product advantages:
Compact design: Suitable for applications with limited space, ensuring more flexible and convenient equipment installation.
High performance: Fixed displacement bent axis design that can provide 420 bar continuous peak pressure.

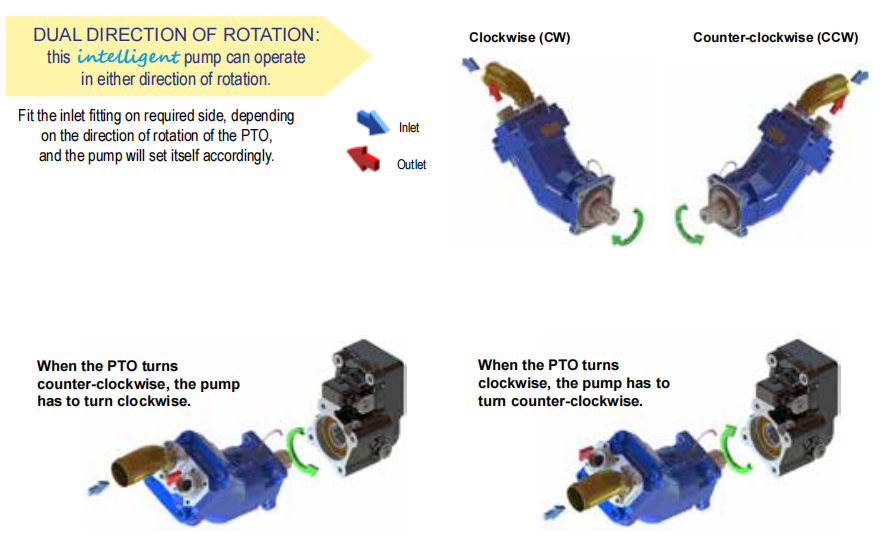

Easy rotation: The unique design allows the pump to automatically set to the required rotation direction, making installation and startup simple.
| XPI Pump reference |
Displac. (cc/rev) |
Maximum continuous pressure (bar) |
Maximum intermittent peak pressure < 5 seconds (bar) |
Max speed(1) | Max. torque absorbed at 380 bar(2) |
Weight | Overhang torque | ||
| (rpm) | (N.m) | without inlet fitting (kg) |
with inlet fitting 2สบ (kg) |
without inlet fitting (N.m) |
with inlet fitting 2สบ (N.m) |
||||
| XPi 12 0523820 | 12 | 380 | 420 | 3150 | 76 | 9.2 | 9.65 | 8.74 | 9.17 |
| XPi 18 0523810 | 18 | 380 | 420 | 2900 | 114 | 9.25 | 9.7 | 8.79 | 9.21 |
| XPi 25 0523800 | 25 | 380 | 420 | 2750 | 159 | 9.3 | 9.75 | 8.84 | 9.26 |
| XPi 32 0523790 | 32 | 380 | 420 | 2700 | 204 | 11.1 | 11.55 | 11.1 | 11.55 |
| XPi 41 0523780 | 41 | 380 | 420 | 2550 | 261 | 11.15 | 11.6 | 11.15 | 11.6 |
| XPi 50 0523770 | 50.3 | 380 | 420 | 2450 | 318 | 11.2 | 11.65 | 11.76 | 12.23 |
| XPi 63 0523760 | 63 | 380 | 420 | 2300 | 401 | 11.25 | 11.7 | 11.81 | 12.28 |
| XPi 80 0523640 | 80.4 | 380 | 420 | 2150 | 509 | 14.85 | 15.3 | 17.82 | 18.36 |
| XPi 108 0523750 | 108.3 | 380 | 420 | 1900 | 687 | 14.95 | 15.4 | 17.94 | 18.48 |
| XPi 130 0523730 | 129.8 | 380 | 420 | 1750 | 827 | 15.35 | 15.8 | 18.73 | 19.28 |
If you encounter any problems during use, please contact Poocca hydraulic manufacturer and we will reply you as soon as possible.
