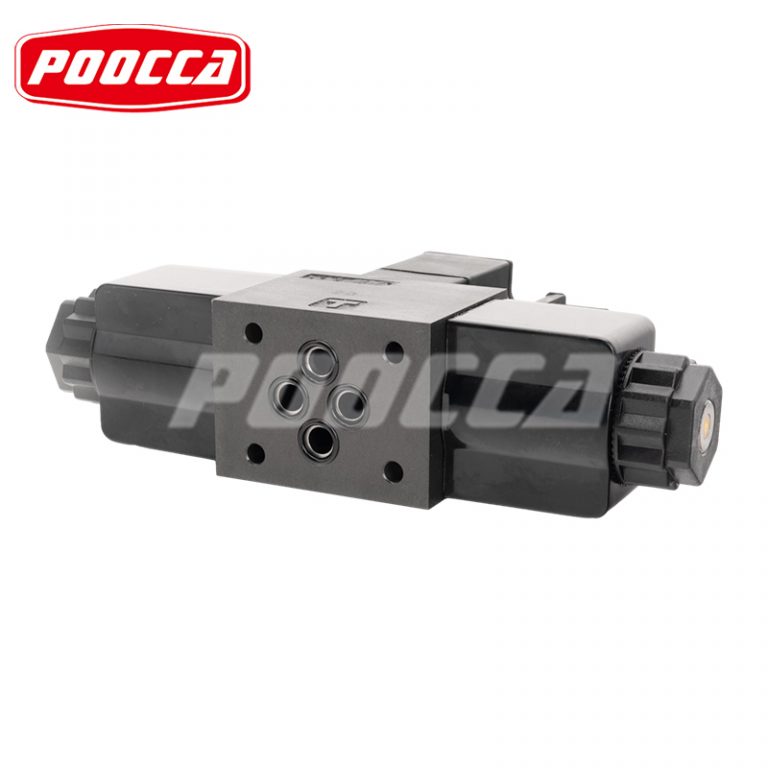

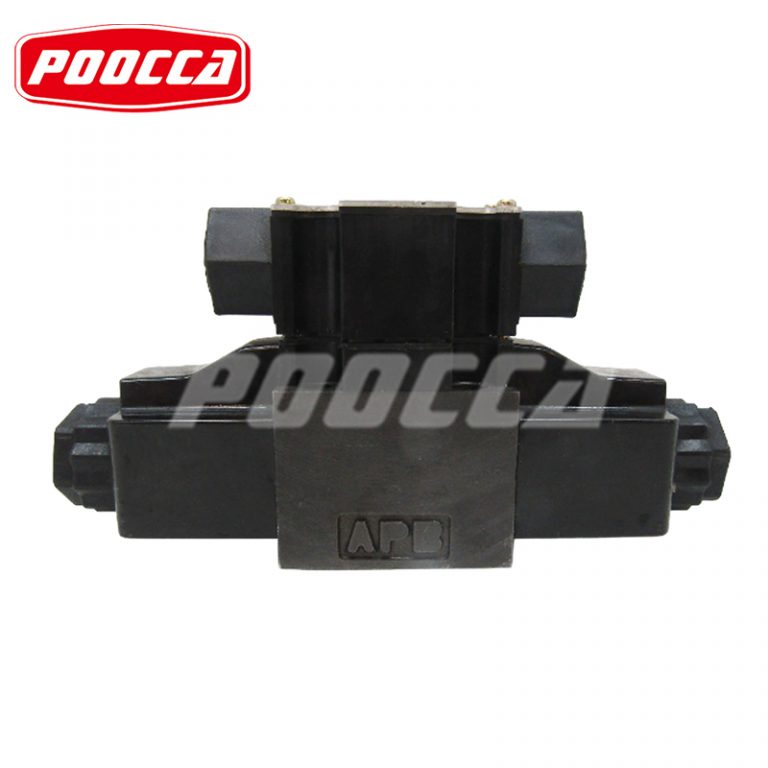

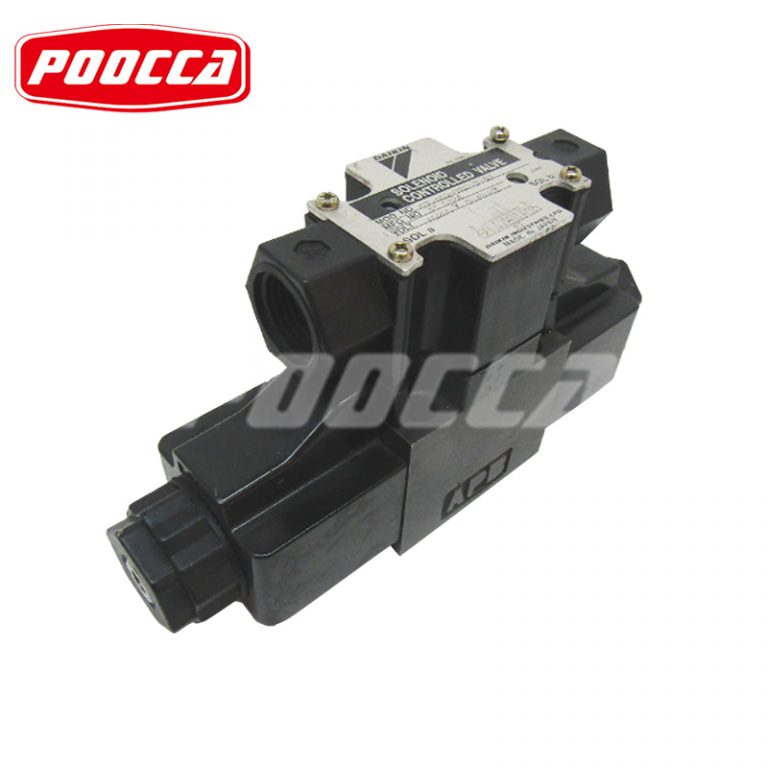

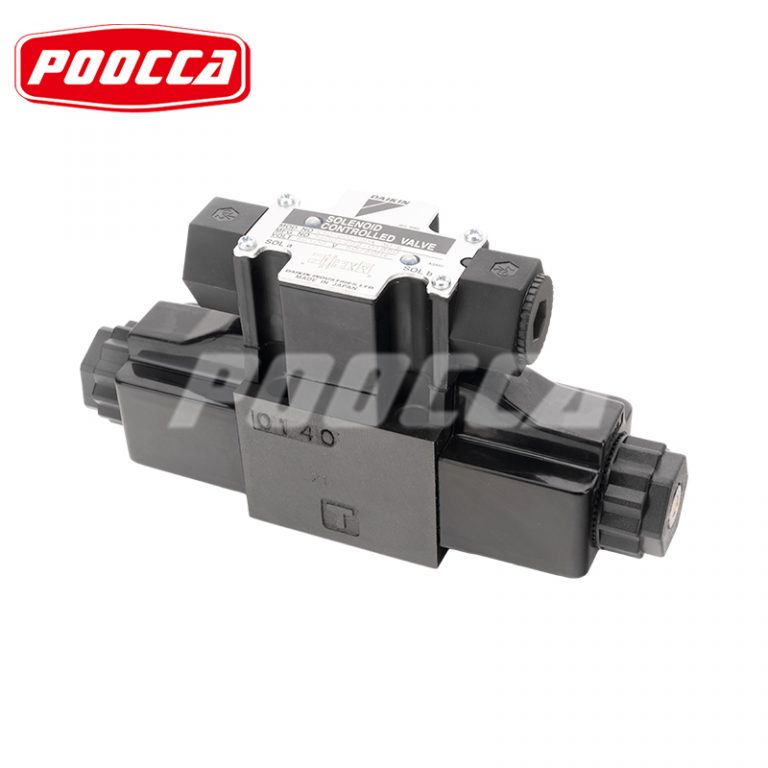

KSO hydraulic valve achieves high pressure and large flow rate of 35MPa{350kgf/cm2}, 100L/min.(G02), 160L/min.(G03).
Solenoid operated valve KSO is mainly applicable to the dust and water proof structure in accordance with IEC Pub529 IP65, and also complies with European safety standards (CE).
| Modelย No. | Nom. Dia. | Max. operatingย pressure
MPa {kgf/cm2} |
Max. flowย rateย L/min | Permissible back
pressure MPa {kgf/cm2} |
Max. switching frequency | Insulation skin | ||
| AC,ย DC | Withย rectifier | Surgeย killer built-inย DINย connector with lump | ||||||
| KSO-G02 | 1/4 | 35ย {350}
(25 {250})ย โ 1 |
100 | 17.5ย {175} | 240 | 120 | 100 | IECย Pub529ย IP65 |
| KSO-G03 | 3/8 | 160ย (DC),ย 130ย (AC) | 16ย {160} | 60 | ||||
|
Application |
|
| Terminal boxย type | Double solenoid,Single solenoid |
| DIN connector type | Double solenoid,Single solenoid |
| Lead wire type | Double solenoid,Single solenoid |
| Model code JIS hydraulic symbols |
Model code JIS hydraulic symbols |
|||||
| Spool operatingย method | Spool operatingย method | |||||
| C,ย N,ย D type | A type | B type | C,ย D type | A type | B type | |
| KSO-G02-2C | KSO-G02-2A-H2 | KSO-G02-2B-2T | KSO-G03-2C | KSO-G03-2A-H2 | KSO-G03-2B-2T | |
| KSO-G02-3C | KSO-G02-3A-H3 | KSO-G02-3B-3T | KSO-G03-3C | KSO-G03-3A-H3 | KSO-G03-3B-3T | |
| KSO-G02-4C | KSO-G02-81A-H4 | KSO-G02-8B-4T | KSO-G03-4C | KSO-G03-81A-H4 | KSO-G03-8B-4T | |
| KSO-G02-44C | KSO-G02-81A-H44 | KSO-G02-8B-44T | KSO-G03-44C | KSO-G03-81A-H44 | KSO-G03-8B-44T | |
| KSO-G02-5C | KSO-G02-3A-T5 | KSO-G02-3B-5H | KSO-G03-5C | KSO-G03-3A-T5 | KSO-G03-3B-5H | |
| KSO-G02-66C | KSO-G02-3A-T66 | KSO-G02-3B-66H | KSO-G03-66C | KSO-G03-3A-T66 | KSO-G03-3B-66H | |
| KSO-G02-7C | KSO-G02-9A-H7 | KSO-G02-91B-7T | KSO-G03-7C | KSO-G03-9A-H7 | KSO-G03-91B-7T | |
| KSO-G02-8C | KSO-G02-2A-H8 | KSO-G02-8B-8T | KSO-G03-8C | KSO-G03-2A-H8 | KSO-G03-8B-8T | |
| KSO-G02-9C | KSO-G02-9A-H9 | KSO-G02-2B-9T | KSO-G03-9C | KSO-G03-9A-H9 | KSO-G03-2B-9T | |
| KSO-G02-2N | KSO-G02-2B | KSO-G03-2D | KSO-G03-2B | |||
| KSO-G02-20N | KSO-G02-3B | KSO-G03-20D | KSO-G03-3B | |||
| KSO-G02-2D | KSO-G02-20B | KSO-G03-20B | ||||
| KSO-G02-20D | ||||||
KSO hydraulic valve achieves high pressure and large flow rate of 35MPa{350kgf/cm2}, 100L/min.(G02), 160L/min.(G03).
Solenoid operated valve KSO is mainly applicable to the dust and water proof structure in accordance with IEC Pub529 IP65, and also complies with European safety standards (CE).
| Modelย No. | Nom. Dia. | Max. operatingย pressure
MPa {kgf/cm2} |
Max. flowย rateย L/min | Permissible back
pressure MPa {kgf/cm2} |
Max. switching frequency | Insulation skin | ||
| AC,ย DC | Withย rectifier | Surgeย killer built-inย DINย connector with lump | ||||||
| KSO-G02 | 1/4 | 35ย {350}
(25 {250})ย โ 1 |
100 | 17.5ย {175} | 240 | 120 | 100 | IECย Pub529ย IP65 |
| KSO-G03 | 3/8 | 160ย (DC),ย 130ย (AC) | 16ย {160} | 60 | ||||
|
Application |
|
| Terminal boxย type | Double solenoid,Single solenoid |
| DIN connector type | Double solenoid,Single solenoid |
| Lead wire type | Double solenoid,Single solenoid |
| Model code JIS hydraulic symbols |
Model code JIS hydraulic symbols |
|||||
| Spool operatingย method | Spool operatingย method | |||||
| C,ย N,ย D type | A type | B type | C,ย D type | A type | B type | |
| KSO-G02-2C | KSO-G02-2A-H2 | KSO-G02-2B-2T | KSO-G03-2C | KSO-G03-2A-H2 | KSO-G03-2B-2T | |
| KSO-G02-3C | KSO-G02-3A-H3 | KSO-G02-3B-3T | KSO-G03-3C | KSO-G03-3A-H3 | KSO-G03-3B-3T | |
| KSO-G02-4C | KSO-G02-81A-H4 | KSO-G02-8B-4T | KSO-G03-4C | KSO-G03-81A-H4 | KSO-G03-8B-4T | |
| KSO-G02-44C | KSO-G02-81A-H44 | KSO-G02-8B-44T | KSO-G03-44C | KSO-G03-81A-H44 | KSO-G03-8B-44T | |
| KSO-G02-5C | KSO-G02-3A-T5 | KSO-G02-3B-5H | KSO-G03-5C | KSO-G03-3A-T5 | KSO-G03-3B-5H | |
| KSO-G02-66C | KSO-G02-3A-T66 | KSO-G02-3B-66H | KSO-G03-66C | KSO-G03-3A-T66 | KSO-G03-3B-66H | |
| KSO-G02-7C | KSO-G02-9A-H7 | KSO-G02-91B-7T | KSO-G03-7C | KSO-G03-9A-H7 | KSO-G03-91B-7T | |
| KSO-G02-8C | KSO-G02-2A-H8 | KSO-G02-8B-8T | KSO-G03-8C | KSO-G03-2A-H8 | KSO-G03-8B-8T | |
| KSO-G02-9C | KSO-G02-9A-H9 | KSO-G02-2B-9T | KSO-G03-9C | KSO-G03-9A-H9 | KSO-G03-2B-9T | |
| KSO-G02-2N | KSO-G02-2B | KSO-G03-2D | KSO-G03-2B | |||
| KSO-G02-20N | KSO-G02-3B | KSO-G03-20D | KSO-G03-3B | |||
| KSO-G02-2D | KSO-G02-20B | KSO-G03-20B | ||||
| KSO-G02-20D | ||||||
