Mounting | flange mounting | ||||
Pipe connection threaded connection | |||||
Direction of rotation clockwise or anticlockwise | |||||
Fitting position | optional | ||||
Ambient temperature | ϑu min ϑu max | = – 20 °C
= 60 °C |
|||
Working pressure Working pressure | Inlet port
Short time |
pe min pe max | = – 0.3 bar (vacuum)
= 2.5 bar |
||
Working pressure Outlet port pe max see technical data | |||||
Fluid temperature ϑm max 85 °C | |||||
Viscosity νmin = 10 mm2/s
νmax = 1400 mm2/s |
|||||
Recommended oil cleanliness | class 19/16 acc. to ISO / DIS 4406
➧ class 10 acc. to NAS 1638 |
||||
Recommended filtration | filter with filtration quotient
β 20 ≥ 75 for … 280 bar β 25 ≥ 75 for … 100 bar |
||||
Recommended viscosity range ν = 12 … 90 mm2/s | |||||
Discharge flow | see chart page 6 | ||||
Input | power | see chart page 6 | |||
Hydraulic fluids | mineral oil acc. to DIN 51524
bio-oils of type „HEES“ can be used up to 70 °C, max. pressure must be reduced minus 20 % (use only on request) |
Nominal size |
geom . displace- ment Vg |
max . pressure |
Nominal pressure |
Continuous working pressure |
Speed | |
cm3/rev | pmax bar |
p N bar |
p D bar |
n max rpm |
n min rpm |
|
1 | 1.4 | 280 | 260 | 220 | 4000 | 700 |
2 | 1.9 | 280 | 260 | 220 | 4000 | 700 |
3 | 3.1 | 260 | 250 | 210 | 4000 | 700 |
4 | 4.4 | 260 | 250 | 210 | 4000 | 700 |
6 | 6.1 | 260 | 250 | 210 | 3000 | 700 |
8 | 7.9 | 200 | 180 | 160 | 3000 | 700 |

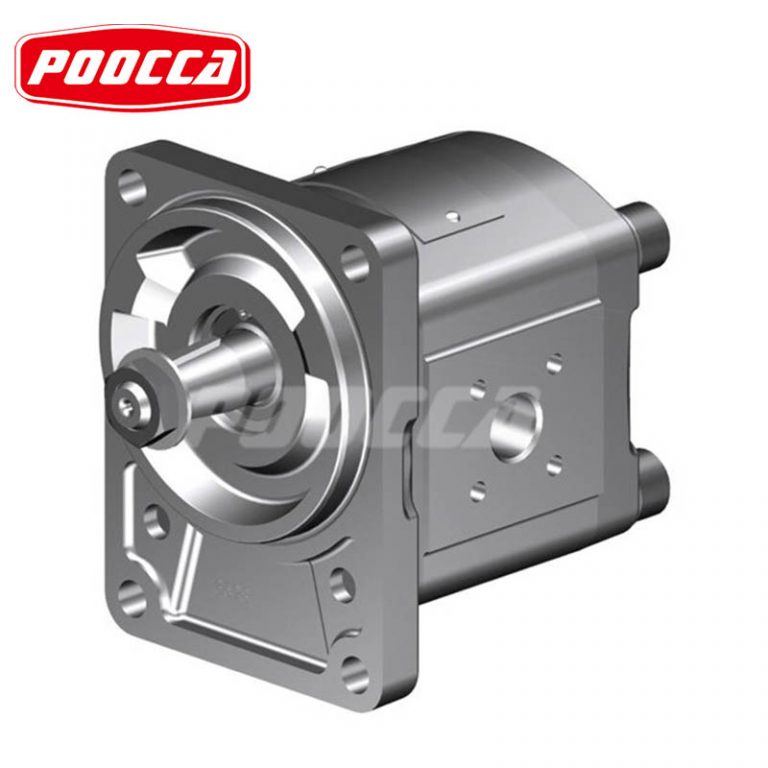

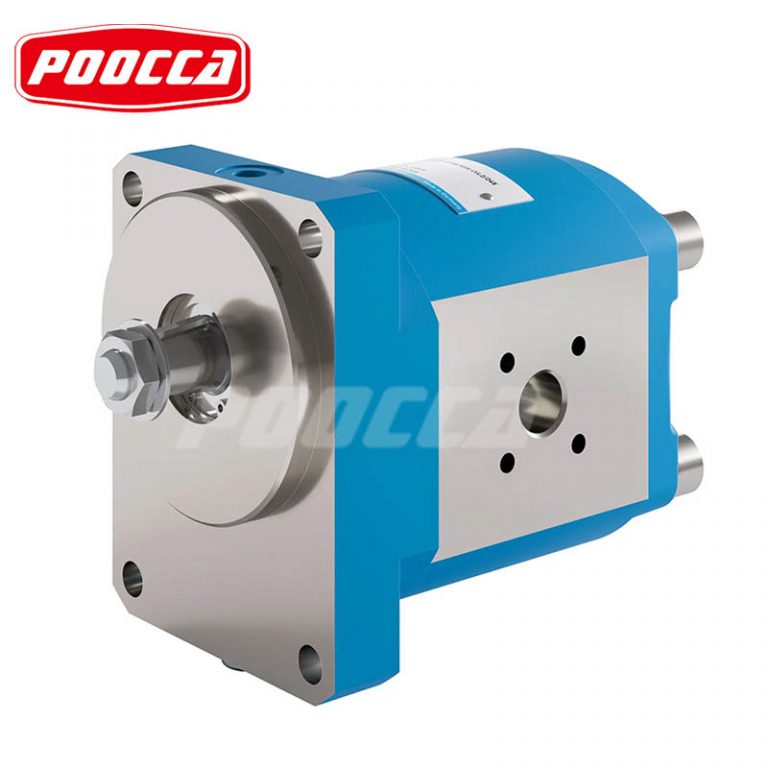

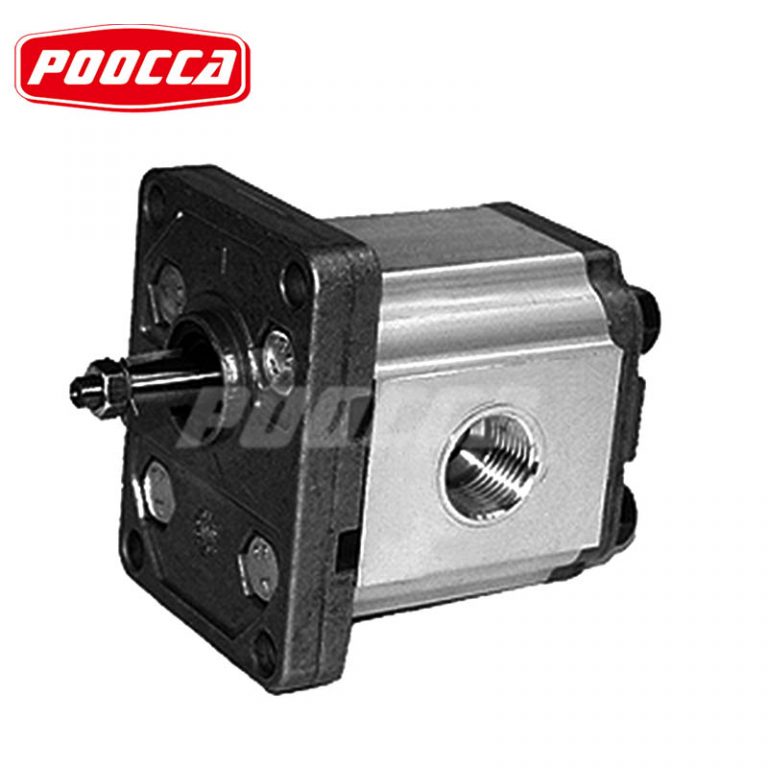

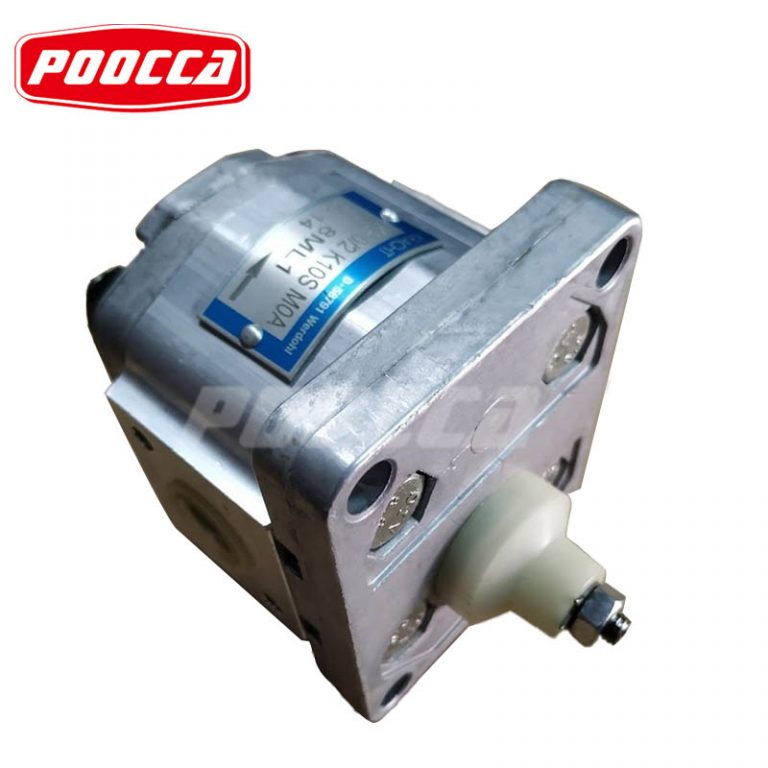

Due to their design, the Kracht KP 0 external gear pump is a so-called gland pump. The basic functional elements, gears and bearing glands are housed in a high-strength extruded alloy aluminum housing, which is laterally limited by cover plates and flange covers.
The gear is made of case-hardened case-hardened steel and consists of a drive shaft wheel and a pin wheel. Highest manufacturing quality is ensured by skiving the tooth flanks.
Kracht KP 0 hydraulic gear pump note that the journals are finely ground. Due to the high number of teeth (n = 12) and the special tooth shape, design-related volumetric flow fluctuations and associated pressure pulsations are significantly reduced.
Gland bearings located on both sides of the gear carry the journals in heavy-duty multi-component plain bearing bushings and additionally contain sealing elements for pressure field sealing to compensate for axial clearance.
At Poocca, customization is at the heart of what we do. From custom model specifications to personalized logos and packaging, we offer a full range of customization options to meet your unique needs. Our team of professionals work closely with you to experience Poocca customization.
Poocca is a leading hydraulic manufacturer with over 20 years of industry expertise. With stable partnerships in multiple countries, we have won unanimous praise for our competitive prices and excellent quality. Our commitment to excellence ensures customers around the world trust us to meet their hydraulic needs. Whether it’s reliability, performance or innovation, Poocca delivers reliable solutions that exceed expectations. Choose Poocca for hydraulic solutions you can trust.
