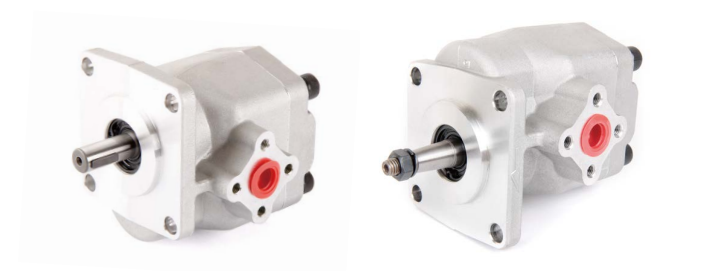

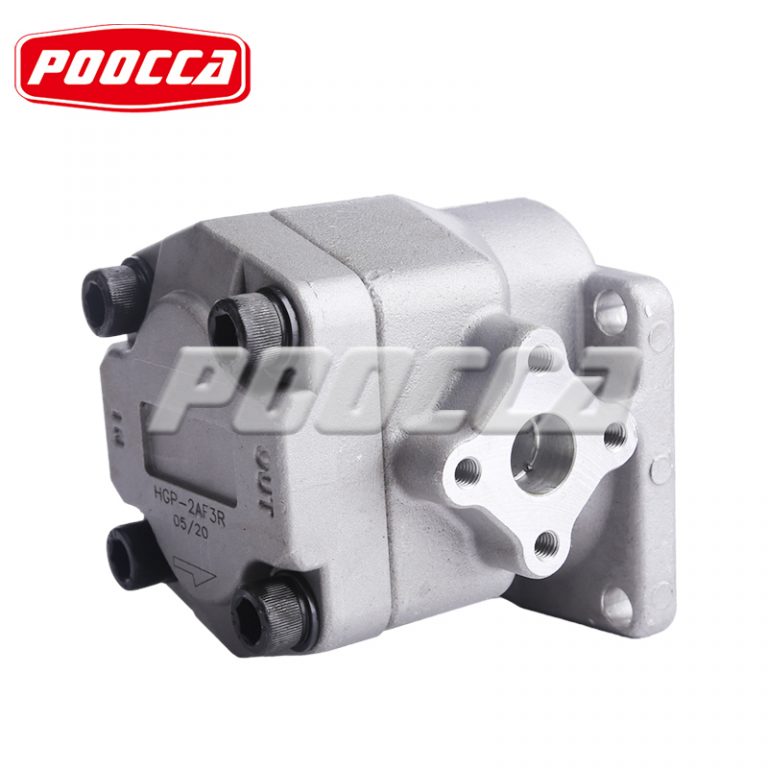

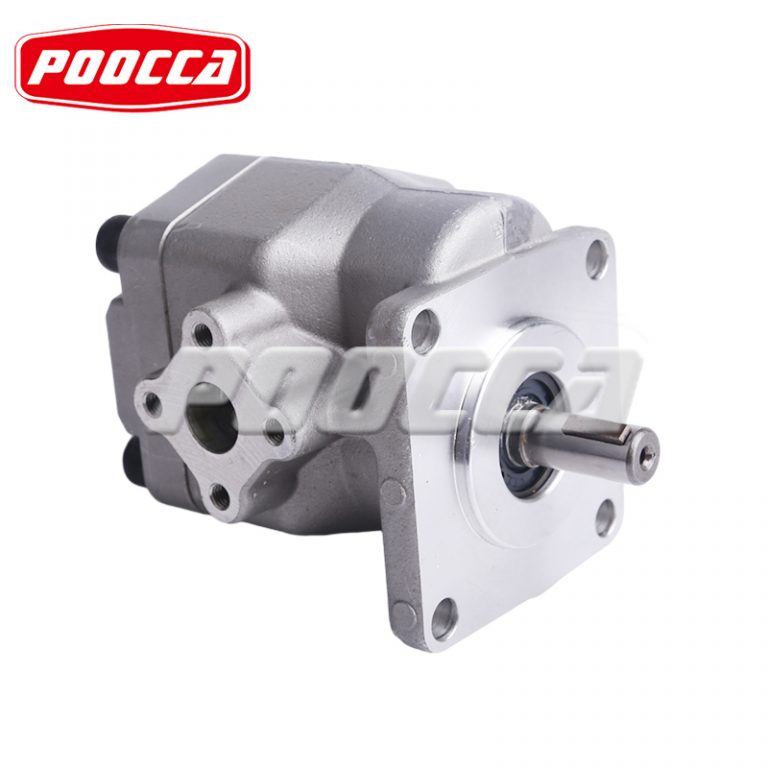

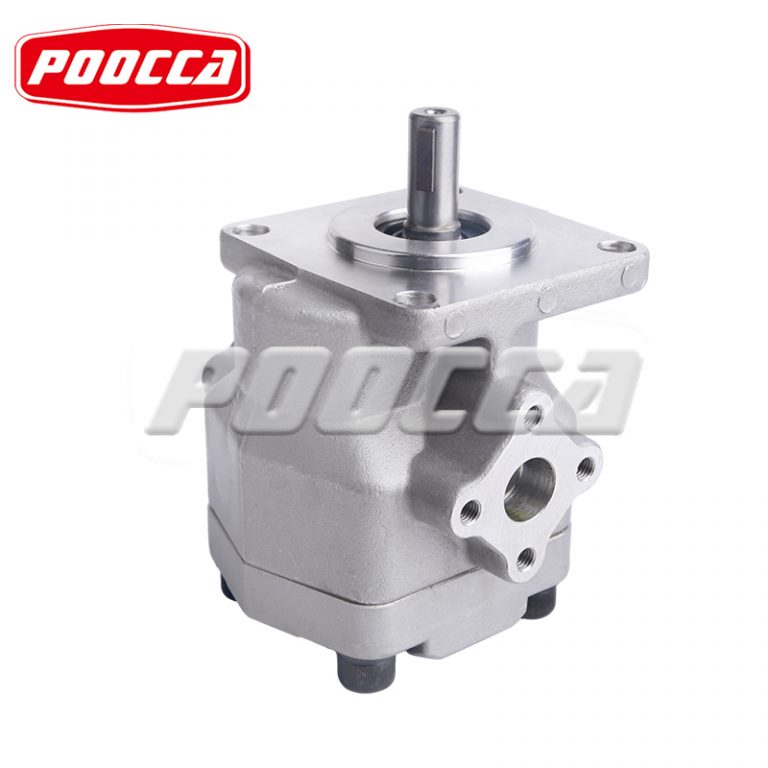

– **Model name: HGP-2A
– **Installation method: Two installation options are provided:
– F flange type
– L tripod type
– **Conveying capacity: The optional range is 2, 3, 4, 5, 6, 8, 9, 11, 12 cc/revolution to meet different flow requirements.
– **Rotation direction: optional
– R clockwise
– L counterclockwise
### Axis type

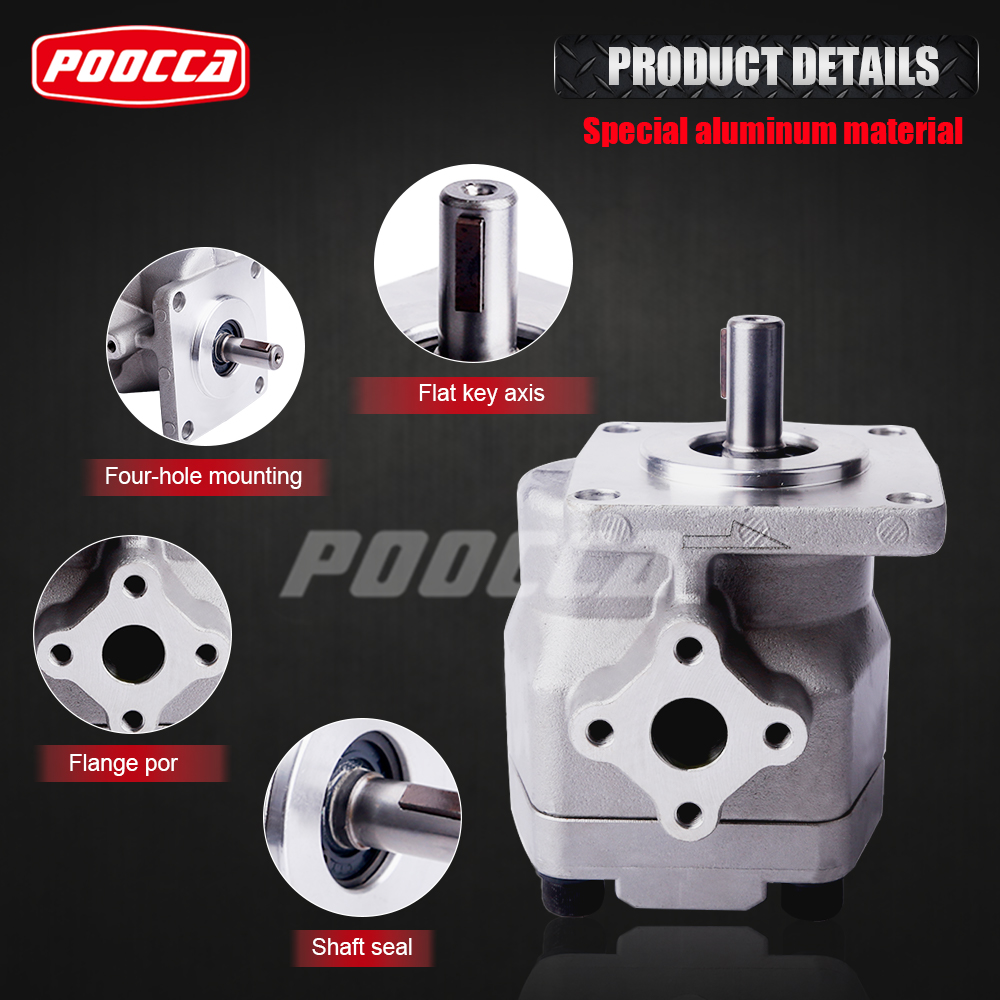

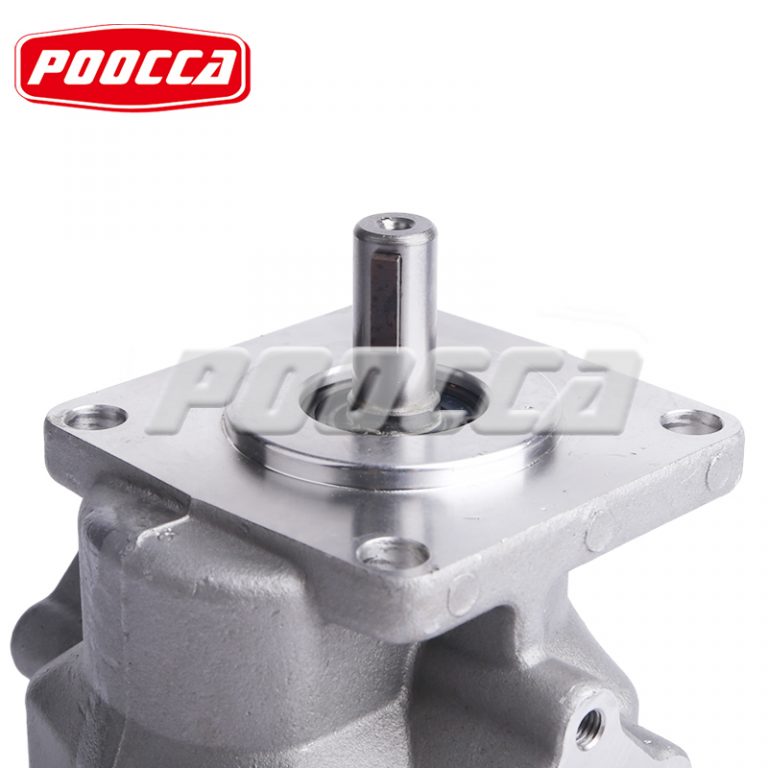

– X straight axis
– Y spline shaft
– Z tapered shaft
– W square shaft
### Flange mounting type
– 4BJ: JIS 4-hole flange, convenient for connection and installation of various equipment.
Import and export interface types
– F: Flange type (F1)
– G: BSPPF (G1~G2)
– P: PT (P1~P2)
### Main advantages
1. Various configuration options: By choosing different installation methods, rotation directions and shaft types, users can customize the pump configuration according to specific needs.
2. High adaptability: The wide range of conveying capacity makes it suitable for a variety of application scenarios from low to high flow requirements.
3. High pressure resistance: Design pressure is up to 250 kgf/cmยฒ (3500 psi), suitable for harsh working environments.
4. Flexible installation: JIS 4-hole flange design makes it compatible with a variety of equipment and easy to install.
| Model | Accurate Displacement Capacity | Operational Pressure | Max. Pressure ( kgf/cm2 ) | Speed( r.p.m. ) | Weight | ||
| Rate | Max. | Min. | ( kg ) | ||||
| HGP-2A-2 | 2 | 210 | 250 | 1800 | 5000 | 1000 | 1.69 |
| HGP-2A-25 | 2.5 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-3 | 3 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-4 | 4 | 210 | 250 | 1800 | 4500 | 800 | 1.71 |
| HGP-2A-5 | 5 | 210 | 250 | 1800 | 3500 | 700 | 1.71 |
| HGP-2A-6 | 6 | 210 | 250 | 1800 | 3500 | 700 | 1.72 |
| HGP-2A-8 | 7.5 | 210 | 250 | 1800 | 3000 | 600 | 1.74 |
| HGP-2A-9 | 9 | 210 | 250 | 1800 | 2500 | 550 | 1.74 |
| HGP-2A-11 | 10.5 | 210 | 250 | 1800 | 2000 | 500 | 1.74 |
| HGP-2A-12 | 12 | 175 | 210 | 1800 | 2000 | 500 | 1.76 |
Every choice is an affirmation of quality and service. Poocca is always committed to maintaining product quality and service to provide stronger support to our hydraulic pump customers. Let us join hands to create a better future! Hydraulic pump manufacturers always adhere to the business philosophy of “customer first, quality first” and continuously improve product quality and customer satisfaction. Quality and Service Poocca firmly believes that quality and service are the cornerstones of enterprise development.
We pay attention to every production link, from the procurement of raw materials to the delivery of finished products, and strictly control every step to ensure the excellent performance of our products. We provide comprehensive after-sales service to promptly resolve any problems our customers encounter, ensuring their equipment is always in optimal operating condition.
Suitable for a wide range of devices, such as civil construction machinery, industrial vehicles, handling machinery, agricultural and fishery machinery, etc.
– **Model name: HGP-2A
– **Installation method: Two installation options are provided:
– F flange type
– L tripod type
– **Conveying capacity: The optional range is 2, 3, 4, 5, 6, 8, 9, 11, 12 cc/revolution to meet different flow requirements.
– **Rotation direction: optional
– R clockwise
– L counterclockwise
### Axis type
– X straight axis
– Y spline shaft
– Z tapered shaft
– W square shaft
### Flange mounting type
– 4BJ: JIS 4-hole flange, convenient for connection and installation of various equipment.
Import and export interface types
– F: Flange type (F1)
– G: BSPPF (G1~G2)
– P: PT (P1~P2)
### Main advantages
1. Various configuration options: By choosing different installation methods, rotation directions and shaft types, users can customize the pump configuration according to specific needs.
2. High adaptability: The wide range of conveying capacity makes it suitable for a variety of application scenarios from low to high flow requirements.
3. High pressure resistance: Design pressure is up to 250 kgf/cmยฒ (3500 psi), suitable for harsh working environments.
4. Flexible installation: JIS 4-hole flange design makes it compatible with a variety of equipment and easy to install.
| Model | Accurate Displacement Capacity | Operational Pressure | Max. Pressure ( kgf/cm2 ) | Speed( r.p.m. ) | Weight | ||
| Rate | Max. | Min. | ( kg ) | ||||
| HGP-2A-2 | 2 | 210 | 250 | 1800 | 5000 | 1000 | 1.69 |
| HGP-2A-25 | 2.5 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-3 | 3 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-4 | 4 | 210 | 250 | 1800 | 4500 | 800 | 1.71 |
| HGP-2A-5 | 5 | 210 | 250 | 1800 | 3500 | 700 | 1.71 |
| HGP-2A-6 | 6 | 210 | 250 | 1800 | 3500 | 700 | 1.72 |
| HGP-2A-8 | 7.5 | 210 | 250 | 1800 | 3000 | 600 | 1.74 |
| HGP-2A-9 | 9 | 210 | 250 | 1800 | 2500 | 550 | 1.74 |
| HGP-2A-11 | 10.5 | 210 | 250 | 1800 | 2000 | 500 | 1.74 |
| HGP-2A-12 | 12 | 175 | 210 | 1800 | 2000 | 500 | 1.76 |
Every choice is an affirmation of quality and service. Poocca is always committed to maintaining product quality and service to provide stronger support to our hydraulic pump customers. Let us join hands to create a better future! Hydraulic pump manufacturers always adhere to the business philosophy of “customer first, quality first” and continuously improve product quality and customer satisfaction. Quality and Service Poocca firmly believes that quality and service are the cornerstones of enterprise development.
We pay attention to every production link, from the procurement of raw materials to the delivery of finished products, and strictly control every step to ensure the excellent performance of our products. We provide comprehensive after-sales service to promptly resolve any problems our customers encounter, ensuring their equipment is always in optimal operating condition.
Suitable for a wide range of devices, such as civil construction machinery, industrial vehicles, handling machinery, agricultural and fishery machinery, etc.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
