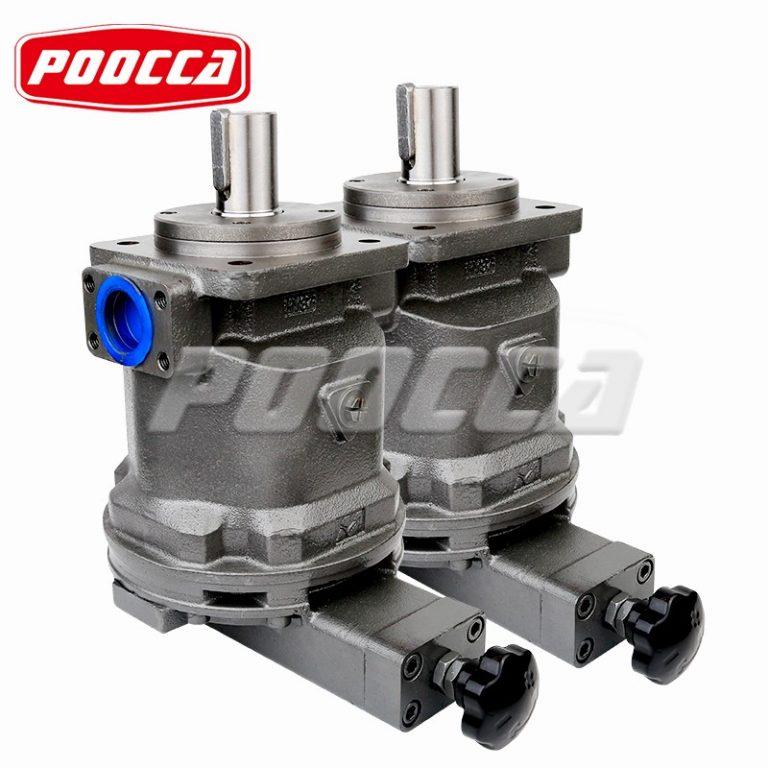

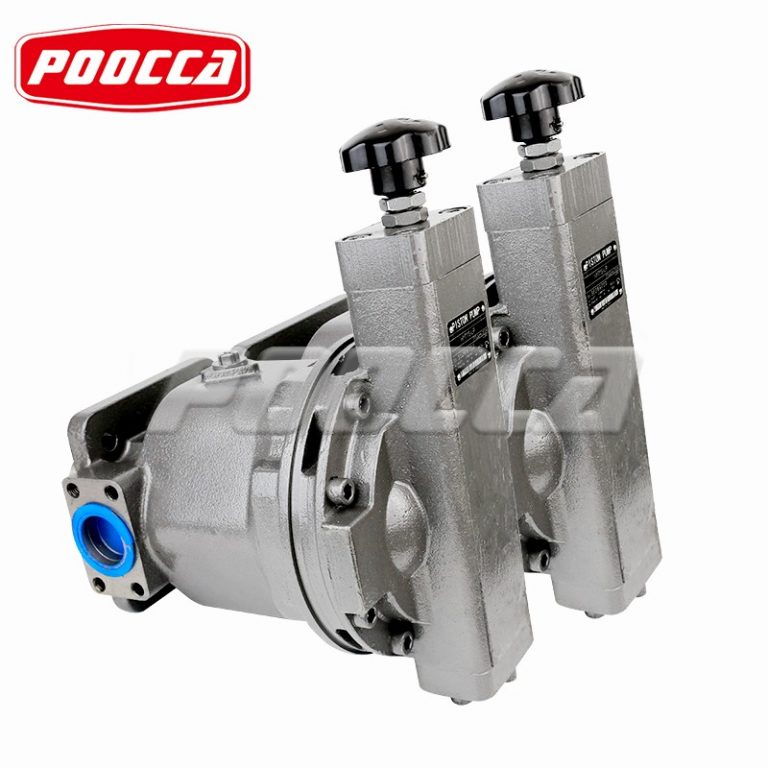

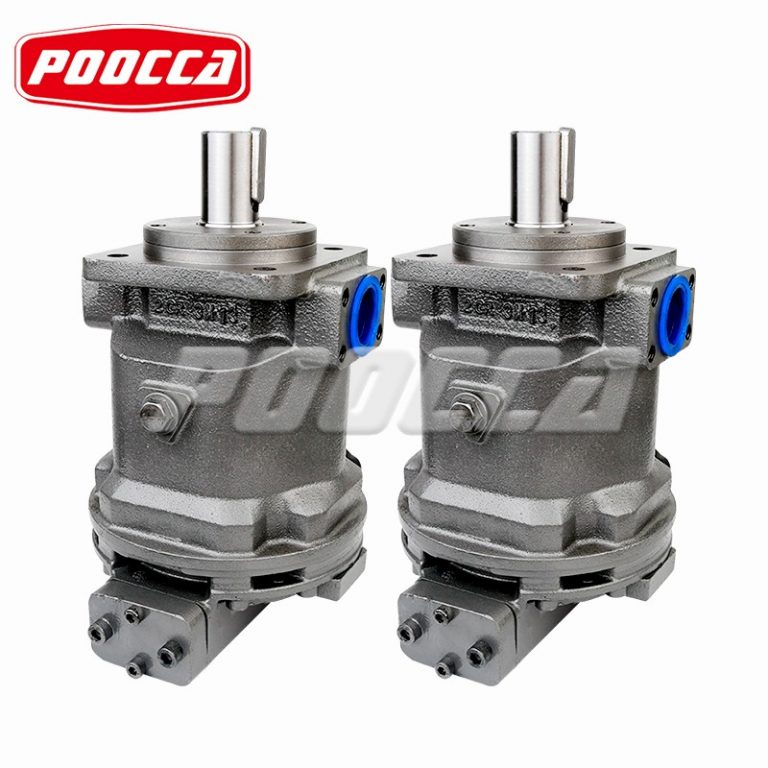

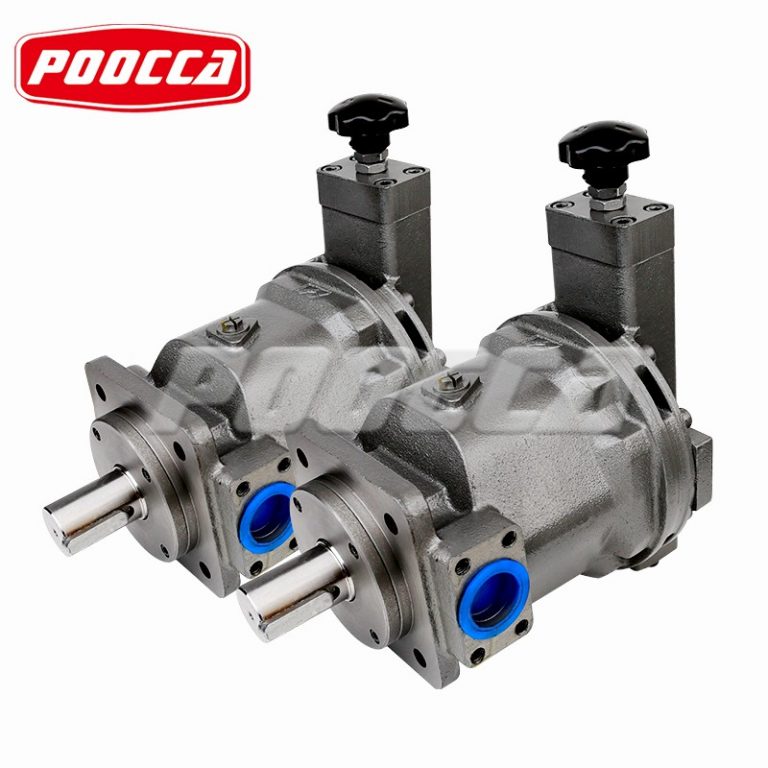

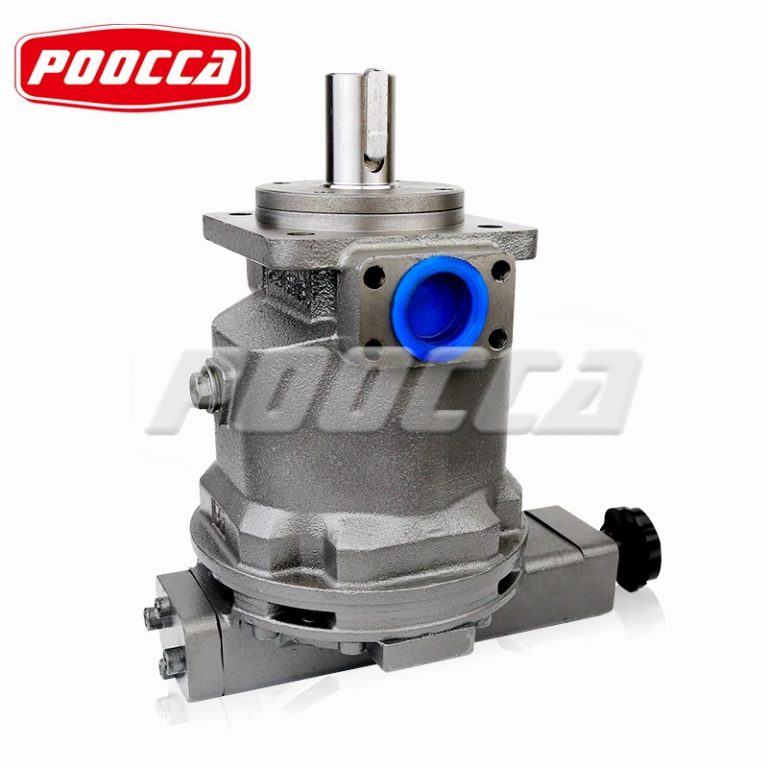

HY Series Axial Piston Pump
Sizes: 10 to 320
Max. Pressure upto 400 Bar
HY piston pump HY10,HY16,HY18,HY25,HY28,HY32,HY40,HY45,HY55,HY63,HY71,HY80,HY90,HY95,HY100,HY107,HY125,HY140,HY160,HY80,
HY200,HY225,HY250,HY280,HY300,HY320
Hydraulic Piston Pumps: 3/11 Series
The 3/11 Series hydraulic piston pumps from our Poocca Piston Pumps Manufacturers are designed for high performance and reliability in demanding applications. With their rugged design and quality materials, these pumps are ideal for a wide range of industrial and mobile hydraulic systems.
Technical Specifications:
Operating Pressure Range – Inlet:
Inlet Absolute Pressure: HY piston pumps operate efficiently at an absolute minimum inlet pressure of 0.8 bar and can handle a maximum inlet pressure of 30 bar.
Outlet Pressure:
Nominal Pressure (PN): Designed to operate continuously at a nominal pressure of 315 bar, ensuring reliable performance in a wide range of applications.
Peak Pressure (Pmax): Capable of withstanding peak pressures up to 400 bar, providing flexibility and safety in high pressure situations.
Clearance Working Pressure:
HY hydraulic pumps are designed to effectively handle clearance working pressures even at 10% of the cycle, ensuring durability and efficiency under varying load conditions.
Case Drain Pressure:
The pumps are designed with the maximum permissible case drain pressure in mind, ensuring optimal performance and life.
These technical capabilities make the 3/11 Series hydraulic piston pumps the first choice for applications requiring precision and durability.
| Displacement | Vg | ml | 10 | 16 | 18 | 25 | 28 | 32 | 40 | 45 | 55 | 63 | 71 | 80 | 90 | |
| Max. flow | 1500ย r/min | qv | L/min | 15 | 24 | 27 | 37.5 | 42 | 48 | 60 | 67.5 | 82.5 | 94.5 | 106.5 | 120 | 135 |
| Max.ย power | in 315bar@ย 1500r/min | P | kw | 7.9 | 13 | 14 | 19.7 | 22 | 25.2 | 31.5 | 35.4 | 43.3 | 49.6 | 55.9 | 63 | 70.9 |
| Max. torque | in 315bar | Tmax | Nm | 50 | 80 | 90 | 125 | 140 | 160 | 200 | 225 | 275 | 316 | 356 | 401 | 451 |
| Displacement | Vg | ml | 95 | 100 | 107 | 125 | 140 | 160 | 180 | 200 | 225 | 250 | 280 | 300 | 320 | |
| Max. flow | 1500ย r/min | qv | L/min | 143 | 150 | 160.5 | 187.5 | 210 | 240 | 270 | 300 | 337.5 | 375 | 420 | 450 | 480 |
| Max.ย power | in 315barย @
1500r/min |
P | kw | 74.8 | 78.8 | 84.3 | 98.4 | 110 | 126 | 142 | 157.5 | 177.5 | 196.9 | 220.5 | 236.3 | 252 |
| Max. torque | in 315bar | Tmax | Nm | 476 | 501 | 536 | 626 | 701 | 802 | 902 | 1003 | 1128 | 220.5 | 1403 | 1504 | 1605 |
HY piston pump HY10,HY16,HY18,HY25,HY28,HY32,HY40,HY45,HY55,HY63,HY71,HY80,HY90,HY95,HY100,HY107,HY125,HY140,HY160,HY80,
HY200,HY225,HY250,HY280,HY300,HY320
Poocca Hydraulics specializes in a wide range of hydraulic products, including gear pumps, piston pumps, motors, vane pumps, hydraulic valves, hydraulic accessories, power units, and sensors. With over 1,600 products, we can meet the needs of a wide range of applications.
Our standard products are usually in stock and available for immediate delivery. We also offer custom options that allow you to customize the size, nameplate, and packaging to your specific requirements. Whether you need a standard solution or a custom-designed product, Poocca can provide a reliable and efficient solution for your hydraulic needs.
If you need more information, please feel free to ask!
Hydraulic Piston Pumps: 3/11 Series
The 3/11 Series hydraulic piston pumps from our Poocca Piston Pumps Manufacturers are designed for high performance and reliability in demanding applications. With their rugged design and quality materials, these pumps are ideal for a wide range of industrial and mobile hydraulic systems.
Technical Specifications:
Operating Pressure Range – Inlet:
Inlet Absolute Pressure: HY piston pumps operate efficiently at an absolute minimum inlet pressure of 0.8 bar and can handle a maximum inlet pressure of 30 bar.
Outlet Pressure:
Nominal Pressure (PN): Designed to operate continuously at a nominal pressure of 315 bar, ensuring reliable performance in a wide range of applications.
Peak Pressure (Pmax): Capable of withstanding peak pressures up to 400 bar, providing flexibility and safety in high pressure situations.
Clearance Working Pressure:
HY hydraulic pumps are designed to effectively handle clearance working pressures even at 10% of the cycle, ensuring durability and efficiency under varying load conditions.
Case Drain Pressure:
The pumps are designed with the maximum permissible case drain pressure in mind, ensuring optimal performance and life.
These technical capabilities make the 3/11 Series hydraulic piston pumps the first choice for applications requiring precision and durability.
| Displacement | Vg | ml | 10 | 16 | 18 | 25 | 28 | 32 | 40 | 45 | 55 | 63 | 71 | 80 | 90 | |
| Max. flow | 1500ย r/min | qv | L/min | 15 | 24 | 27 | 37.5 | 42 | 48 | 60 | 67.5 | 82.5 | 94.5 | 106.5 | 120 | 135 |
| Max.ย power | in 315bar@ย 1500r/min | P | kw | 7.9 | 13 | 14 | 19.7 | 22 | 25.2 | 31.5 | 35.4 | 43.3 | 49.6 | 55.9 | 63 | 70.9 |
| Max. torque | in 315bar | Tmax | Nm | 50 | 80 | 90 | 125 | 140 | 160 | 200 | 225 | 275 | 316 | 356 | 401 | 451 |
| Displacement | Vg | ml | 95 | 100 | 107 | 125 | 140 | 160 | 180 | 200 | 225 | 250 | 280 | 300 | 320 | |
| Max. flow | 1500ย r/min | qv | L/min | 143 | 150 | 160.5 | 187.5 | 210 | 240 | 270 | 300 | 337.5 | 375 | 420 | 450 | 480 |
| Max.ย power | in 315barย @
1500r/min |
P | kw | 74.8 | 78.8 | 84.3 | 98.4 | 110 | 126 | 142 | 157.5 | 177.5 | 196.9 | 220.5 | 236.3 | 252 |
| Max. torque | in 315bar | Tmax | Nm | 476 | 501 | 536 | 626 | 701 | 802 | 902 | 1003 | 1128 | 220.5 | 1403 | 1504 | 1605 |
HY piston pump HY10,HY16,HY18,HY25,HY28,HY32,HY40,HY45,HY55,HY63,HY71,HY80,HY90,HY95,HY100,HY107,HY125,HY140,HY160,HY80,
HY200,HY225,HY250,HY280,HY300,HY320
Poocca Hydraulics specializes in a wide range of hydraulic products, including gear pumps, piston pumps, motors, vane pumps, hydraulic valves, hydraulic accessories, power units, and sensors. With over 1,600 products, we can meet the needs of a wide range of applications.
Our standard products are usually in stock and available for immediate delivery. We also offer custom options that allow you to customize the size, nameplate, and packaging to your specific requirements. Whether you need a standard solution or a custom-designed product, Poocca can provide a reliable and efficient solution for your hydraulic needs.
If you need more information, please feel free to ask!
