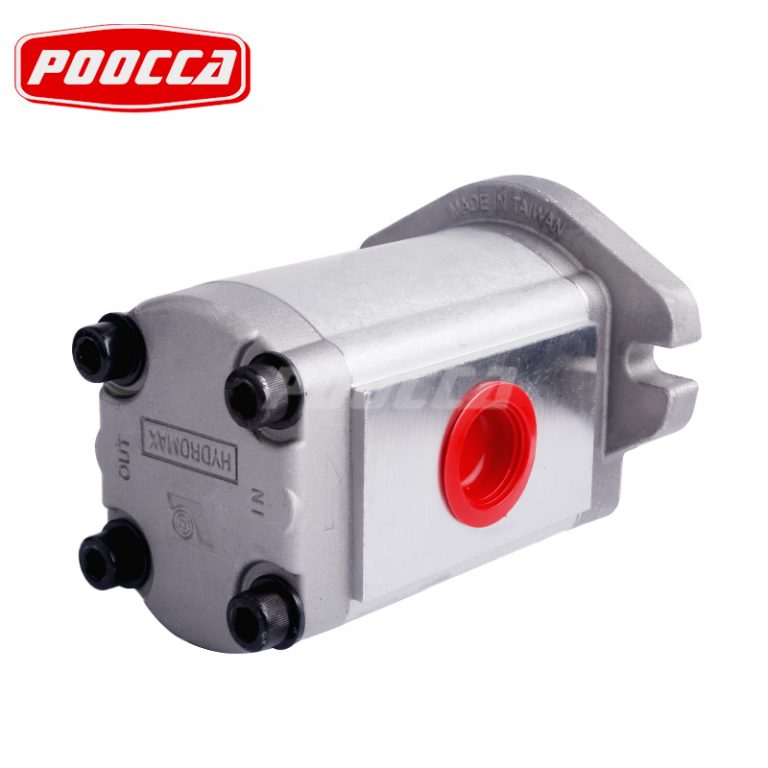

Hydromax HGP-3A gear pump also use high-quality materials, combined with precision processing technology, to make the pump body and shaft fit more closely, reduce the possibility of leakage, and ensure the durability of the pump under harsh working conditions.
HGP-3A-2,HGP-3A-3,HGP-3A-4,HGP-3A-6,HGP-3A-8,HGP-3A-11,HGP-3A-13,HGP-3A-14,HGP-3A-17,HGP-3A-19,HGP-3A-23,HGP-3A-25,HGP-3A-28,HGP-3A-30,HGP-3A-33,HGP-3A-35
Displacement: 2 to 35 cc per revolution, providing flexibility and adaptability to hydraulic systems.
Pressure Capacity: Hydromax HGP gear pumps are rated for a maximum pressure of 250 Bar (3500 psi).
Direction of Rotation: Designed to rotate clockwise, providing consistent and precise hydraulic power delivery.
Shaft Type: HGP3A gear pumps feature a straight shaft, simplifying installation and compatibility with a wide range of hydraulic systems, ensuring easy integration and reliable performance.
Pressure Capacity: The hydraulic pumps are capable of withstanding pressures up to 250 kgf/cm2 (3500 psi), providing ruggedness and durability

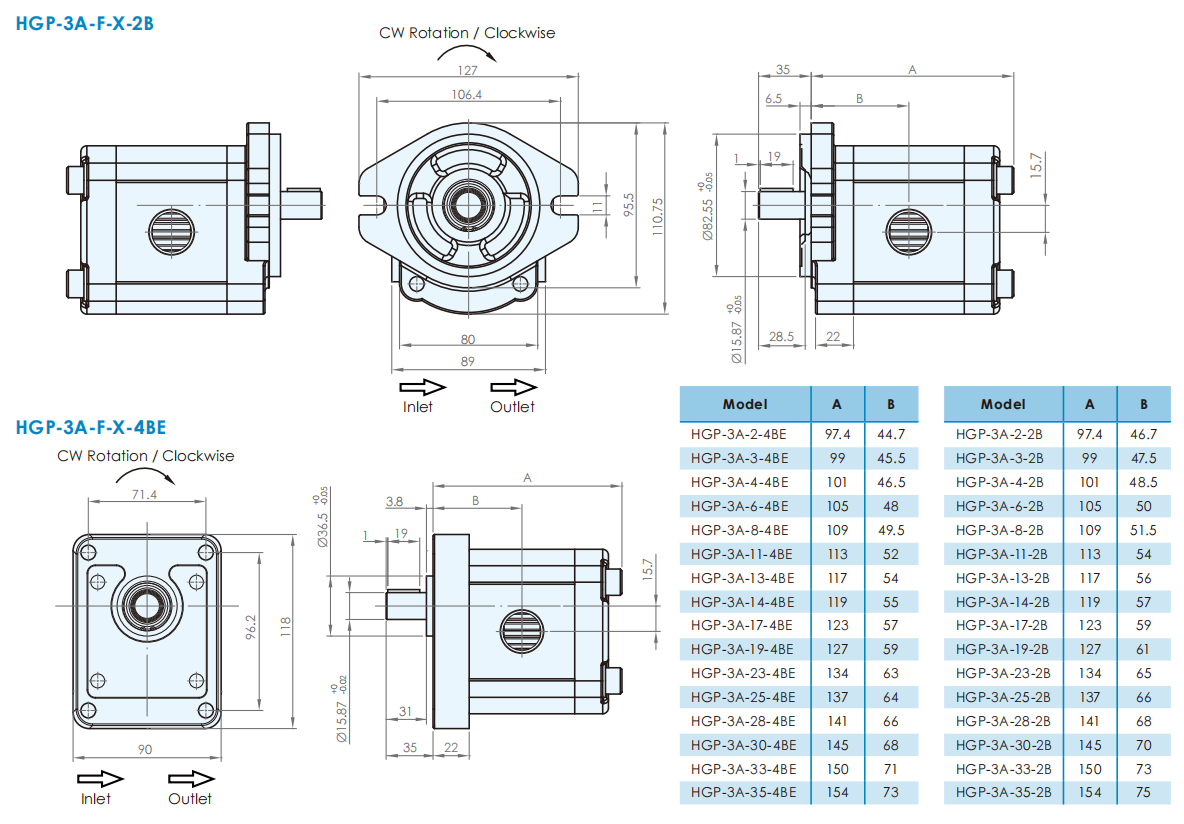

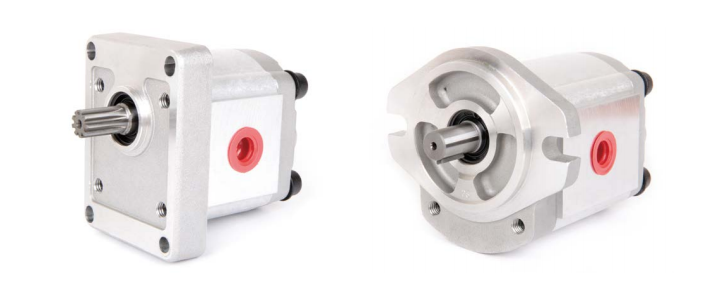

Flange Options: A variety of flange options are available, including SAE 2-bolt, DIN 4-bolt, and European 4-bolt configurations, providing installation versatility and compatibility with different hydraulics.
| Model | Accurate Displacement Capacity | Operational Pressure | Max. Pressure ( kgf/cm2 ) |
Speed( r.p.m. ) | Weight | ||
| Rate | Max. | Min. | ( kg ) | ||||
| HGP-3A-2 | 2 | 210 | 250 | 1800 | 4000 | 700 | 2.19 |
| HGP-3A-3 | 3 | 210 | 250 | 1800 | 4000 | 700 | 2.23 |
| HGP-3A-4 | 4 | 210 | 250 | 1800 | 4000 | 700 | 2.29 |
| HGP-3A-6 | 6 | 210 | 250 | 1800 | 4000 | 700 | 2.37 |
| HGP-3A-8 | 8.4 | 210 | 250 | 1800 | 3500 | 700 | 2.45 |
| HGP-3A-11 | 11 | 210 | 250 | 1800 | 3000 | 600 | 2.6 |
| HGP-3A-13 | 13 | 210 | 250 | 1800 | 3000 | 600 | 2.7 |
| HGP-3A-14 | 14.3 | 210 | 250 | 1800 | 3000 | 500 | 2.76 |
| HGP-3A-17 | 16.5 | 210 | 250 | 1800 | 3000 | 500 | 2.87 |
| HGP-3A-19 | 19.2 | 210 | 250 | 1800 | 3000 | 500 | 2.99 |
| HGP-3A-23 | 23 | 210 | 250 | 1800 | 3000 | 500 | 3.19 |
| HGP-3A-25 | 25 | 175 | 210 | 1800 | 2800 | 500 | 3.24 |
| HGP-3A-28 | 28 | 175 | 210 | 1800 | 2500 | 500 | 3.35 |
| HGP-3A-30 | 30 | 175 | 210 | 1800 | 2500 | 500 | 3.45 |
| HGP-3A-33 | 33 | 140 | 175 | 1200 | 2500 | 500 | 3.6 |
| HGP-3A-35 | 35 | 125 | 140 | 1200 | 2500 | 500 | 3.71 |
ย
Hydromax HGP3A gear pump are available in a variety of shaft sizes. These shaft diameters include: ฯ15.85mm, ฯ17.46mm, ฯ18mm, etc. These shafts of different sizes can meet the different needs of your products in terms of flow, pressure, power, etc.
In order to ensure that you can select the shaft size that best suits your product, POOCCA Hydraulic Factory provides you with professional selection guidance. Our engineers will recommend the appropriate gear pump and shaft size for you based on your actual application scenarios and needs. In addition, we also provide customization services to customize specially sized shafts according to your special requirements.
Displacement: 2 to 35 cc per revolution, providing flexibility and adaptability to hydraulic systems.
Pressure Capacity: Hydromax HGP gear pumps are rated for a maximum pressure of 250 Bar (3500 psi).
Direction of Rotation: Designed to rotate clockwise, providing consistent and precise hydraulic power delivery.
Shaft Type: HGP3A gear pumps feature a straight shaft, simplifying installation and compatibility with a wide range of hydraulic systems, ensuring easy integration and reliable performance.
Pressure Capacity: The hydraulic pumps are capable of withstanding pressures up to 250 kgf/cm2 (3500 psi), providing ruggedness and durability
Flange Options: A variety of flange options are available, including SAE 2-bolt, DIN 4-bolt, and European 4-bolt configurations, providing installation versatility and compatibility with different hydraulics.
| Model | Accurate Displacement Capacity | Operational Pressure | Max. Pressure ( kgf/cm2 ) |
Speed( r.p.m. ) | Weight | ||
| Rate | Max. | Min. | ( kg ) | ||||
| HGP-3A-2 | 2 | 210 | 250 | 1800 | 4000 | 700 | 2.19 |
| HGP-3A-3 | 3 | 210 | 250 | 1800 | 4000 | 700 | 2.23 |
| HGP-3A-4 | 4 | 210 | 250 | 1800 | 4000 | 700 | 2.29 |
| HGP-3A-6 | 6 | 210 | 250 | 1800 | 4000 | 700 | 2.37 |
| HGP-3A-8 | 8.4 | 210 | 250 | 1800 | 3500 | 700 | 2.45 |
| HGP-3A-11 | 11 | 210 | 250 | 1800 | 3000 | 600 | 2.6 |
| HGP-3A-13 | 13 | 210 | 250 | 1800 | 3000 | 600 | 2.7 |
| HGP-3A-14 | 14.3 | 210 | 250 | 1800 | 3000 | 500 | 2.76 |
| HGP-3A-17 | 16.5 | 210 | 250 | 1800 | 3000 | 500 | 2.87 |
| HGP-3A-19 | 19.2 | 210 | 250 | 1800 | 3000 | 500 | 2.99 |
| HGP-3A-23 | 23 | 210 | 250 | 1800 | 3000 | 500 | 3.19 |
| HGP-3A-25 | 25 | 175 | 210 | 1800 | 2800 | 500 | 3.24 |
| HGP-3A-28 | 28 | 175 | 210 | 1800 | 2500 | 500 | 3.35 |
| HGP-3A-30 | 30 | 175 | 210 | 1800 | 2500 | 500 | 3.45 |
| HGP-3A-33 | 33 | 140 | 175 | 1200 | 2500 | 500 | 3.6 |
| HGP-3A-35 | 35 | 125 | 140 | 1200 | 2500 | 500 | 3.71 |
ย
Hydromax HGP3A gear pump are available in a variety of shaft sizes. These shaft diameters include: ฯ15.85mm, ฯ17.46mm, ฯ18mm, etc. These shafts of different sizes can meet the different needs of your products in terms of flow, pressure, power, etc.
In order to ensure that you can select the shaft size that best suits your product, POOCCA Hydraulic Factory provides you with professional selection guidance. Our engineers will recommend the appropriate gear pump and shaft size for you based on your actual application scenarios and needs. In addition, we also provide customization services to customize specially sized shafts according to your special requirements.
