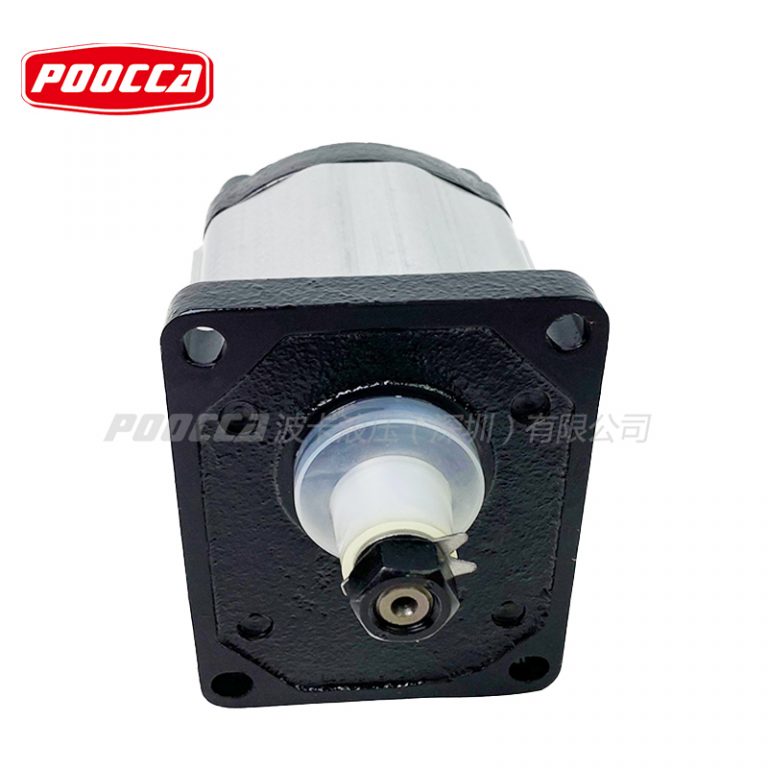

The main components of the Marzocchi GHP1 gear pump include two gear pairs supported by aluminum bushings, a pump body, a fixed flange and a cover. The design of the aluminum bushing not only improves the wear resistance of the pump body, but also helps to reduce the weight of the pump body, allowing the pump to operate stably under high pressure.
The appropriate tooth profile and geometric ratio design are designed to reduce the pulsation and noise level during the operation of the pump. The tooth profile design of the GHP1 gear pump fully considers the meshing stability of the gears and ensures the stability of the pump when running at high speeds. At the same time, the reasonable aspect ratio and tooth tip fillet design reduce the noise during the operation of the pump, making the pump quieter.
The Marzocchi GHP1 hydraulic gear pump is an accessory provided with the standard pump. Semicircular key (code 522054) M 10×1 hexagonal nut (code 523011. Washer (code 523004. Standard port: M6 thread depth 13 mm).
| TYPE | Displacement | FLOW at 1500r/min |
MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHP1 GEAR PUMP | cmยณ/rev | litri/min | bar | bar | bar | rpm |
| GHP1-D(S)-3 | 2.1 | 2.9 | 270 | 290 | 310 | 6000 |
| GHP1-D(S)-4 | 2.8 | 3.9 | 270 | 290 | 310 | 5000 |
| GHP1-D(S)-5 | 3.5 | 4.9 | 270 | 290 | 310 | 5000 |
| GHP1-D(S)-6 | 4.1 | 5.9 | 270 | 290 | 310 | 4000 |
| GHP1-D(S)-7 | 5.2 | 7.4 | 260 | 275 | 290 | 3500 |
| GHP1-D(S)-9 | 6.2 | 8.8 | 260 | 275 | 290 | 3000 |
| GHP1-D(S)-11 | 7.6 | 10.8 | 230 | 245 | 260 | 3500 |
| GHP1-D(S)-13 | 9.3 | 13.3 | 210 | 225 | 240 | 3000 |
| GHP1-D(S)-16 | 11 | 15.7 | 200 | 215 | 230 | 2500 |
| GHP1-D(S)-20 | 13.8 | 19.7 | 180 | 195 | 210 | 2000 |
| GHP1A PUMPS | ||||||
| GHP1A-D(S)-2 | 1.4 | 2 | 270 | 290 | 310 | 6000 |
| GHP1A-D(S)-3 | 2.1 | 2.9 | 270 | 290 | 310 | 6000 |
| GHP1A-D(S)-4 | 2.8 | 3.9 | 270 | 290 | 310 | 5000 |
| GHP1A-D(S)-5 | 3.5 | 4.9 | 270 | 290 | 310 | 5000 |
| GHP1A-D(S)-6 | 4.1 | 5.9 | 270 | 290 | 310 | 4000 |
| GHP1A-D(S)-7 | 5.2 | 7.4 | 260 | 275 | 290 | 3500 |
| GHP1A-D(S)-9 | 6.2 | 8.8 | 260 | 275 | 290 | 3000 |
| GHP1A-D(S)-11 | 7.6 | 10.8 | 230 | 245 | 260 | 3500 |
| GHP1A-D(S)-13 | 9.3 | 13.3 | 210 | 225 | 240 | 3000 |
| GHP1A-D(S)-16 | 11 | 15.7 | 200 | 215 | 230 | 2500 |
| GHP1A-D(S)-20 | 13.8 | 19.7 | 180 | 195 | 210 | 2000 |

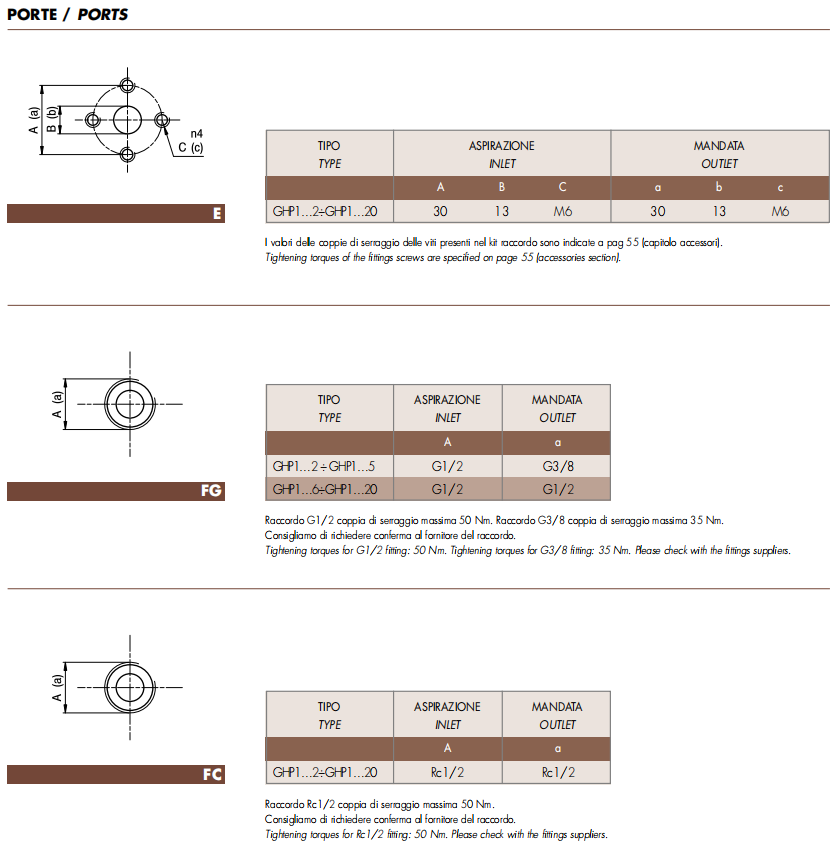

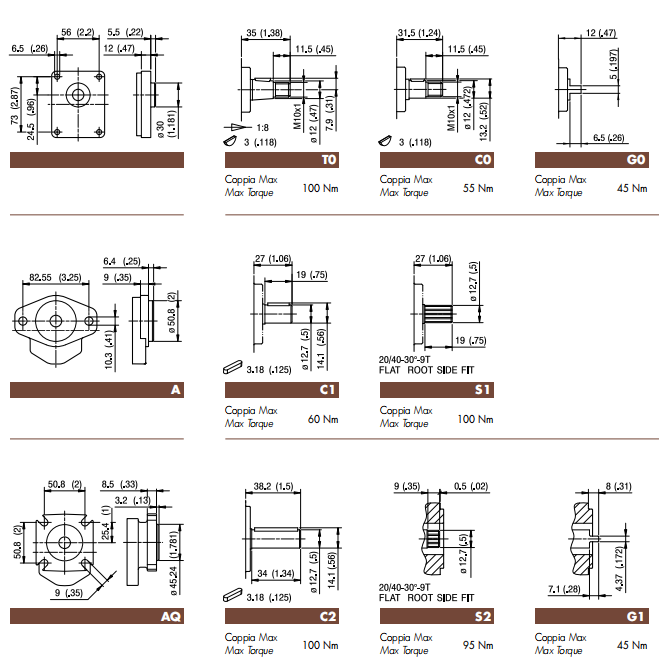

Only some of the Flanges&Ports dimensional drawings are shown here. If you want to know more, please contact poocca hydraulic supplier.
