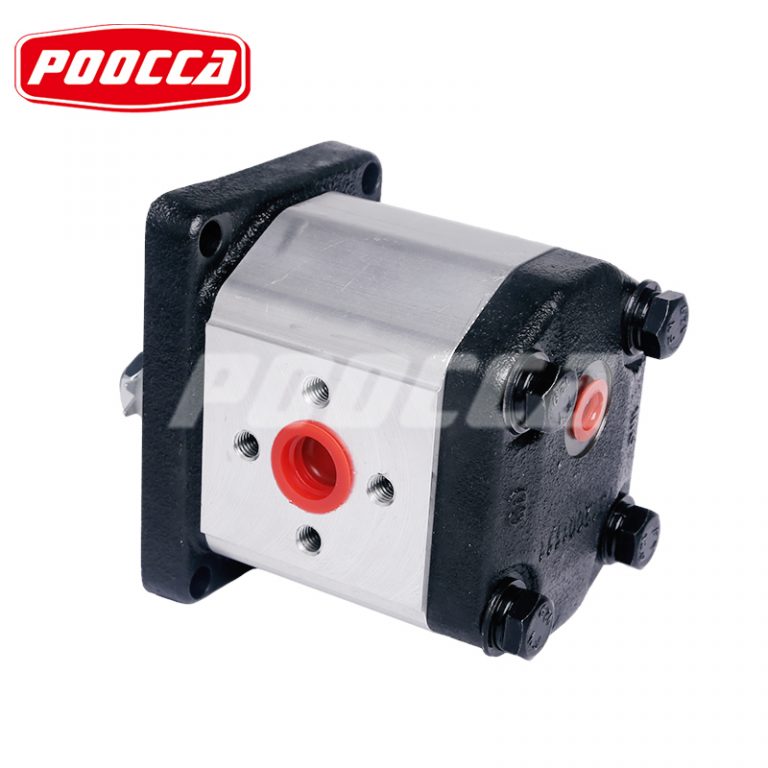

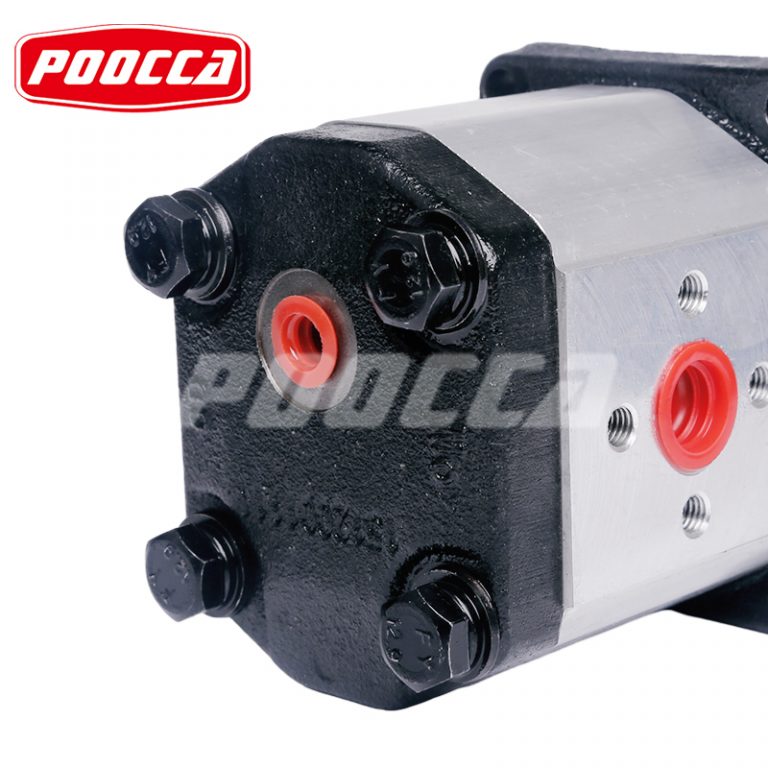

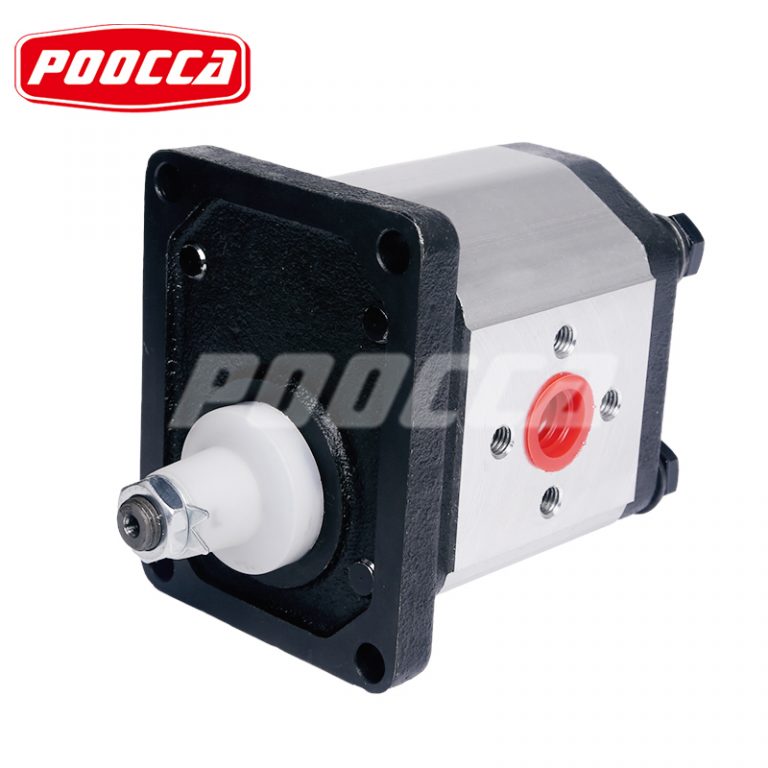

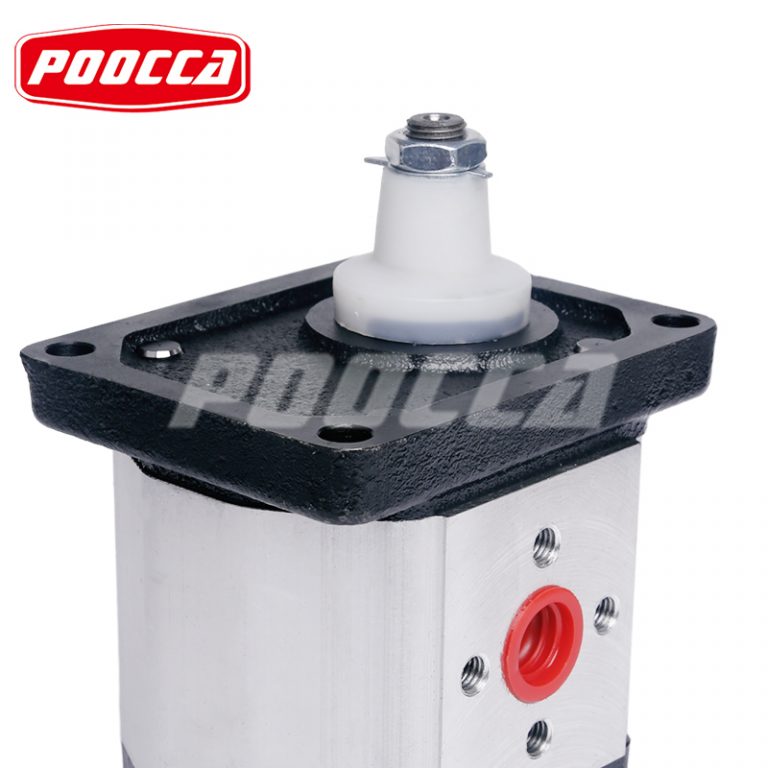

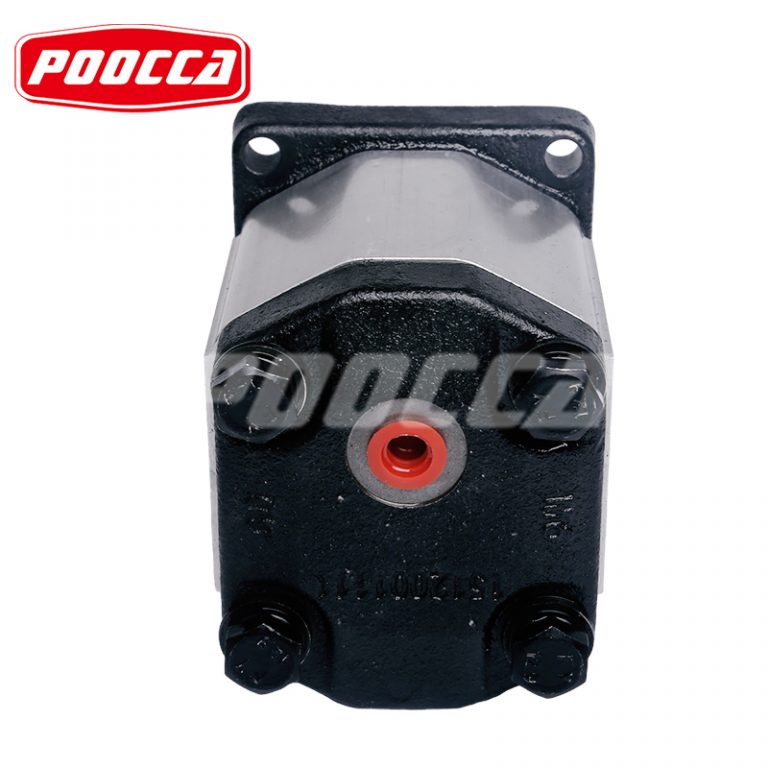

GHM2 hydraulic motors cover multiple size options including 6, 9, 10, 2, 3, 6, 20, 22, 25, 30, 34 and 40. Marzocchi motors have an adjustable minimum speed range from 8000 rpm to 500 rpm. Whether it is high-speed operation or low-speed and high-torque output, GHM2 series motors can provide reliable power support.

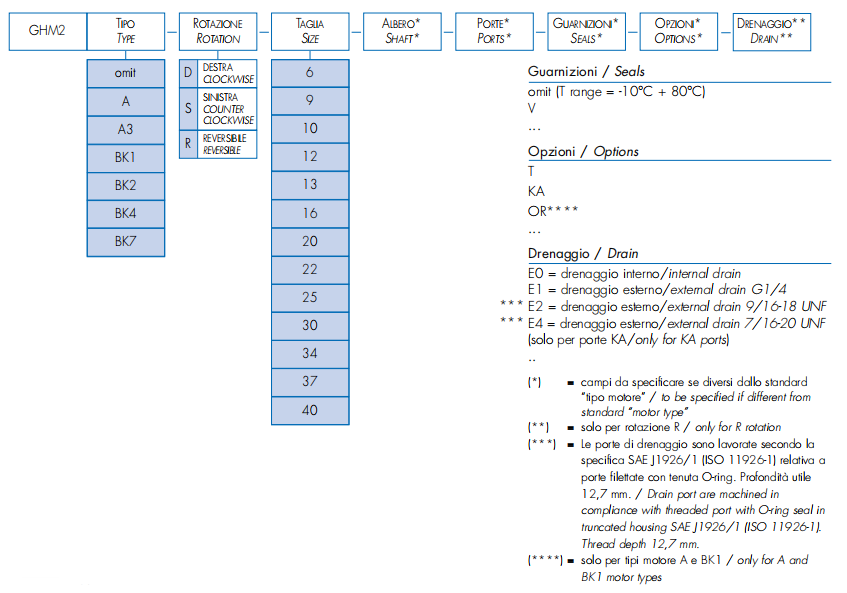

Marzocchi GHM2 series hydraulic motors are available in multiple models, including GHM2, GHM2-EO, GHM2-TGHM2A, GHM2A-EO, GHM2A3, GHM2BK1, GHM2BK1-T, GHM2BK2, GHM2BK4 and GHM2BK7. These motors are available in unidirectional and bidirectional types.
Unidirectional motors are available in displacements from 4.5 to 35.2 cc/rev, with a maximum continuous inlet pressure of 250 bar, a continuous back pressure of 6 bar, a maximum peak inlet pressure of 290 bar, and a maximum speed of 4000 rpm.
The displacement range of the bidirectional motor is 4.5 to 28.2 cc/revolution, the maximum continuous inlet pressure is also 250 bar, the continuous back pressure is 240 bar, the maximum peak inlet pressure is 270 bar, and the maximum speed is also 4000 rpm. In addition, the bidirectional motor can withstand a maximum drain line pressure of 6 bar.
| TYPE | DISPLACEMENT | FLOW at 1500 rev/min | MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHM2R-6-E1 | 4,5 | 6,4 | 280 | 270 | 295 | 4000 |
| GHM2R-9-E1 | 6,4 | 9,1 | 280 | 270 | 295 | 4000 |
| GHM2R-10-E1 | 7 | 10 | 280 | 270 | 295 | 4000 |
| GHM2R-12-E1 | 8,3 | 11,8 | 280 | 270 | 295 | 4000 |
| GHM2R-13-E1 | 9,6 | 13,7 | 280 | 270 | 295 | 4000 |
| GHM2R-16-E1 | 11,5 | 16,4 | 280 | 270 | 295 | 4000 |
| GHM2R-20-E1 | 14,1 | 20,1 | 260 | 250 | 275 | 3200 |
| GHM2R-22-E1 | 16,0 | 22,8 | 260 | 250 | 275 | 2800 |
| GHM2R-25-E1 | 17,9 | 25,5 | 260 | 250 | 275 | 2500 |
| GHM2R-30-E1 | 21,1 | 30,1 | 230 | 220 | 245 | 2200 |
| GHM2R-34-E1 | 23,7 | 33,7 | 230 | 220 | 245 | 2000 |
| GHM2R-37-E1 | 25,5 | 36,4 | 210 | 200 | 225 | 1800 |
| GHM2R-40-E1 | 28,2 | 40,1 | 200 | 190 | 215 | 1800 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.
At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.

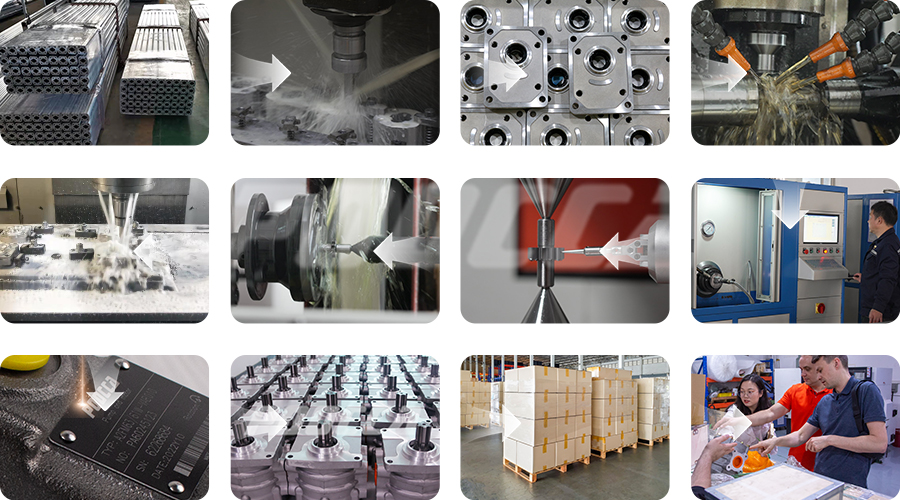

Every manufacturing process at POOCCA Hydraulic Manufacturers undergoes rigorous inspection to ensure compliance with the highest quality standards. Each component is rigorously inspected for accuracy and durability, adhering to strict quality control protocols. Only after passing strict inspection procedures can products be allowed to leave the factory. This commitment to excellence not only ensures the reliability and performance of POOCCA hydraulic products, but also instills confidence in customers around the world. By prioritizing quality assurance at every step of production, POOCCA maintains its reputation as a trusted provider of top-tier hydraulic solutions.
Marzocchi GHM2 series hydraulic motors are available in multiple models, including GHM2, GHM2-EO, GHM2-TGHM2A, GHM2A-EO, GHM2A3, GHM2BK1, GHM2BK1-T, GHM2BK2, GHM2BK4 and GHM2BK7. These motors are available in unidirectional and bidirectional types.
Unidirectional motors are available in displacements from 4.5 to 35.2 cc/rev, with a maximum continuous inlet pressure of 250 bar, a continuous back pressure of 6 bar, a maximum peak inlet pressure of 290 bar, and a maximum speed of 4000 rpm.
The displacement range of the bidirectional motor is 4.5 to 28.2 cc/revolution, the maximum continuous inlet pressure is also 250 bar, the continuous back pressure is 240 bar, the maximum peak inlet pressure is 270 bar, and the maximum speed is also 4000 rpm. In addition, the bidirectional motor can withstand a maximum drain line pressure of 6 bar.
| TYPE | DISPLACEMENT | FLOW at 1500 rev/min | MAX PRESSURE | MAX SPEED | ||
| P1 | P2 | P3 | ||||
| GHM2R-6-E1 | 4,5 | 6,4 | 280 | 270 | 295 | 4000 |
| GHM2R-9-E1 | 6,4 | 9,1 | 280 | 270 | 295 | 4000 |
| GHM2R-10-E1 | 7 | 10 | 280 | 270 | 295 | 4000 |
| GHM2R-12-E1 | 8,3 | 11,8 | 280 | 270 | 295 | 4000 |
| GHM2R-13-E1 | 9,6 | 13,7 | 280 | 270 | 295 | 4000 |
| GHM2R-16-E1 | 11,5 | 16,4 | 280 | 270 | 295 | 4000 |
| GHM2R-20-E1 | 14,1 | 20,1 | 260 | 250 | 275 | 3200 |
| GHM2R-22-E1 | 16,0 | 22,8 | 260 | 250 | 275 | 2800 |
| GHM2R-25-E1 | 17,9 | 25,5 | 260 | 250 | 275 | 2500 |
| GHM2R-30-E1 | 21,1 | 30,1 | 230 | 220 | 245 | 2200 |
| GHM2R-34-E1 | 23,7 | 33,7 | 230 | 220 | 245 | 2000 |
| GHM2R-37-E1 | 25,5 | 36,4 | 210 | 200 | 225 | 1800 |
| GHM2R-40-E1 | 28,2 | 40,1 | 200 | 190 | 215 | 1800 |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts.
For two decades, POOCCAHydraulics has continued to grow and innovate in the field of hydraulics. We have won the trust of domestic and foreign manufacturers and established strong corporate partnerships. Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products.
At POOCCA, our strength is our dedicated team of over 300 professionals. Within this highly skilled workforce, we have a dynamic team of 70 sales professionals who possess vast experience and in-depth understanding of our industry.
Every manufacturing process at POOCCA Hydraulic Manufacturers undergoes rigorous inspection to ensure compliance with the highest quality standards. Each component is rigorously inspected for accuracy and durability, adhering to strict quality control protocols. Only after passing strict inspection procedures can products be allowed to leave the factory. This commitment to excellence not only ensures the reliability and performance of POOCCA hydraulic products, but also instills confidence in customers around the world. By prioritizing quality assurance at every step of production, POOCCA maintains its reputation as a trusted provider of top-tier hydraulic solutions.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
