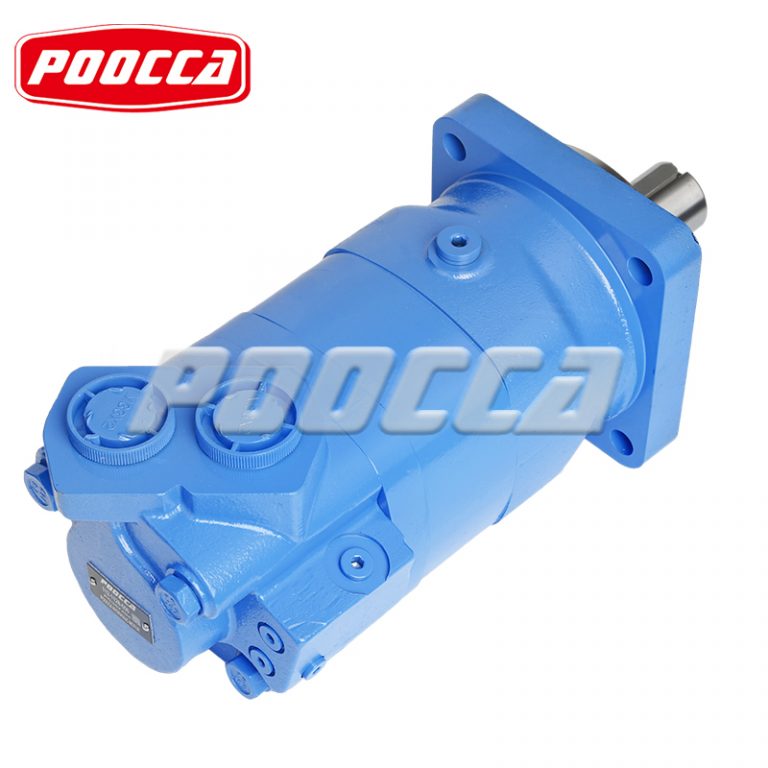

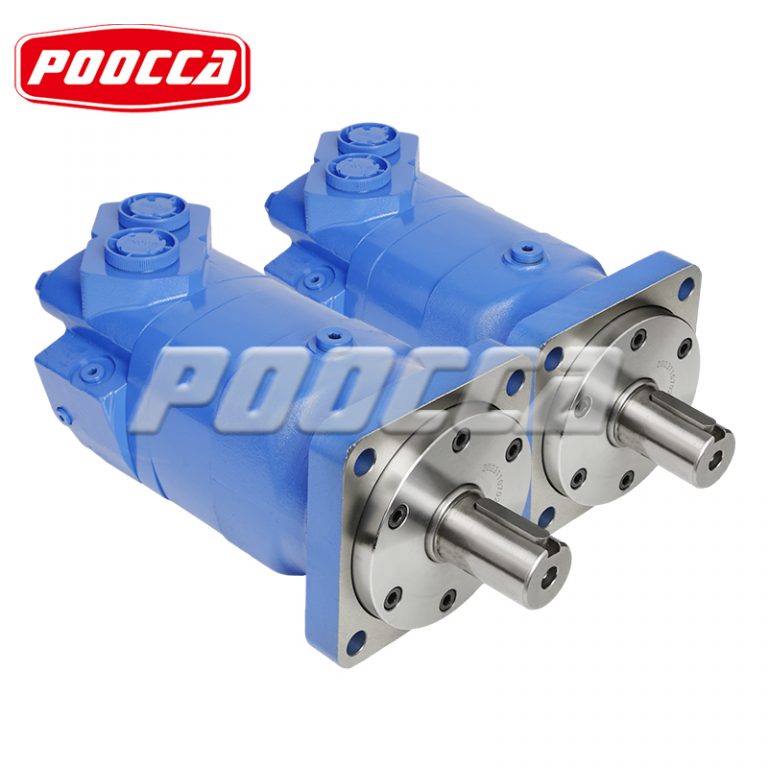

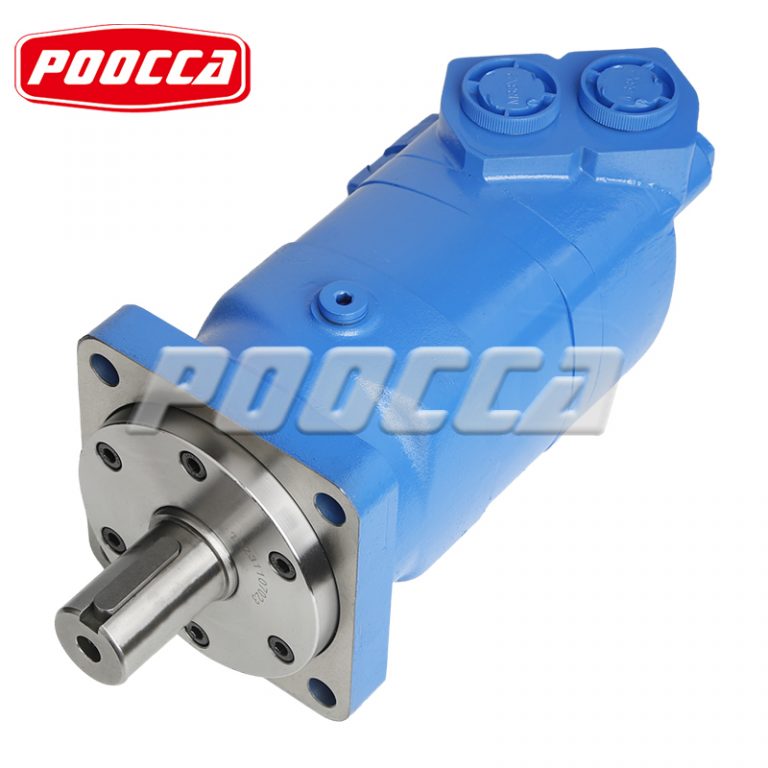

Eaton Char-Lynn 4000 Motor 4k

Eaton Char-Lynn 4000 Series motors are the cornerstone of the Char-Lynn range, delivering up to 970 Nm of continuous torque and a flow rate of 95 liters per minute.

The 4000 Series includes 10 displacement options ranging from 110 cm3/rev to 625 cm3/rev.

Characteristic

Enhanced Load Capacity: The 4000 motors offer increased load capacity compared to the 2000 Series, making them ideal for demanding applications.
Intermittent Torque: Eaton motors have an intermittent torque rating of 1220 Nm [10800 lb-in], providing reliable performance even under high stress conditions.

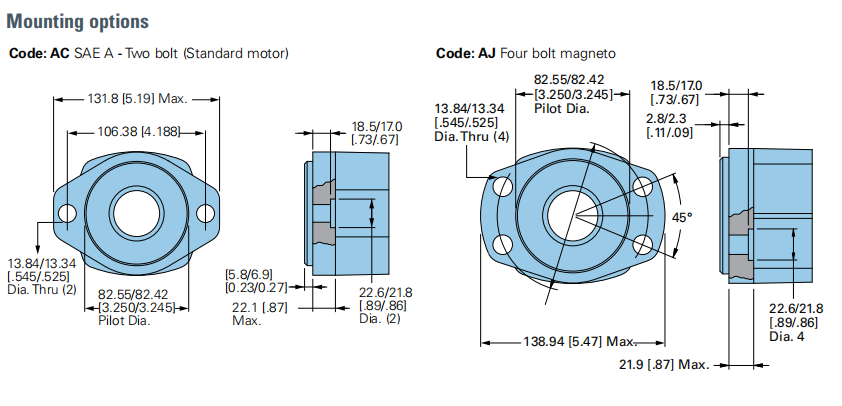

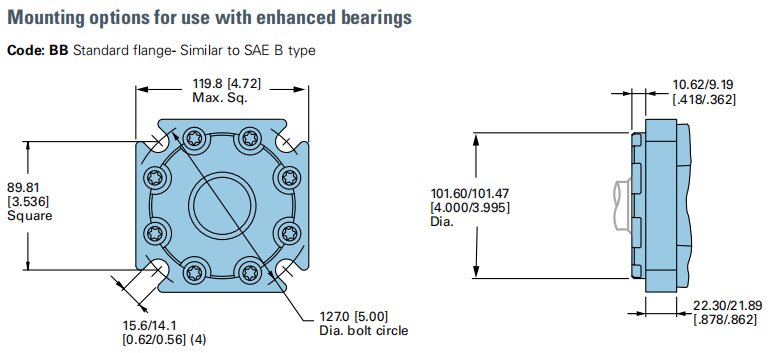

Versatile mounting options: Users have the flexibility to choose from multiple mounting options, including two 2-bolt mounts (SAE A, SAE B) and four 4-bolt mounts (magneto mount, standard mount, and wheel mount) .
Shaft Size Options: To meet a variety of requirements, motors can be specified with larger shaft sizes in the 2000 Series or standard output shaft sizes in the 4000 Series.

Security features:
Shuttle valve with back pressure safety valve: ensures safe operation by regulating pressure and protecting against overload.
Speed sensor: Provides real-time feedback of motor speed for precise control and monitoring.
End ports: Facilitates easy connection to hydraulic systems for seamless integration.
Two Speed Options: Provides versatility by giving users the choice of two different speed settings to suit specific needs.

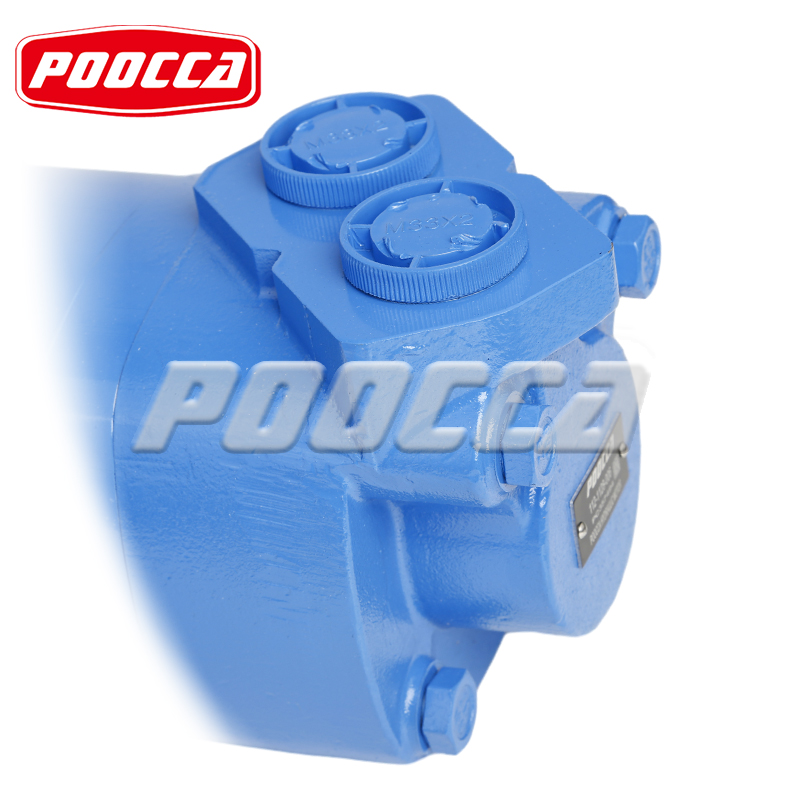

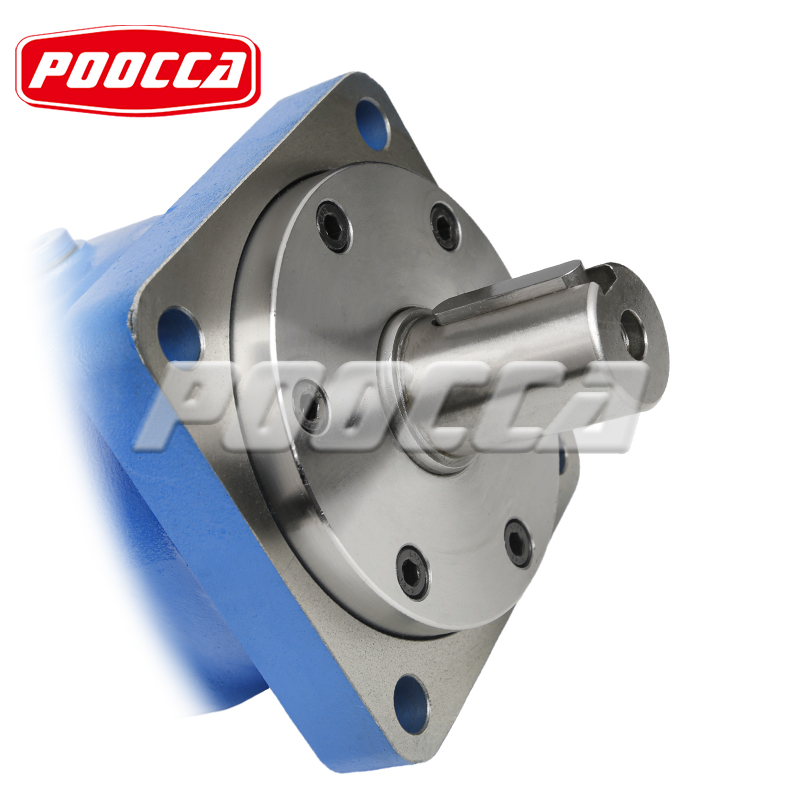

Eaton Orbit Motor Details

Made with precision engineering and premium materials, the Eaton Char-Lynn 4000 Motor 4k embodies excellence in every aspect. Its rugged construction ensures durability and reliability, making it a reliable choice for the most demanding applications.

4000 Series Motor Parameter

Displ. cm3/r [in3/r] 160 [9.8] 200 [12.3] 250 [15.4] 325 [19.8] 405 [24.6] 490 [29.8]
Max. Speed

(RPM) @ Flow

Continuous 464 375 300 234 188 155
Intermittent 699 563 450 351 282 232
Flow l/min [GPM] Continuous 75 [20] 75 [20] 75 [20] 75 [20] 75 [20] 75 [20]
Intermittent 115 [30] 115 [30] 115 [30] 115 [30] 115 [30] 115 [30]
Torque* Nm [lb – in] Continuous 510 [4514]



646 [5715] 734 [6500] 793 [7021] 800 [7079] 975 [8627]
Intermittent 690 [6108] 840 [7436] 935 [8272] 1053[9320] 921[8153] 1218 [10778]
Pressure ฮ” bar [ฮ” PSI] Continuous 225 [3250] 225 [3250] 205 [3000] 170 [2500] 140 [2000] 140 [2000]
Intermittent 310 [4500]



295 [4250] 260 [3750] 240 [3500] 170 [2500] 170 [2500]
Peak 310 [4500] 310 [4500] 310 [4500] 310 [4500] 275 [4000] 260 [3750]
Weight kg [lb] Standard or Wheel mount 10.4 [23.0] 10.9 [24.0] 11.3 [25.0] 11.8 [26.0] 12.2 [27.0] 12.2 [27.0]
Bearingless 8.4 [18.5] 8.8 [19.5] 9.3 [20.5] 9.8 [21.5] 10.2 [22.5] 10.2 [22.5]

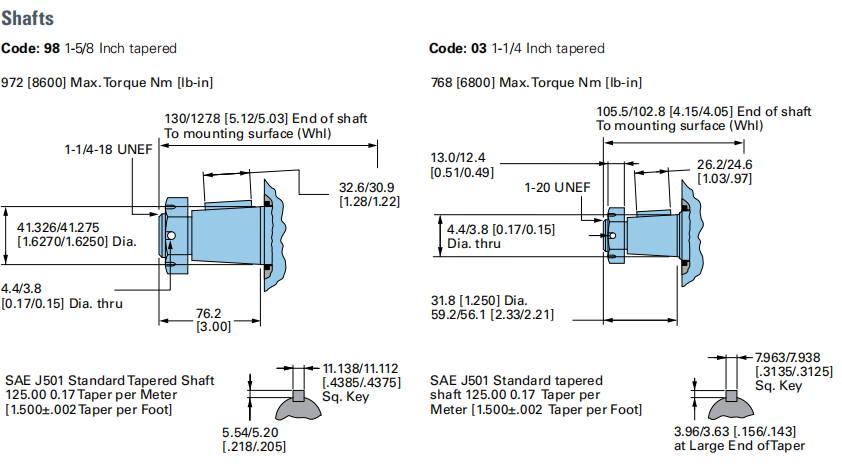

Dimension

Each product model of the Eaton 4000 motor has different dimensions. Poocca can provide different dimensional drawings, please contact us.

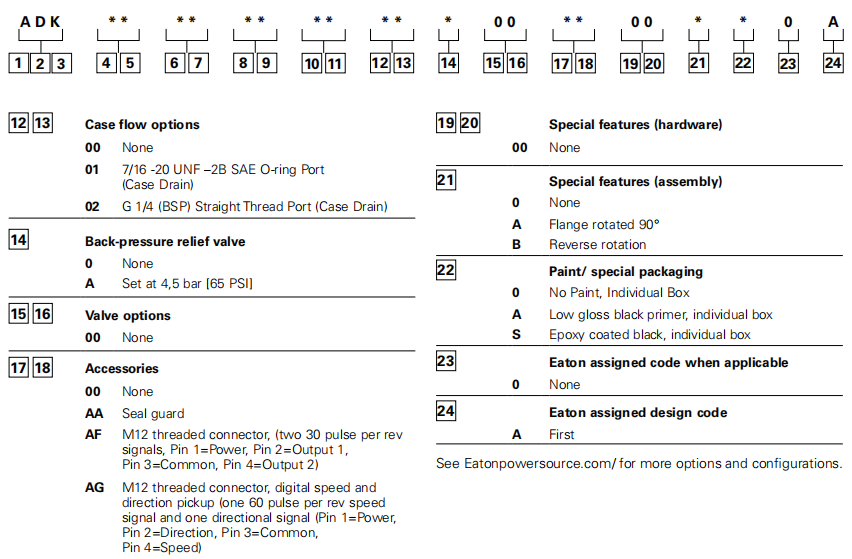

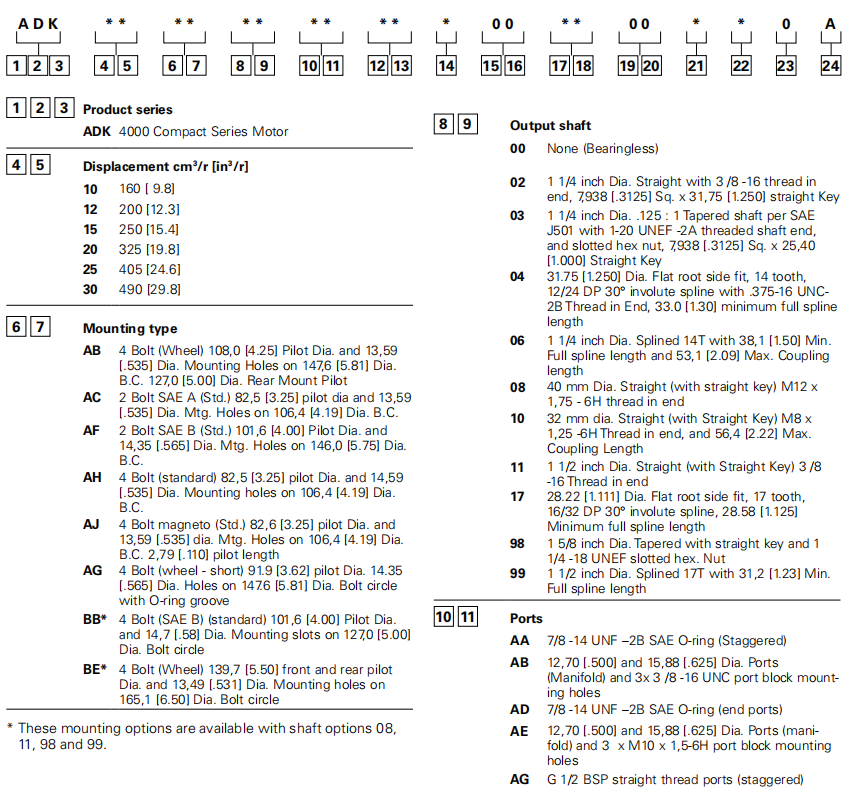

Order Code

Application

Industrial Machinery: These motors provide high torque and reliability to power heavy industrial equipment such as conveyors, machine tools, and manufacturing machinery.
Agricultural equipment: widely used in hydraulic functions such as lifting, steering, and driving in agricultural operations such as tractors, harvesters, and irrigation systems.
Construction Machinery: Critical to the hydraulic operation of construction equipment such as excavators, loaders and cranes, enabling tasks such as digging, lifting and material handling.
Material Handling: Used on forklifts, pallet jacks and conveyor systems to efficiently lift, tilt and move heavy objects in material handling applications.
Eaton Char-Lynn 4000 Series motors excel in a variety of industries, providing powerful performance and versatility for a variety of hydraulic applications.

Eaton Char-Lynn 4000 Motor 4k

Eaton Char-Lynn 4000 Series motors are the cornerstone of the Char-Lynn range, delivering up to 970 Nm of continuous torque and a flow rate of 95 liters per minute. The 4000 Series includes 10 displacement options ranging from 110 cm3/rev to 625 cm3/rev.

Characteristic

Enhanced Load Capacity: The 4000 motors offer increased load capacity compared to the 2000 Series, making them ideal for demanding applications.
Intermittent Torque: Eaton motors have an intermittent torque rating of 1220 Nm [10800 lb-in], providing reliable performance even under high stress conditions.
Versatile mounting options: Users have the flexibility to choose from multiple mounting options, including two 2-bolt mounts (SAE A, SAE B) and four 4-bolt mounts (magneto mount, standard mount, and wheel mount) .
Shaft Size Options: To meet a variety of requirements, motors can be specified with larger shaft sizes in the 2000 Series or standard output shaft sizes in the 4000 Series.

Security features:
Shuttle valve with back pressure safety valve: ensures safe operation by regulating pressure and protecting against overload.
Speed sensor: Provides real-time feedback of motor speed for precise control and monitoring.
End ports: Facilitates easy connection to hydraulic systems for seamless integration.
Two Speed Options: Provides versatility by giving users the choice of two different speed settings to suit specific needs.

Eaton Orbit Motor Details

Made with precision engineering and premium materials, the Eaton Char-Lynn 4000 Motor 4k embodies excellence in every aspect. Its rugged construction ensures durability and reliability, making it a reliable choice for the most demanding applications.

4000 Series Motor Parameter

Displ. cm3/r [in3/r] 160 [9.8] 200 [12.3] 250 [15.4] 325 [19.8] 405 [24.6] 490 [29.8]
Max. Speed

(RPM) @ Flow

Continuous 464 375 300 234 188 155
Intermittent 699 563 450 351 282 232
Flow l/min [GPM] Continuous 75 [20] 75 [20] 75 [20] 75 [20] 75 [20] 75 [20]
Intermittent 115 [30] 115 [30] 115 [30] 115 [30] 115 [30] 115 [30]
Torque* Nm [lb – in] Continuous 510 [4514]



646 [5715] 734 [6500] 793 [7021] 800 [7079] 975 [8627]
Intermittent 690 [6108] 840 [7436] 935 [8272] 1053[9320] 921[8153] 1218 [10778]
Pressure ฮ” bar [ฮ” PSI] Continuous 225 [3250] 225 [3250] 205 [3000] 170 [2500] 140 [2000] 140 [2000]
Intermittent 310 [4500]



295 [4250] 260 [3750] 240 [3500] 170 [2500] 170 [2500]
Peak 310 [4500] 310 [4500] 310 [4500] 310 [4500] 275 [4000] 260 [3750]
Weight kg [lb] Standard or Wheel mount 10.4 [23.0] 10.9 [24.0] 11.3 [25.0] 11.8 [26.0] 12.2 [27.0] 12.2 [27.0]
Bearingless 8.4 [18.5] 8.8 [19.5] 9.3 [20.5] 9.8 [21.5] 10.2 [22.5] 10.2 [22.5]

Dimension

Each product model of the Eaton 4000 motor has different dimensions. Poocca can provide different dimensional drawings, please contact us.

Order Code

Application

Industrial Machinery: These motors provide high torque and reliability to power heavy industrial equipment such as conveyors, machine tools, and manufacturing machinery.
Agricultural equipment: widely used in hydraulic functions such as lifting, steering, and driving in agricultural operations such as tractors, harvesters, and irrigation systems.
Construction Machinery: Critical to the hydraulic operation of construction equipment such as excavators, loaders and cranes, enabling tasks such as digging, lifting and material handling.
Material Handling: Used on forklifts, pallet jacks and conveyor systems to efficiently lift, tilt and move heavy objects in material handling applications.
Eaton Char-Lynn 4000 Series motors excel in a variety of industries, providing powerful performance and versatility for a variety of hydraulic applications.
