OSPC Hydraulic Steering Gear Features
Low noise: Low noise during operation, improving operating comfort.
Good steering control: Provides precise and stable steering performance.
Low steering torque: Steering torque ranges from 0.8 to 3.0 N, making operation easier.
High back pressure: Able to withstand back pressure up to 40 bar.

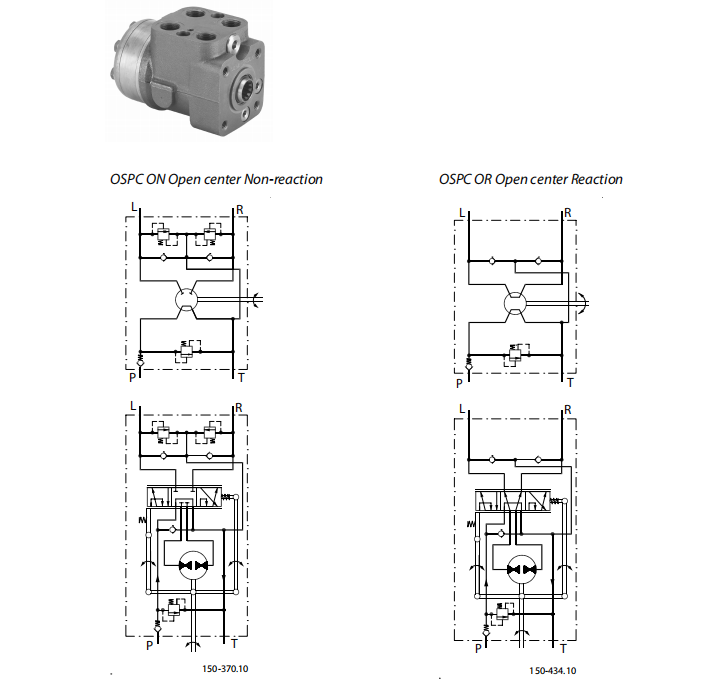

OSPC open center non-reaction steering units
OSPC ON in the table below have all the following valve functions incorporated:
โข check valve in P-port
โข relief valve
โข shock valves
โข suction valves
| Steering unit | Code Numbers, connections | Pump flow range | Valve settings | Weight | ||||||
| Reliefย valve | Shockย valve | |||||||||
| European
version Gย 1/2 S2) |
US version
3/4-16 UNF O1) |
l/min | [USgal/
min] |
bar | [psi] | bar | [psi] | kg | [lb] | |
| OSPCย 40 ON | 150N2148 | – | 5-18 | [1.32-4.76] | 140 | [2030] | 200 | [2900] | 5.2 | [11.46] |
| OSPCย 50 ON | 150N2149 | 150N2136 | 5.2 | [11.46] | ||||||
| OSPCย 80 ON | 150N2150 | 150N2137 | 10-30 | [2.64-7.93] | 170 | [2465] | 225 | [3263] | 5.3 | [11.68] |
| OSPCย 100 ON | 150N2151 | 150N2138 | 5.4 | [11.90] | ||||||
| OSPCย 125 ON | 150N2152 | 150N2139 | 20-50 | [5.28-13.21] | 5.5 | [12.13] | ||||
| OSPCย 160 ON | 150N2153 | 150N2140 | 5.6 | [12.35] | ||||||
| OSPCย 200 ON | 150N2154 | 150N2141 | 5.8 | [12.79] | ||||||
| OSPCย 250 ON | 150N2155 | 150N2168 | 6.0 | [13.23] | ||||||
| OSPCย 315 ON | 150N2156 | 150N2142 | 20-70 | [5.28-18.49] | 6.2 | [13.67] | ||||
| OSPCย 400 ON | 150N2157 | – | 7.0 | [15.43] | ||||||
| OSPCย 500 ON | 150N2158 | – | 7.6 | [16.78] | ||||||
Danfoss OSPC hydraulic steering gear
The Danfoss OSPC hydraulic steering gear is an open centre load sensing model, ideal for the following equipment:
Small tractors
Backhoe loaders
Road construction machinery
Combine harvesters
Harvesters
OSPC Hydraulic Steering Gear Features
Low noise: Low noise during operation, improving operating comfort.
Good steering control: Provides precise and stable steering performance.
Low steering torque: Steering torque ranges from 0.8 to 3.0 N, making operation easier.
High back pressure: Able to withstand back pressure up to 40 bar.
OSPC open center non-reaction steering units
OSPC ON in the table below have all the following valve functions incorporated:
โข check valve in P-port
โข relief valve
โข shock valves
โข suction valves
| Steering unit | Code Numbers, connections | Pump flow range | Valve settings | Weight | ||||||
| Reliefย valve | Shockย valve | |||||||||
| European
version Gย 1/2 S2) |
US version
3/4-16 UNF O1) |
l/min | [USgal/
min] |
bar | [psi] | bar | [psi] | kg | [lb] | |
| OSPCย 40 ON | 150N2148 | – | 5-18 | [1.32-4.76] | 140 | [2030] | 200 | [2900] | 5.2 | [11.46] |
| OSPCย 50 ON | 150N2149 | 150N2136 | 5.2 | [11.46] | ||||||
| OSPCย 80 ON | 150N2150 | 150N2137 | 10-30 | [2.64-7.93] | 170 | [2465] | 225 | [3263] | 5.3 | [11.68] |
| OSPCย 100 ON | 150N2151 | 150N2138 | 5.4 | [11.90] | ||||||
| OSPCย 125 ON | 150N2152 | 150N2139 | 20-50 | [5.28-13.21] | 5.5 | [12.13] | ||||
| OSPCย 160 ON | 150N2153 | 150N2140 | 5.6 | [12.35] | ||||||
| OSPCย 200 ON | 150N2154 | 150N2141 | 5.8 | [12.79] | ||||||
| OSPCย 250 ON | 150N2155 | 150N2168 | 6.0 | [13.23] | ||||||
| OSPCย 315 ON | 150N2156 | 150N2142 | 20-70 | [5.28-18.49] | 6.2 | [13.67] | ||||
| OSPCย 400 ON | 150N2157 | – | 7.0 | [15.43] | ||||||
| OSPCย 500 ON | 150N2158 | – | 7.6 | [16.78] | ||||||
Danfoss OSPC hydraulic steering gear
The Danfoss OSPC hydraulic steering gear is an open centre load sensing model, ideal for the following equipment:
Small tractors
Backhoe loaders
Road construction machinery
Combine harvesters
Harvesters
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
