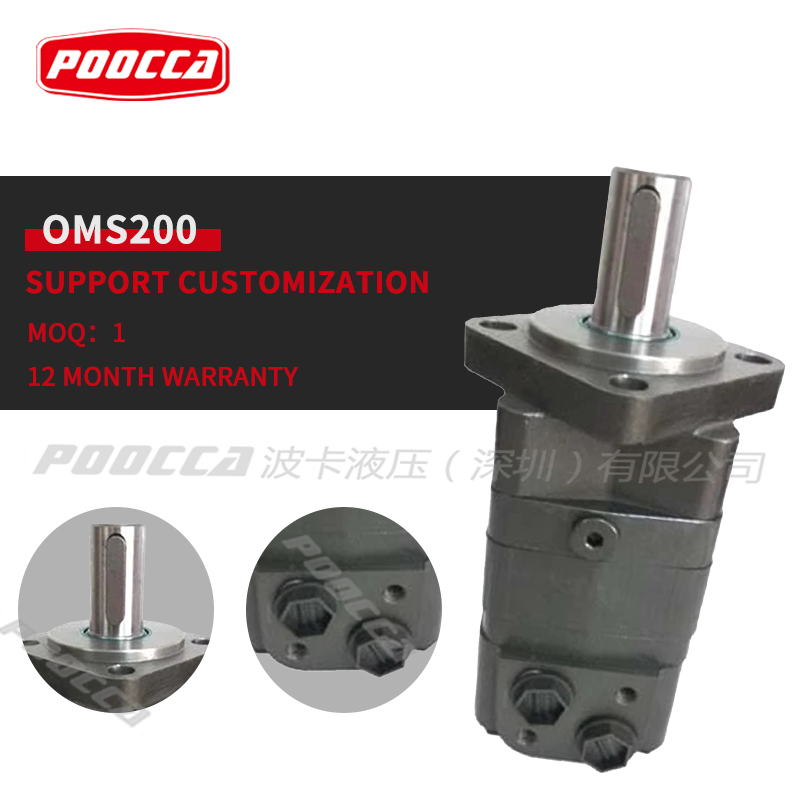

Danfoss OMS Orbit Motor

OMS 80,OMS 100,OMS 125,OMS 160,OMS 200,OMS 250,OMS 315,OMS 400,OMS 500
OMS hydraulic motor 50-500 displacement, if you have any demand, please contact poocca hydraulic manufacturer.

Chat Now

Danfoss OMS Orbit Motor

Characteristic

Danfoss OMS and OMSW motors are available in a wide range of displacements, ranging from 80 cm3/revolution to 500 cm3/revolution.
Capable of delivering a maximum continuous oil flow of 75 l/min (20 gpm).
Mid-range output peaks at 30.8 hp / 23 kW.
Can handle maximum intermediate pressure drops up to 275 bar (3990 psi).
Main features:
Smooth operation throughout the entire speed range.
Maintains consistent torque output over a wide speed range.
High starting torque for demanding applications.
Thanks to its high-pressure shaft seal, high oil return pressures can be managed without the need for a drain line.
Provides high efficiency to ensure optimal performance and energy saving.

Parameter

Type			OMS	OMS	OMS	OMS	OMS	OMS	OMS	OMS	OMS
			OMSW	OMSW	OMSW	OMSW	OMSW	OMSW	OMSW	OMSW	OMSW
			OMSS	OMSS	OMSS	OMSS	OMSS	OMSS	OMSS	OMSS	OMSS
Motor size			80	100	125	160	200	250	315	400	500
Geometric displacement	cm3		80.5	100	125.7	159.7	200	250	314.9	393	488
Geometric displacement	[in3]		[4.91]	[6. 10]	[7.67]	[9.75]	[12.20]	[15.26]	[19.22]	[23.98]	[29.78]
Max. speed	min- 1	cont.	810	750	600	470	375	300	240	190	155
Max. speed	[rpm]	int1)	1000	900	720	560	450	360	285	230	185
Max. torque	Nm	cont.	240	305	375	490	610	720	825	865	850
	[lbf·in]	cont.	[2120]	[2700]	[3320]	[4340]	[5400]	[6370]	[7300]	[7660]	[7520]
		int.1)	310	390	490	600	720	870	1000	990	990
		int.1)	[2740]	[3450]	[4340]	[5310]	[6370]	[7700]	[8850]	[8760]	[8760]
Max. output	kW	cont.	15.5	18	18	16.5	16.5	14.5	15	11	9
	[hp]	cont.	[20.8]	[24. 1]	[24. 1]	[22. 1]	[22. 1]	[19.4]	[20. 1]	[14.8]	[12. 1]
		int.1)	19.5	22.5	22.5	23	22	18	17	12.5	10.5
		int.1)	[26.2]	[30.2]	[30.2]	[30.8]	[29.5]	[24. 1]	[22.8]	[16.8]	[14. 1]
Max. pressure drop	bar	cont.	210	210	210	210	210	200	200	160	120
	[psi]	cont.	[3050]	[3050]	[3050]	[3050]	[3050]	[2900]	[2900]	[2320]	[1740]
		int.1)	275	275	275	260	250	250	240	190	140
		int.1)	[3990]	[3990]	[3990]	[3770]	[3630]	[3630]	[3480]	[2760]	[2030]
		peak2)	295	295	295	280	270	270	260	210	160
		peak2)	[4280]	[4280]	[4280]	[4060]	[3920]	[3920]	[3770]	[3050]	[2320]
Max. oil flow	l/min [USgal/min]	cont.	65	75	75	75	75	75	75	75	75
		cont.	[17.2]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]	[19.8]
		int.1)	80	90	90	90	90	90	90	90	90
		int.1)	[21. 1]	[23.8]	[23.8]	[23.8]	[23.8]	[23.8]	[23.8]	[23.8]	[23.8]
Max. starting pressure with unloaded shaft	bar		12	10	10	8	8	8	8	8	8
Max. starting pressure with unloaded shaft	[psi]		[175]	[145]	[145]	[115]	[115]	[115]	[115]	[115]	[115]
Min. starting torque	at max. press. drop cont. Nm [lbf·in]		180	230	290	370	470	560	710	710	660
	at max. press. drop cont. Nm [lbf·in]		[1590]	[2040]	[2570]	[3270]	[4160]	[4960]	[6280]	[6280]	[5840]
	at max. press. drop int.1) Nm [lbf·in]		235	300	380	460	560	700	850	840	770
	at max. press. drop int.1) Nm [lbf·in]		[2080]	[2660]	[3360]	[4070]	[4960]	[6200]	[7520]	[7430]	[6820]

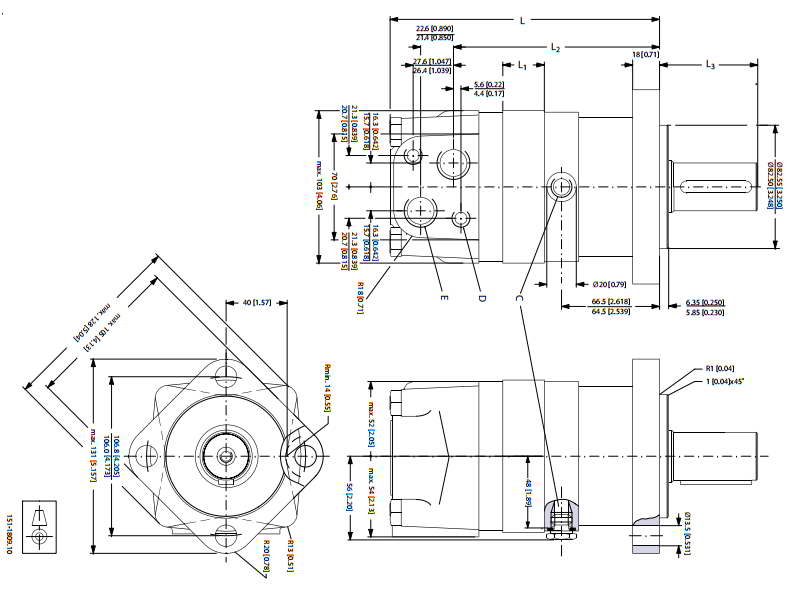

Danfoss OMS Orbit Motor Dimension

Product Details

There are different shafts, front covers, oil ports to choose from, please send us an email poocca.

Application

The orbital motors are used in the following application areas:

Construction equipment
Agricultural equipment
Material handling & Lifting equipment
Forestry equipment
Lawn and turf equipment
Machine tools and stationary equipment
Marine equipment
Special purpose
