Danfoss H1B Bent Axis Motor

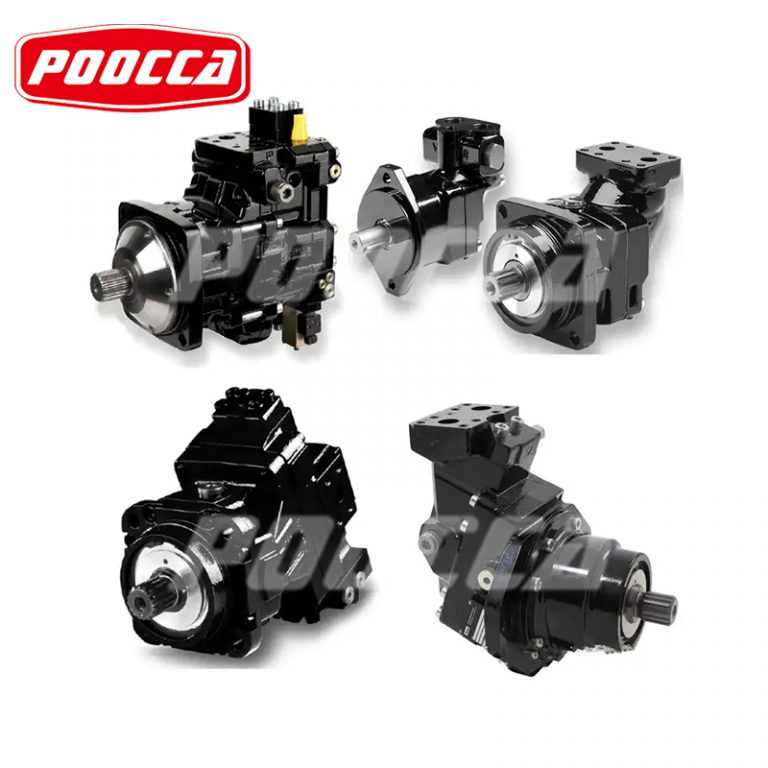

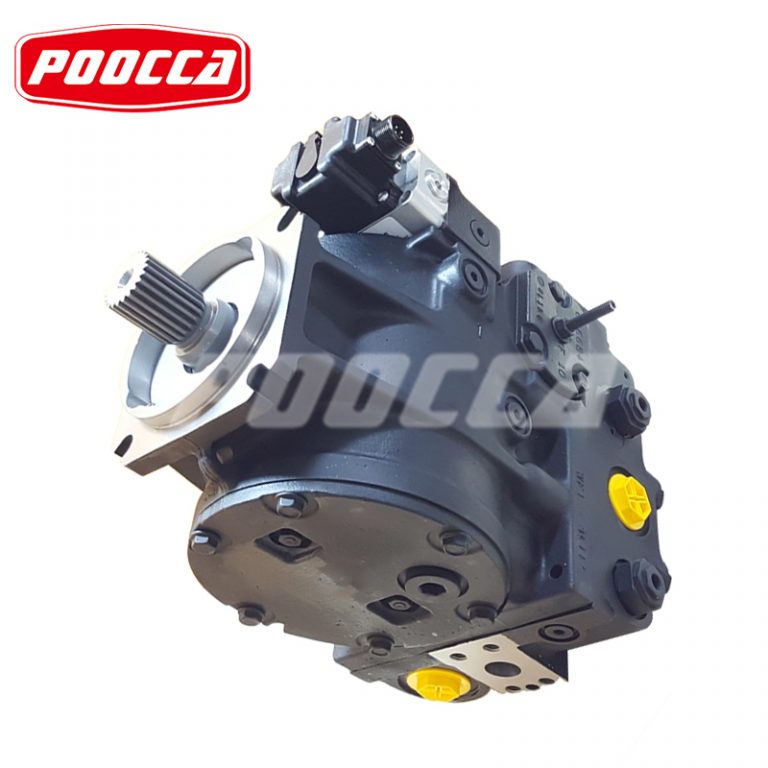

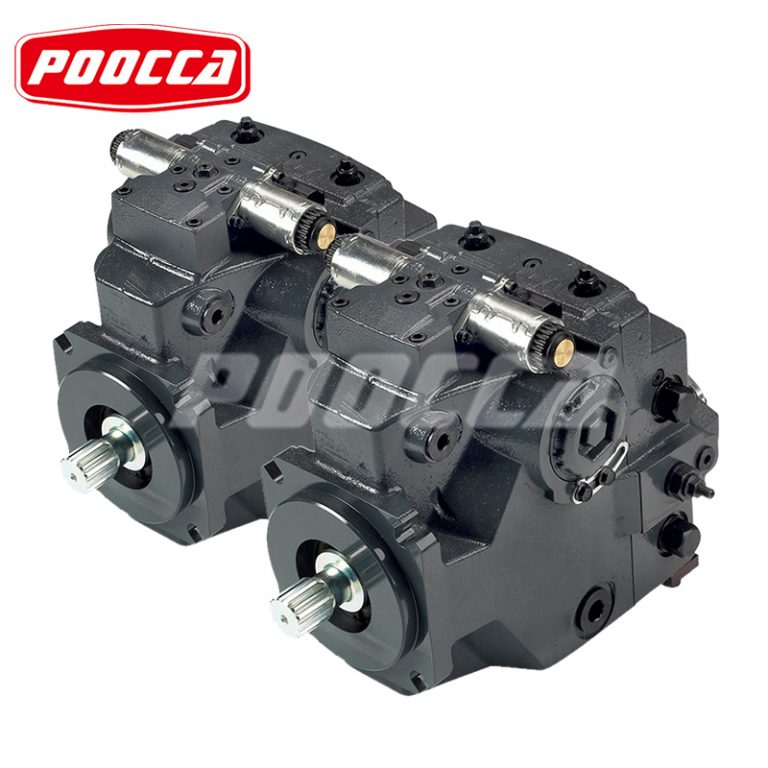

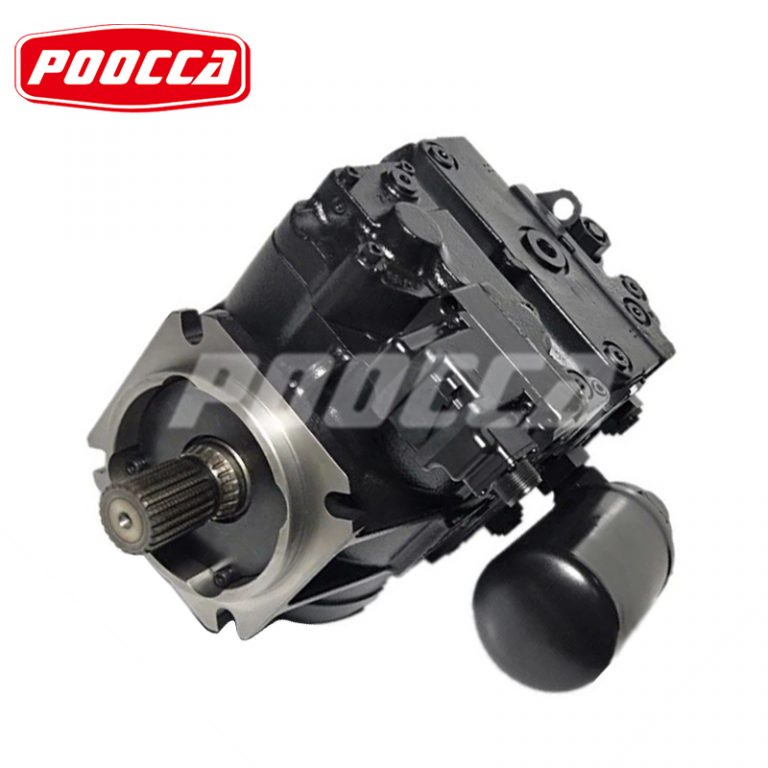

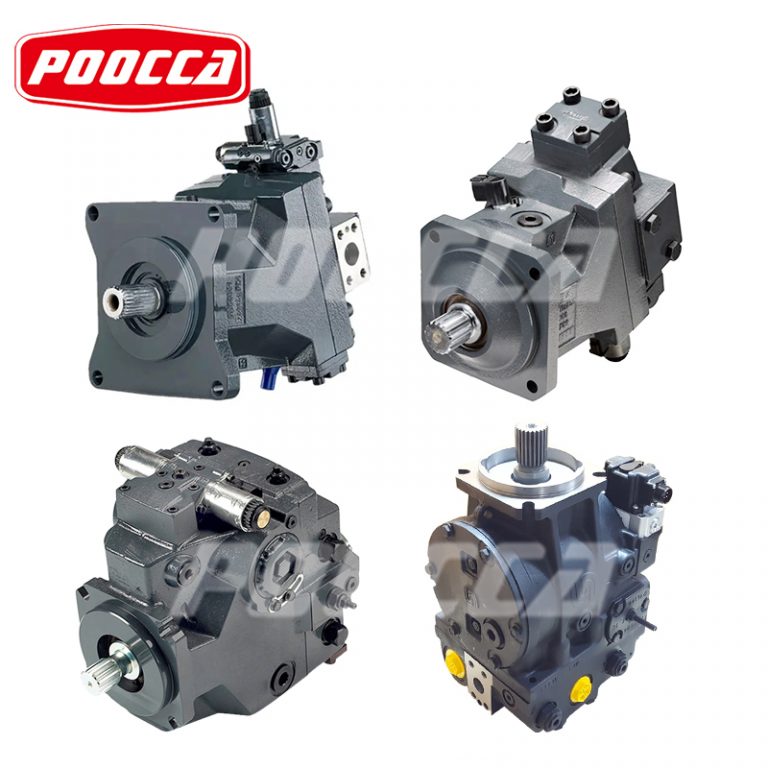

Danfoss H1B bent axis motor are available in H1B 060/080/110/160/210/250 models. Designed to integrate with the H1 axial piston pump, they feature proven 32-degree tilt-axis technology, zero-degree functionality and improved efficiency.

Chat Now

Characteristic

Maximum pressure: The balanced 450 bar incremental pressure enables you to operate your machine at high power, thus increasing efficiency.

Shortest unit length on the market: The H1 bent axis motor has the shortest unit length in its class.

Quality: Only IP67 and IP69K rated electrical components are integrated and meet the quality requirements of 250 DPM. You can trust the H1 bent axis motors from Poocca Motors.

Efficiency: The H1B bent axis motor design minimizes control losses and increases efficiency. Due to the inclusion of minimal dead volumes and flow-optimized end caps as well as valve sections.

Robustness: The one-piece housing and minimized case pressure ensure that your machine operates with the highest robustness. The robust synchronous joint increases dynamic torque capabilities.

Optimum maintainability: With the universal design of the H1 series, external shaft seal accessibility and built-in flexibility. This means that replacements and conversions can be done easily and quickly, simplifying the operation of your machine.

Easy conversion: Each controller supports all sizes of H1B motors, simplifying motor conversion.

H1B Motor Parameter

Features		Unit	H1B Size
Features		Unit	060	080	110	160	210	250
Displacement	maximum	cm3 [in3]	60 [3.66]	80 [4.88]	110 [6.71]	160 [9.76]	210 [12.81]	250 [15.25]
Displacement	minimum	cm3 [in3]	12 [0.73]	16 [0.98]	22 [1.34]	32 [1.95]	42 [2.56]	50 [3.05]
Theoretical flow at max. displ.	at rated speed	l/min [USgal/min]	216 [57]	256 [68]	319 [84]	416 [110]	504 [133]	550 [145]
Theoretical flow at max. displ.	at max. speed	l/min [USgal/min]	270 [71]	328 [87]	407 [108]	528 [139]	630 [166]	700 [185]
Theoretical torque at max. displacement		N•m/bar [lb•in/1000 psi]	0.96 [583]	1.27 [777]	1.75 [1069]	2.55 [1555]	3.34 [2038]	3.98 [2426]
Theor. corner power at rated speed and max. working pressure (∆p = 450 bar [6527 psi])		kW [hp]	266 [357]	321 [430]	396 [531]	513 [689]	609 [817]	684 [917]
Mass moment of inertia of rotating components		kg•m2 [slug•ft2]	0.0038 [0.0028]	0.0062 [0.0046]	0.0108 [0.0080]	0.0211 [0.0156]	0.0306 [0.0226]	0.0402 [0.0296]
Case volume		l [USgal]	0.9 [0.24]	1.0 [0.26]	1.4 [0.37]	2.7 [0.71]	2.8 [0.74]	4.1 [1.08]

Weight dry (Electric proportional control)

Configuration	Size
Configuration	060	080	110	160	210	250
SAE	29.8 kg [65.7 lb]	34.8 kg [76.7 lb]	48.8 kg [107.6 lb]	61.9 kg [136.5 lb]	81.0 kg [179 lb]	87.0 kg [196.2 lb]
DIN	28.3 kg [62.4 lb]	34.4 kg [75.8 lb]	45.0 kg [99.2 lb]	59.3 kg [130.7 lb]	75.0 kg [165 lb]	79.6 kg [175.5 lb]
Cartridge	26.9 kg [59.3 lb]	33.0 kg [72.6 lb]	41.8 kg [92.2 lb]	54.7 kg [120.6 lb]		–

Mounting flange

Configuration	Size
Configuration	060	080	110	160	210	250
SAE ISO 3019/1	127-4 (SAEC) 4-bolt		152-4 (SAE-D) 4-bolt		165-4 (SAE E)
DIN ISO 3019/2, B4	125 HL 4-bolt	140 HL 4-bolt	160 HL 4-bolt	180 HL 4-bolt	200 HL 4-bolt	200 HL 4-bolt
Cartridge	Pilot Ø160 mm 2-bolt (200 dist.) M16	Pilot Ø190 mm 2-bolt (224 dist.) M20	Pilot Ø200 mm 2-bolt (250 dist.) M20

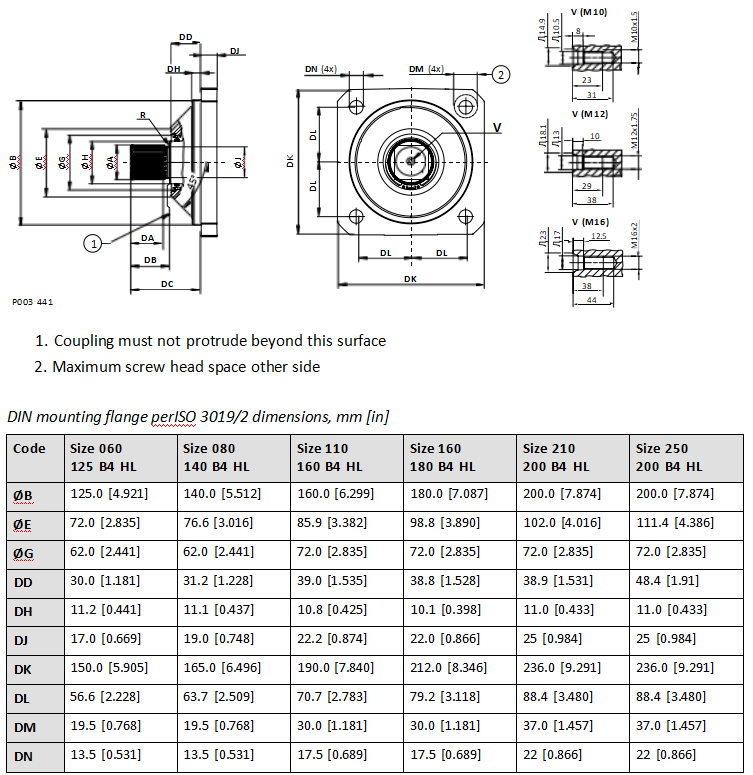

Dimension
