The Eaton VIS40 motor is equipped with a Geroler element with 8 different displacements.
It provides a continuous flow of 151 l/min (40 GPM) and an intermittent flow of 170 l/min (45 GPM).
The VIS motor can run at speeds up to 454 RPM.
Please contact the POOCCA hydraulic manufacturer for requirements.

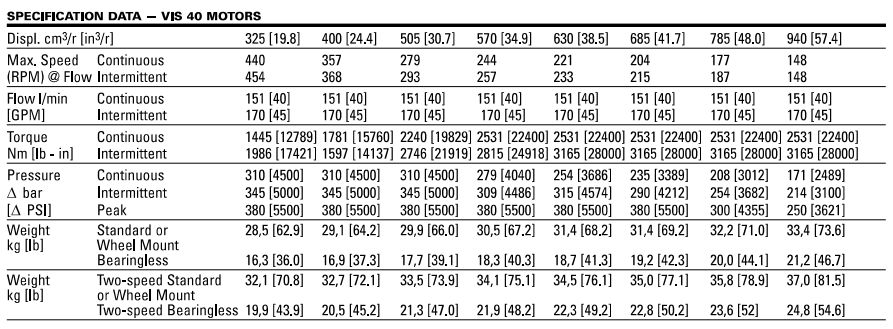

1.The VIS 40 motor is very similar in size to the VIS 30, but offers greater torque capacity due to its enhanced drivetrain strength. Pressure capabilities include a continuous pressure rating of 310 bar (4500 PSI), intermittent pressure of 345 bar (5000 PSI), and peak pressure of 380 bar (5500 PSI). In terms of torque, the VIS 40 offers 2531 Nm (22400 lb-in) continuous torque and 3165 Nm (28000 lb-in) intermittent torque.
2.The VIS 40 motor has a maximum continuous output torque of 2531 Nm (22400 lb-in) and is available in displacements ranging from 505cc to 940cc per revolution. The motor can operate at speeds up to 151 LPM (40 GPM) and has a maximum pressure capability of 310 bar (4500 PSI).
3.The Eaton VIS 40 motor features patented VIS technology with high-strength gear rollers, optimized drive geometry, and a two-piece preload balance plate for improved starting efficiency, reduced leakage, and increased backpressure capability.
4.The Eaton VIS 40 hydraulic motor offers a variety of configuration options, including dual speed selection, braking capabilities, and case flow options for closed and open loop applications.
Eaton VIS 40 motor maximum inlet pressure 400bar {5800 PSI}
Casing pressure: minimum – no pressure
Maximum pressure 3.5bar {50PSI}
Recommended fluid: high-quality anti-wear hydraulic oil with a viscosity of not less than 70SUS at operating temperature

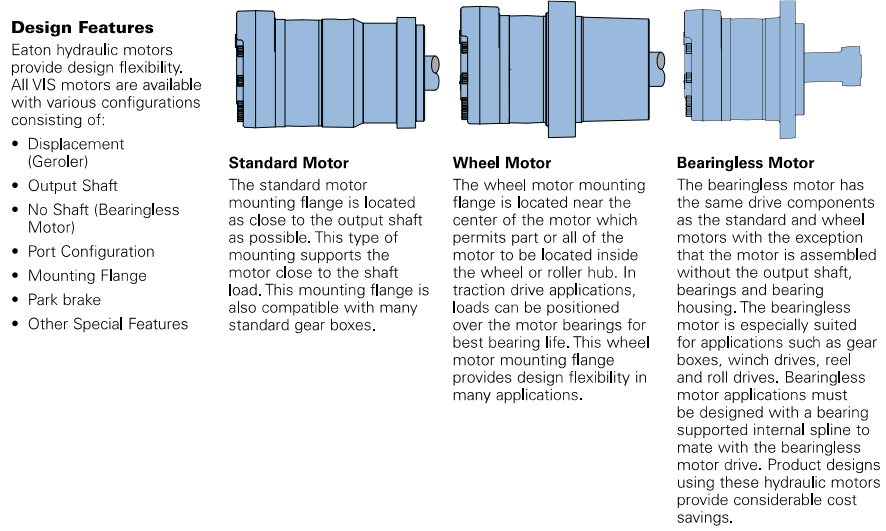

POOCCA Hydraulic Manufacturers offer design flexibility, all VIS motors have various configurations, including: standard motors, orbital motors, bearingless motors. Please send us your shopping list if you have any requirements.
Poocca Hydraulics specializes in a wide range of hydraulic products, including gear pumps, piston pumps, motors, vane pumps, hydraulic valves, hydraulic accessories, power units, and sensors. With over 1,600 products, we can meet the needs of a wide range of applications.
Our standard products are usually in stock and available for immediate delivery. We also offer custom options that allow you to customize the size, nameplate, and packaging to your specific requirements. Whether you need a standard solution or a custom-designed product, Poocca can provide a reliable and efficient solution for your hydraulic needs.
If you need more information, please feel free to ask!
1.The VIS 40 motor is very similar in size to the VIS 30, but offers greater torque capacity due to its enhanced drivetrain strength. Pressure capabilities include a continuous pressure rating of 310 bar (4500 PSI), intermittent pressure of 345 bar (5000 PSI), and peak pressure of 380 bar (5500 PSI). In terms of torque, the VIS 40 offers 2531 Nm (22400 lb-in) continuous torque and 3165 Nm (28000 lb-in) intermittent torque.
2.The VIS 40 motor has a maximum continuous output torque of 2531 Nm (22400 lb-in) and is available in displacements ranging from 505cc to 940cc per revolution. The motor can operate at speeds up to 151 LPM (40 GPM) and has a maximum pressure capability of 310 bar (4500 PSI).
3.The Eaton VIS 40 motor features patented VIS technology with high-strength gear rollers, optimized drive geometry, and a two-piece preload balance plate for improved starting efficiency, reduced leakage, and increased backpressure capability.
4.The Eaton VIS 40 hydraulic motor offers a variety of configuration options, including dual speed selection, braking capabilities, and case flow options for closed and open loop applications.
Eaton VIS 40 motor maximum inlet pressure 400bar {5800 PSI}
Casing pressure: minimum – no pressure
Maximum pressure 3.5bar {50PSI}
Recommended fluid: high-quality anti-wear hydraulic oil with a viscosity of not less than 70SUS at operating temperature
POOCCA Hydraulic Manufacturers offer design flexibility, all VIS motors have various configurations, including: standard motors, orbital motors, bearingless motors. Please send us your shopping list if you have any requirements.
Poocca Hydraulics specializes in a wide range of hydraulic products, including gear pumps, piston pumps, motors, vane pumps, hydraulic valves, hydraulic accessories, power units, and sensors. With over 1,600 products, we can meet the needs of a wide range of applications.
Our standard products are usually in stock and available for immediate delivery. We also offer custom options that allow you to customize the size, nameplate, and packaging to your specific requirements. Whether you need a standard solution or a custom-designed product, Poocca can provide a reliable and efficient solution for your hydraulic needs.
If you need more information, please feel free to ask!
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
